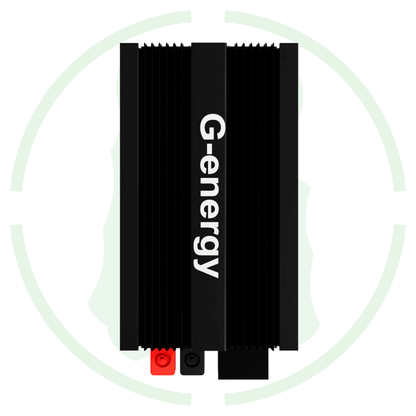

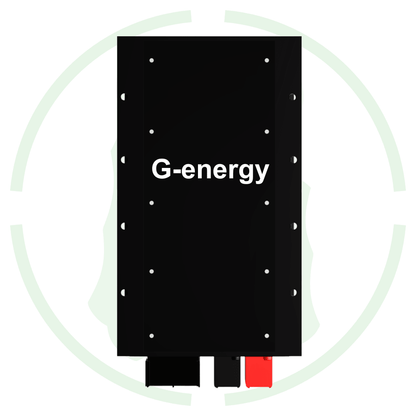

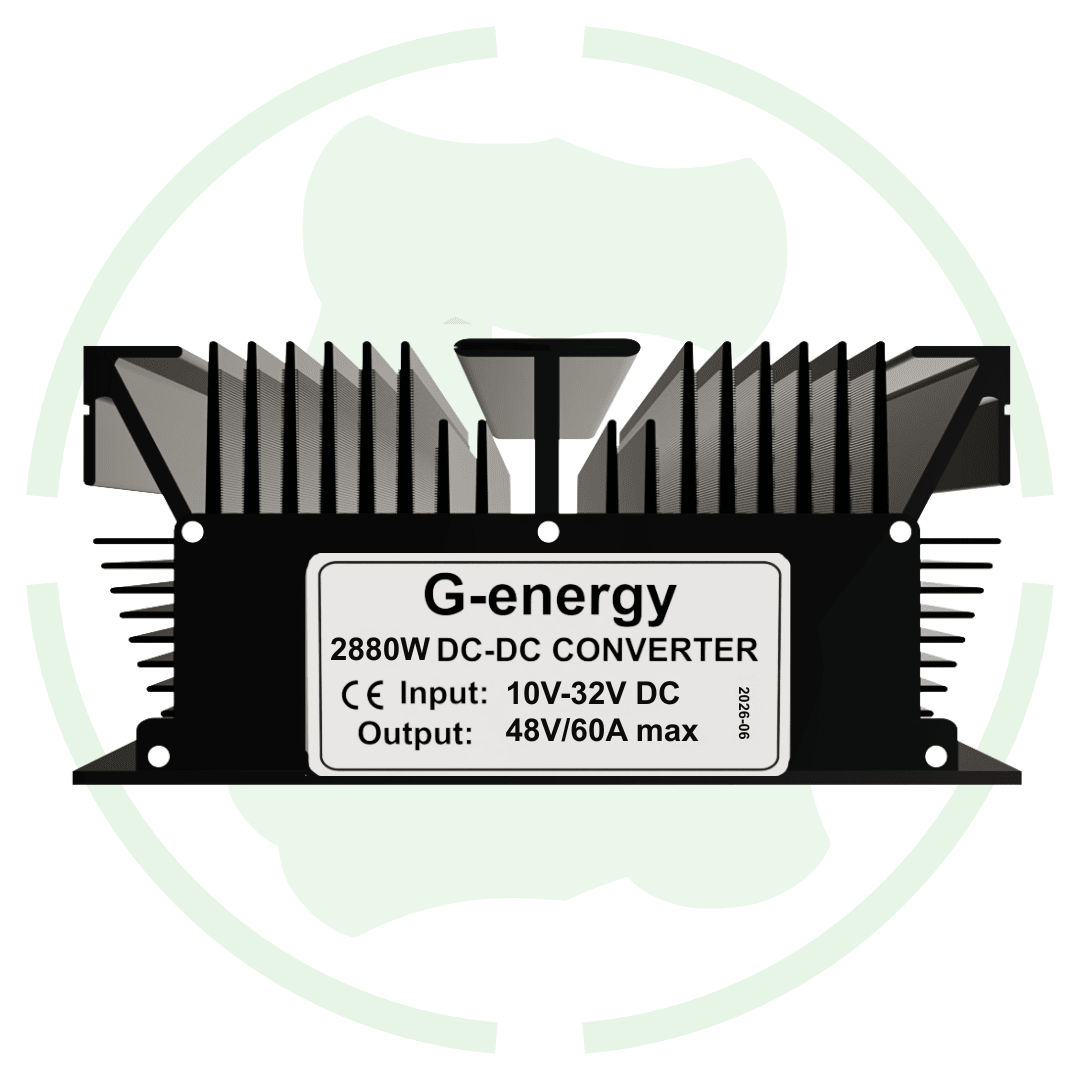

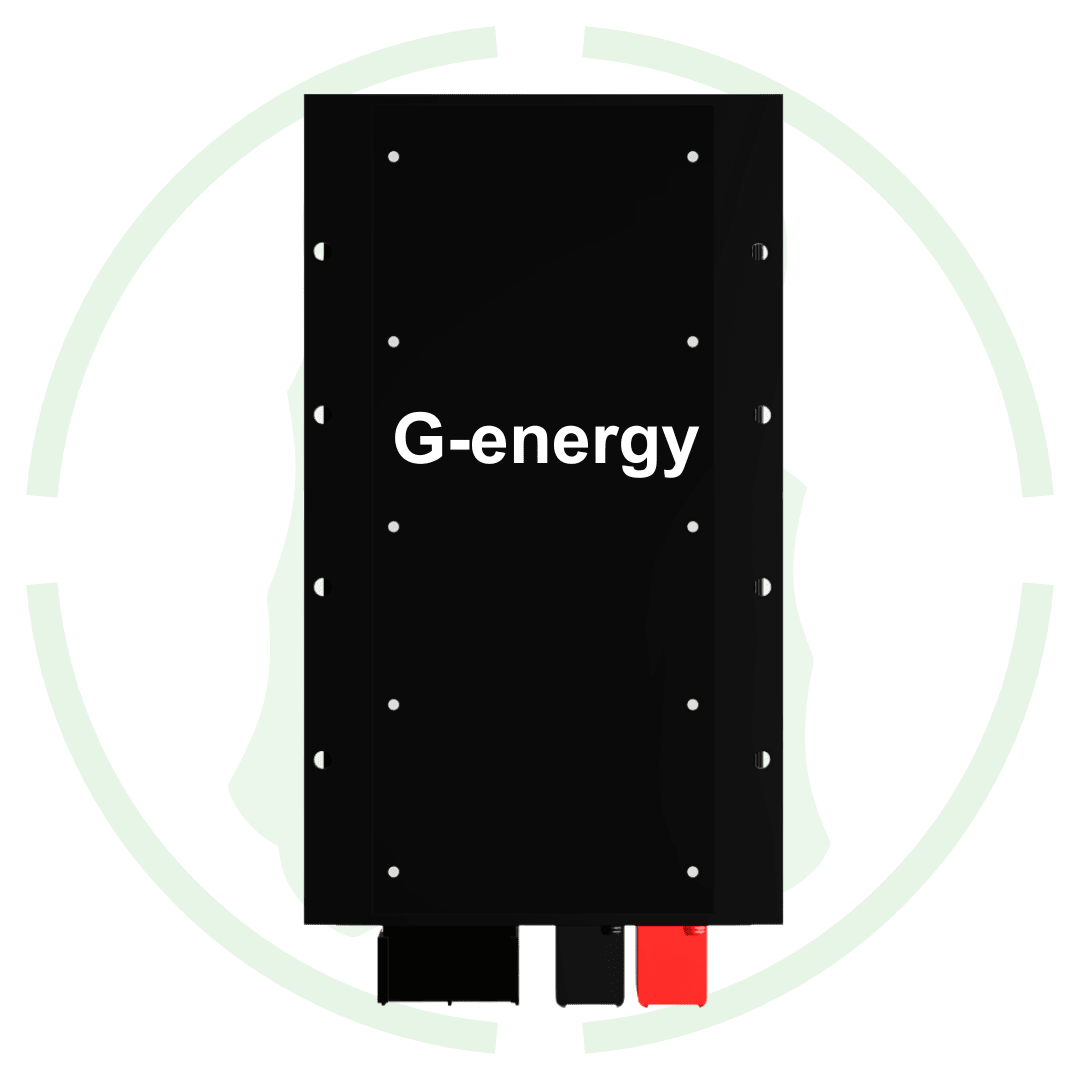

12V To 48V 60A 2880W Dc Dc Converter GEMSUS124860 Ip68 Boost Module

Overview of this 12V To 48V 60A 2880W Dc Dc Converter GEMSUS124860 Ip68 Boost Module

Introducing G-energy 12v to 48v 60a 2880w dc dc converter GEMSUS124860 Ip68 boost module at best price in India. This voltage converter work in 11-35v dc input voltage and provide a fix 48v dc output voltage. It also provide a high dc power up to 2880w with 60a max dc current.

Features

High power capacity: This converter can provide a high dc power up to 2880w with a 60a dc current and make it best choice for high power setups.

48V stable output: It also provide a 48v stable dc output for stable dc operations working on 48v input.

Advance technology: It is built with latest synchronous rectification technology and high quality built material for its high energy conversion efficiency and stable operations.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 11V – 35V DC

2. Rated Input Voltage: 12V 24V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 60A

5. Maximum Output Power: 2880W

6. Efficiency (Typical): Up to 95%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 12/24V input

🌡 Environmental Specifications

1. Operating Temperature Range: -40°C to +80°C
2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

🛡 Protections and Features

1. Protections Included:

2. • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

3. Smart Chip Protection: Yes

4. Synchronous Rectification Technology: Yes

5. Non-Isolated Converter: Yes

📦 Mechanical & Physical

1. Dimensions: 74x74x32 mm
2. Weight: 250 gm

3. Cooling Method: Free air convection (no fan required)
