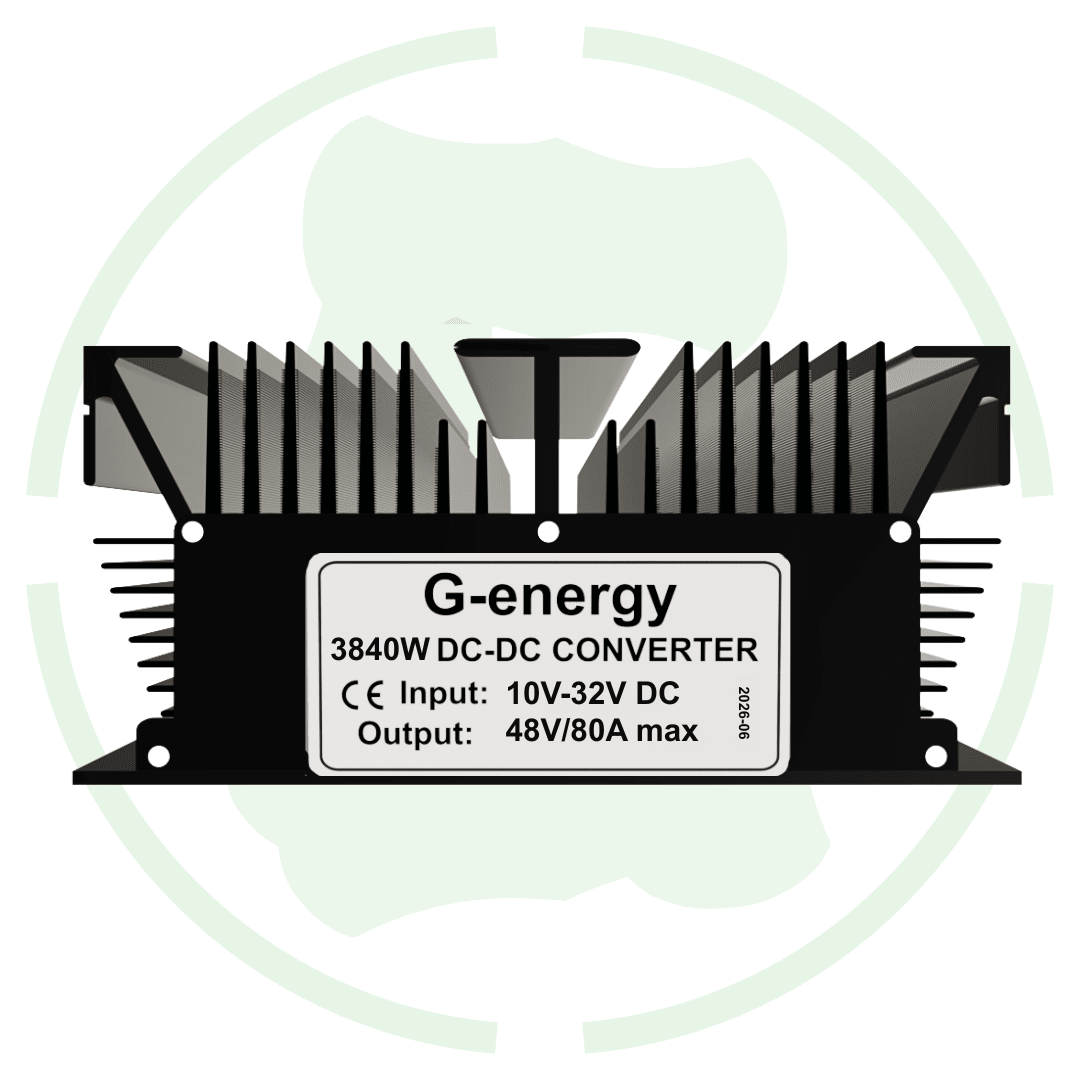

12V To 48V 80A 3840W Dc Dc Converter Ip68 GEMSUS124880 Boost Module

Overview of this 12V To 48V 80A 3840W Dc Dc Converter Ip68 GEMSUS124880 Boost Module

Introducing 12v to 48v 80a 3840w dc dc converter Ip68 GEMSUS124880 boost module at best price in India. This dc converter work on input voltage of 10v to 32v dc input and provide a fix 48v dc output. It is also built with synchronous rectification technology to provide a high conversion efficiency of 95% energy conversion.

Features

Stable 48v output: This dc converter provide a fix 48v dc output and maintain a smooth and stable operation.

High current capacity: It also provide a high dc current up to 80a and max dc power up to 3840w dc power for high power demanding operations.

High quality built: It is also built with high quality aluminum metal built to make it operation in rough industrial conditions.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 10V – 32V DC

2. Rated Input Voltage: 12V 24V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 80A

5. Maximum Output Power: 3840W

6. Efficiency (Typical): Up to 95%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 12/24V input

🌡 Environmental Specifications

1. Operating Temperature Range: -40°C to +80°C
2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

🛡 Protections and Features

1. Protections Included:

2. • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

3. Smart Chip Protection: Yes

4. Synchronous Rectification Technology: Yes

5. Non-Isolated Converter: Yes

📦 Mechanical & Physical

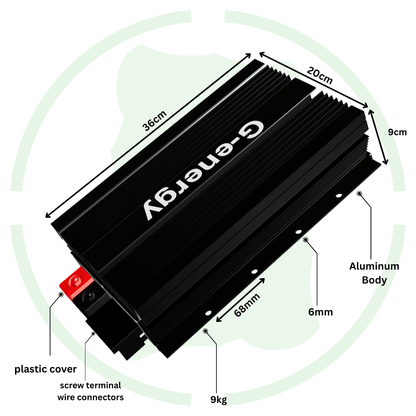

1. Dimensions: 36x20x9 cm
2. Weight: 9 kg

3. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSUS124880 12V To 48V 80A 3840W Dc Dc Converter Ip68 Boost Module
