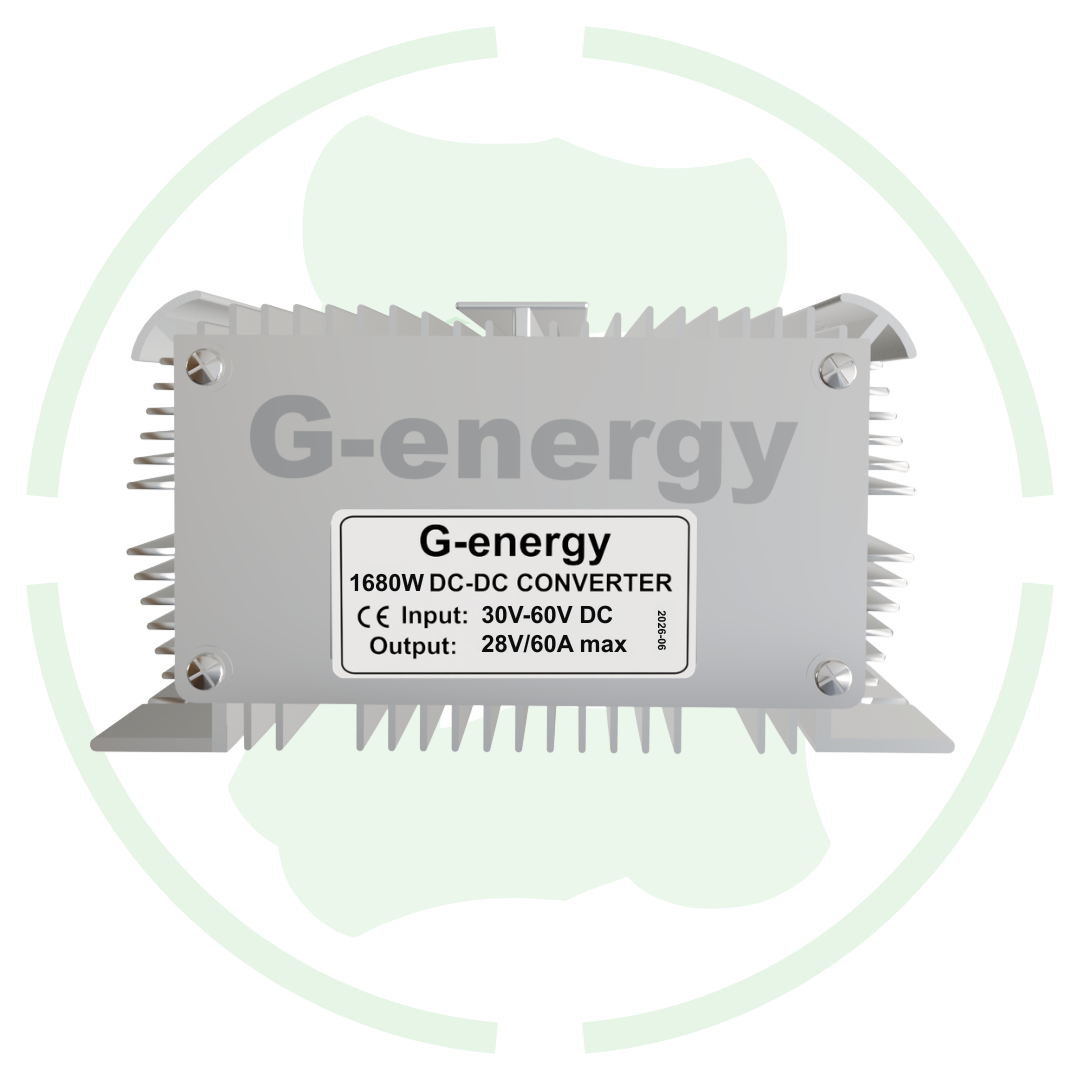

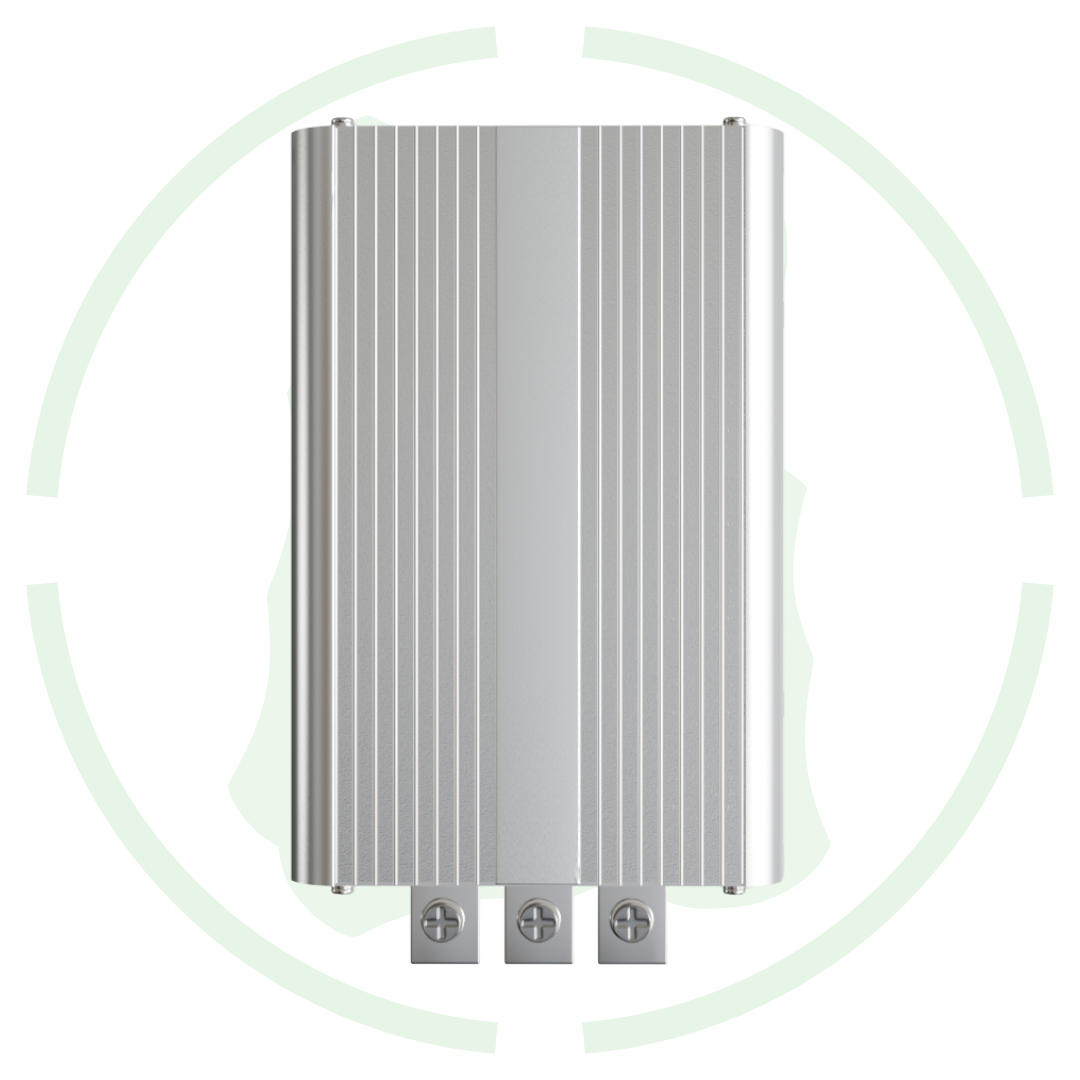

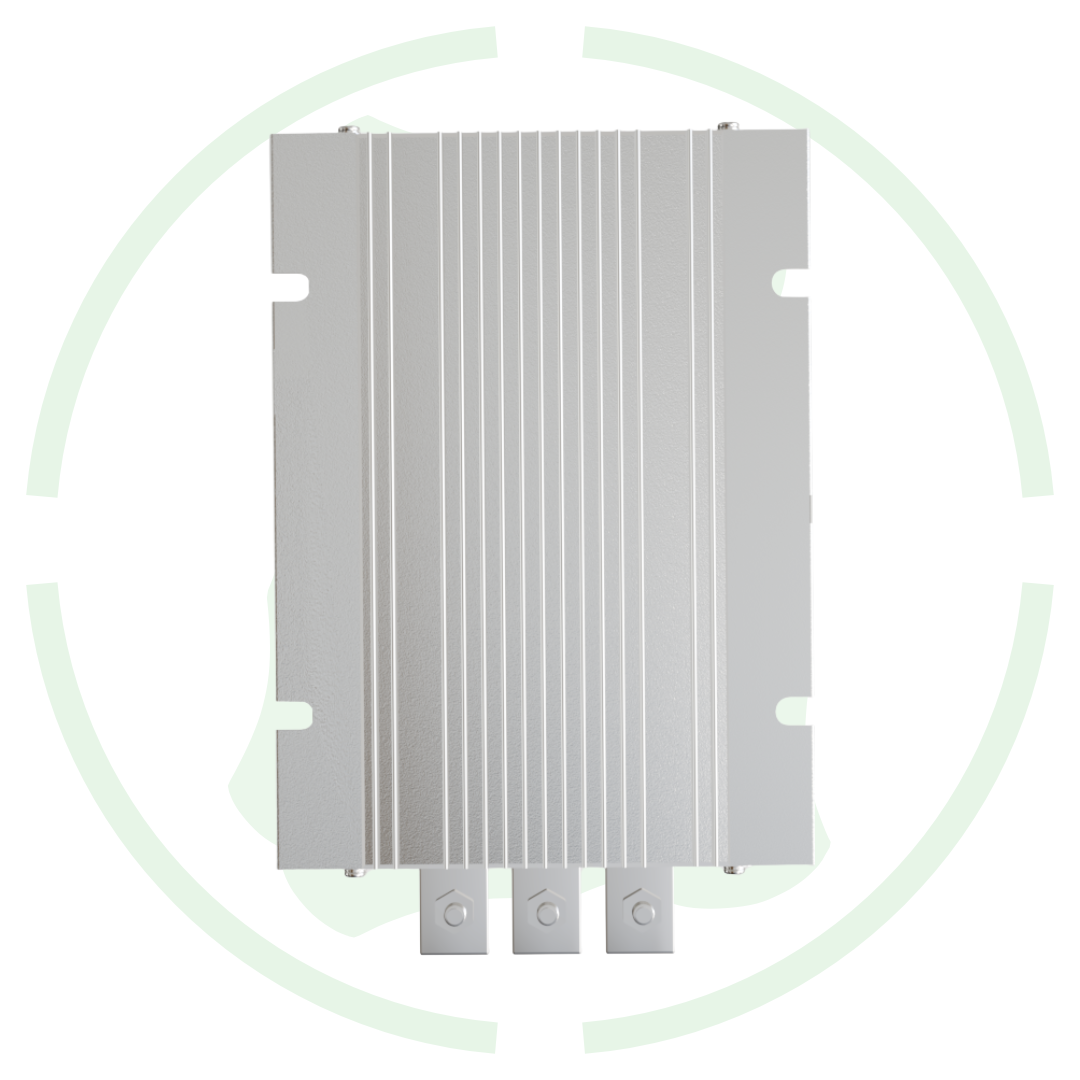

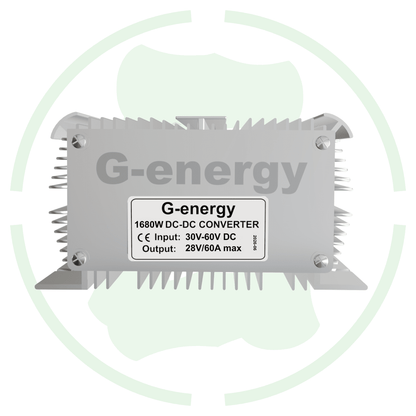

48V To 28V 60A 1680W Dc To Dc Converter GEMSDS482860 Ip68 Buck Converter Module

Overview of this 48V To 28V 60A 1680W Dc To Dc Converter

Introducing G-energy 48v to 28v 60a 1680w dc to dc converter GEMSDS482860 Ip68 buck converter module. This buck converter work on input voltage of 30v to 60v dc input and provide a fix 28v dc output. It also provide a high dc current up to 60a and 1680w dc power.

Features

High quality built: It is also built with high quality aluminum body for its use in rough and tough conditions.

Input Voltage: It has wide input voltage of 30v to 60v to make it operation at multiple input condition.

High power: It provide a high dc power up to 1680w dc power and 60a max dc current for high power demanding devices.

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 28V DC

4. Maximum Output Current: 60A

5. Maximum Output Power: 1680W

6. Efficiency (Typical): Up to 90%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 22mA @ 48V input

🌡 Environmental Specifications

1. Operating Temperature Range: -40°C to +80°C
2. Storage Temperature Range: -40°C to +100°C
3. Humidity Range: 10% to 90% RH

🛡 Protections and Features

1. Protections Included:

   • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

2. Smart Chip Protection: Yes

3. Synchronous Rectification Technology: Yes

4. Non-Isolated Converter: Yes

📦 Mechanical & Physical

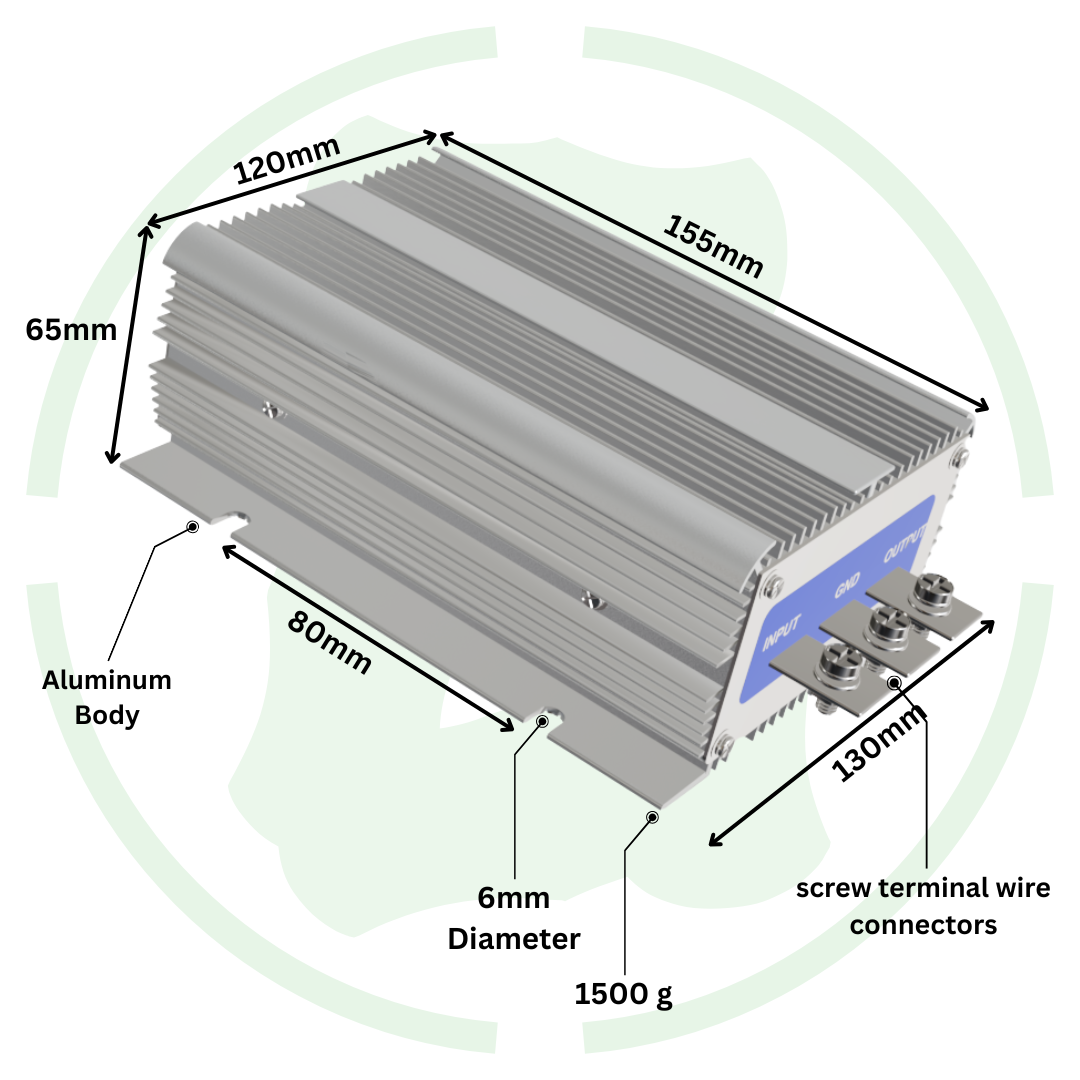

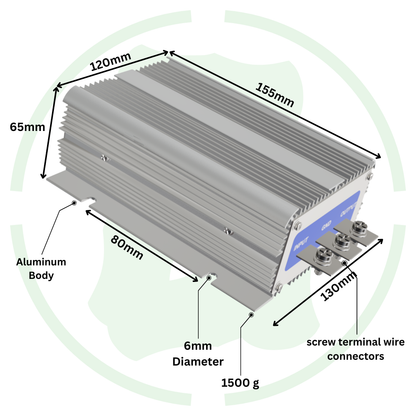

1. Dimensions: 155x130x65 mm
2. Weight: 1500 g
3. Cooling Method: Free air convection (no fan required)
