48V To 3.3V 10A 33W Dc Dc Converter GEMSD483-310 IP68 Buck Module

Overview of this 48v to 3.3v 10a 33w dc dc converter GEMSD483-310 IP68 buck module

Introducing G-energy 48v to 3.3v 10a 33w dc dc converter GEMSD483-310 IP68 buck module at best price in India. This GEMSD483-310 buck converter module work on input voltage of 30v to 60v dc input and provide a fix 3.3v output. It also provide upto 10a dc current and 33w dc power.

Features

Ip68 body: It is built with ip68 rated waterproof body for smooth and stable operation under harsh and wet industrial condition.

Input voltage: It is built to work on 30v to 60v dc input voltage and provide a fix 3.3v output.

High efficiency: This 48v to 3.3v dc converter is built with synchronous rectification technology which make sure that this converter provide a high conversion efficiency up to 96.4% energy conversion.

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 3.3V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 33W

6. Efficiency (Typical): Up to 96.4%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

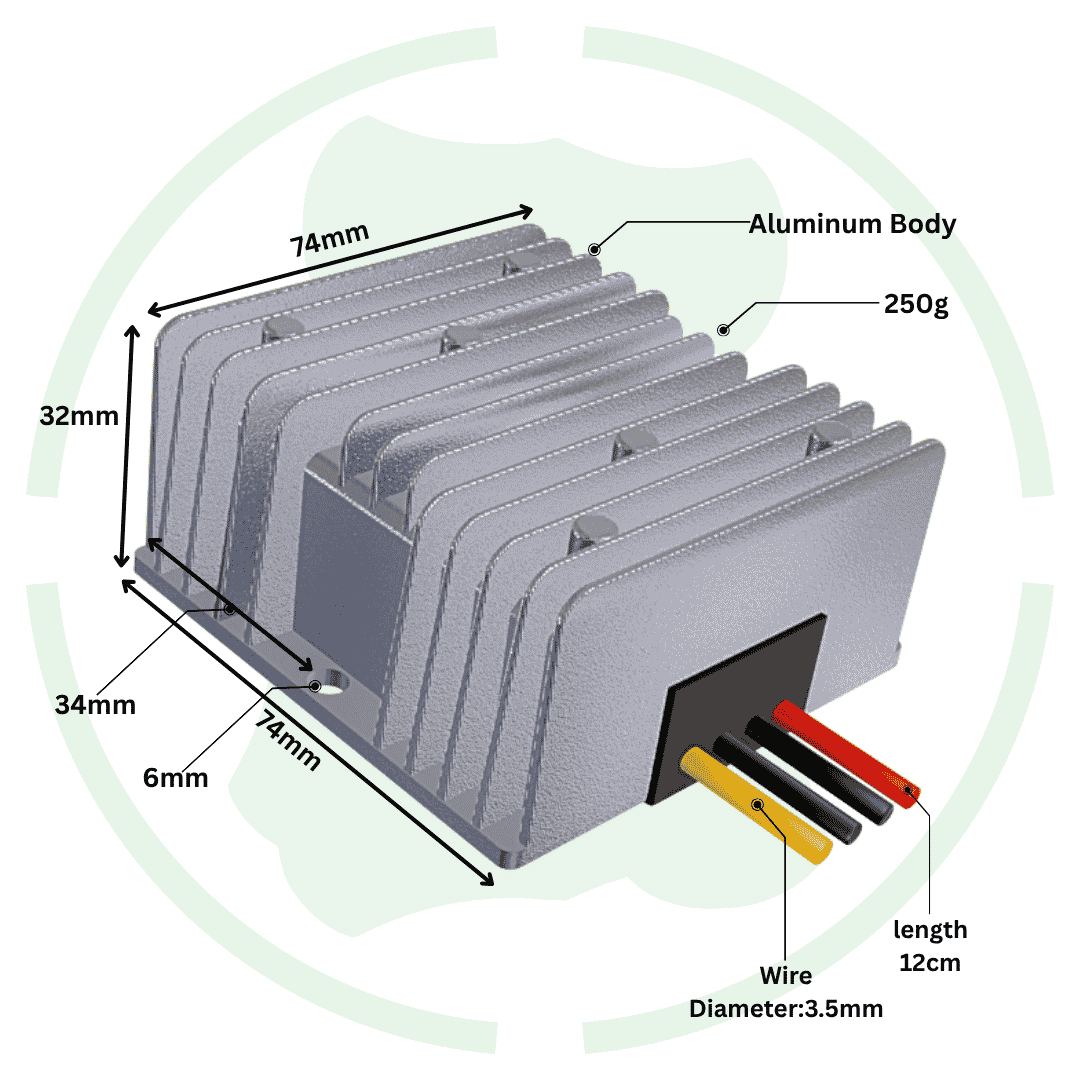

19. Dimensions: 74x74x32 mm

20. Weight: 250 gm

21. Cooling Method: Free air convection (no fan required)
