72V To 48V 2A 96W Dc To Dc Converter GEMSD724802 IP68 Buck Converter

Overview of this 72V To 48V 2A 96W Dc To Dc Converter

Introducing G-energy 72v to 48v 2a 96w dc to dc converter GEMSD724802 IP68 buck converter at best price in India with G-energy. This buck converter work on input voltage range of 30v to 90v and convert it to a fixed 48v dc output voltage. It also provide dc current up to 2A and 96w dc power.

Features

Input Voltage: This 72v to 48v dc converter work on 30v to 90v dc input voltage range for stable performance in changing input condition.

96W Power: It also provide a stable power of 96w for smooth operation for low power dc devices.

Ip68 water proofing: It is also built with ip68 rated metal body and epoxy coating for its water proofing and long life.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 90V DC

2. Rated Input Voltage: 36V 48V 60V 72V 90V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 2A

5. Maximum Output Power: 96W

6. Efficiency (Typical): Up to 96.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 60/72V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

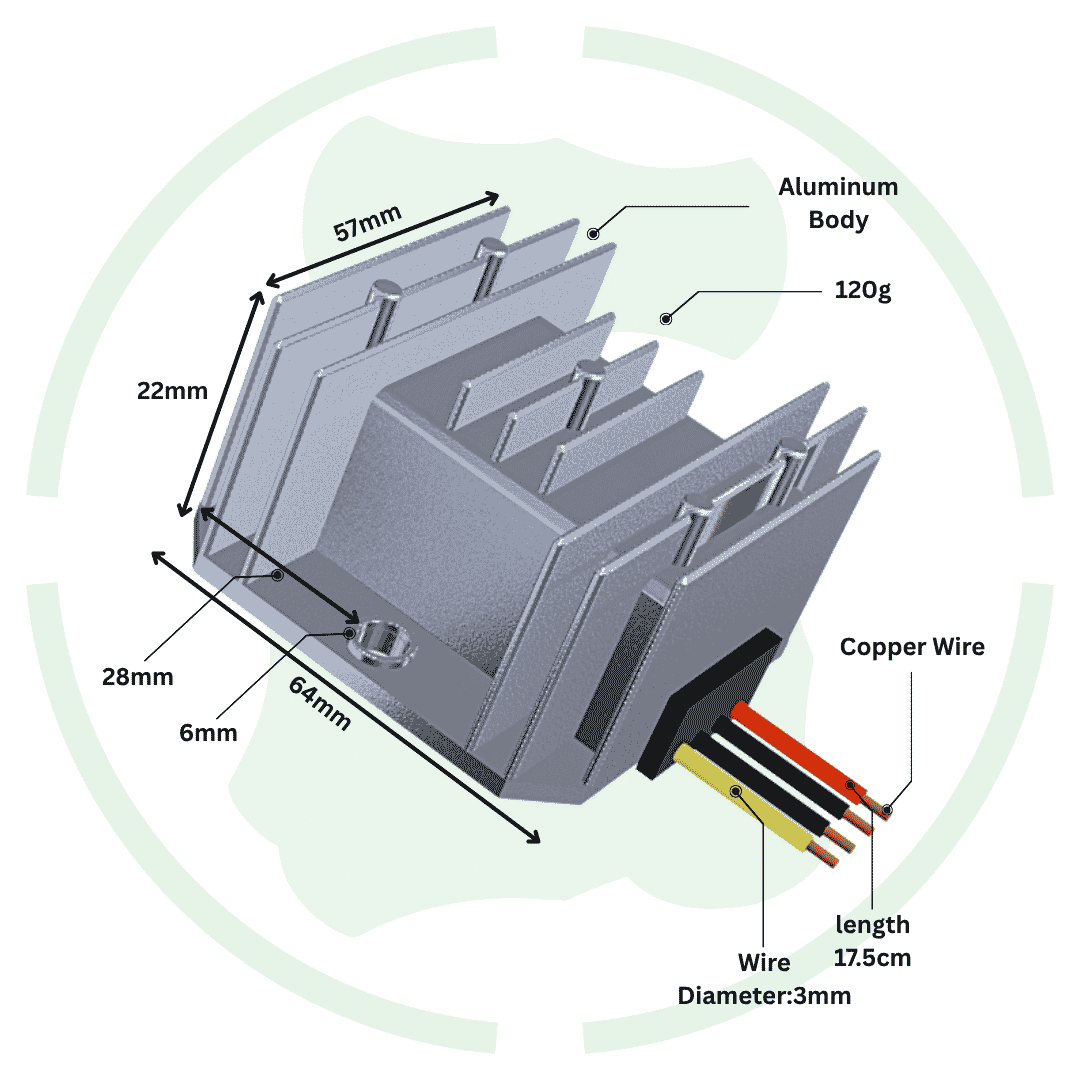

19. Dimensions: 64*57*22m

20. Weight: 120 gm

21. Cooling Method: Free air convection (no fan required)
