8-60V To 12V 3A 36W Dc To Dc Converter GEMUD8601203 IP68 Buck Boost Module

Overview of this 8-60V To 12V 3A 36W Dc To Dc Converter

Introducing G-energy GEMUD8601203 8-60v to 12v 3a 36w dc to dc converter ip68 waterproof buck converter module at best price in India with G-energy. This buck boost converter come with both function to step down or step up voltage. And it also provide a dc current up to 3a and 36w dc power.

Features

Input Voltage: This buck boost converter work on a wide input voltage of 8v to 60v dc input.

36W Dc Power: It also provide a fix 12v dc output with 3a dc current and 36w dc power.

High conversion efficiency: This converter provide a high conversion efficiency up to 96.5% energy conversion which make it ideal choice for energy efficient setups.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 8V – 60V DC

2. Rated Input Voltage: 12V 24V 36V 48V 60V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 3A

5. Maximum Output Power: 36W

6. Efficiency (Typical): Up to 96.5%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

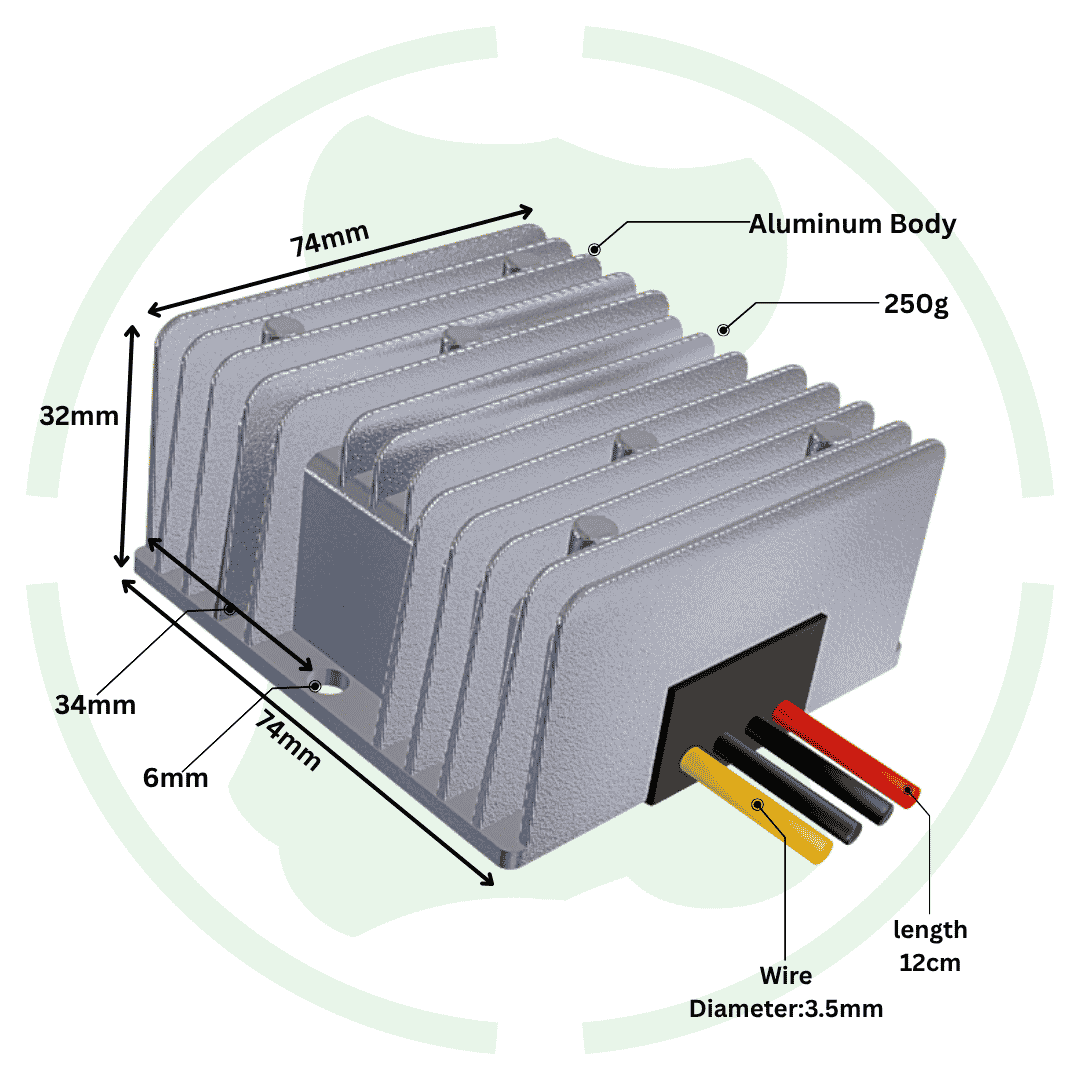

19. Dimensions: 74x74x32 mm

20. Weight: 250 gm

21. Cooling Method: Free air convection (no fan required)
