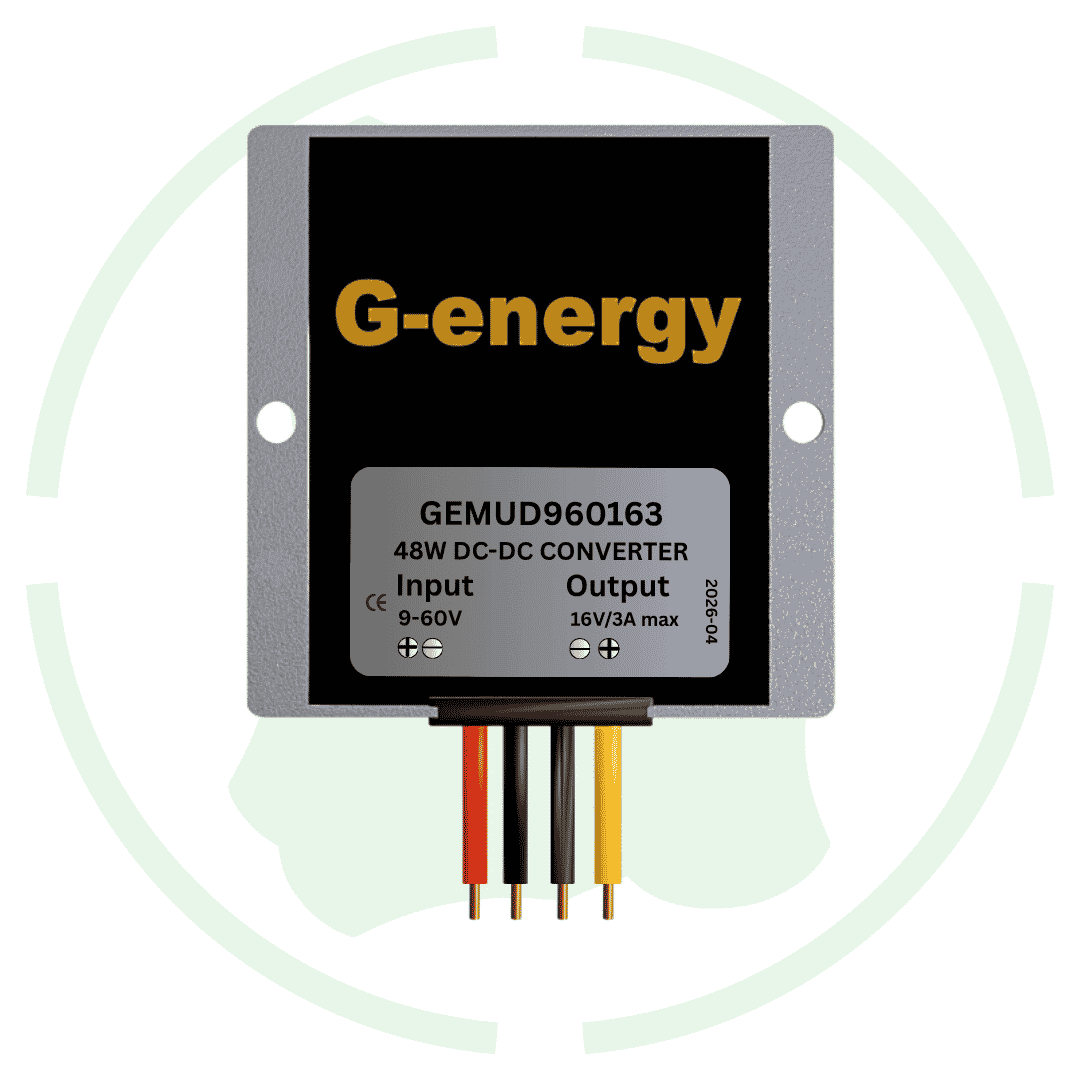

G-energy 12V 24V 48V 60V To 16V 3A 48W Dc Dc Converter GEMUD960163 Ip68 Waterproof Buck Boost Module

Overview of GEMUD960163 12V 24V 48V 60V To 16V 3A 48W Dc Dc Converter

Introducing G-energy 12v 24v 48v 60v to 16v 3a 48w dc dc converter GEMUD960163 Ip68 waterproof buck boost module. This buck boost converter work on a big dc input voltage range of 9v to 60v dc input voltage. And it provide a stable dc output voltage of 16v with 3a dc current.

Features

Input Voltage: It work on wide input voltage range of 9v to 60v dc input voltage for its use in big input voltage condition.

Fix 16V output: This buck boost converter provide a fix 16v dc output voltage for stable 16v dc operations.

Ip68 waterproof metal body: It is also built with ip68 rated waterproof metal body for smooth and stable performance under harsh conditions.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 9V-60V DC

2. Rated Input Voltage: 12V 36V 48V 60V DC

3. Output Voltage: 16V DC

4. Maximum Output Current: 3A

5. Maximum Output Power: 48W

6. Efficiency (Typical): Up to 97.5%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 30mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

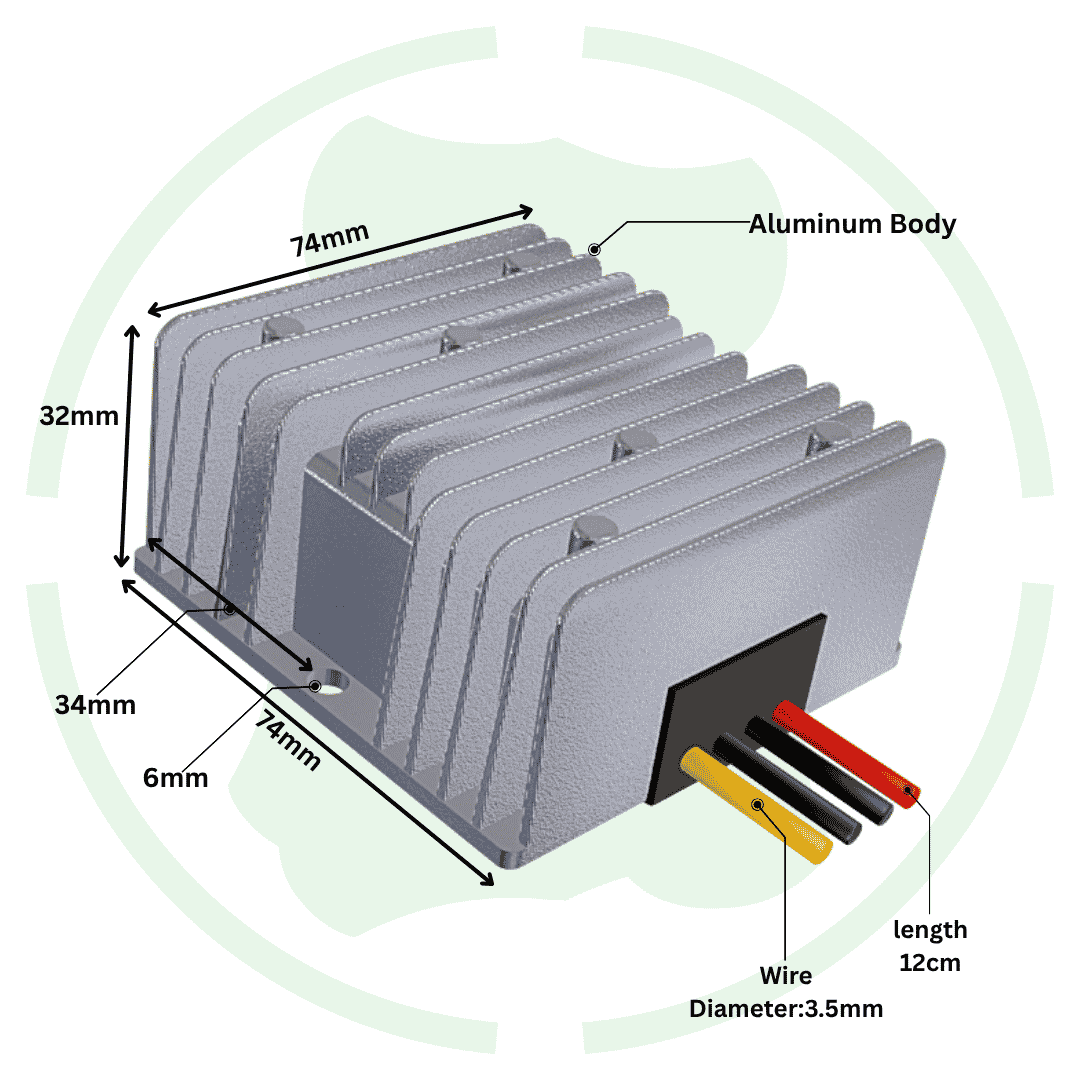

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)
