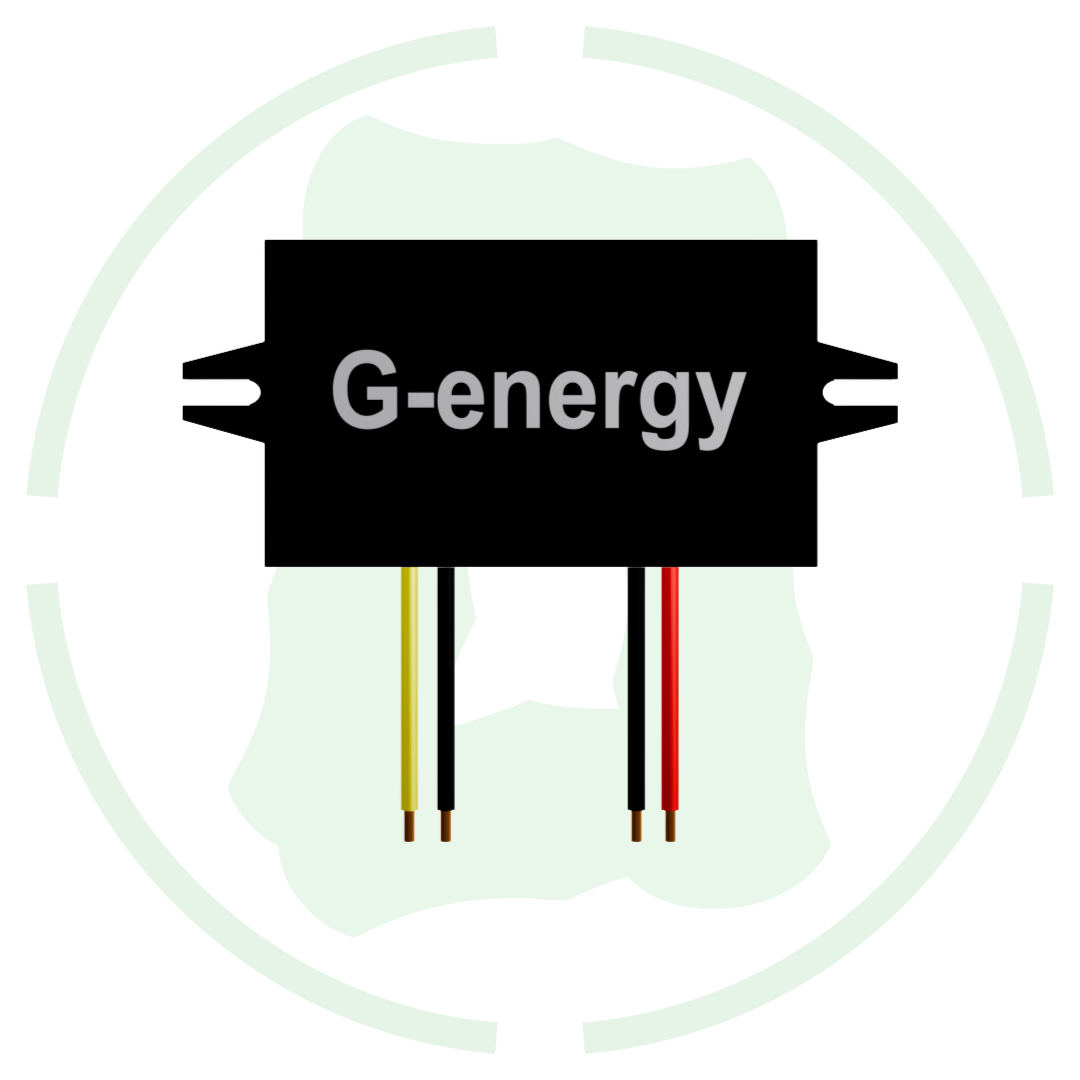

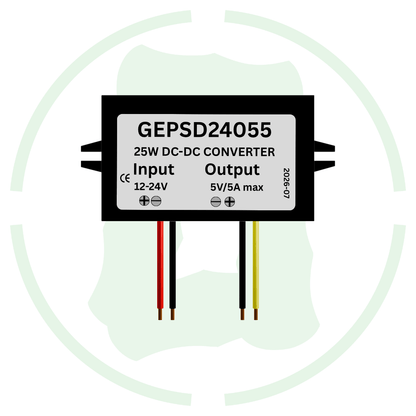

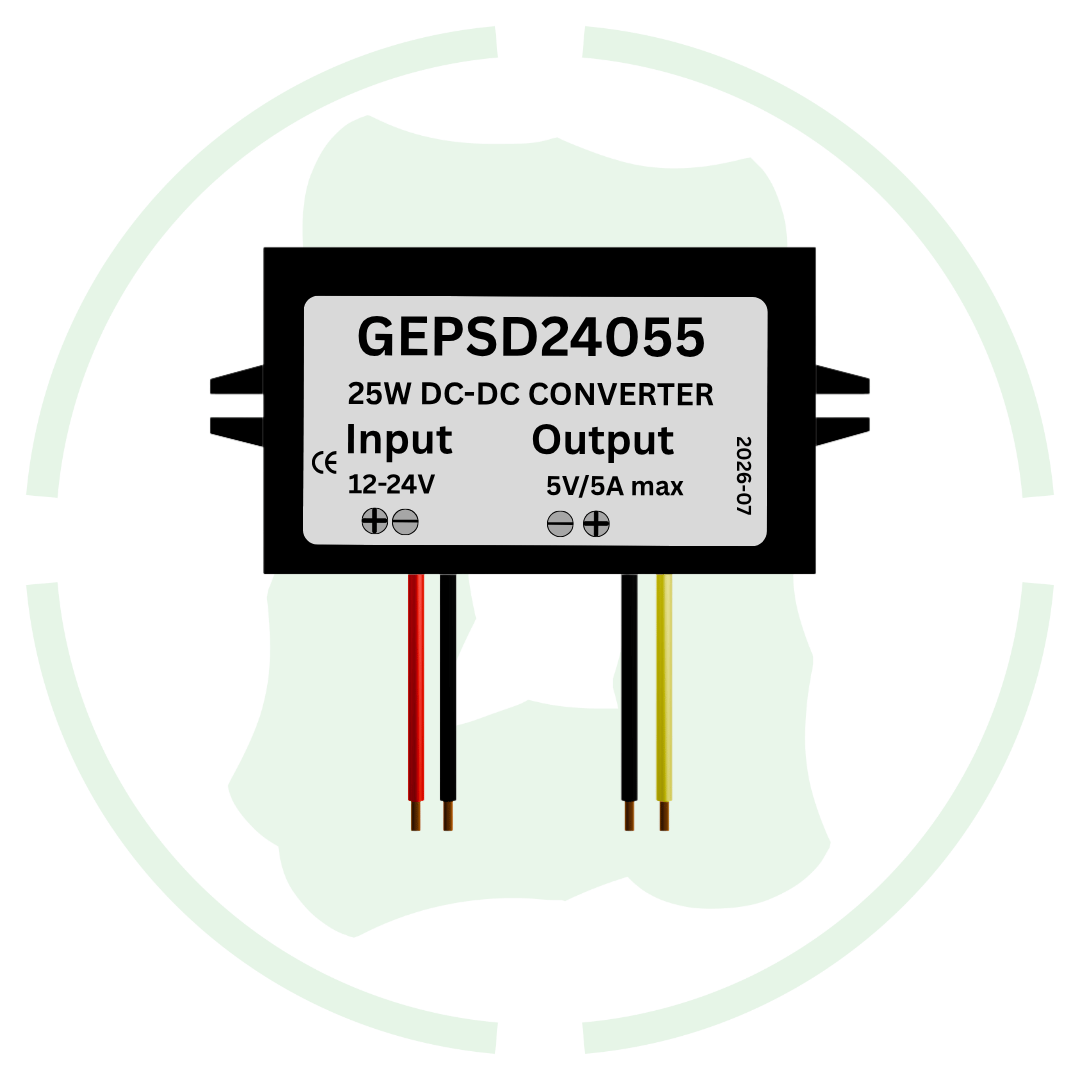

G-energy 12V 24V To 5V 5A 25W Dc To Dc Converter GEPSD24055 Ip68 Buck Converter

Overview of this G-energy 12v 24v to 5v 5a 25w dc to dc converter GEPSD24055 ip68 buck converter

Introducing G-energy 12v 24v to 5v 5a 25w dc to dc converter Ip68 buck converter at best price India. This voltage converter work on input voltage of 9V to 36V input voltage and provide a fix 5v dc output. It is also built with ip68 waterproof plastic body for its use in wet and harsh industrial condition.

Features

Wide input voltage: It operate on big input range of 9v to 36v dc input for its use in changing input voltage.

25W Power: It can also provide smooth & stable power up to 25w with up to 5a max dc current.

Ip68 Plastic body: it is also built with high quality plastic and ip68 rated waterproofing for converter safety and smooth operation.

Specification

• Input Voltage Range: 9V – 36V DC

• Output Voltage: 5V DC

• Output Current: 5A

• Output Power: 25W

• Conversion Efficiency: 94.4%

• Ripple: ≤50mV

• No-load Current: ≤10mA

• IP Rating: IP68 (Water proof & Dust proof)

• Protection Features:

  • Short Circuit Protection: Yes

  • Under-voltage Protection: Yes

  • Over-Load Protection: Yes

• Operating Temperature: -40°C to +80°C

• Cooling Method: Natural air cooling

• Material: Abs plastic housing

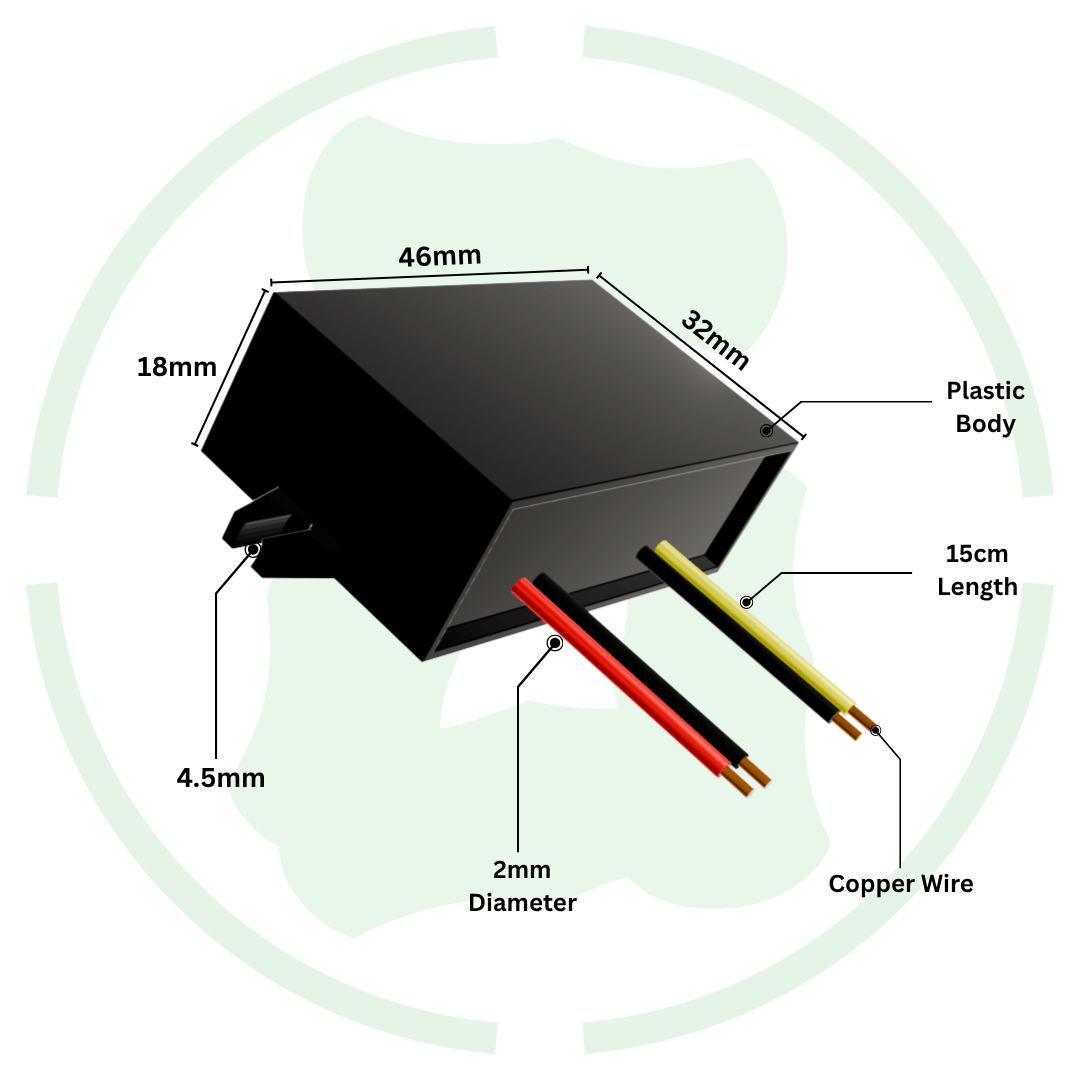

• Dimensions: 46 × 32 × 18 mm

• Weight: 60g
