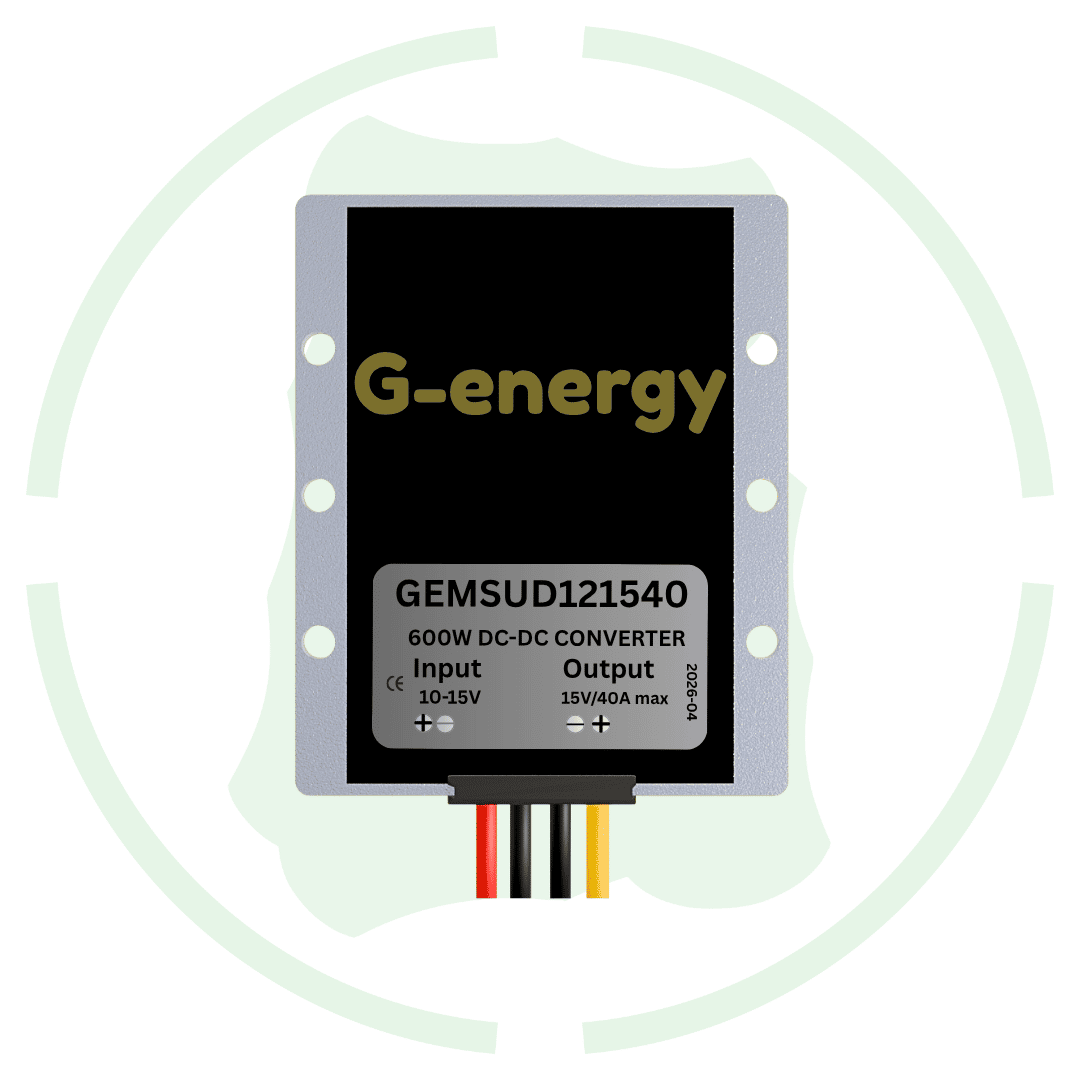

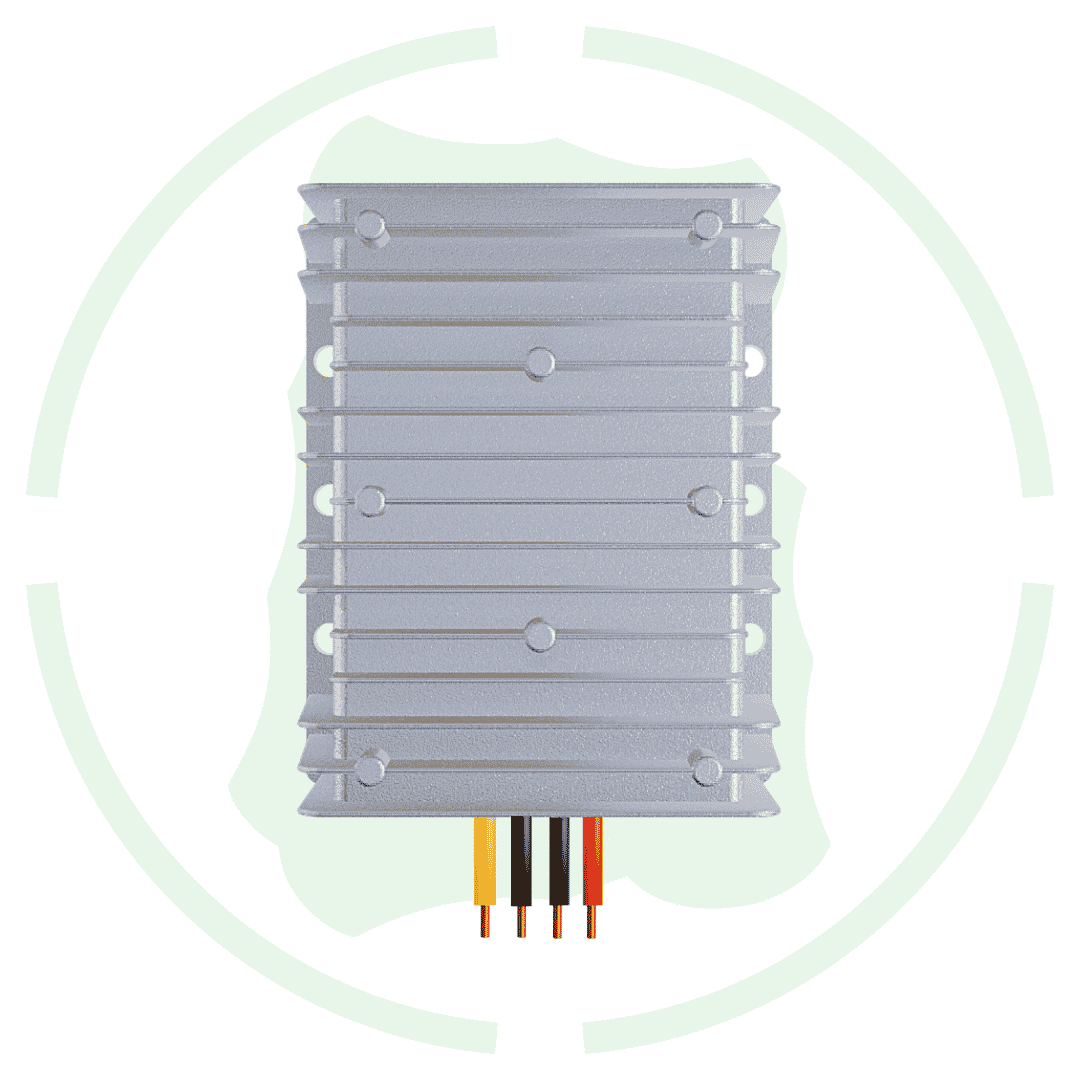

G-energy 12V To 15V Dc Converter 40A 600W GEMSUD121540 Boost Module

Overview of this GEMSUD121540 12V To 15V Dc Converter 40A 600W Buck Boost Module

Introducing g-energy GEMSUD121540 12V to 15V 40A 600W dc dc converter ip68 waterproof buck boost converter at best price in India. This buck boost converter work on input voltage range of 9V to 15v and provide a ix 15V dc output voltage. It also provide a high dc current up to 40A and 600w power.

Features

600W High Power: It also provide high dc power up to 600W with 40A dc current.

15V Stable output voltage: It provide a fix 15v dc output voltage from 10-15v dc input voltage.

Ip68 waterproof body: It also come with Ip68 rated waterproof body for its use in hars wet industrial condition.

Specification

🔧 Electrical Specifications

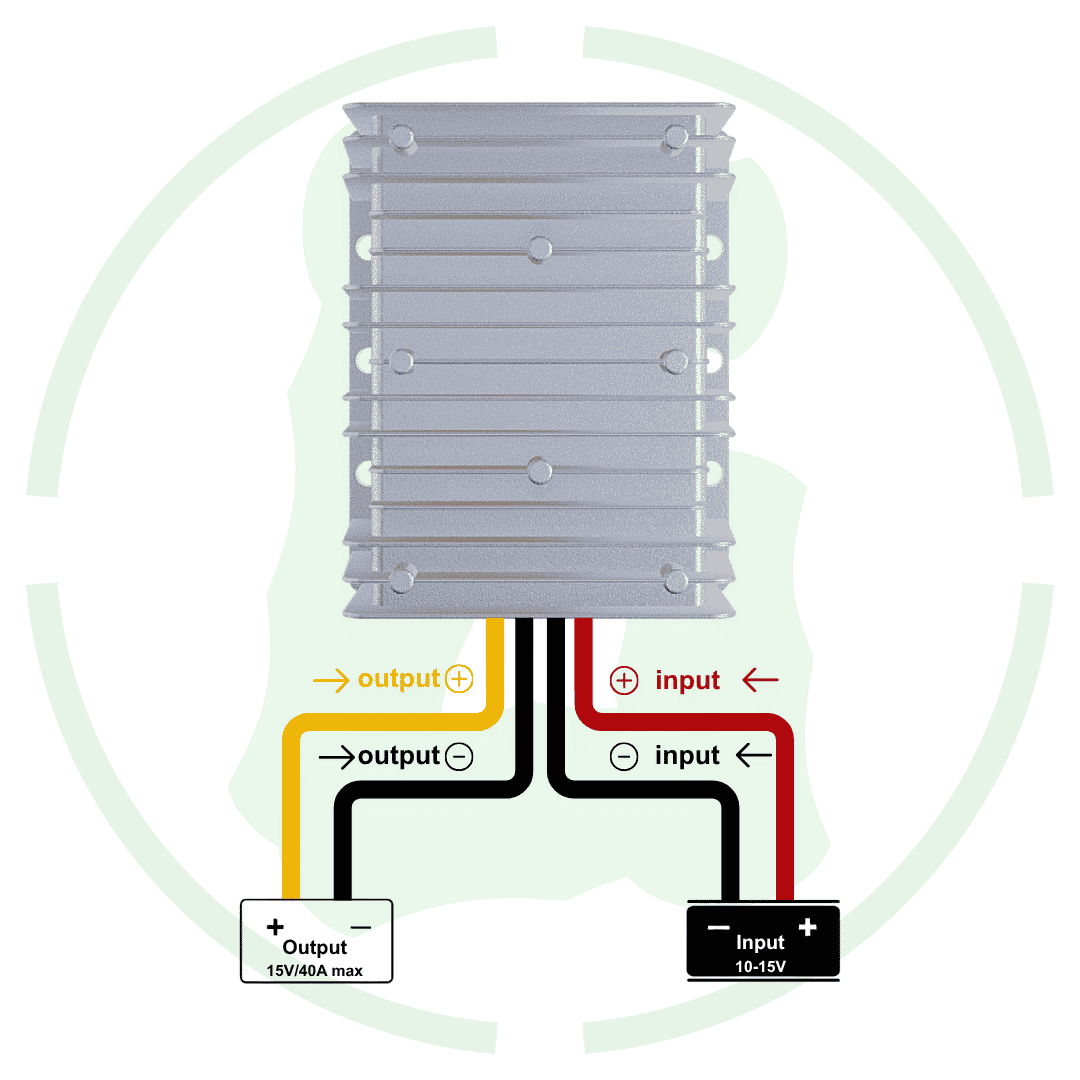

1. Input Voltage Range: 10V – 15V DC

2. Rated Input Voltage: 12V DC

3. Output Voltage: 15V DC

4. Maximum Output Current: 40A

5. Maximum Output Power: 600W

6. Efficiency (Typical): Up to 96.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 12V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

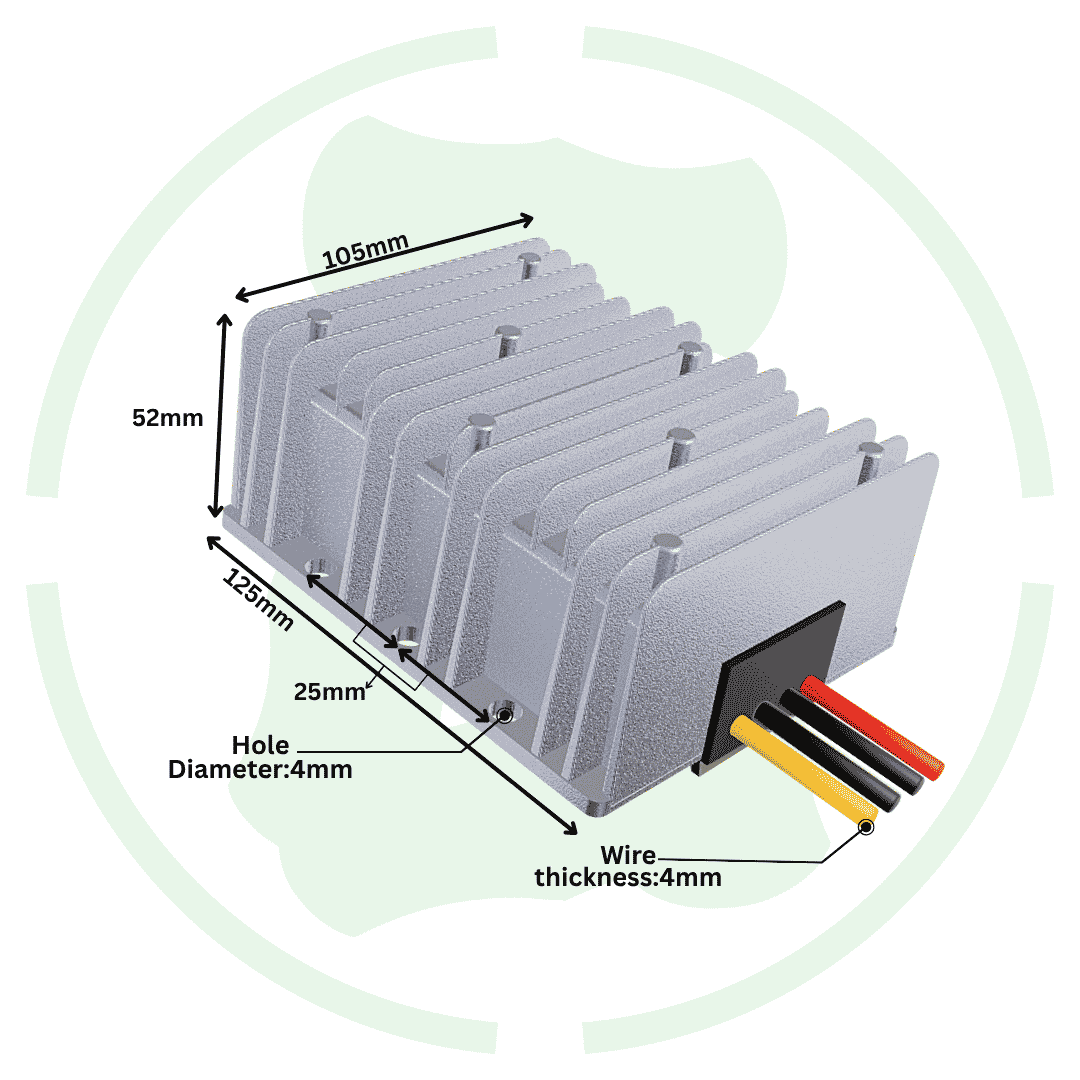

19. Dimensions: 105x125x12 mm

20. Weight: 990 gm

21. Cooling Method: Free air convection (no fan required)
