G-energy 24V To 18V 10A 180W Dc Converter GEMUD10401810 Ip68 Waterproof Buck Module

Overview of this 24V To 18V 10A 180W Dc Converter

Introducing G-energy 24V To 18V 10A 180W dc converter GEMUD10401810 Ip68 waterproof buck module at best price in India. This voltage converter work on input voltage range of 10v to 40v dc input voltage. It also provide 10a dc current for smooth operation of low power devices.

Features

Wide input voltage range: It work on dc input voltage of 10v to 40v dc voltage to make this converter useful in various input conditions.

10A dc current: It also provide a 10A dc current with 180w dc power for smooth operation.

Ip68 waterproof rating: It is also built with ip68 rated waterproof metal body for its protection from water and wet condition.

Specification

🔧 Electrical Specifications

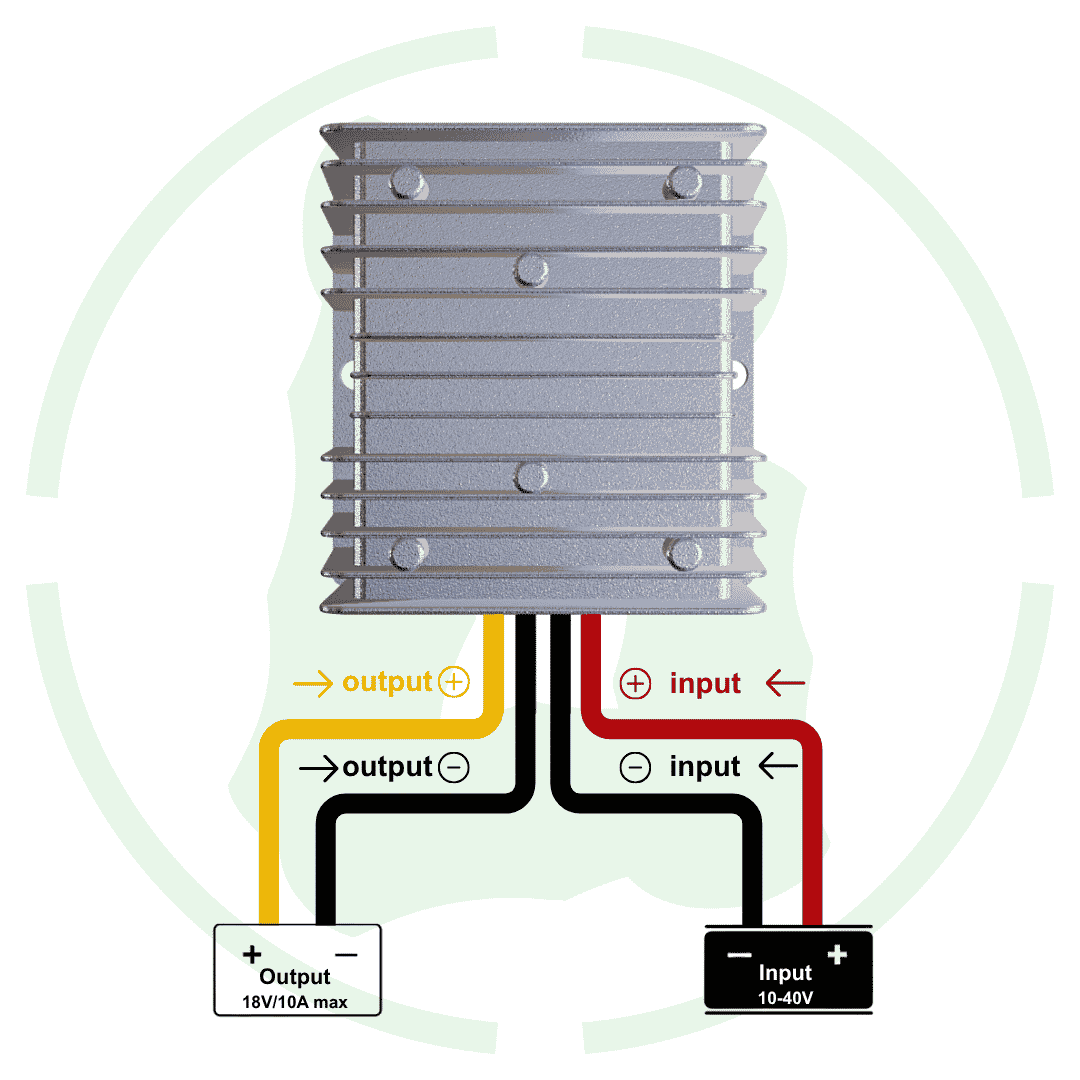

1. Input Voltage Range: 10V-40V DC

2. Rated Input Voltage: 12V 24V 36V DC

3. Output Voltage: 18V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 180W

6. Efficiency (Typical): Up to 96.5%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 30mA @ 24V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

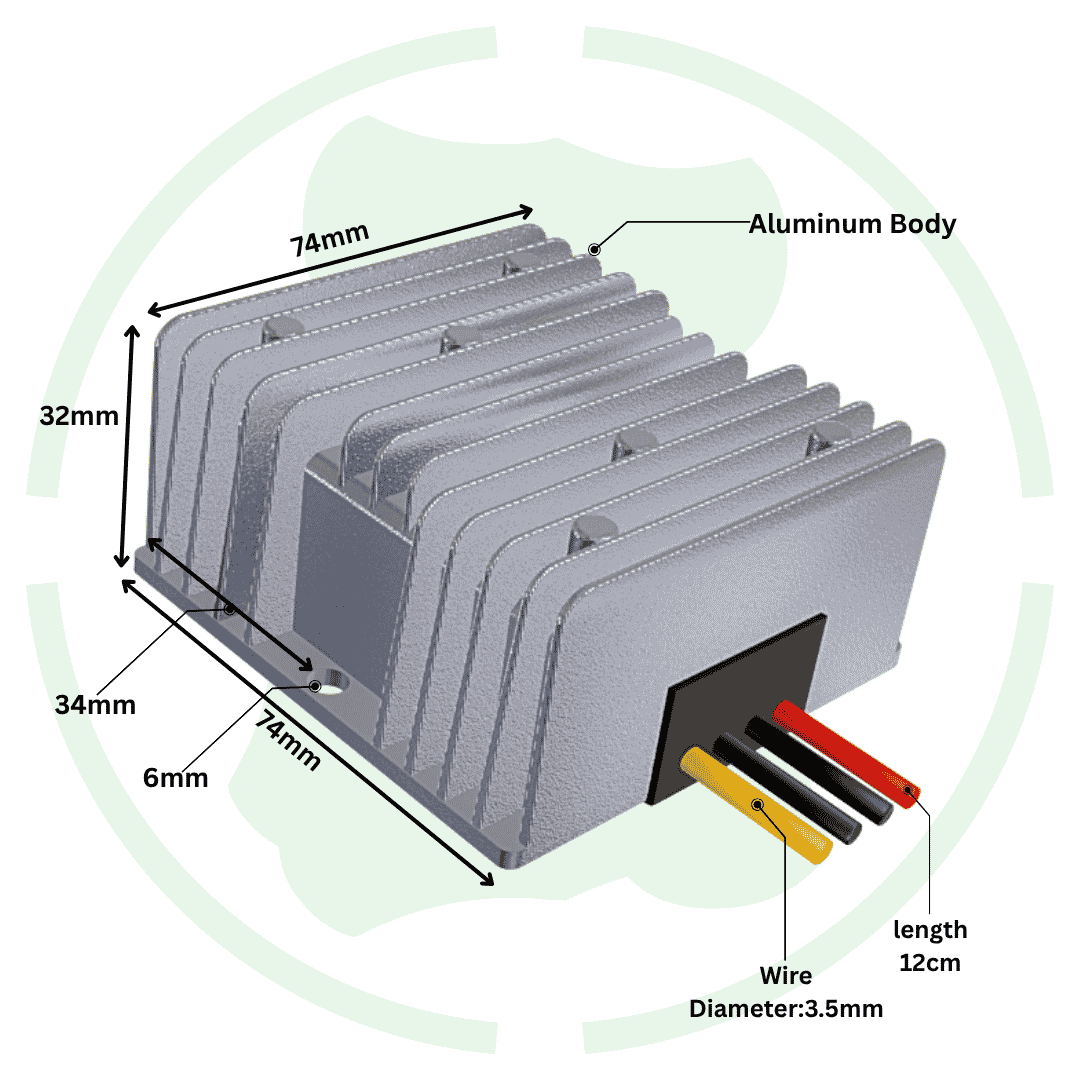

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)
