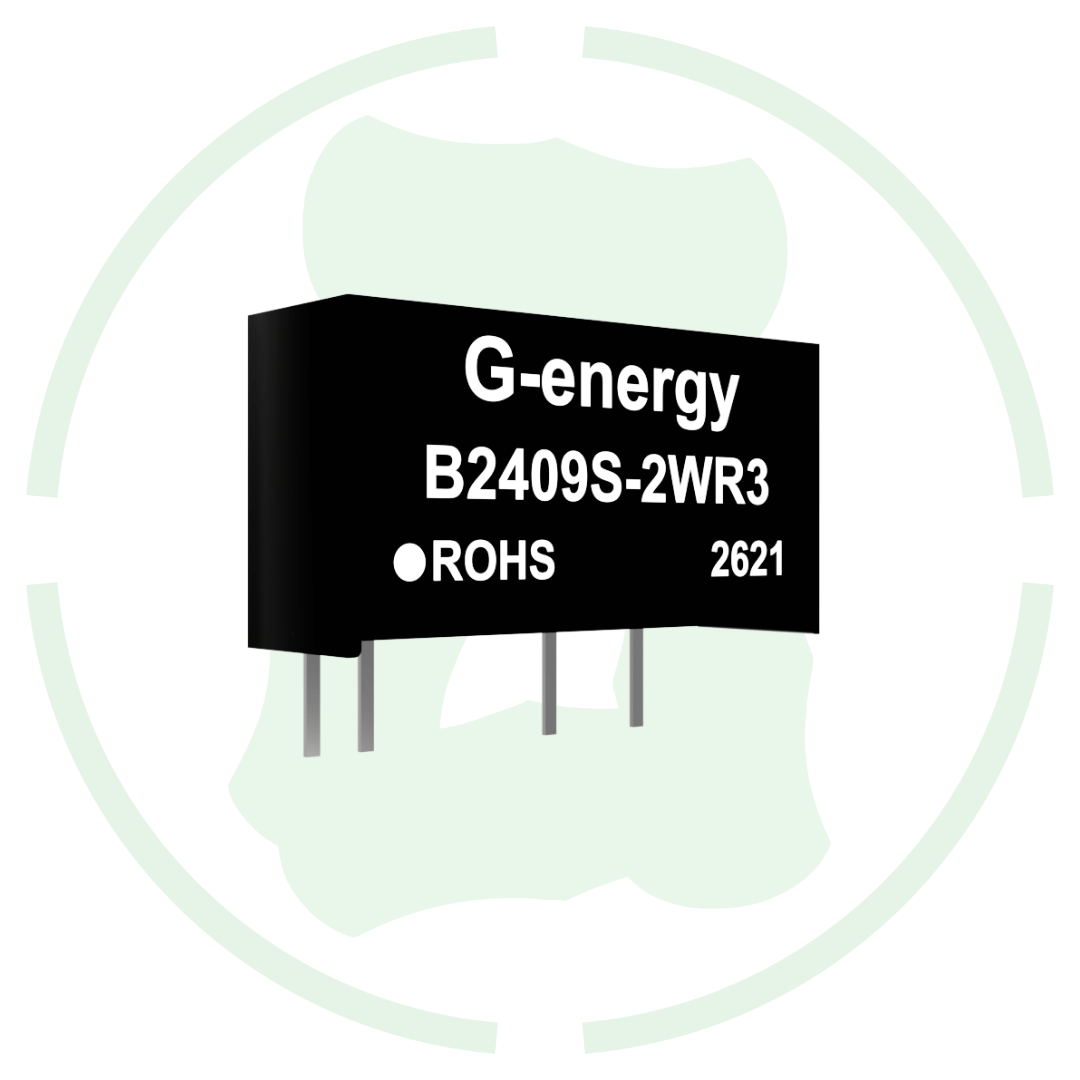

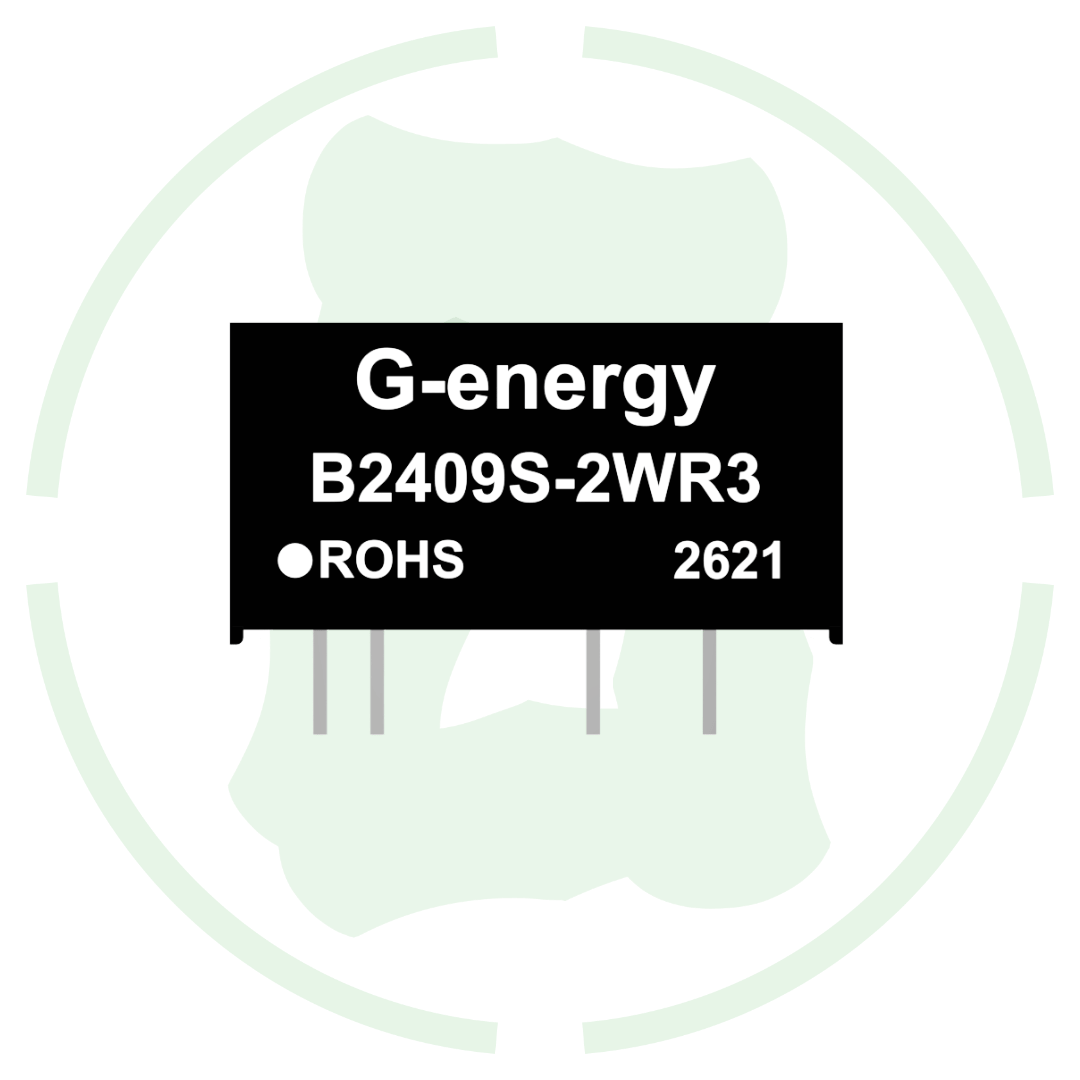

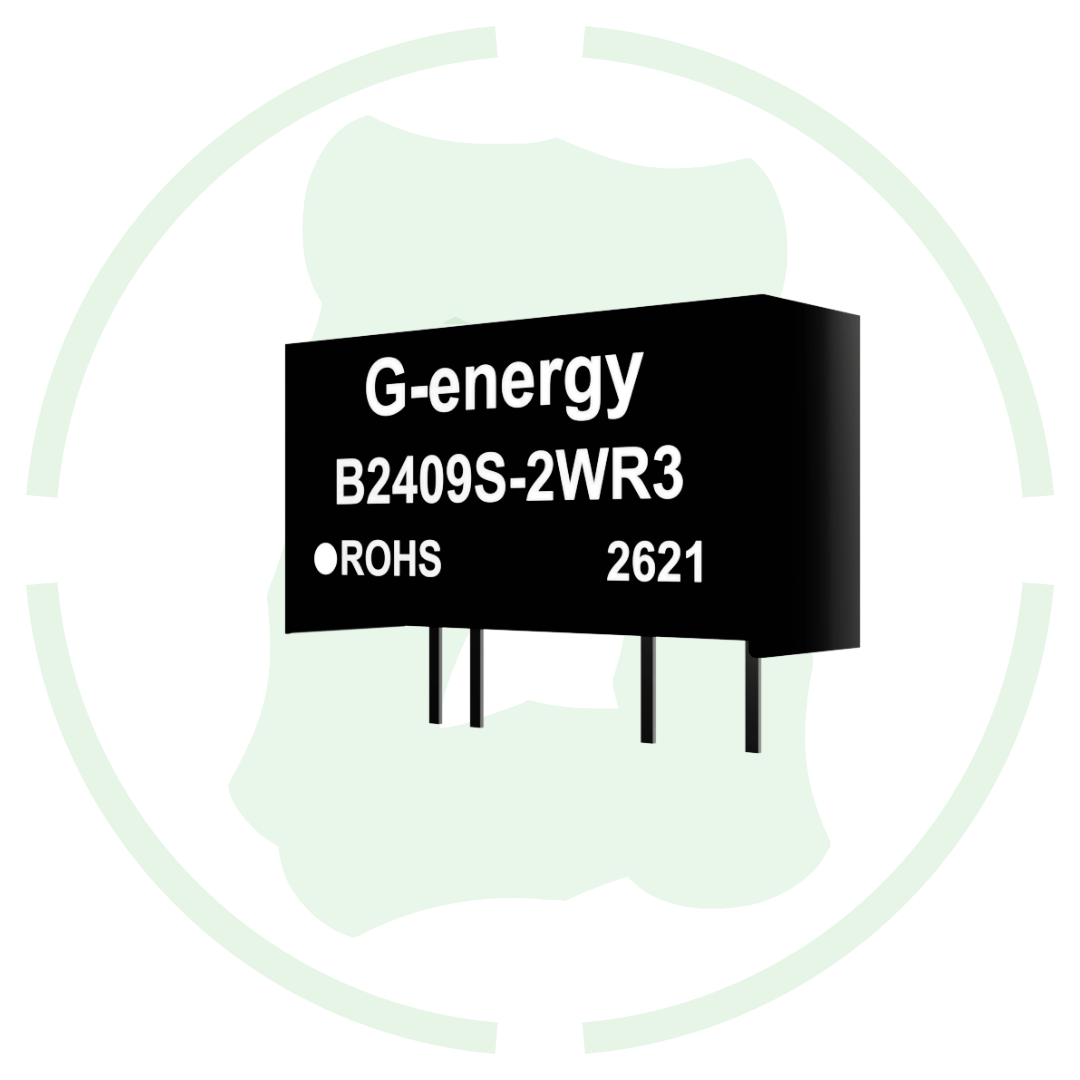

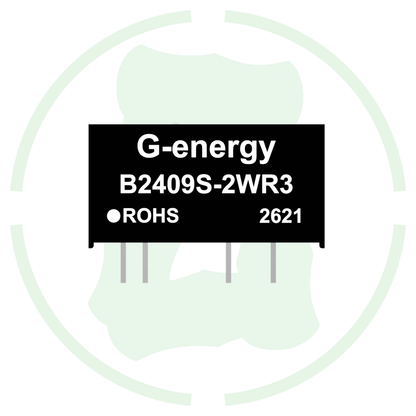

G-energy B2409S-2WR3 24V To 9V 2W Dc Dc Converter

Overview of this G-energy B2409S-2WR3 24V To 9V 2W Dc Dc Converter

Introducing G-energy B2409S-2WR3 24v to 9v 2w dc dc converter at best price in India with G-energy. This voltage converter work on 21.6 to 26.4V dc input voltage. It also provide a dc power up to 1W to operate low power dc devices.

Features

Input voltage: This converter work on a wide input voltage of 21.6v to 26.4v dc input voltage.

9V output: It provide a fix dc output of 9v to maintain a stable operation.

Ip68 waterproofing: It is also built with ip68 rated waterproofing and dust proofing protection.

Specification

Specification

1.Input Voltage Range: 21.6-26.4V

2. Output Voltage: 9V DC

3. Output Current: 222mA

4. Output Power: 2W

5. Efficiency: Up to 89%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/50mVp-p

10. Nominal Input Voltage: 12V/24V/36V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
