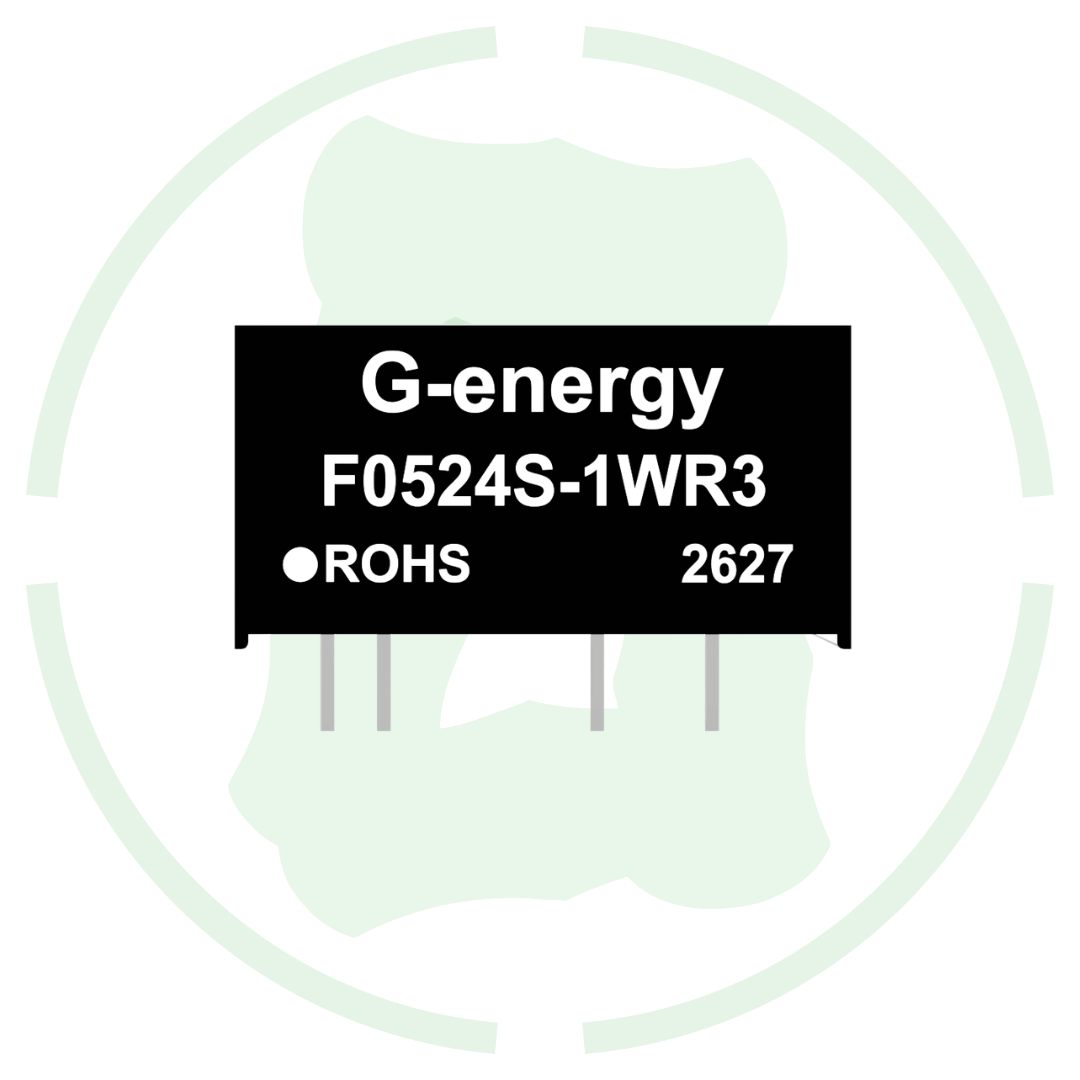

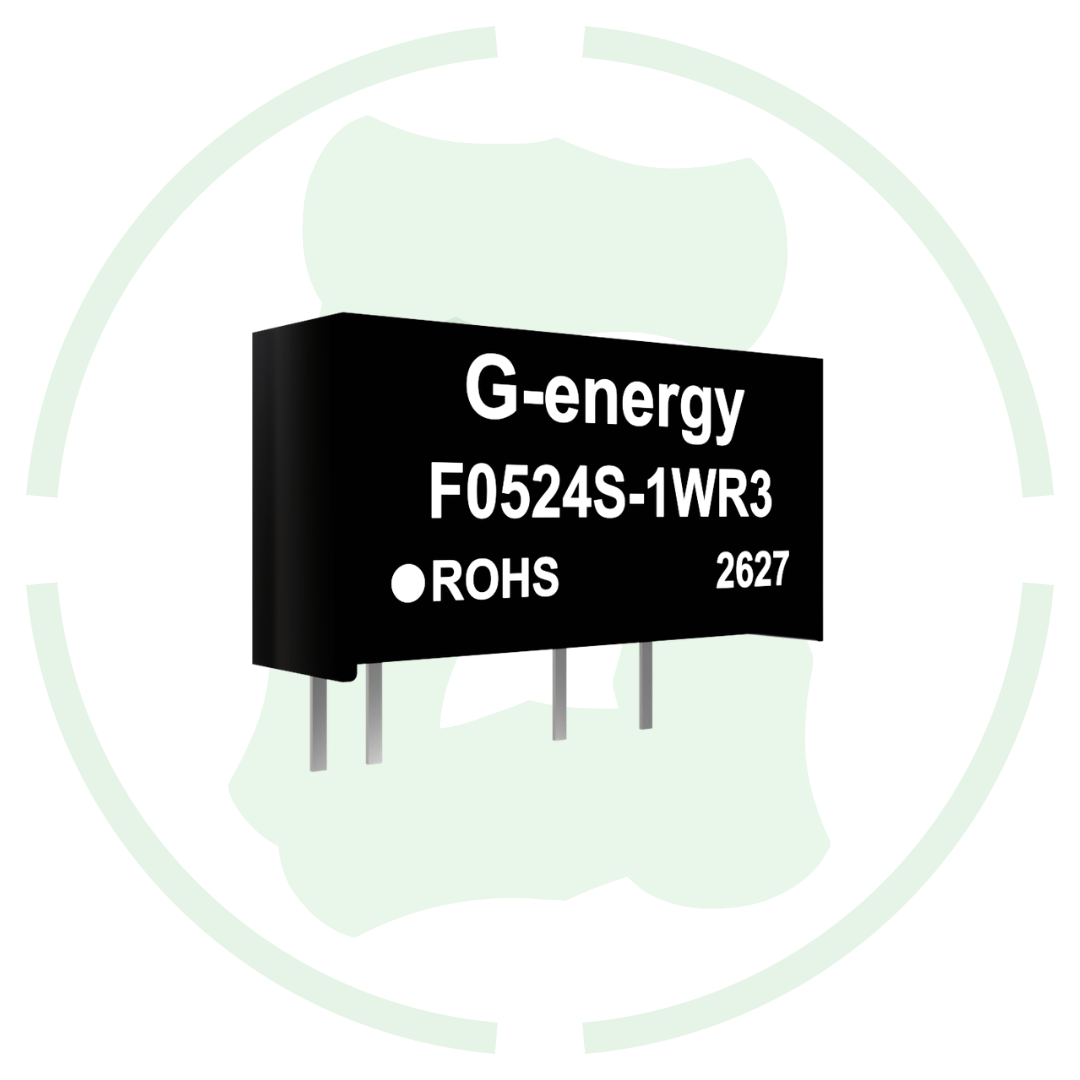

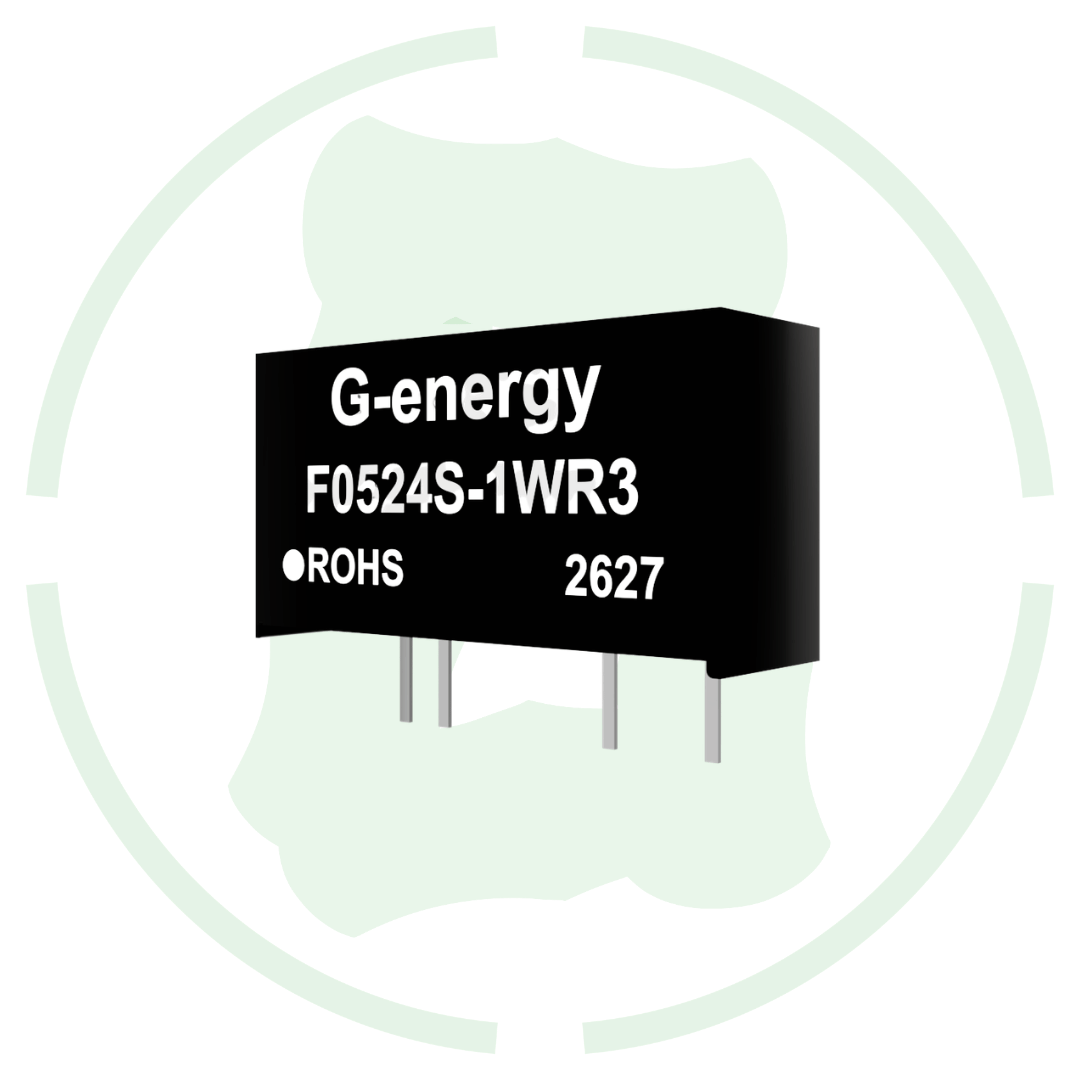

G-energy F0524S-1WR3 5V To 24V 1W Dc Dc Converter Ip68 SIP Package Module

Overview of this G-energy F0524S-1WR3 5V To 24V 1W Dc Dc Converter

Introducing G-energy F0524S-1WR3 5v to 24v 1w dc dc converter ip68 sip package module at best price in India. This boost converter work on 4.5 to 5.5v dc input voltage and provide a fix 24v dc output voltage. It is also built with sip package module for easy and compact mounting in pcb.

Features

Input Voltage: It work on 4.5v to 5.5v fluctuating input voltage to use for fluctuating input voltage conditions.

Fix 24V Output: It work on a fix 24v dc output voltage and make it reliable for stable voltage operation.

1W Power: It also provide 1w dc power to operate low power dc device.

Specification

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 24V DC

3. Output Current: 41mA

4. Output Power: 1W

5. Efficiency: 89%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/75mVp-p

10. Standard Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)

Datasheet of G-energy F0524S-1WR3 5V To 24V 1W Dc Dc Converter Ip68 SIP Package Module
