G-energy GEMSD1101215 90V 110V To 12V 15A 180W Dc Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 12v 15a 180w dc dc converter

Introducing G-energy 90v 110v to 12v 15a dc dc converter with upto 180w maximum power at best in India with G-energy. This 110v to 12v dc dc converter is design with high quality aluminum body with screw mounting for easy mounting and its long life performance. This 110v to 12v dc converter easily work on wide input voltage range from 75v to 145v to make it usable for multiple dc input source.

Features

Ip68 buck converter: This voltage converter is built with ip68 water proof protection for its safety from water.

Safety feature: It is also built with multiple safety features including short circuit protection, over load protection, and over temperature protection and these safety features also help for long & sooth function of industrial setup.

High quality input and output wire: These dc dc converter is built with high quality input and output wires to survive high current throughout voltage conversion.

Specification

• Output Voltage: 12V DC

• Rated Voltage: 90V / 110V

• Input Voltage Range: 75V – 145V DC

• Maximum Output Current: 15A

• Maximum Output Power: 180W

• Efficiency: Up to 88%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• Ripple Noise: 300mV (at full load)

• No-Load Loss: 44mA

• Short Circuit Protection: Yes

• Over current Protection: Yes

• Over voltage Protection: Yes

• Operating Temperature: -40°C to +80°C

• Storage Temperature: -40°C to +100°C

• Operating Humidity: 10% to 90% RH

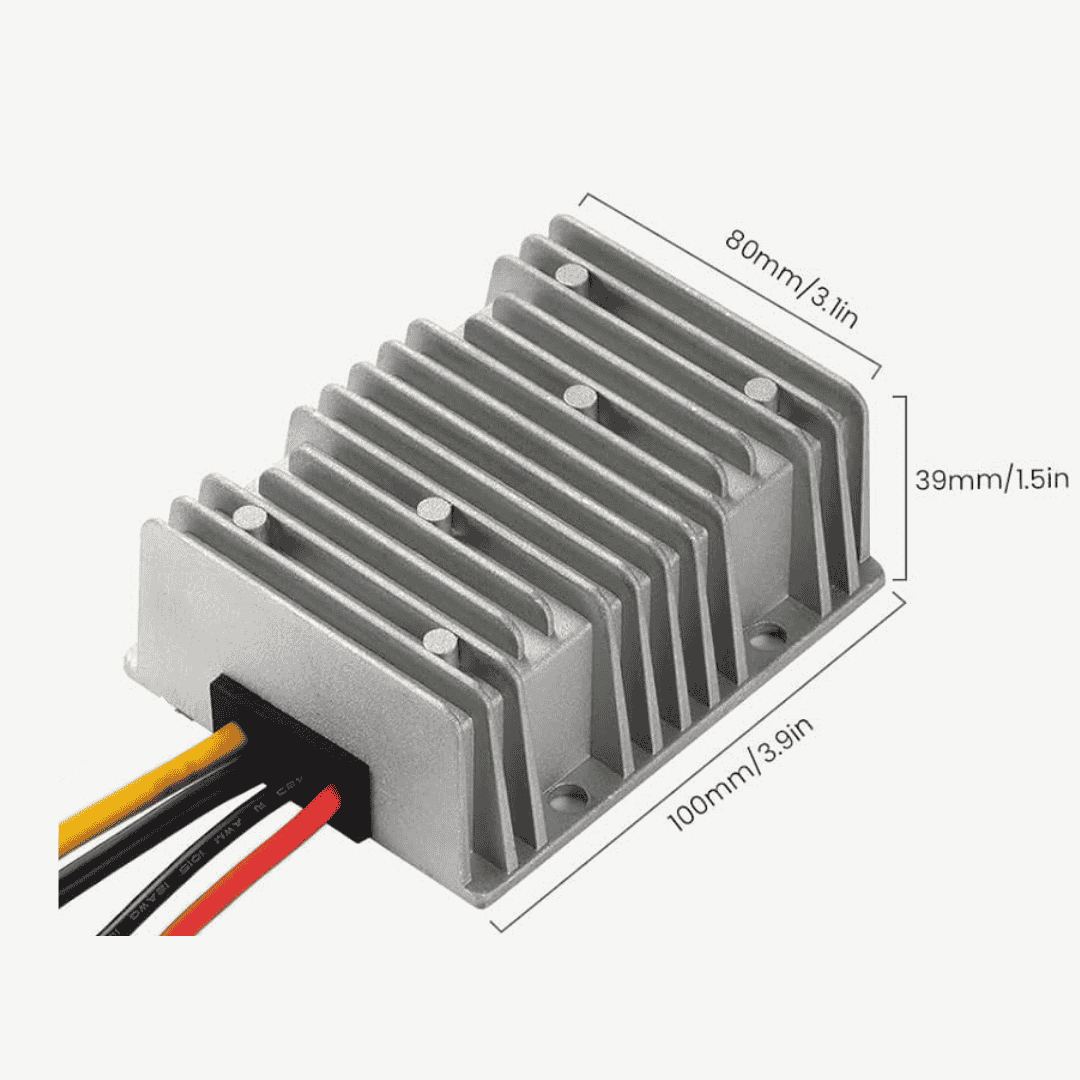

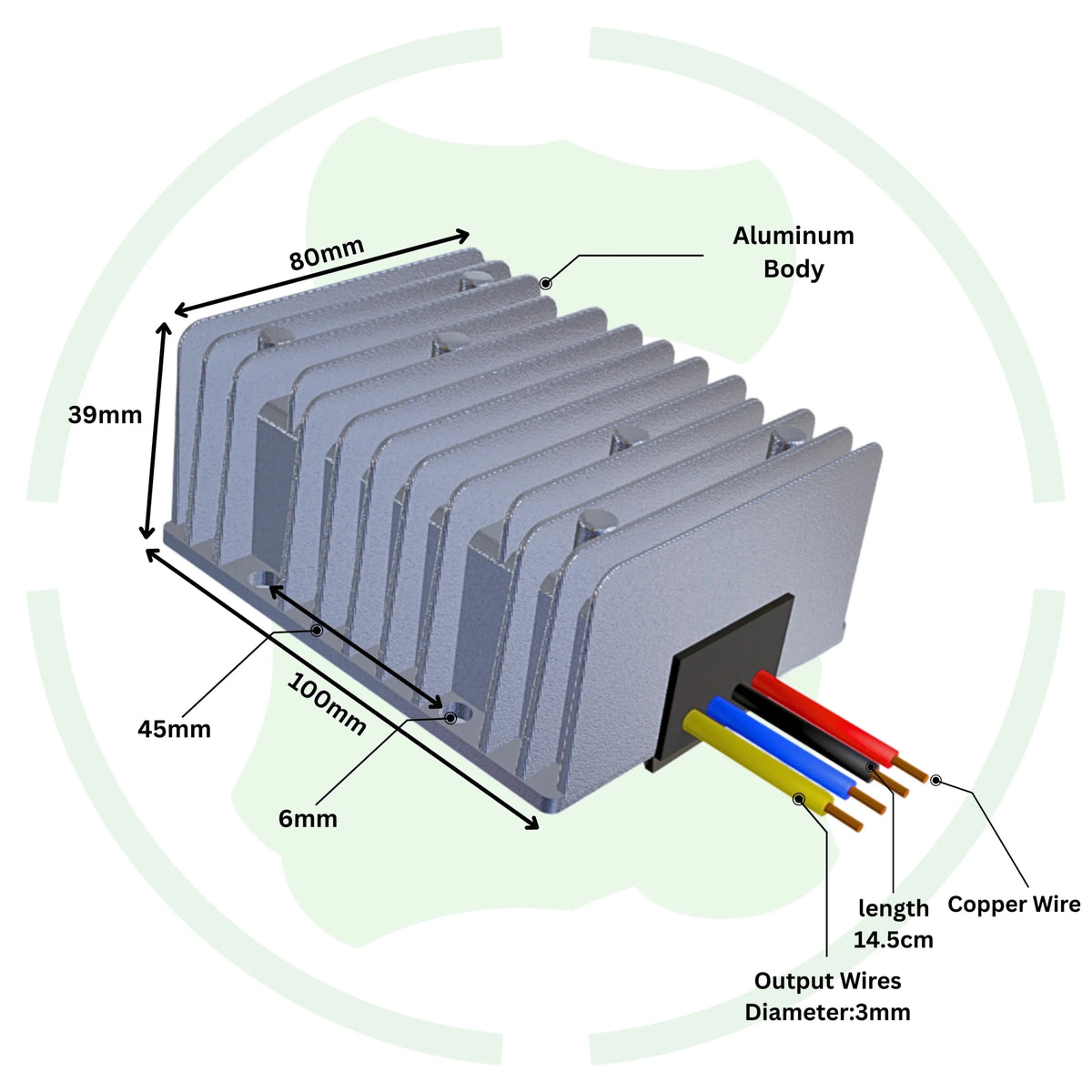

• Dimensions: 100 × 77.8 × 38.5 mm

• Weight: 456g
