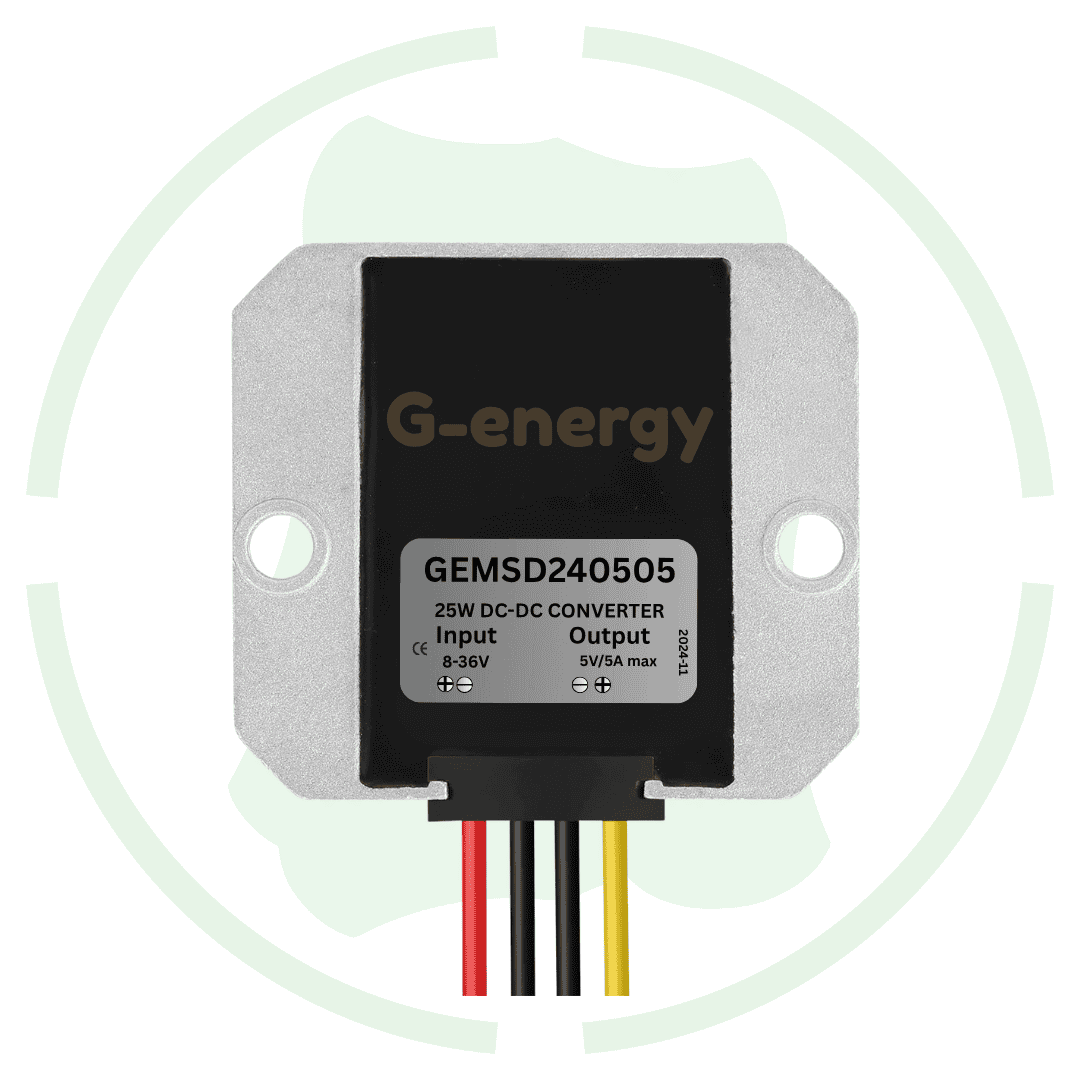

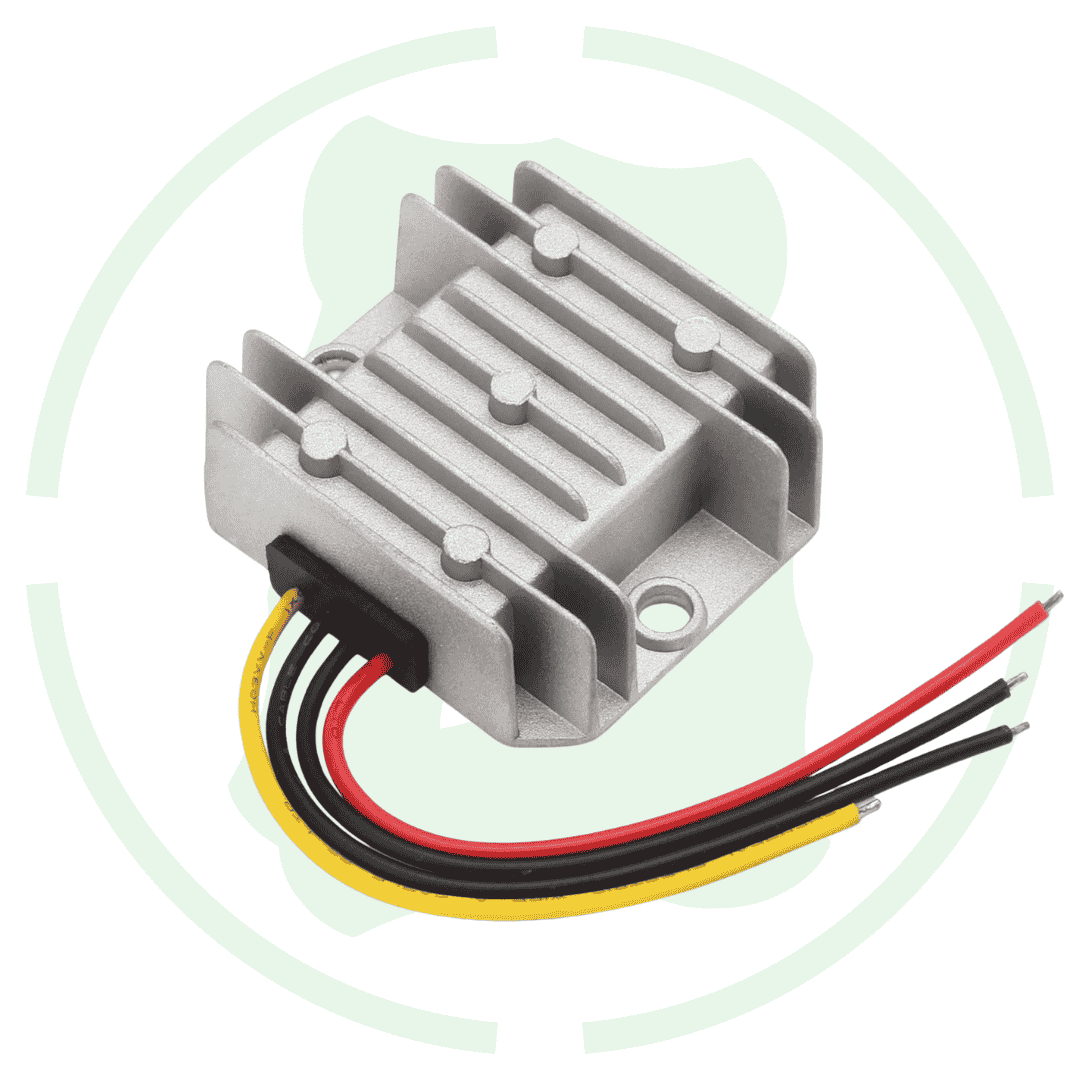

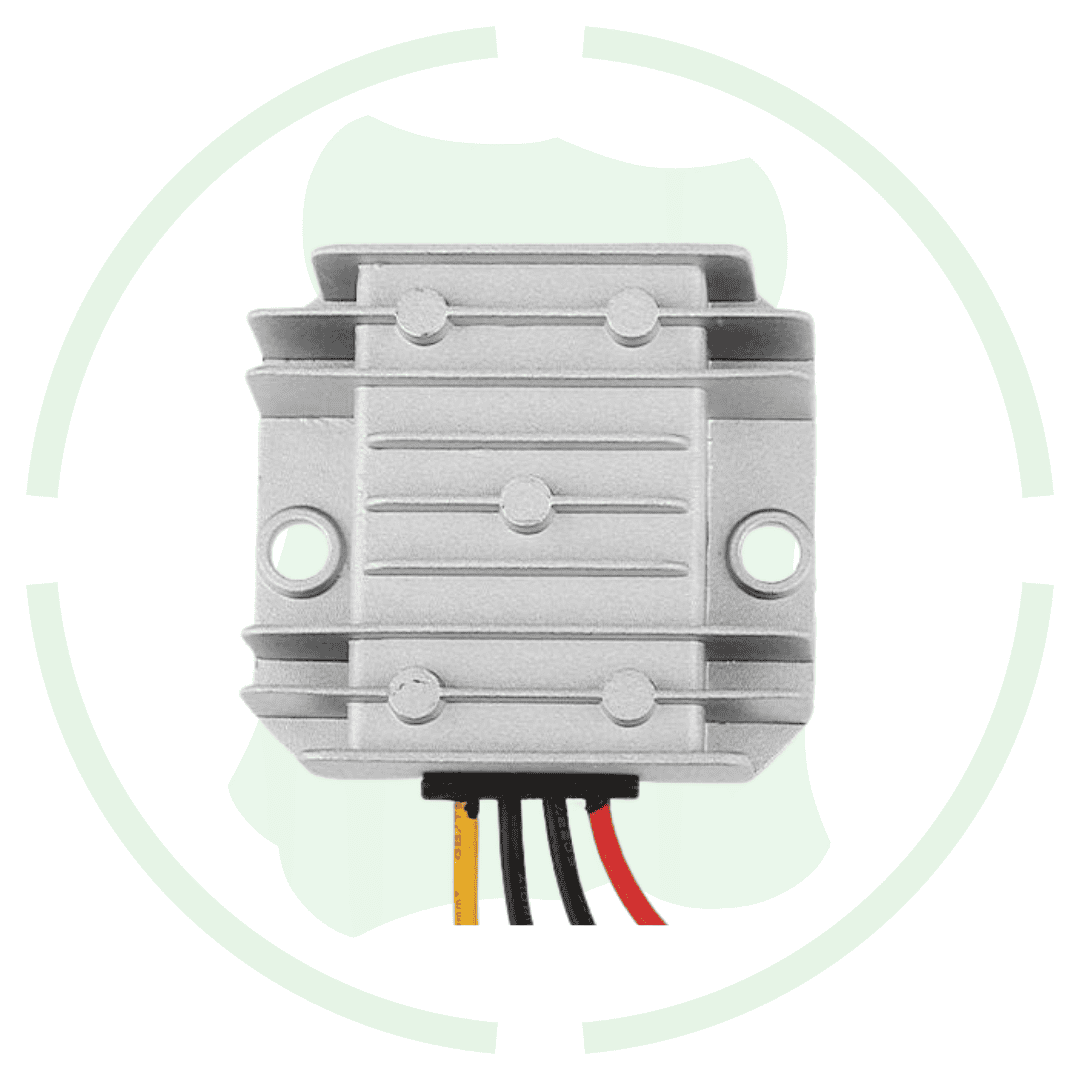

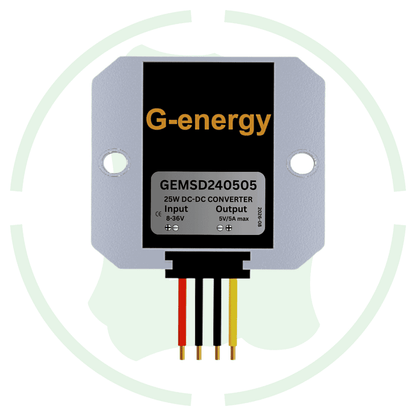

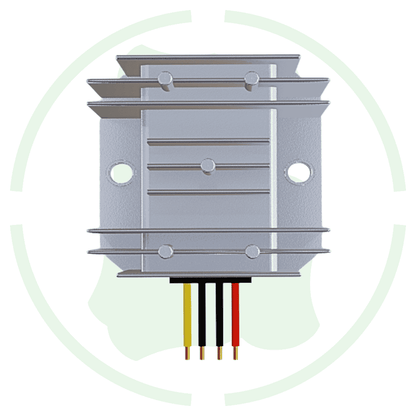

G-energy GEMSD240505 12V 24V To 5V 5A 25W Dc To Dc Converter Ip68 Buck Converter

Overview of this 12v 24v to 5a 25w dc to dc converter

Introducing g-energy 12v 24v to 5v 5a 25w dc to dc converter at best price in India with G-energy. This ip68 buck converter is designed with synchronous rectification technology for high conversion efficiency up to 91.8% energy conversion. This 12v 24v to 5v buck converter can smoothly work on a wide input range from dc 8v to 36v dc input voltage range.

Features

Fix 5v dc output: This dc dc converter provide a fix 5v dc output with up to 25w max dc power to operate any dc industrial devices.

Safety features: This 12v-24v to 5v buck converter also come with multiple safety features like short circuit protection, over voltage protection, under voltage protection for converter safety.

Ip68 water proofing: This dc buck converter also come with ip68 rated waterproof rating to make it usable at wet industrial condition.

Specification

• Input Voltage Range: 8V – 36V DC

• Output Voltage: 5V DC

• Output Current: 5A

• Output Power: 25W

• Conversion Efficiency: Up to 91.8%

• Ripple: ≤50mV

• No-load Current: ≤15mA

• IP Rating: IP68 (Water proof & Dust proof)

• Protection Features:

  • Short Circuit Protection: Yes

  • Under-voltage Protection: Yes

  • Over-temperature Protection: Yes

• Operating Temperature: -40°C to +80°C

• Cooling Method: Natural air cooling

• Material: Aluminum alloy with epoxy encapsulation

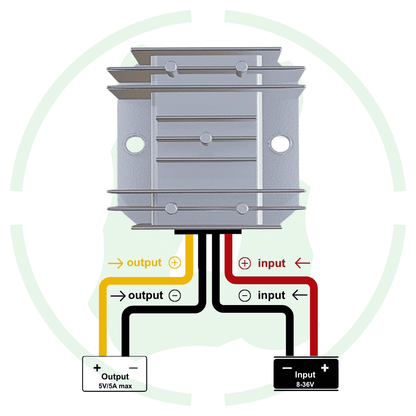

• Wiring Type: Pre-wired pigtail cables

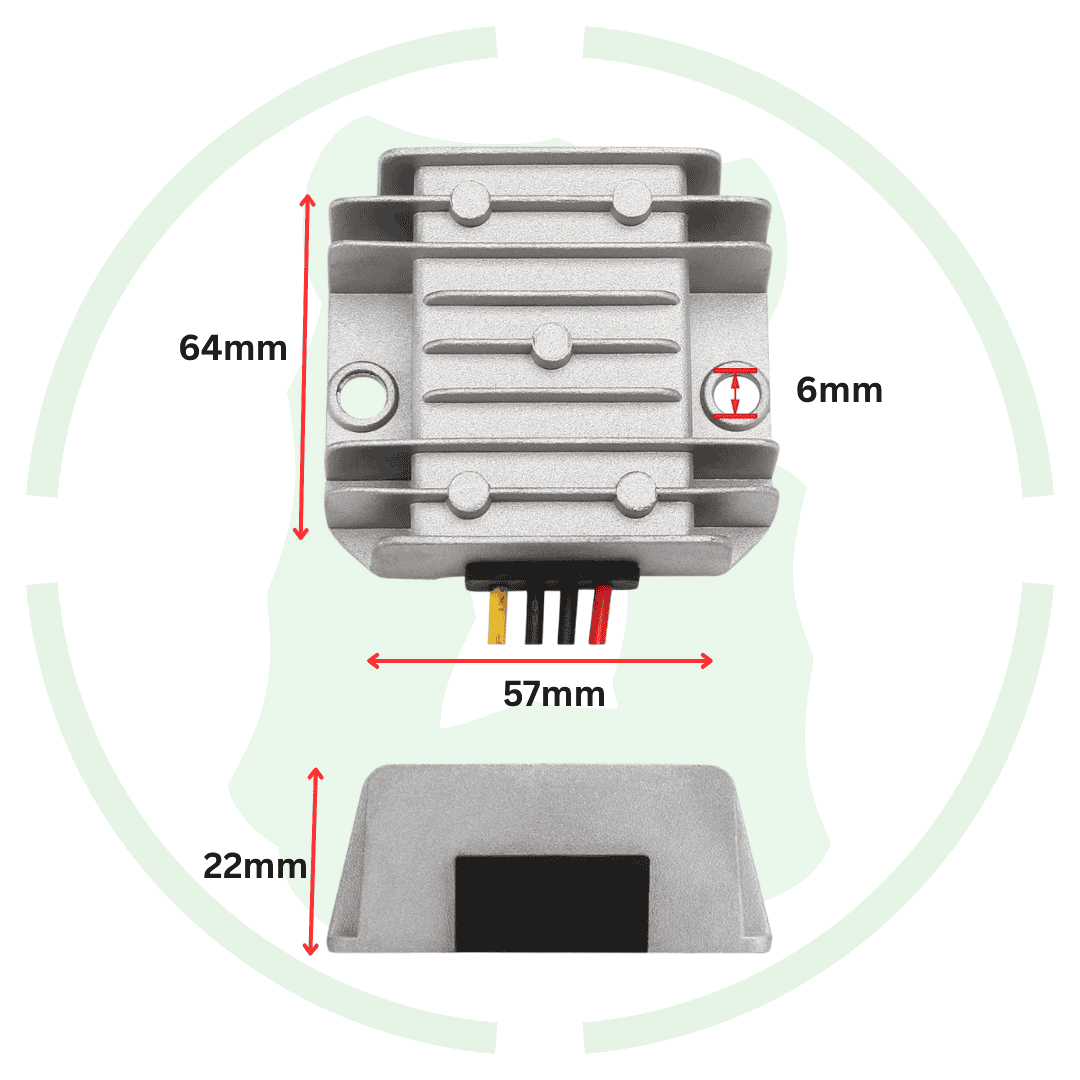

• Dimensions: 64 x 57 x 22 mm

• Weight: 110g

Datasheet of GEMSD240505 12v 24v to 5v 5a dc voltage converter
