G-energy GEMSD240550 12V 24V To 5V 50A 250W Dc To Dc Converter Ip68 Buck Converter

Overview of this 12v 24 to 5v 50a 250w dc dc converter

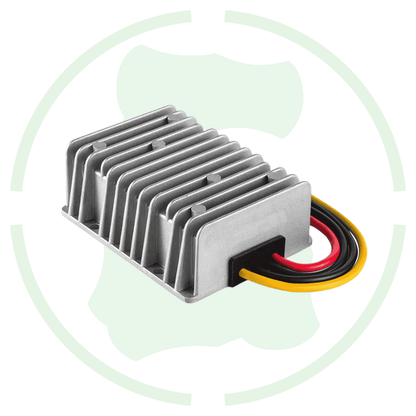

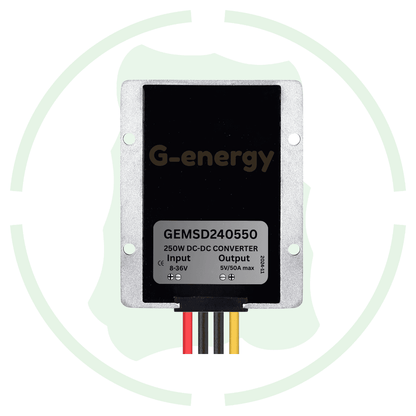

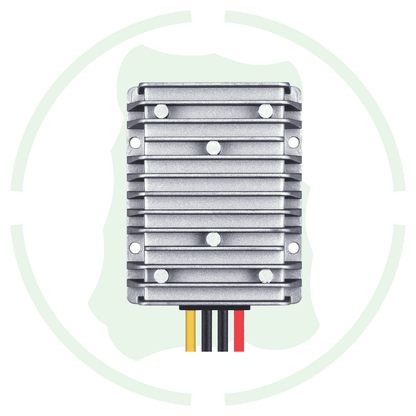

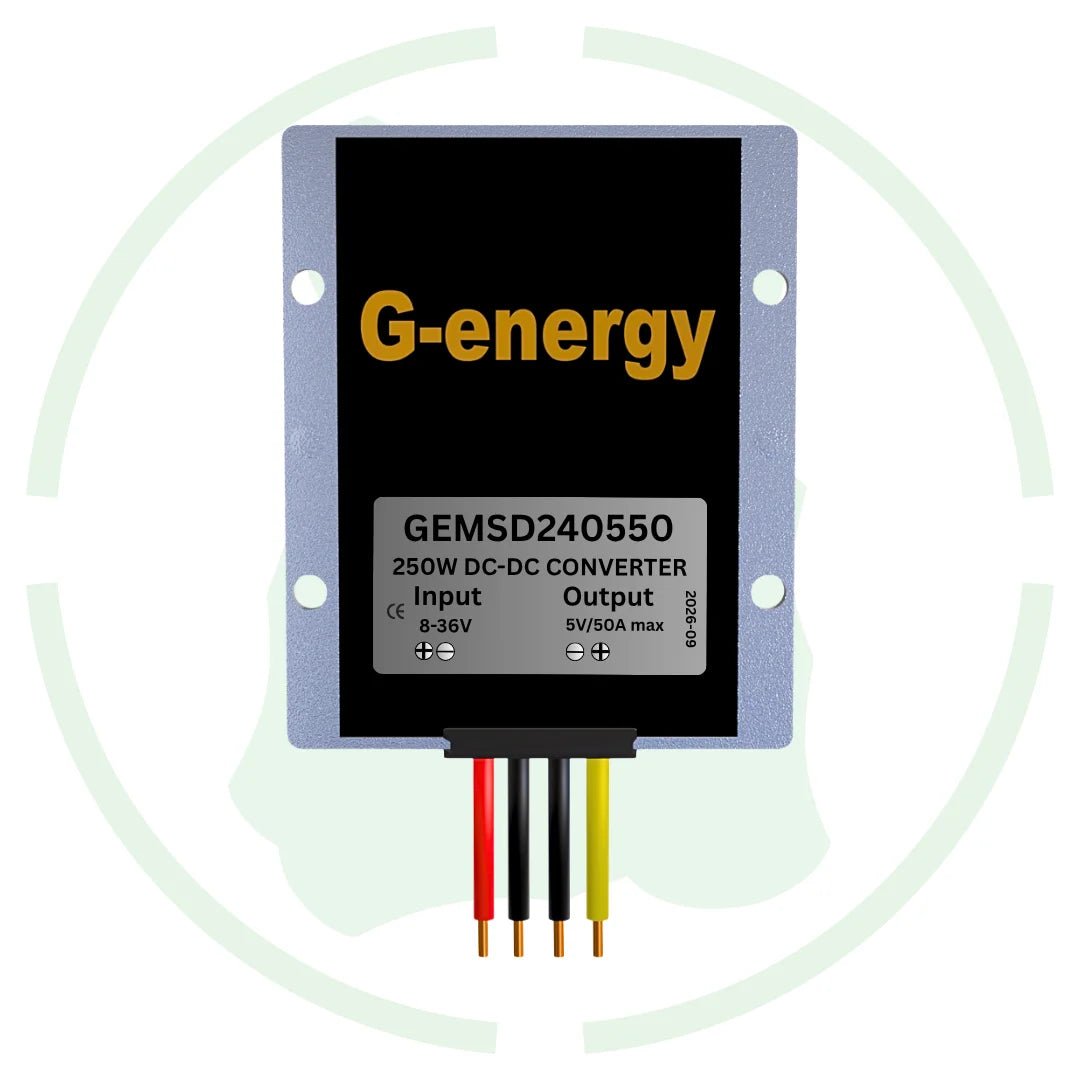

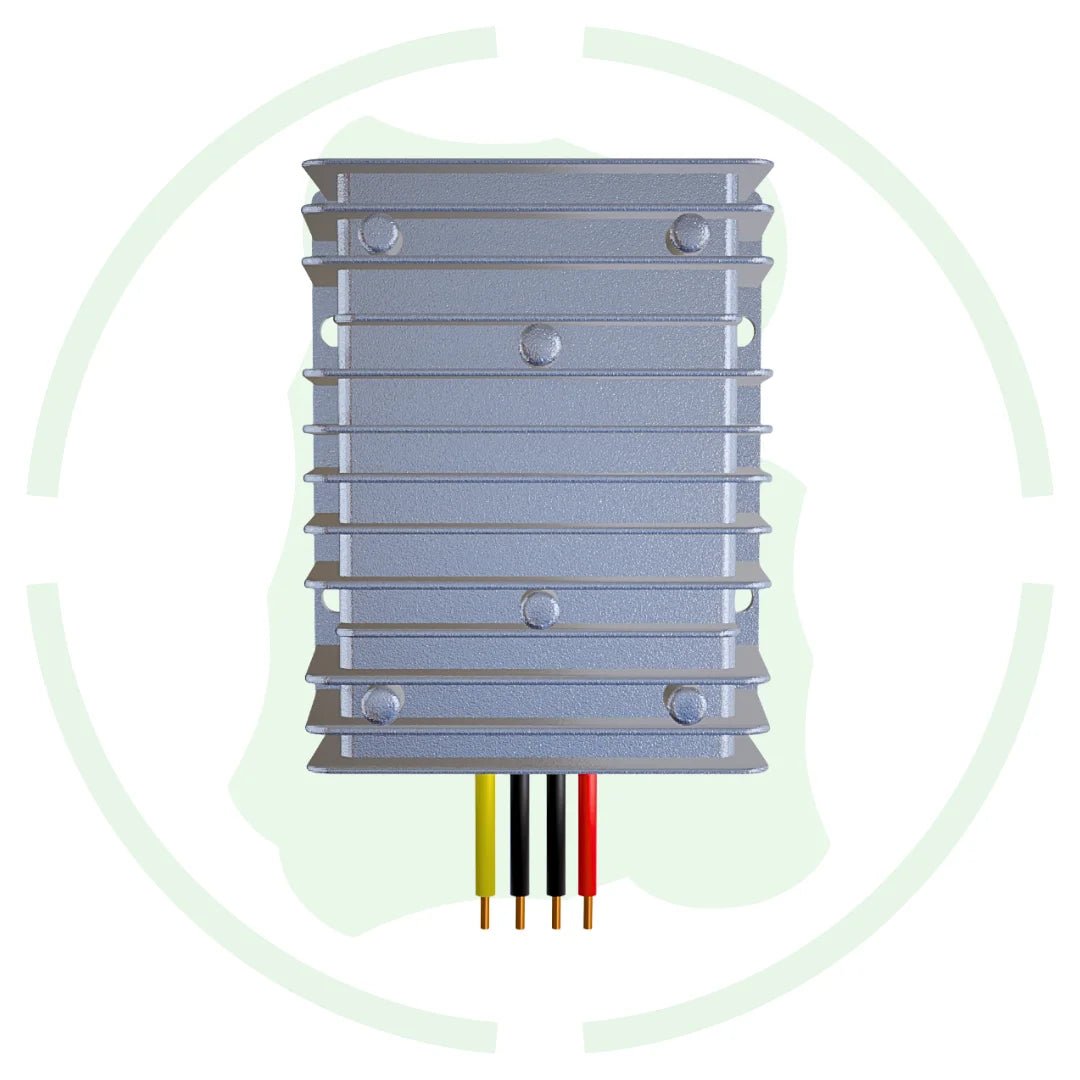

Introducing g-energy 12v 24v to 5v 50a 250w dc dc buck converter with up to 94% voltage conversion efficiency. This voltage converter come with white metal box with epoxy packing for its water proof and long life performance. It can be used at multiple industrial device due to its stable out put voltage and high power.

Features

Wide input voltage range: This 12v to 5v dc voltage converter provide wide input voltage range from dc 10v to 36v input range for use at multiple changing input voltage source.

50A current with upto 250w power: This 24v to 5v buck converter also provide high current with upto 250w maximum power.

High quality connection wire: This converter is built with high quality connection wire which handle upto 500W maximum power.

Specification

• Model: G-Energy Dc-Dc Buck Converter

• Input Voltage: 8V – 36V DC

• Output Voltage: 5V DC

• Output Current: 50A

• Power Output: 250W

• Efficiency: ≥ 93%

• Protection Level: IP68 (Waterproof & Dustproof)

• Protections: Overload, Short Circuit, Overvoltage, Over-temperature

• Cooling Method: Passive Cooling (Heat Dissipation Design)

• Operating Temperature: -40°C to 80°C

• Material: Aluminum Alloy Housing

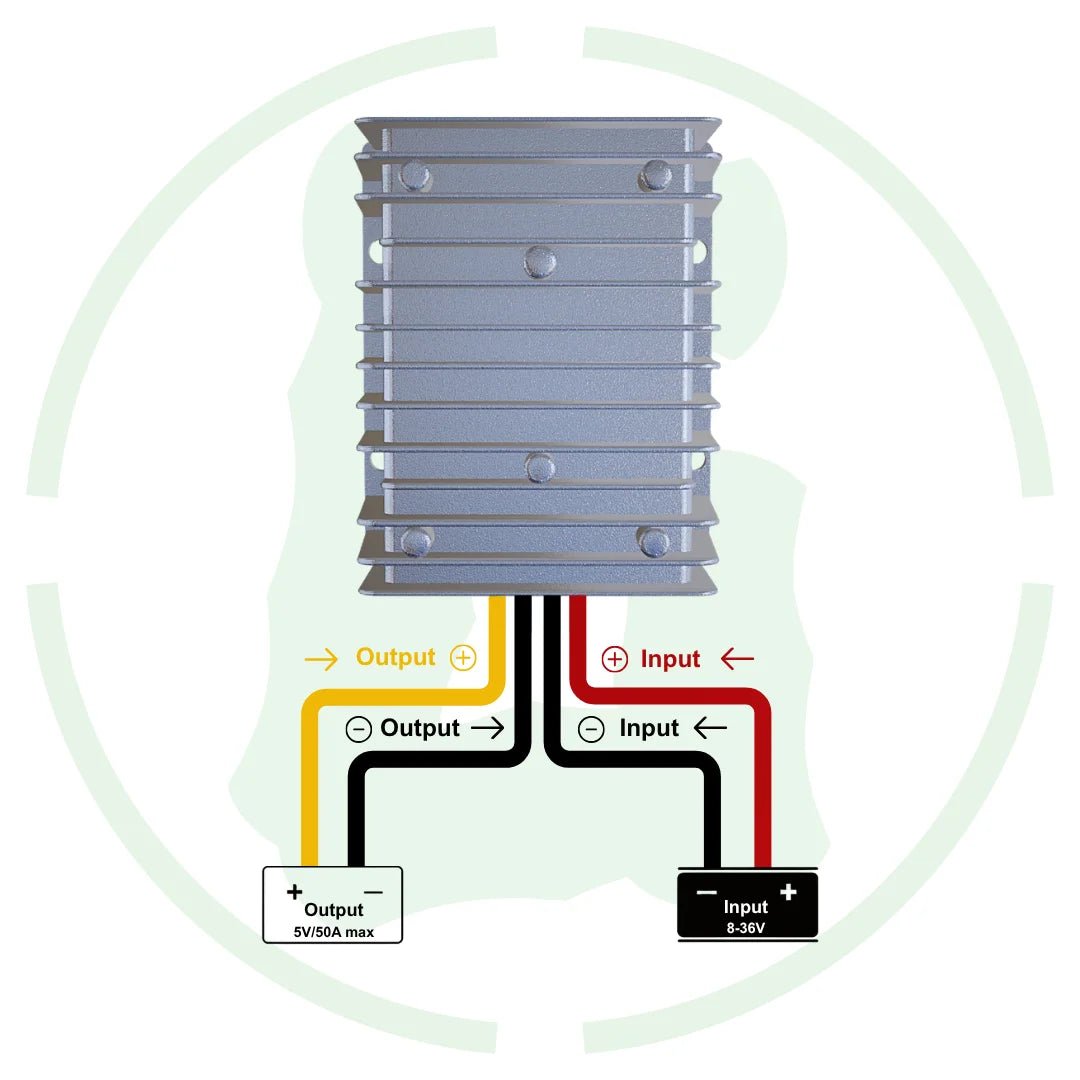

• Wiring Type:

  • Input: Red (+), Black (–)

  • Output: Yellow (+), Black (–)

• Application: Automotive, Industrial, Marine, LED Systems, Communication Devices

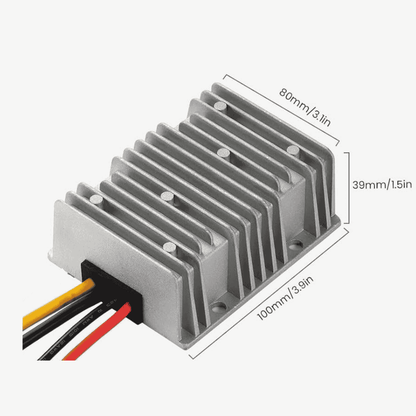

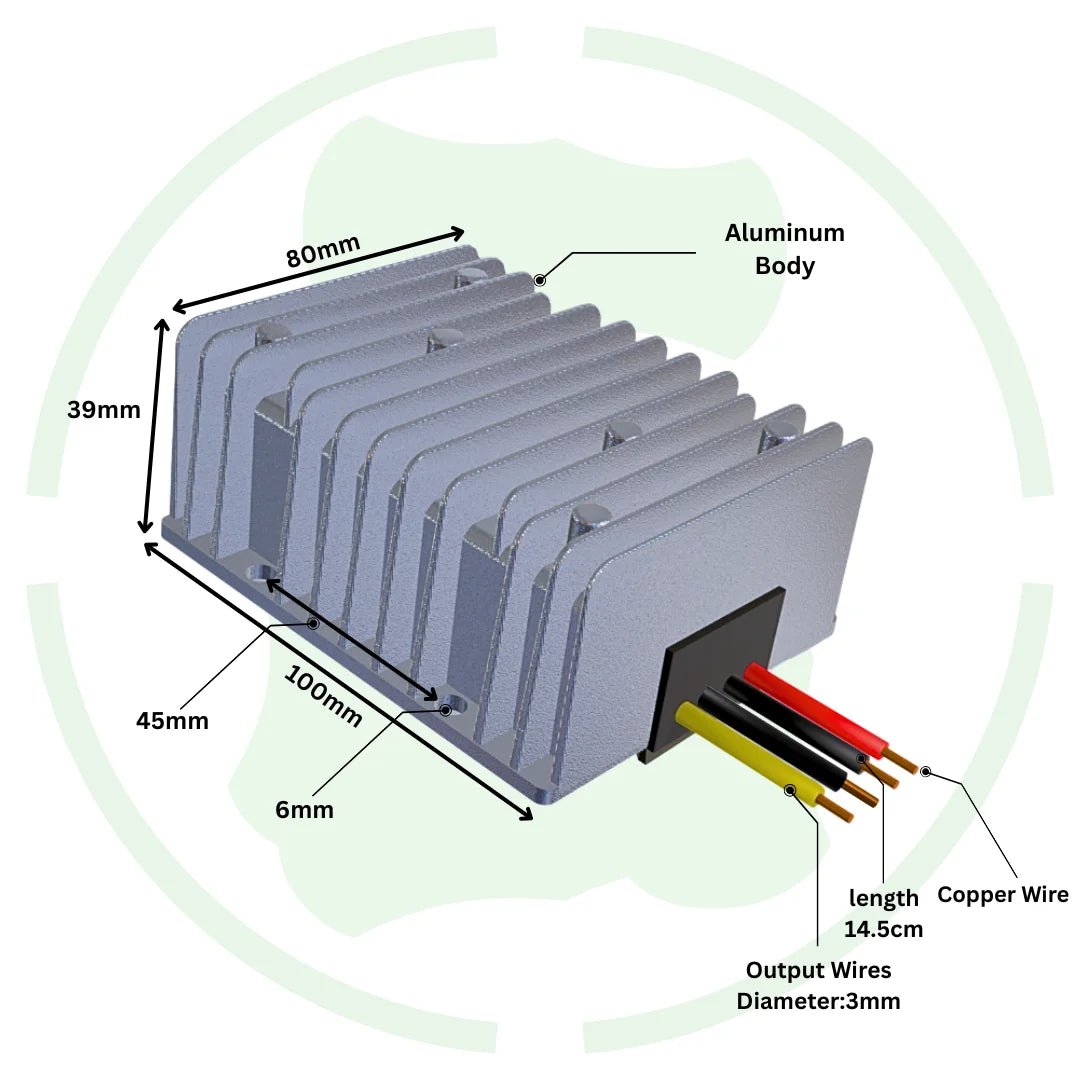

• Dimensions: 100mm × 80mm × 39mm

• Weight: 515g

Datasheet of this GEMSD240550 12v 24v to 5v 50a voltage converter
