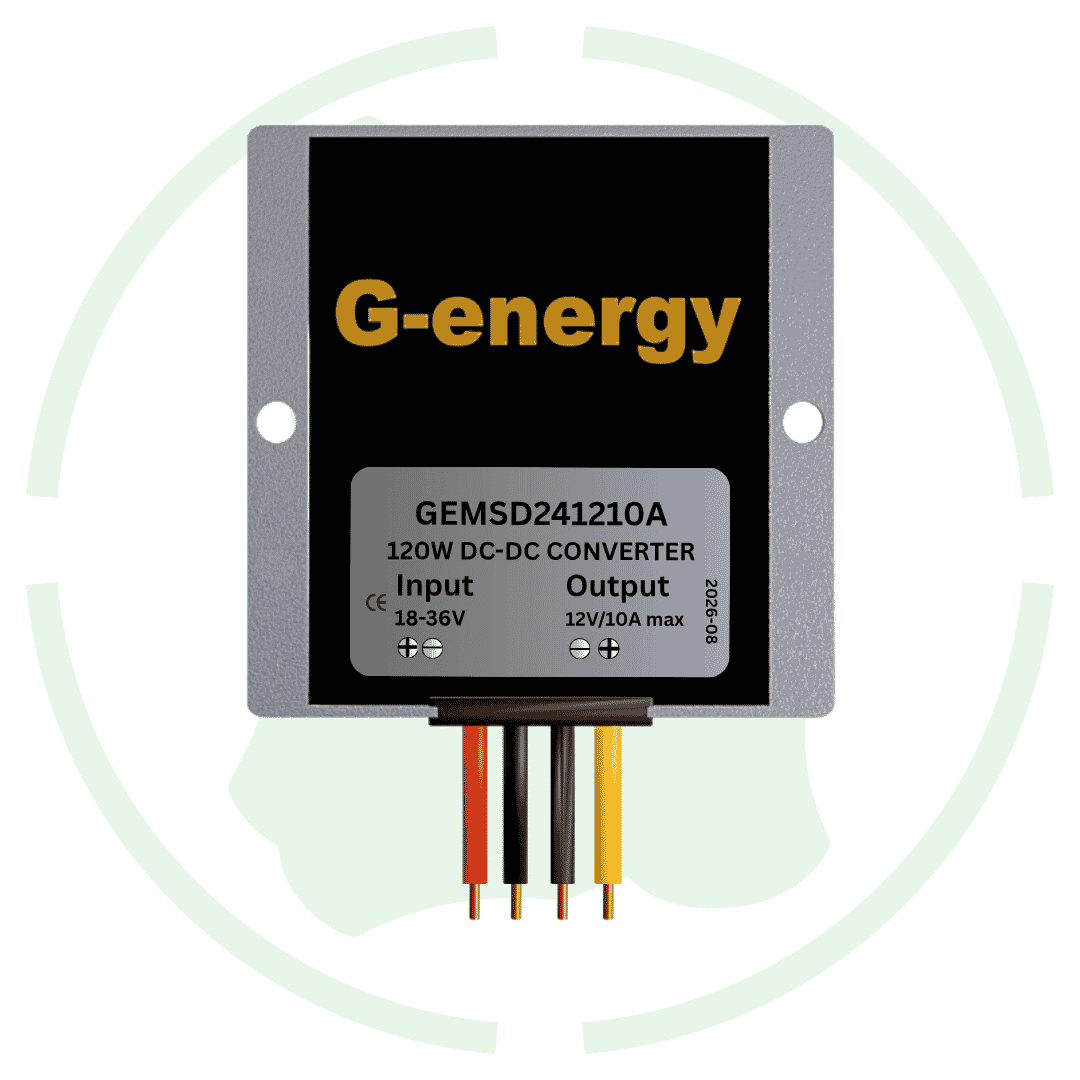

G-energy GEMSD241210A 24V To 12V 10A 120W Dc Dc Converter

Overview of this GEMSD241210A 24V To 12V 10A 120W Dc Dc Converter

Introducing G-energy GEMSD241210A 24v to 12v 10a 120w dc dc converter at best price in India. This voltage converter work on input voltage of 18V-36V and provide a stable 12v dc output voltage. And it also come with multiple safety features including under voltage, short circuit, an over load protection.

Features

Wide input voltage: This GEMSD241210A  buck converter work on a big input voltage range of of dc 18v to 36v dc input.

Stable 12V dc output: It provide a stable 12v dc output for smooth dc operation.

Ip68 water proofing: It is also built with high quality aluminum body with epoxy built for its ip68 rated waterproofing.

Specification

• Input Voltage Range: 18V to 36V DC

• Output Voltage: 12V DC

• Output Current: 10A

• Output Power: 120W

• Conversion Efficiency: Up to 95%

• Ripple & Noise: < 150mV

• Operating Temperature Range: -40°C to +80°C

• Cooling Method: Natural Air Cooling

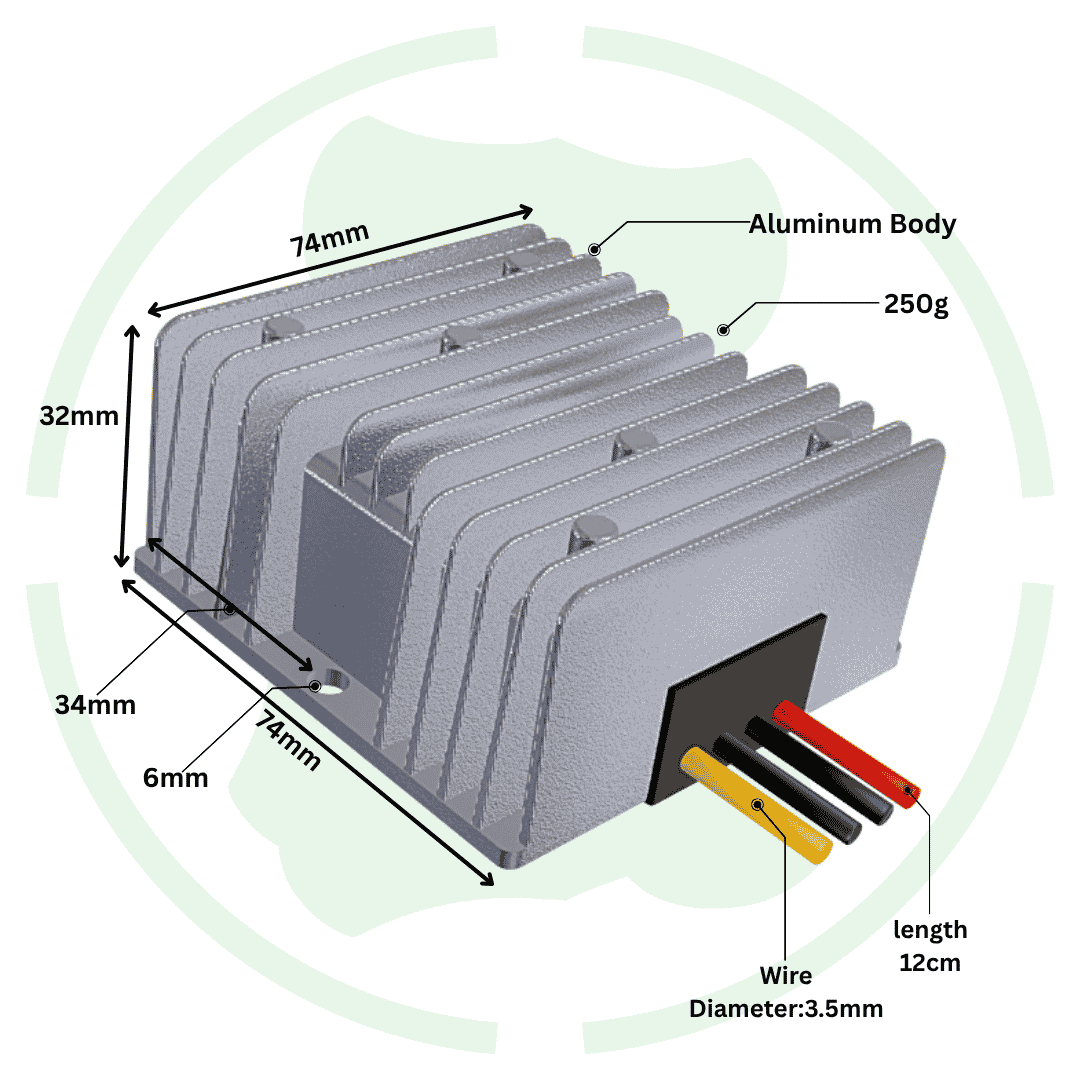

• Dimensions: 74x74x32 mm

• Weight: 250g

✅ Protection Features:

• Short Circuit Protection

• Over-Current Protection

• IP68 Rated: Water proof & Dust proof

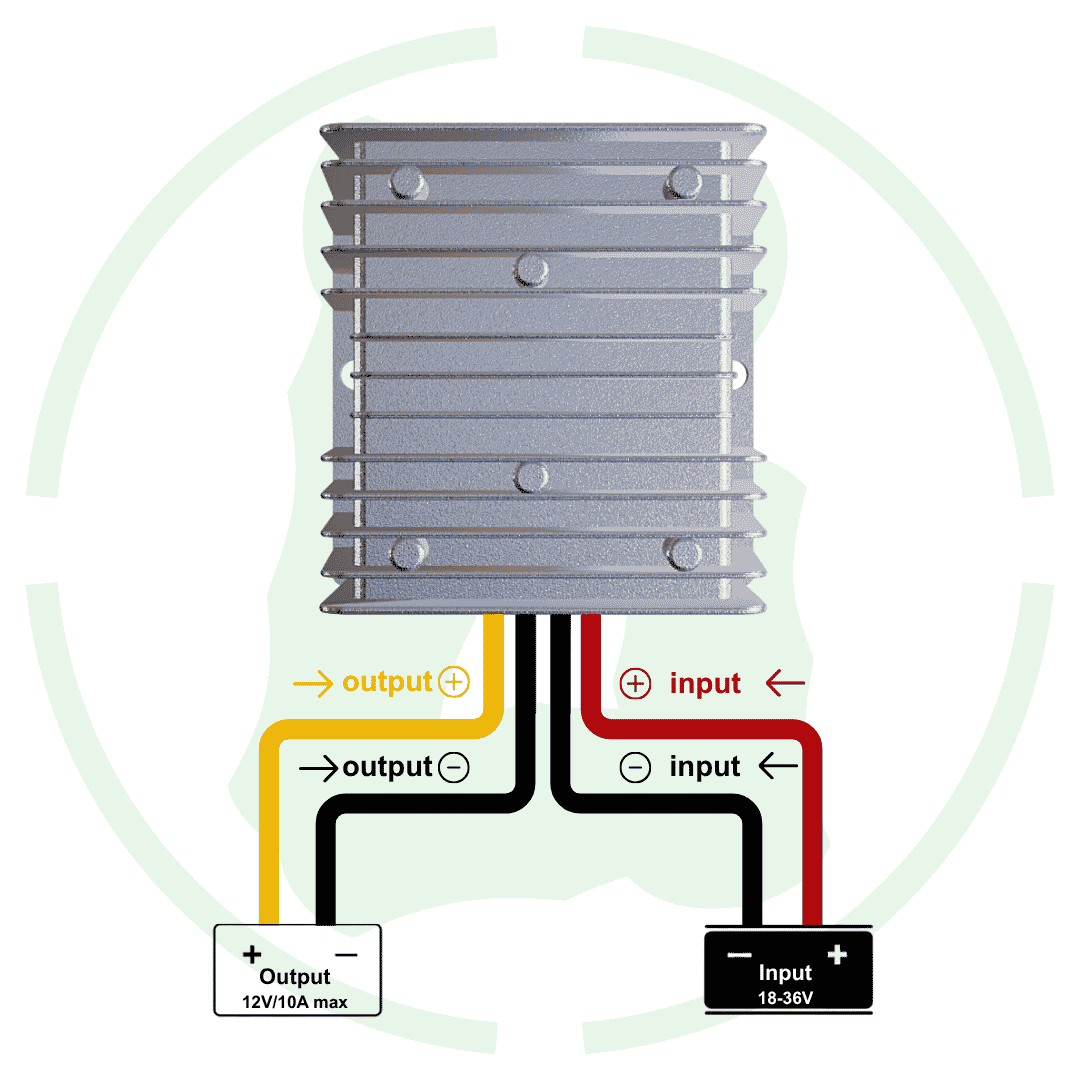

🔌 Wiring Instructions:

• Input: Red (+), Black (–)

• Output: Yellow (+), Black (–)
