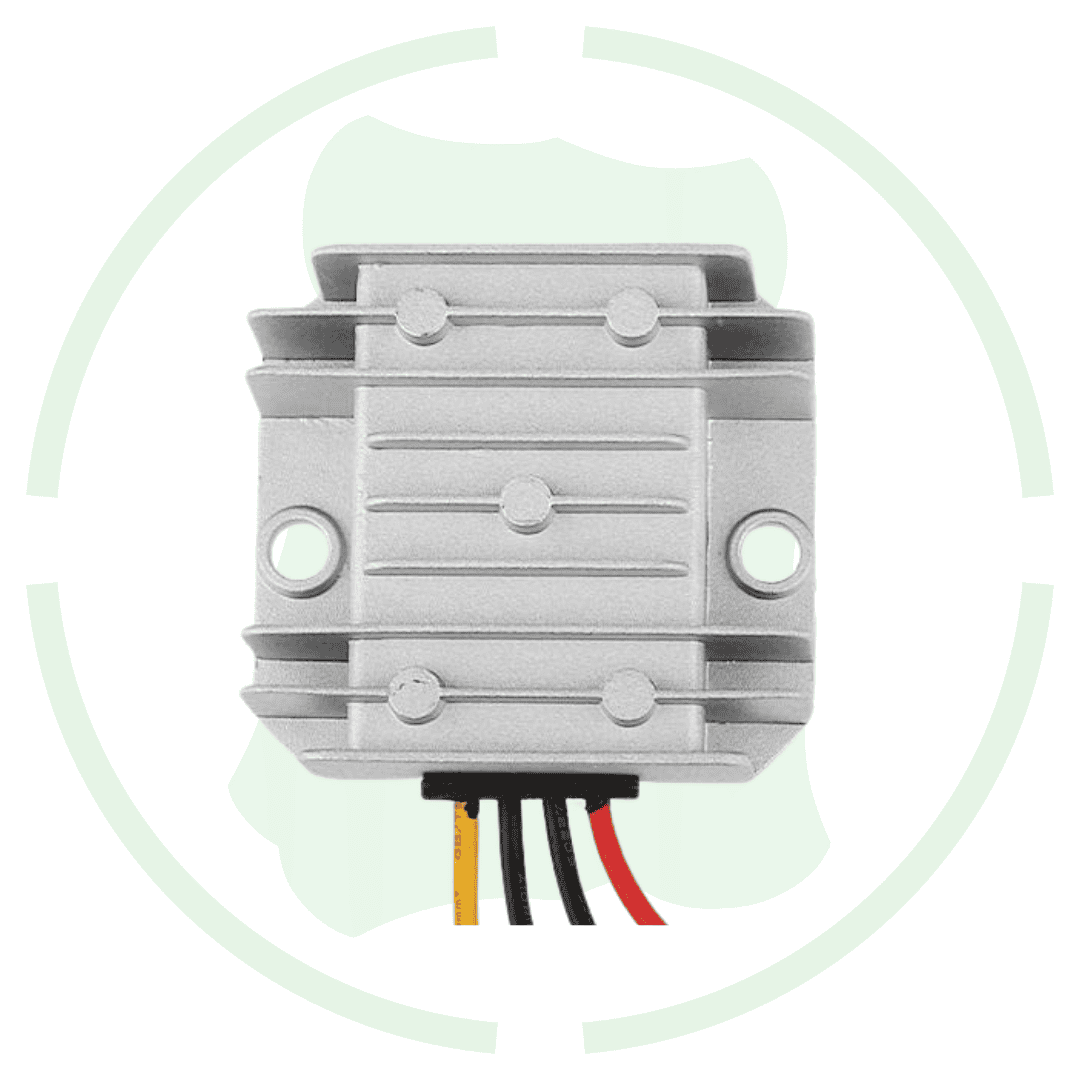

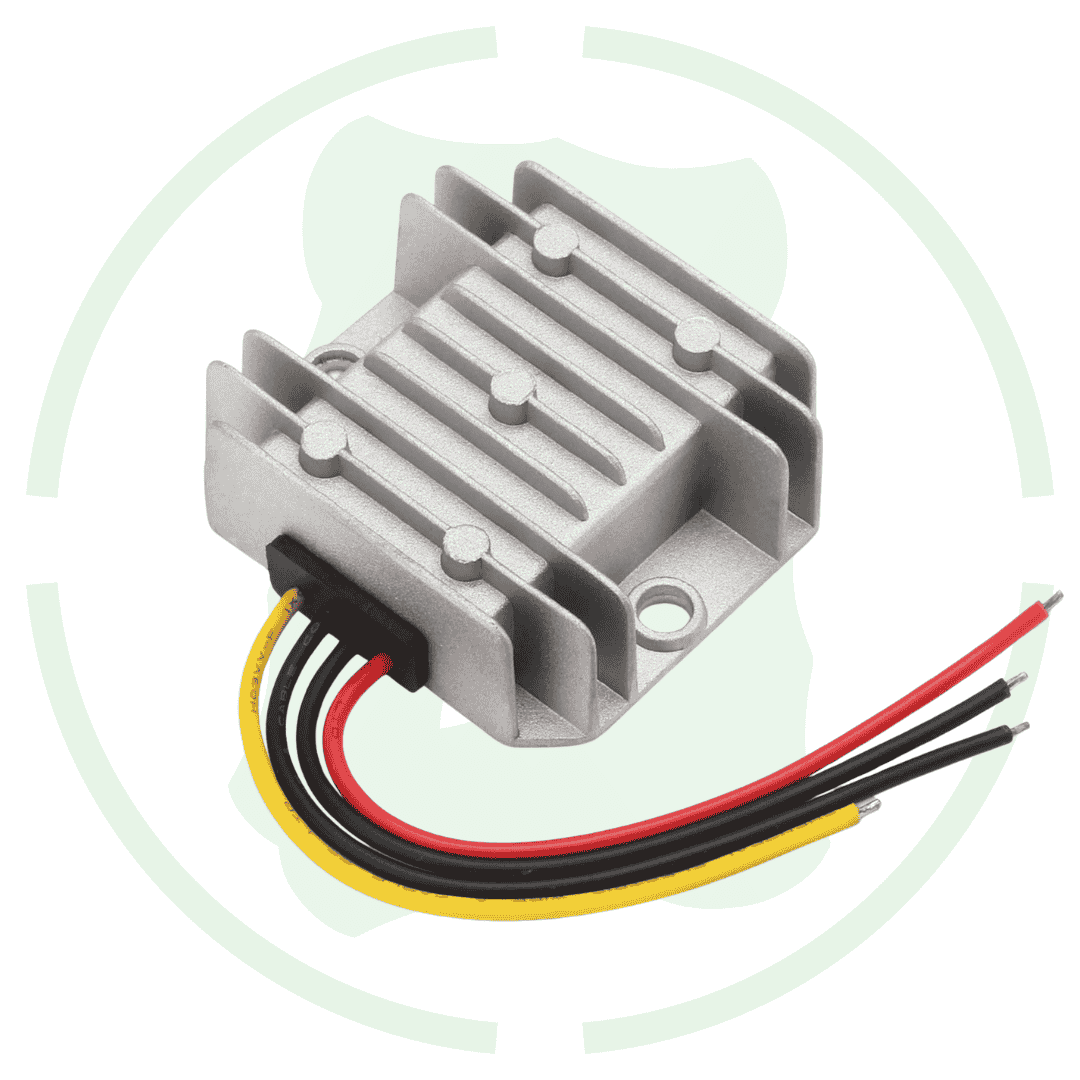

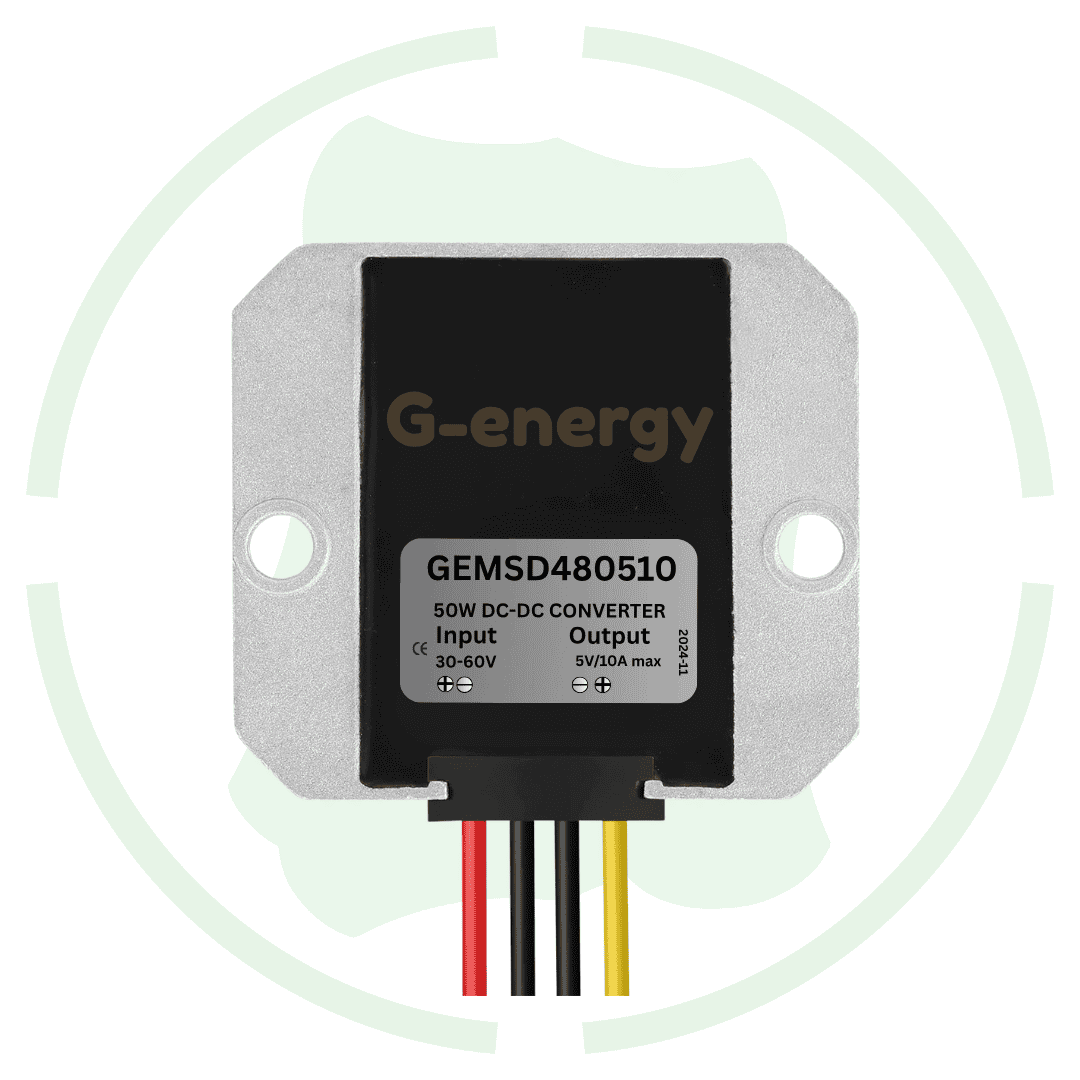

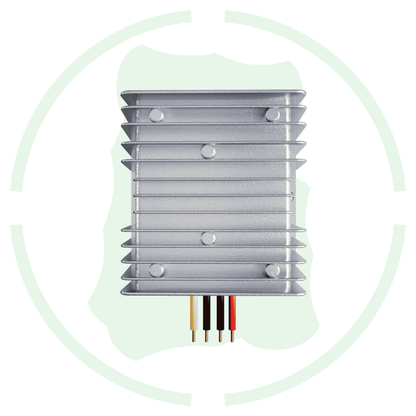

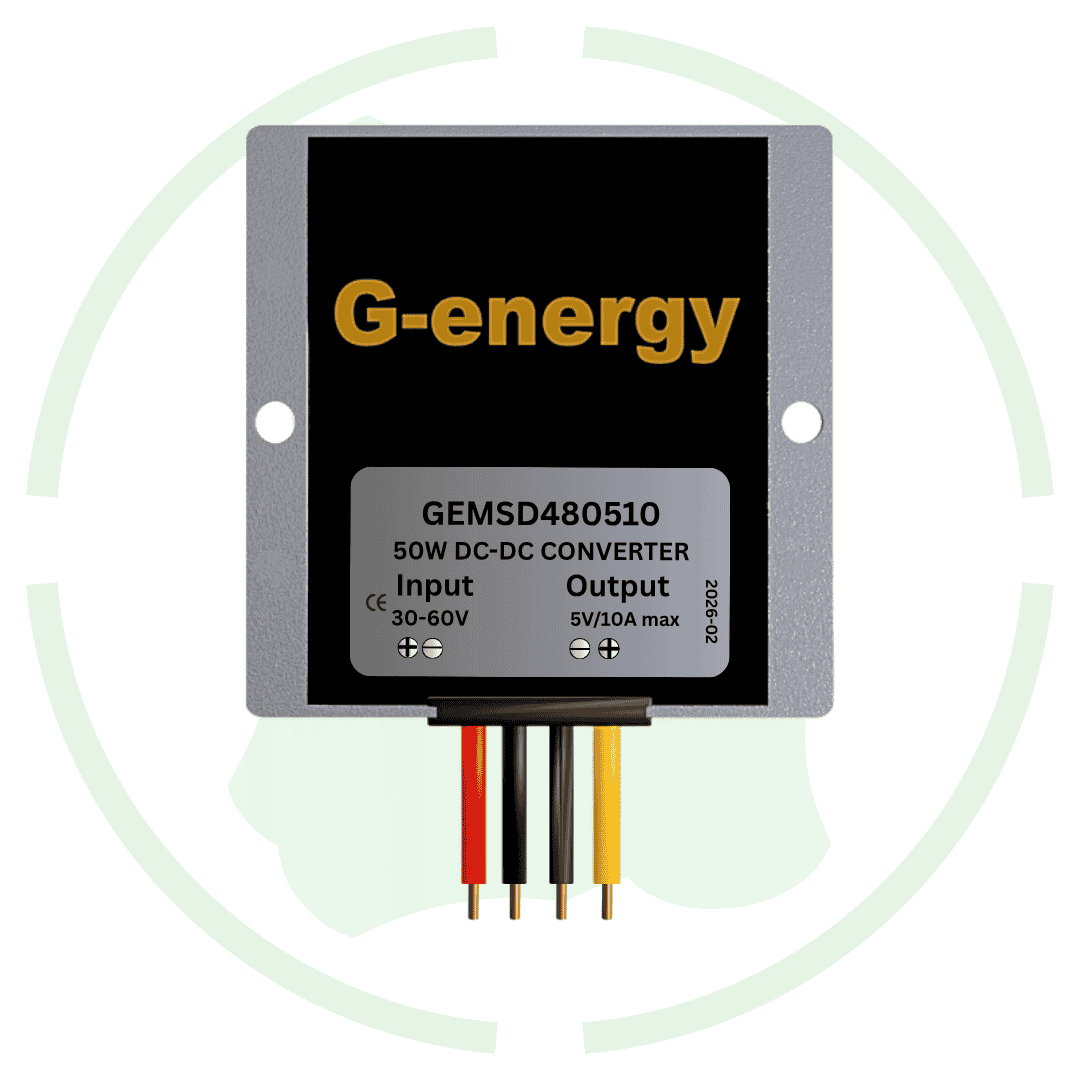

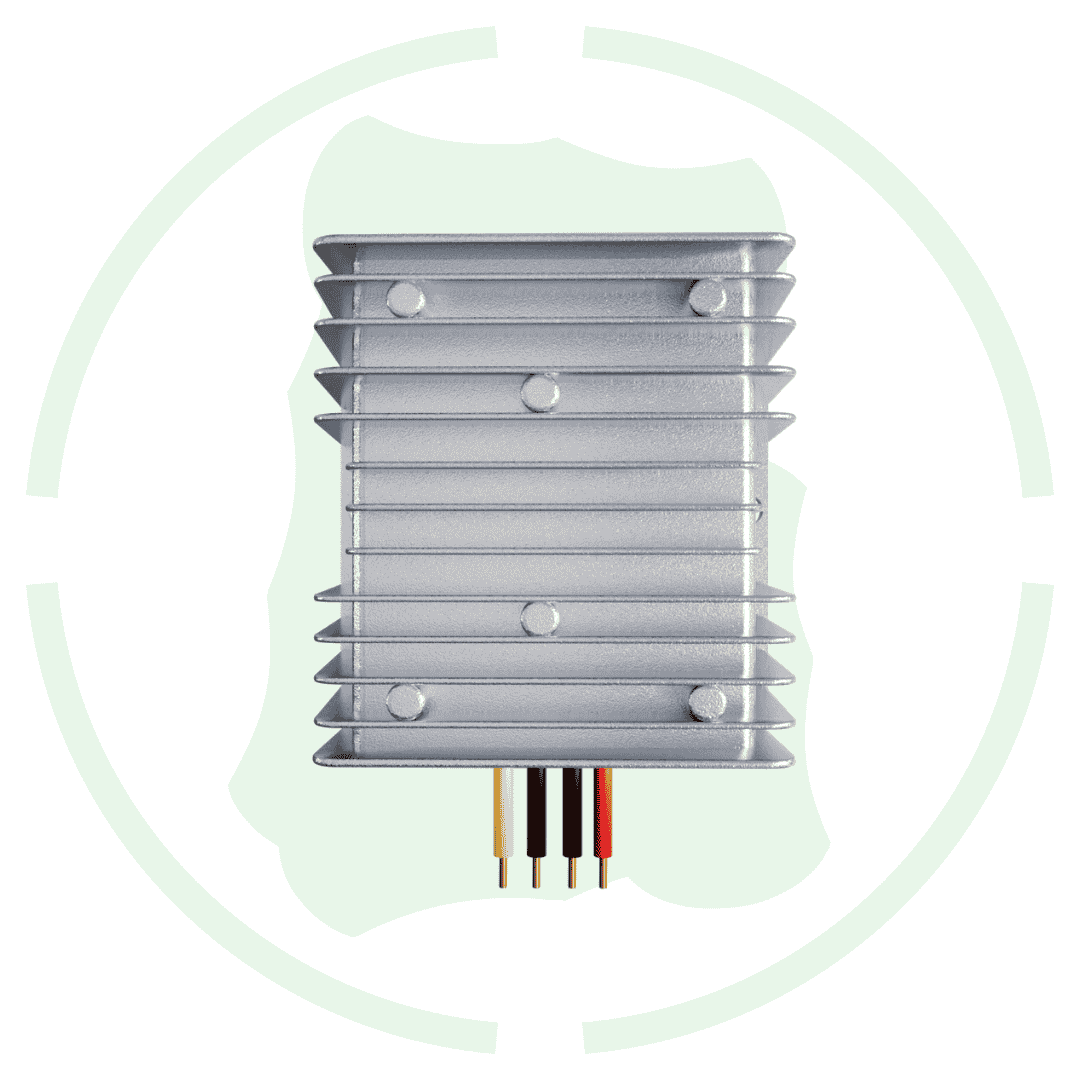

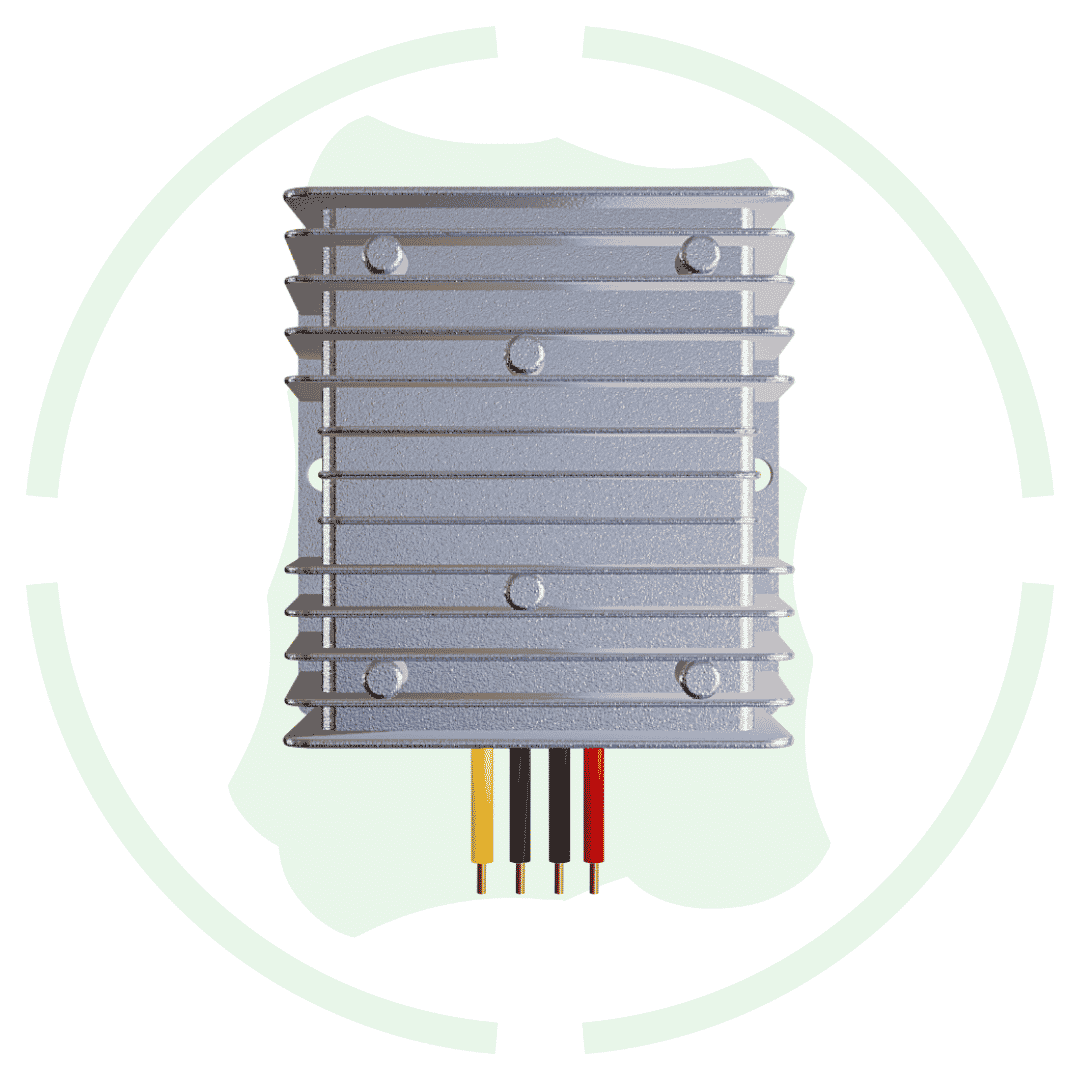

G-energy GEMSD480510 48V To 5V 10A 50W Dc To Dc Converter Ip68 Buck Converter

Overview of this 48v to 5v 50w dc dc converter

Introducing G energy 48v to 5v 10a 50w dc dc voltage converter with ip68 waterproofing at best price in India with G energy.  This converter work on wide input voltage range from 30v to 60v and make it usable from multiple dc voltage source.

It also come with under voltage and over current protection for smooth and better performance of industrial device. It is built with metal body with ip68 waterproofing for its short circuit protection due to water leakage.

Features

• Wide Input voltage range: This 48v to 5v voltage converter come with input range from 30v to 60v for use at multiple dc voltage sources.
• Fix 5v output: It provide a stable 5v stable output voltage from 48v input voltage for any industrial machinery use.
• Metal Body with ip68 rating: This converter come with metal body & ip68 waterproof rating for use at any industrial use.
• Under voltage Protection: This converter come with under voltage protection and it case if input voltage goes below its input range thant circuit get close automaticlay & provide safety for connected device and converter also.

Specification

🔧 Electrical Specifications

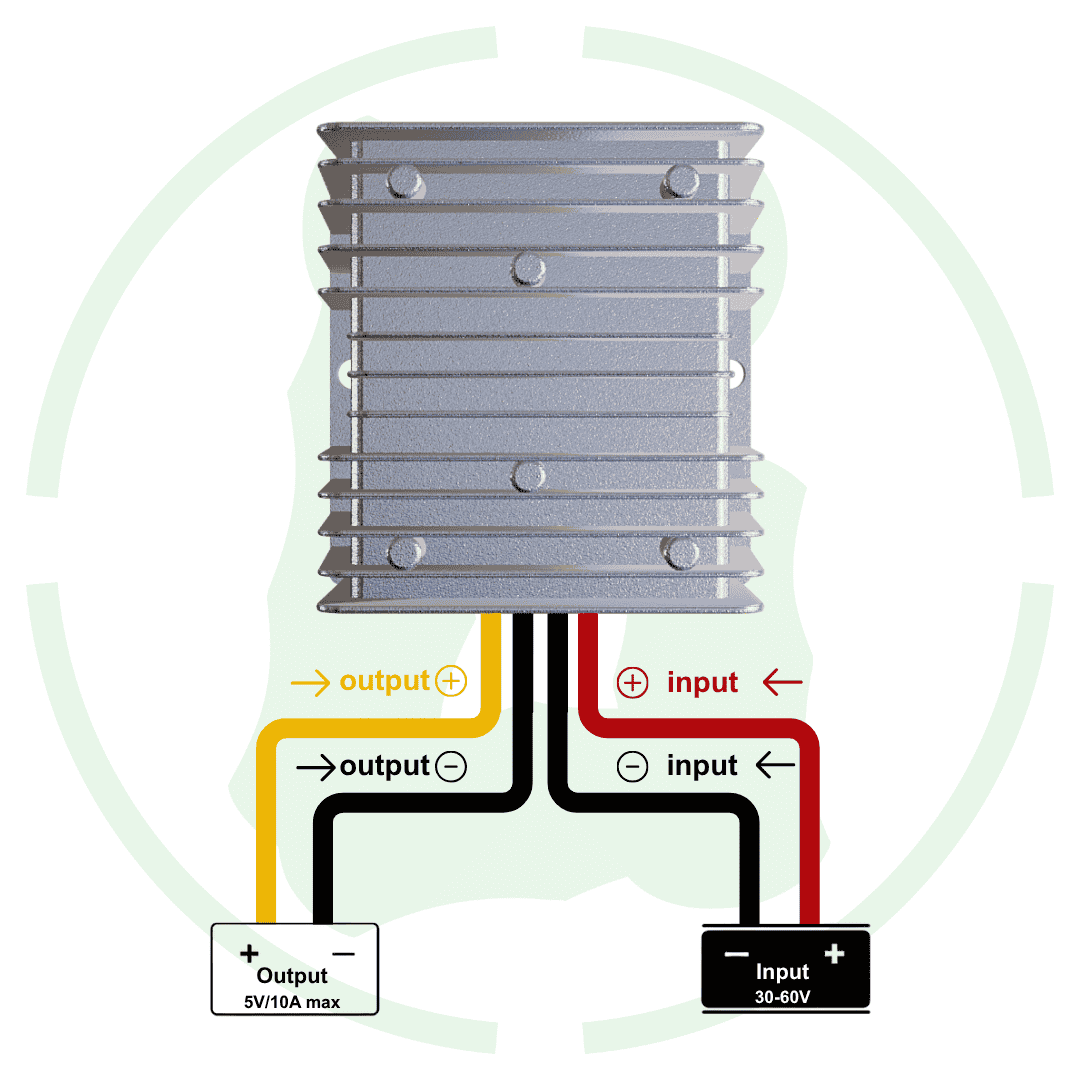

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 48V DC

3. Output Voltage: 5V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 50W

6. Efficiency (Typical): Up to 93%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 22mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under Voltage

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

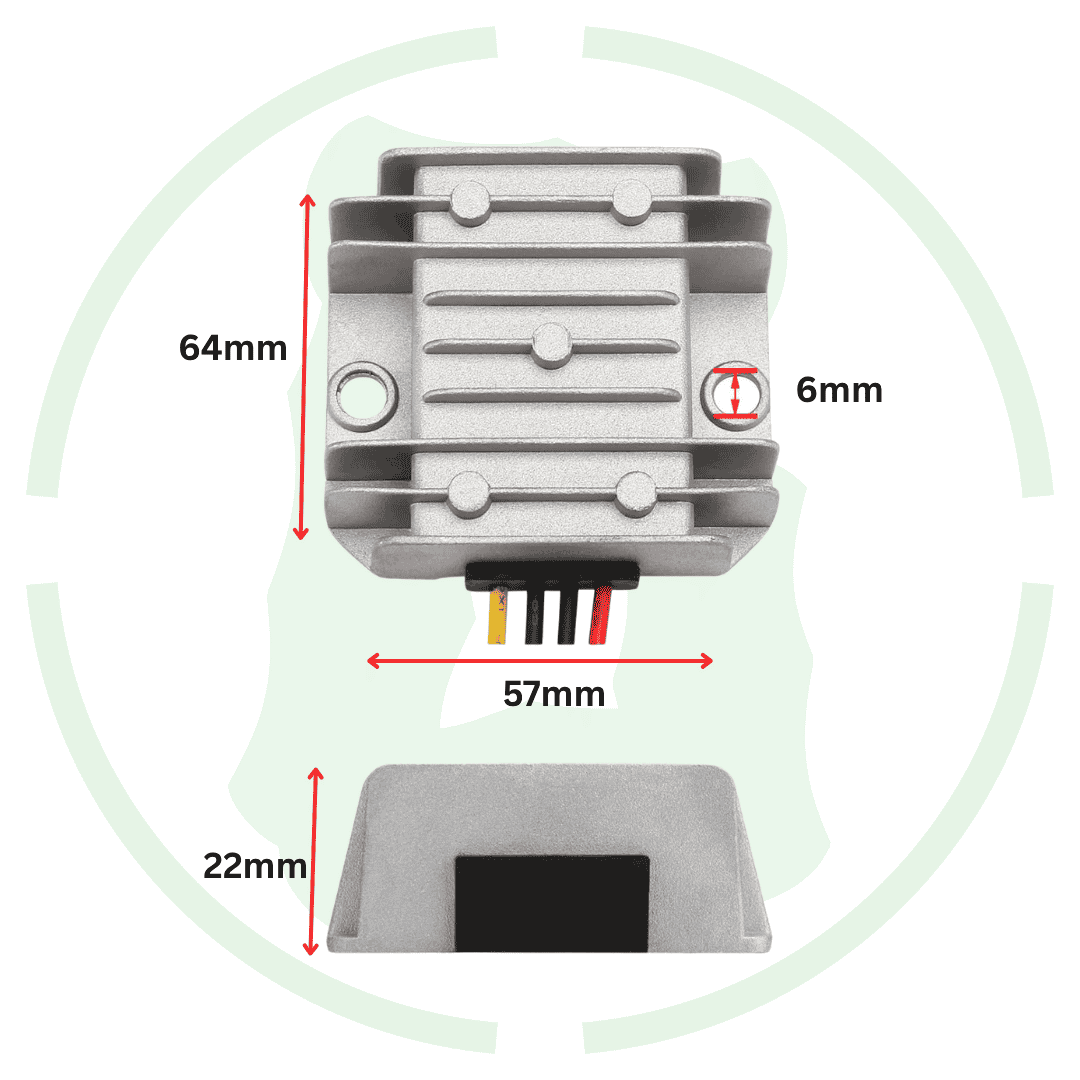

19. Dimensions: 64mm × 57mm × 23mm

20. Weight: 120 kg

21. Cooling Method: Free air convection (no fan required)

Datasheet of this 48v to 5v 10a 50w dc dc voltage converter
