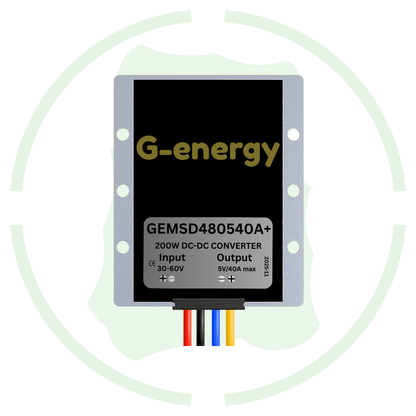

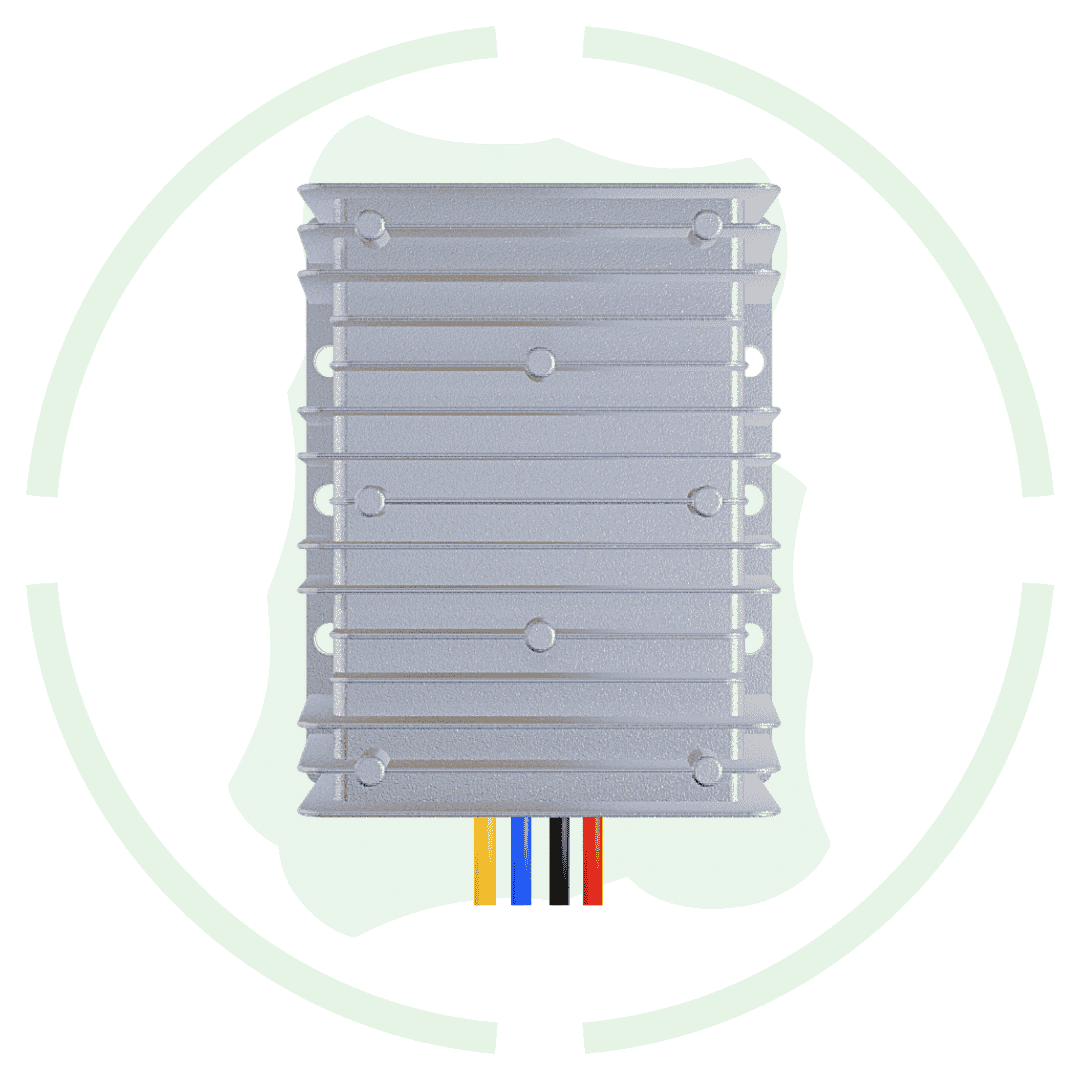

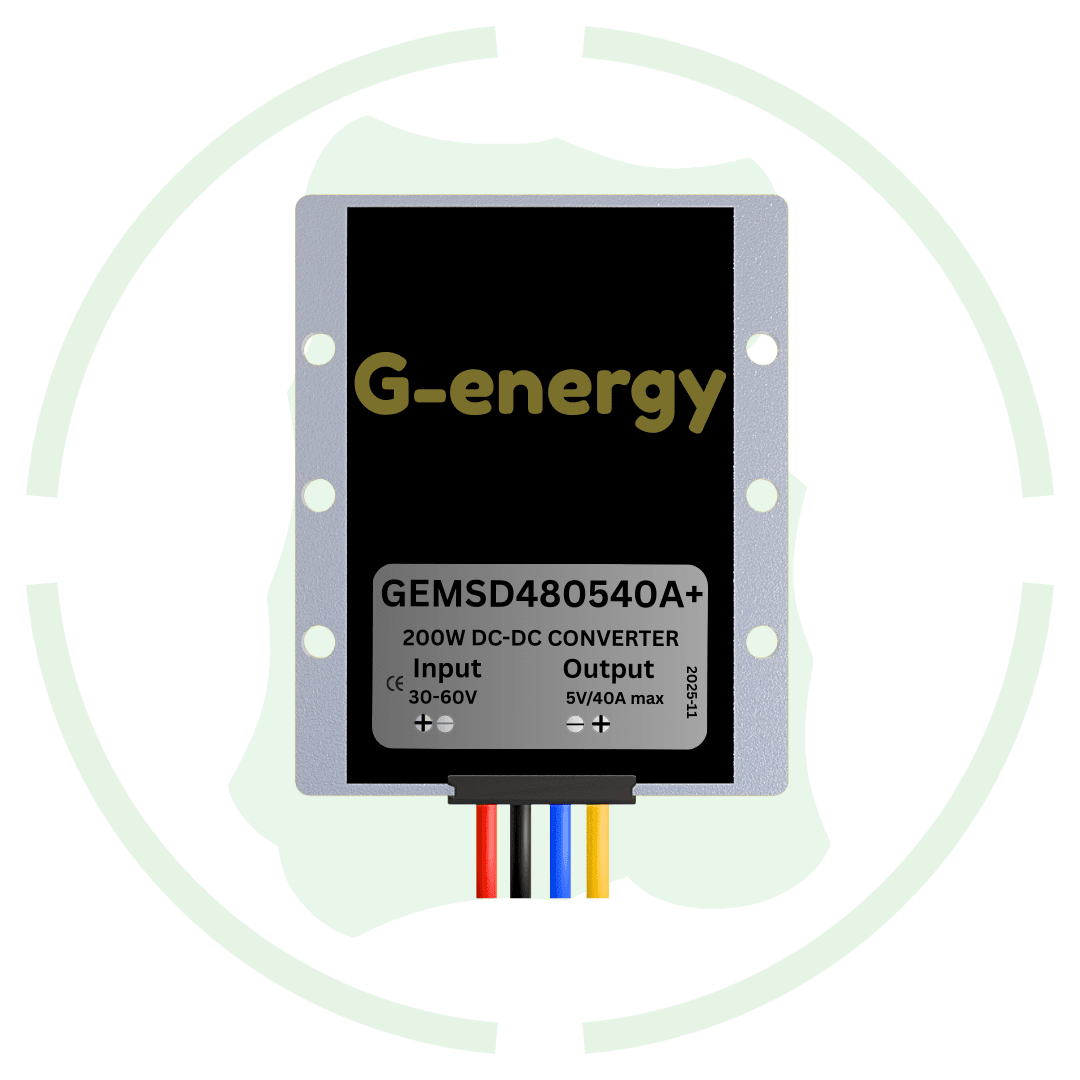

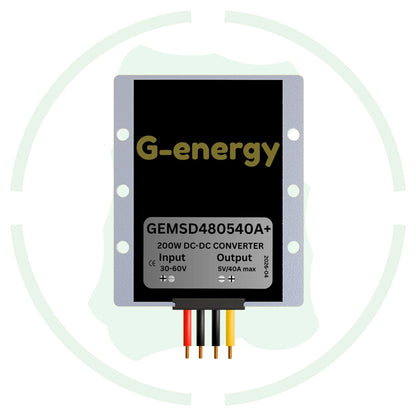

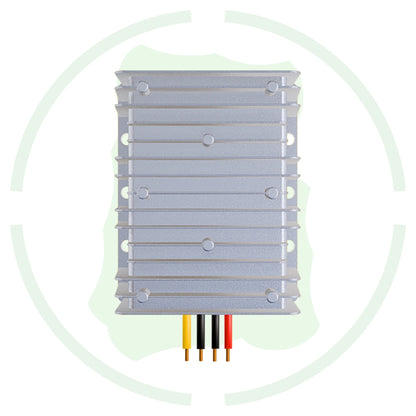

G-energy GEMSD480540A+ 48V To 5V 40A Dc Dc Converter 200W Buck Converter

Overview of this GEMSD480540A+ 48v to 5v 40a dc dc converter

Introducing g-energy GEMSD480540A+ 48v to 5v 40a dc dc converter 200w buck converter module at best price in India with G-energy. This converter is designed with 30v to 60v dc input voltage & provide 5v dc output with up to 40a max dc current and 200w dc power. It is built with high quality metal body & safety features like under voltage protection, short circuit protection, and over load protection.

Features

Input voltage: This 48v to 5v converter work on wide input voltage from 30v to 60v input voltage for better compatibility.

200W dc power: It also come with high dc power up to 200w and 40a max current to operate any dc industrial device.

High efficiency: It is built with synchronous rectification technology that help it to achieve high conversion efficiency up to 95% energy conversion.

Specification

Input Voltage: DC 30–60V

Output Voltage: DC 5V

Output Current: 40A

Output Power: 200W

Conversion Efficiency: Up to 94%

Operating Temperature: -40°C to +85°C

Protection Features: Over-current, over-voltage, over-temperature, short circuit

Cooling Method: Natural cooling

IP Rating: IP68 (dustproof and waterproof)

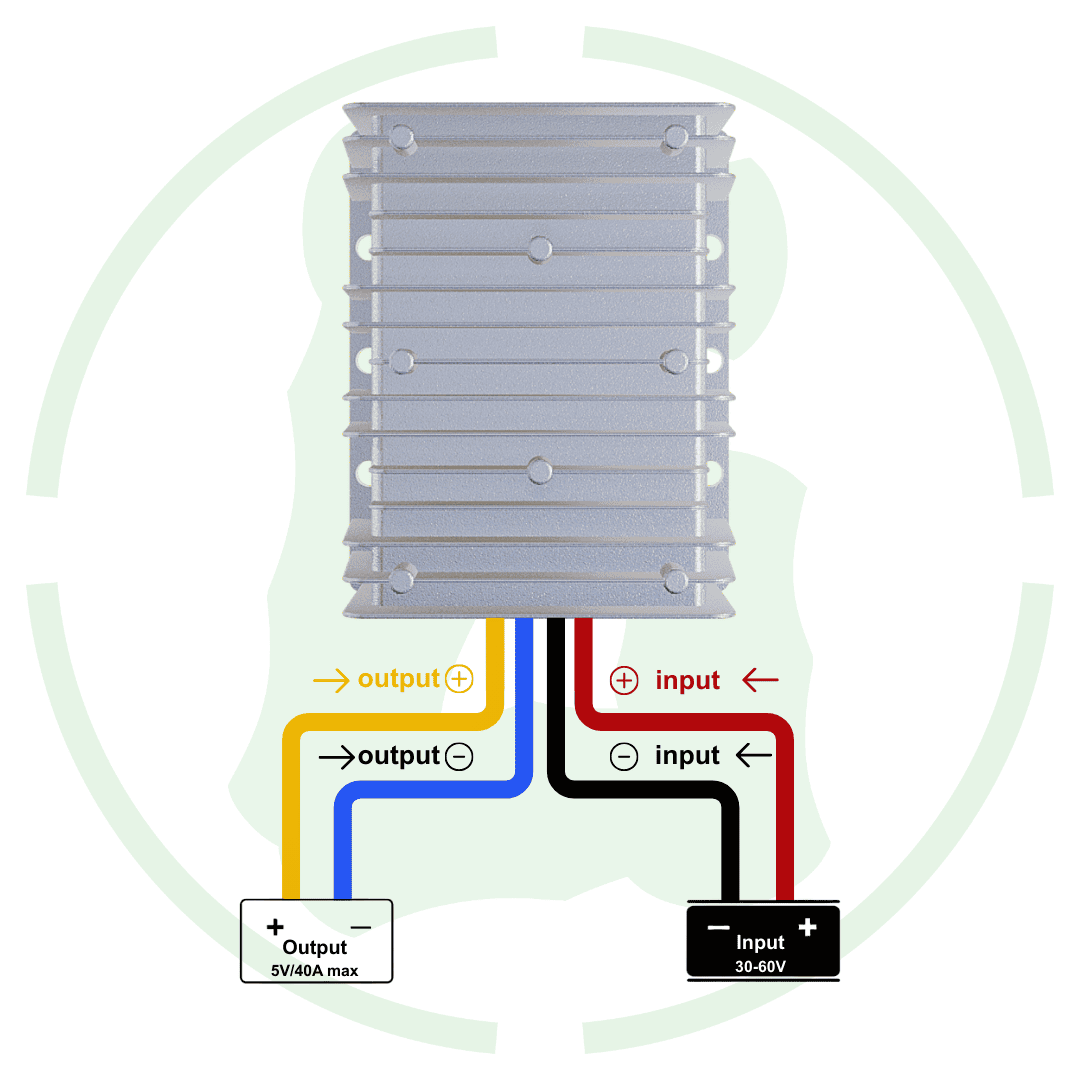

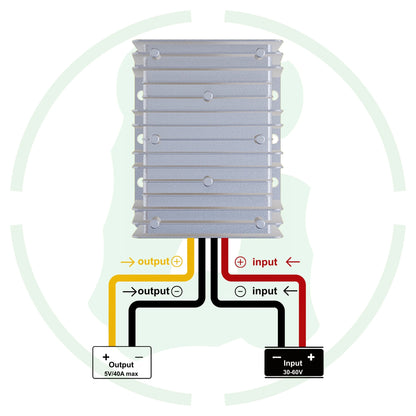

Input Terminal: Red(+) Black(-)

Output Terminal: Red(+) Black(-)

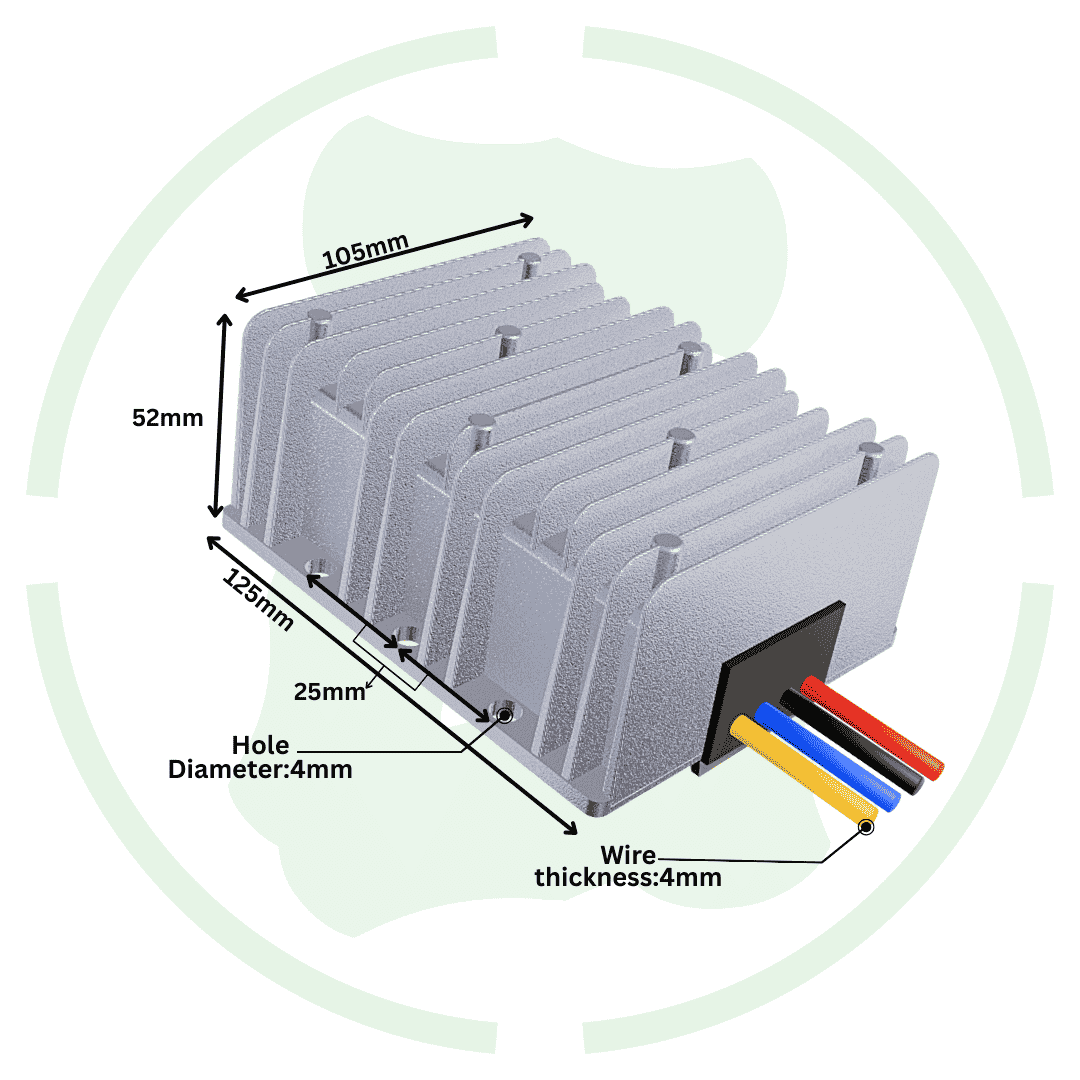

Dimensions: 124X104X51mm

Mounting: Mounting holes for secure installation

Weight: 480 gm
