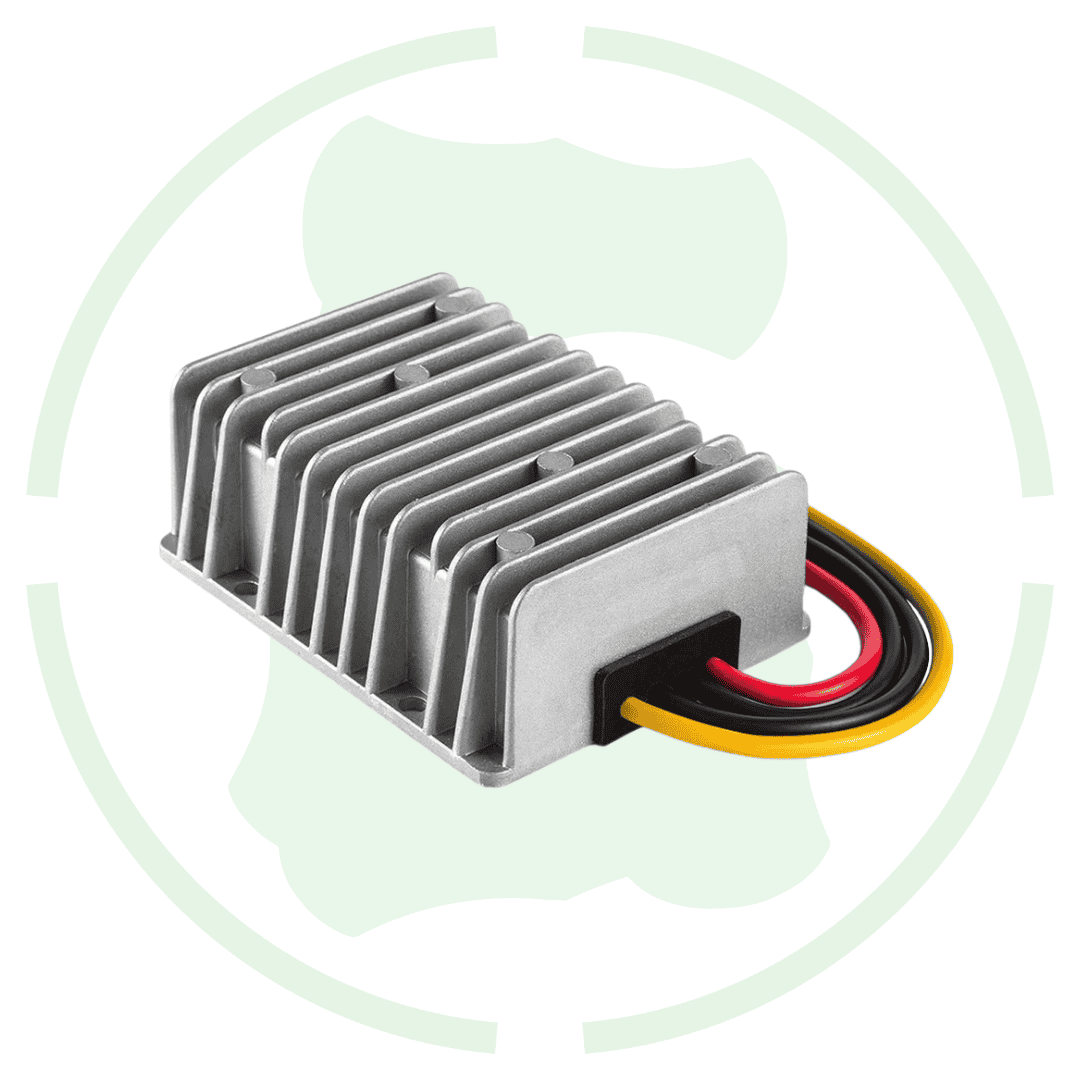

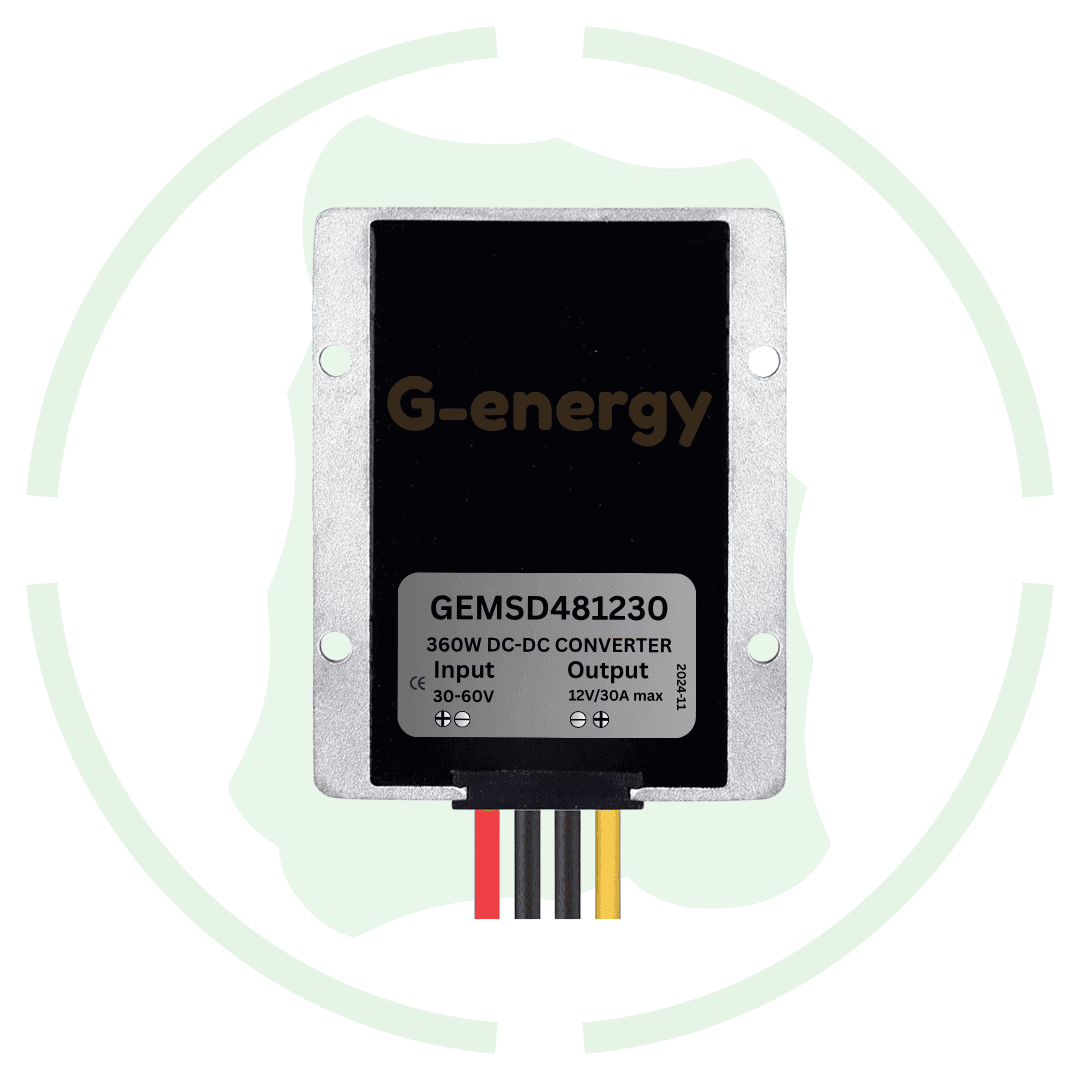

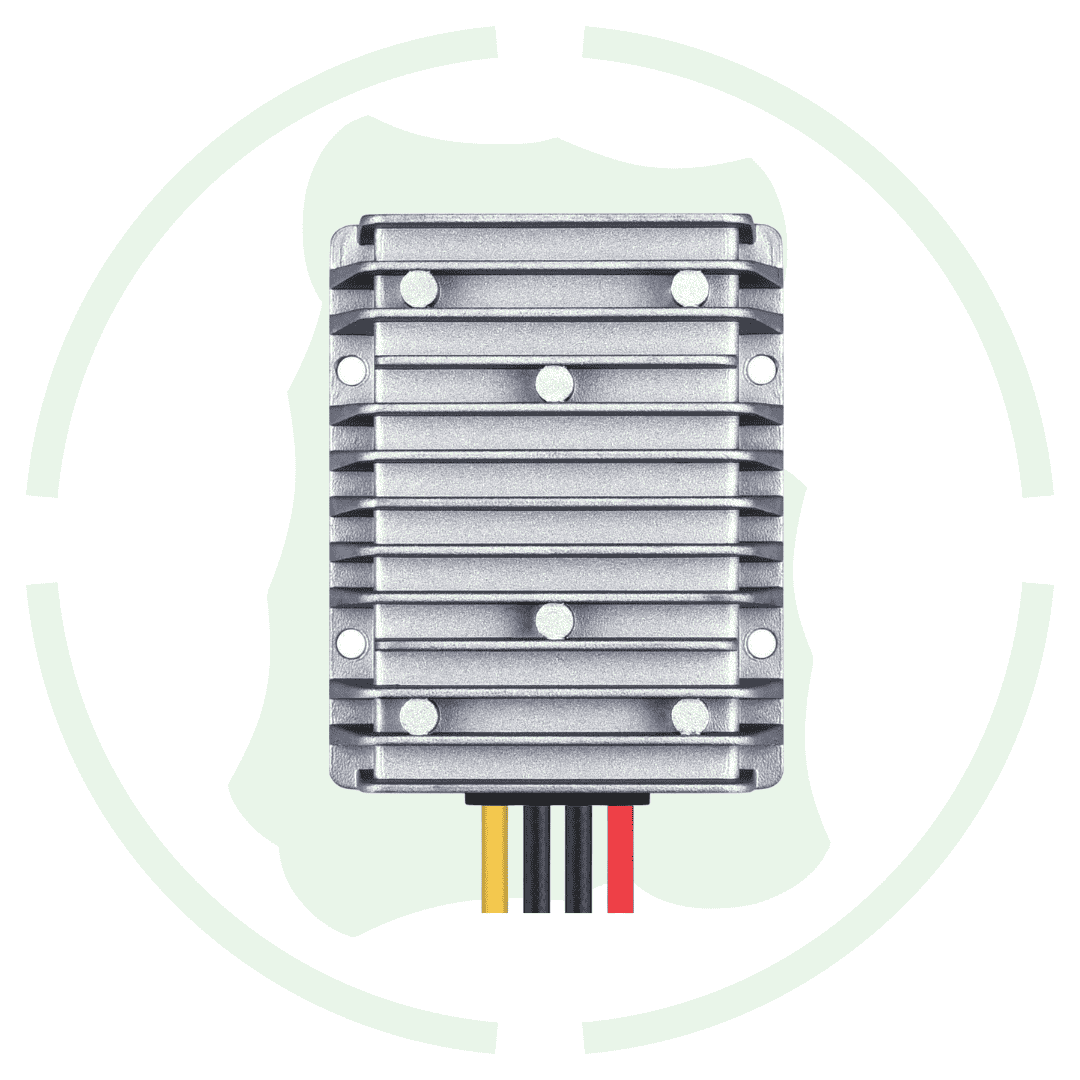

G-energy GEMSD481230 36V 48V to 12V 30A 360W Dc To Dc Converter Ip68 Buck Converter

Overview of this 36v 48v to 12v 30a 360v dc to dc converter

Introducing g-energy 36v 48v to 12v 30a 360w dc dc converter ip68 buck converter at best price in India with G-energy. This dc dc converter also come with 3 month exchange warranty in case if product stop working you can claim its exchange. And this exchange warranty provide you product quality assurance.

Features

Wide input voltage range: This 36v 48v to 12v dc dc converter come with a wide dc input range from 30v to 60v for use at multiple input source device.

Fix 12v output: This 48v to 12v dc dc converter provide fix 12v dc voltage for stable with upto 360W maximum power.

Ideal for environment condition: This voltage converter is built with metal case epoxy material to make it usable for harsh environment with temperature range from -40 to 80 degree celsius.

Specification

Input Voltage: 30V – 60V DC

Output Voltage: 12V DC

Output Current: 30A

Output Power: 360W

Efficiency: ≥90% (at full load)

Output Ripple: ≤100mV

Conversion Type: Buck Converter (Step-down)

Short-Circuit Protection: Yes

Over current Protection: Yes, with automatic shut-off

Over voltage Protection: Yes

Under voltage Protection: Yes

Cooling Method: Passive cooling (with heatsink) or fan (depending on model)

Operating Temperature: -20°C to 60°C

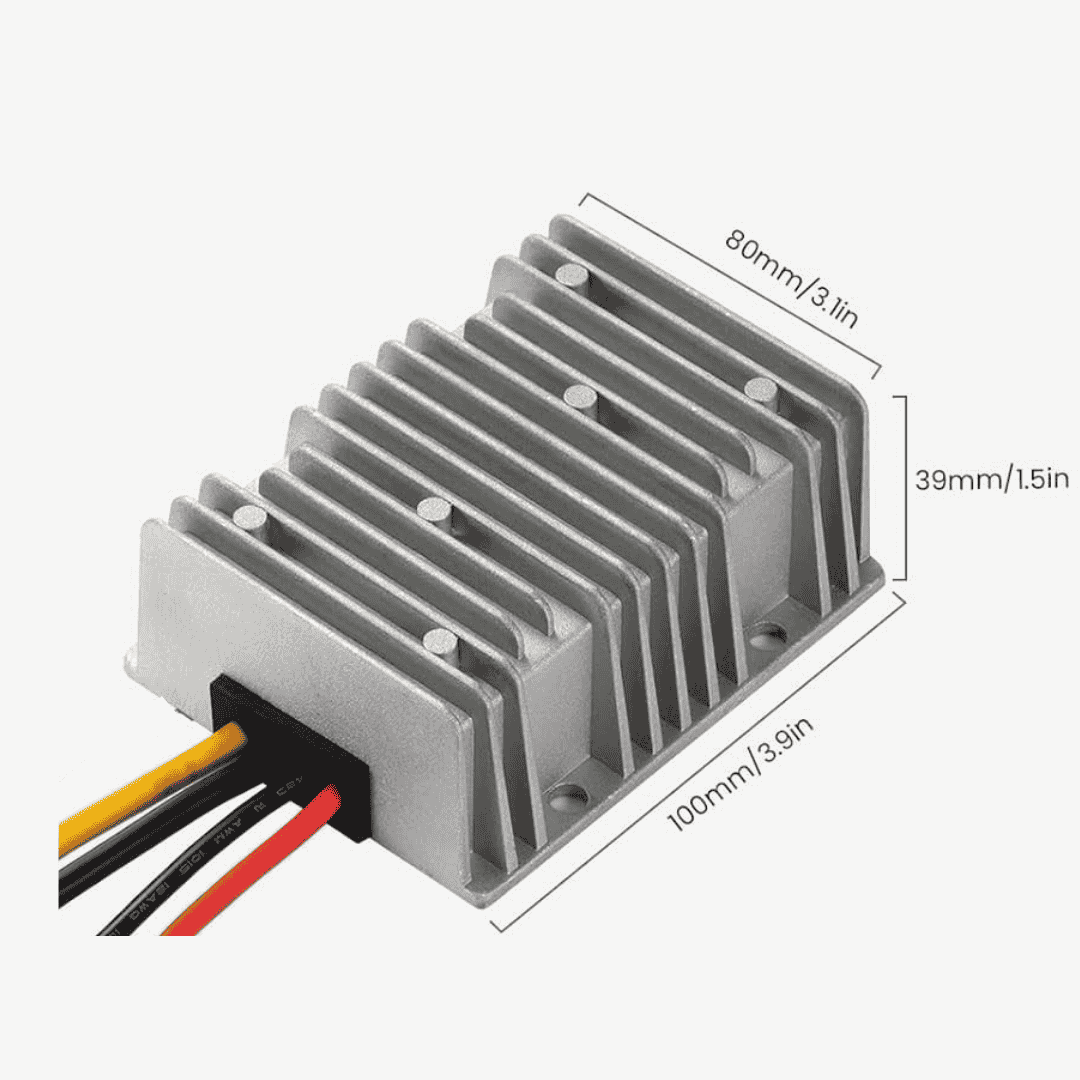

Dimensions: 100mm × 80mm × 37mm

Datasheet of this GEMSD481230 36v 48v to 12v 30a dc voltage converter
