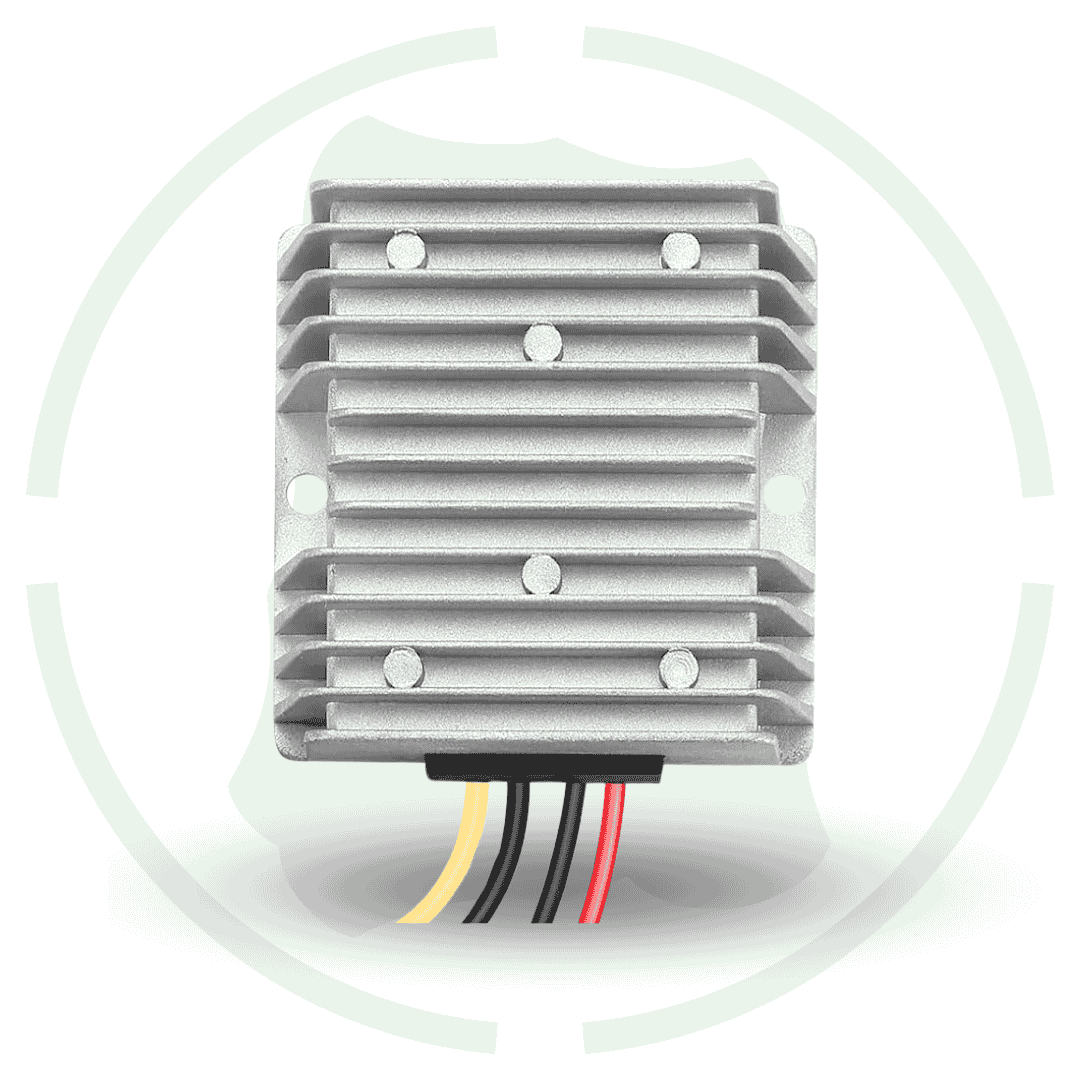

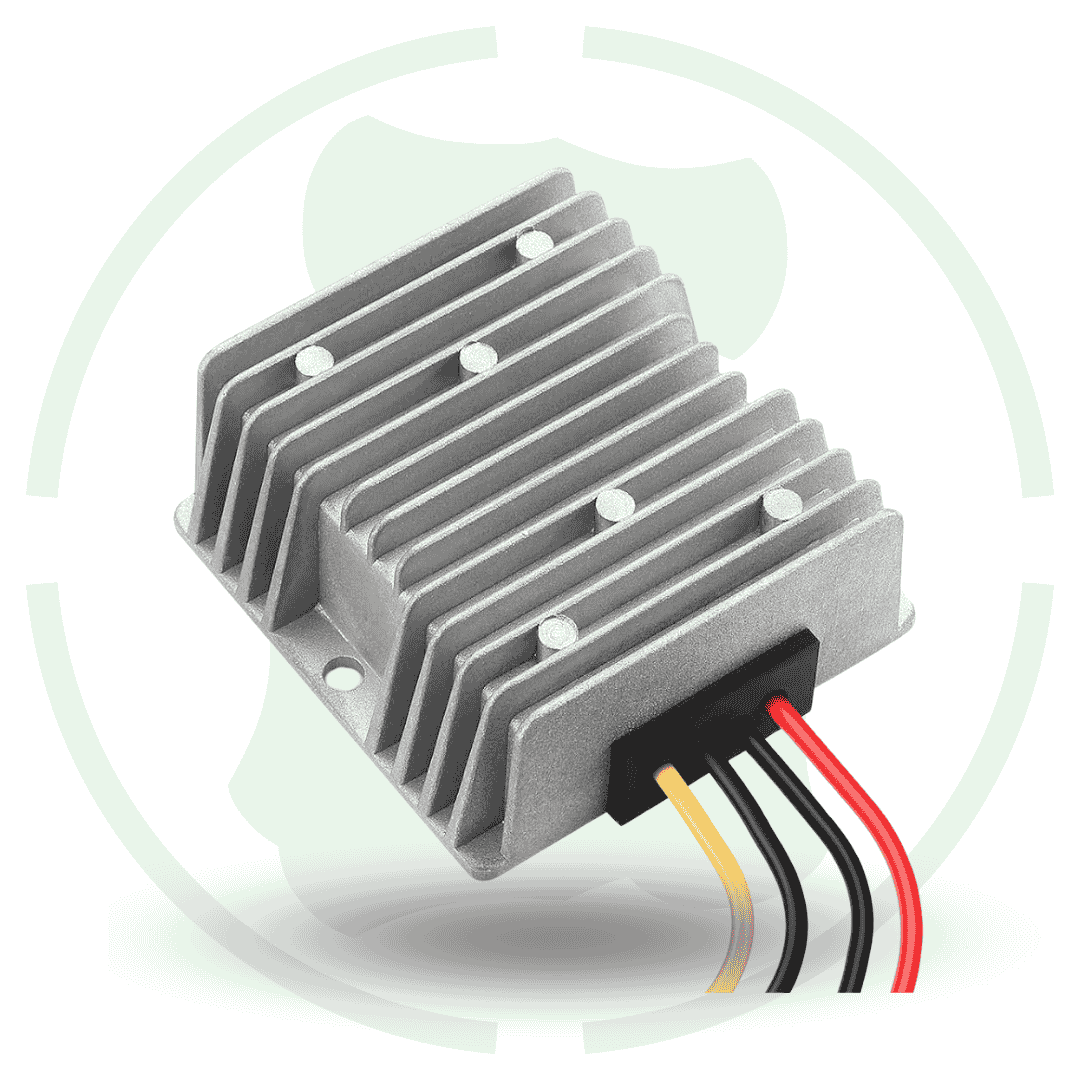

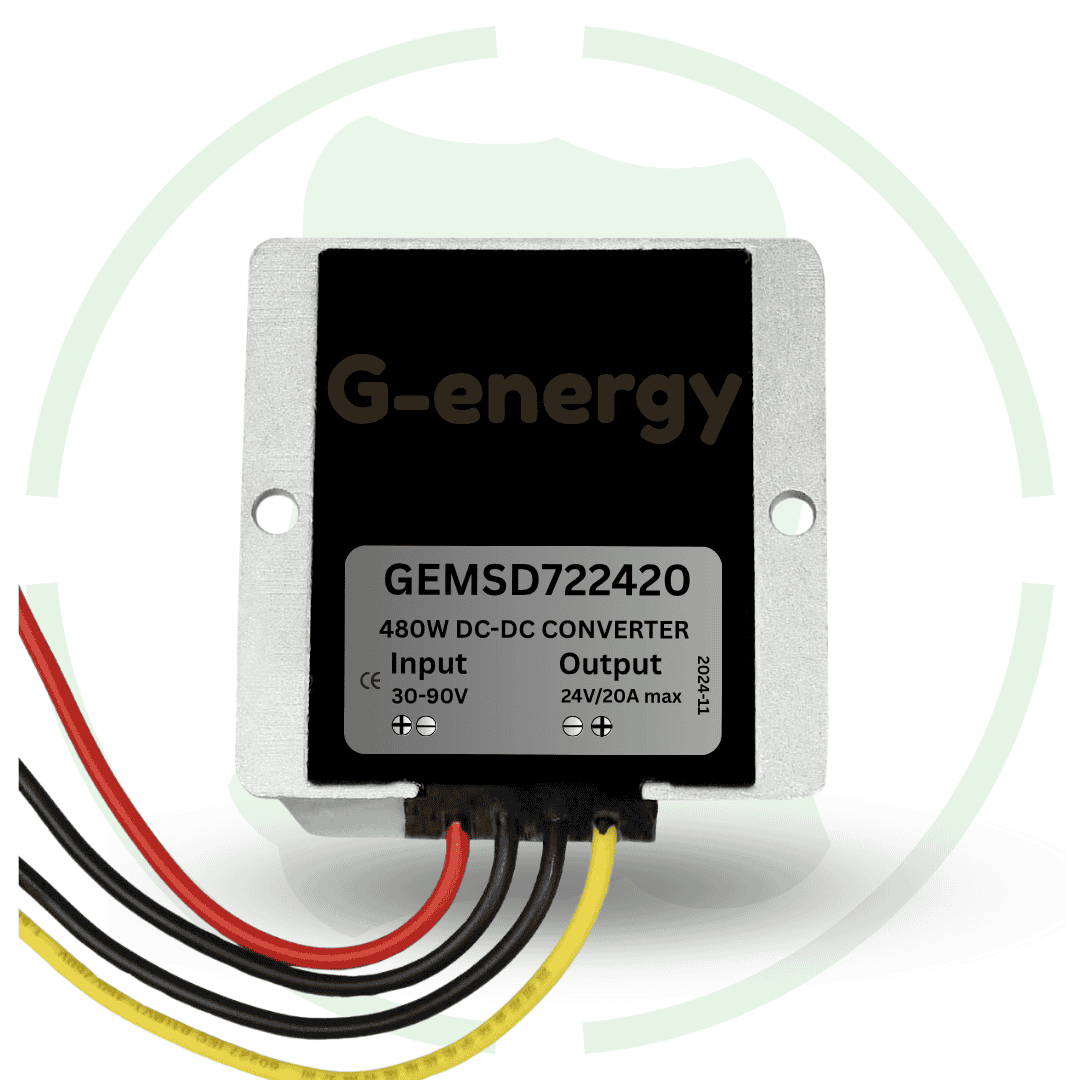

G-energy GEMSD722420 48V 72V To 24V 20A 480W Dc To Dc Converter Ip68 Buck Converter

Overview of this 48v 72v to 24v 20a 480w dc to dc converter

Introducing g-energy 48v 72v to 24v 20a 480w dc to dc converter ip68 waterproofing with metal body at best price in India with G-energy. This dc dc converter is built with aluminium body with epoxy for its waterproofing for it use in wet industrial condition. It also provide a fix 24v dc output voltage with upto 20a current and 480w max power.

Features

Wide input voltage range: This dc dc converter can smoothly work on a wide input voltage range from 30v to 90v input voltage.

480W high power: It also provide up to 480w high power for use it in high power demanding industrial setups.

Ip68 water proofing: This dc dc converter is built with aluminum metal body with epoxy that make it ip68 rated water proofing converter.

Specification

Model Number: GEMSD722420

Input Voltage Range: 30V – 90V DC

Output Voltage: 24V DC

Output Current: 20A

Output Power: 480W

Conversion Efficiency: Up to 95%

Ripple and Noise: ≤ 150mV

Protection Rating: IP68 (Waterproof, Dustproof)

Cooling Method: Natural air cooling (Passive)

Operating Temperature Range: -40°C to +80°C

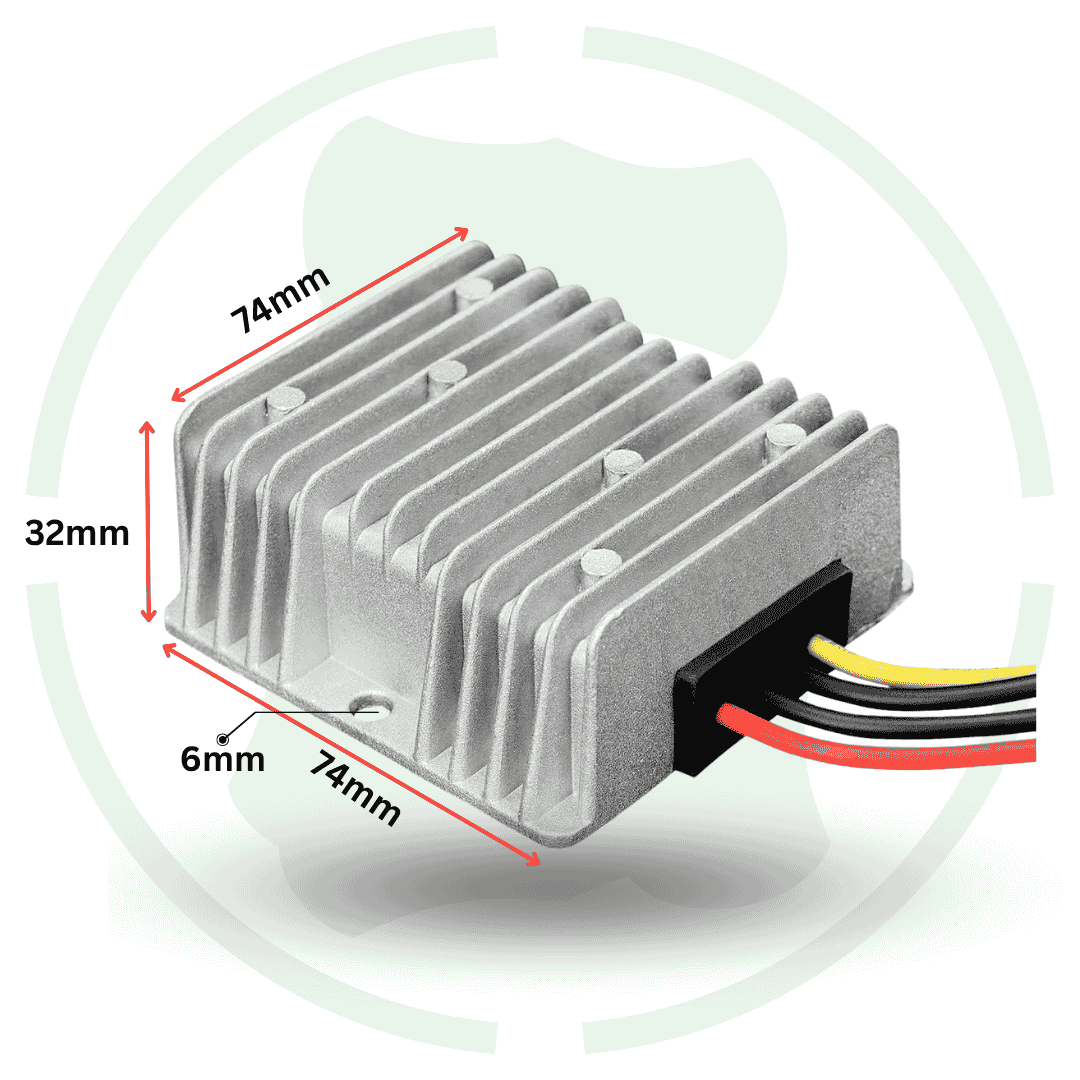

Dimensions: 74 × 74 × 32 mm

Weight: 292g

Datasheet of this GEMSD722420 48v 72v to 24v 20a dc voltage converter
