G-energy GEMSD724810A 72V 90V To 48V 10A 480W Dc Dc Converter Ip68 Buck Converter Module

Overview of GEMSD724810A 72V 90V To 48V 10A 480 Dc Dc Converter

Introducing G-energy GEMSD724810A 72v 90v to 48v 10a 480W dc dc converter Ip68 buck converter module at best price in India with G-energy. This buck converter work on a wide input voltage range of 60v to 120v and provide a fix 48v dc output voltage. It also provide a dc current up to 10A and 48w dc power.

Features

Wide input voltage range: It can smoothly work on a big input voltage range of 60v to 120w dc input for smooth operation in big input voltage range condition.

480W high dc power: It also provide a high dc power up to 480w dc power output with 10a max dc current.

Ip68 waterproofing: It is also built with alumuinum body and epoxy back coating to its water proofing and rough use under harsh industrial condition.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 60V – 120V DC

2. Rated Input Voltage: 60V 72V 90V 110V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 480W

6. Efficiency (Typical): Up to 96.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 72V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

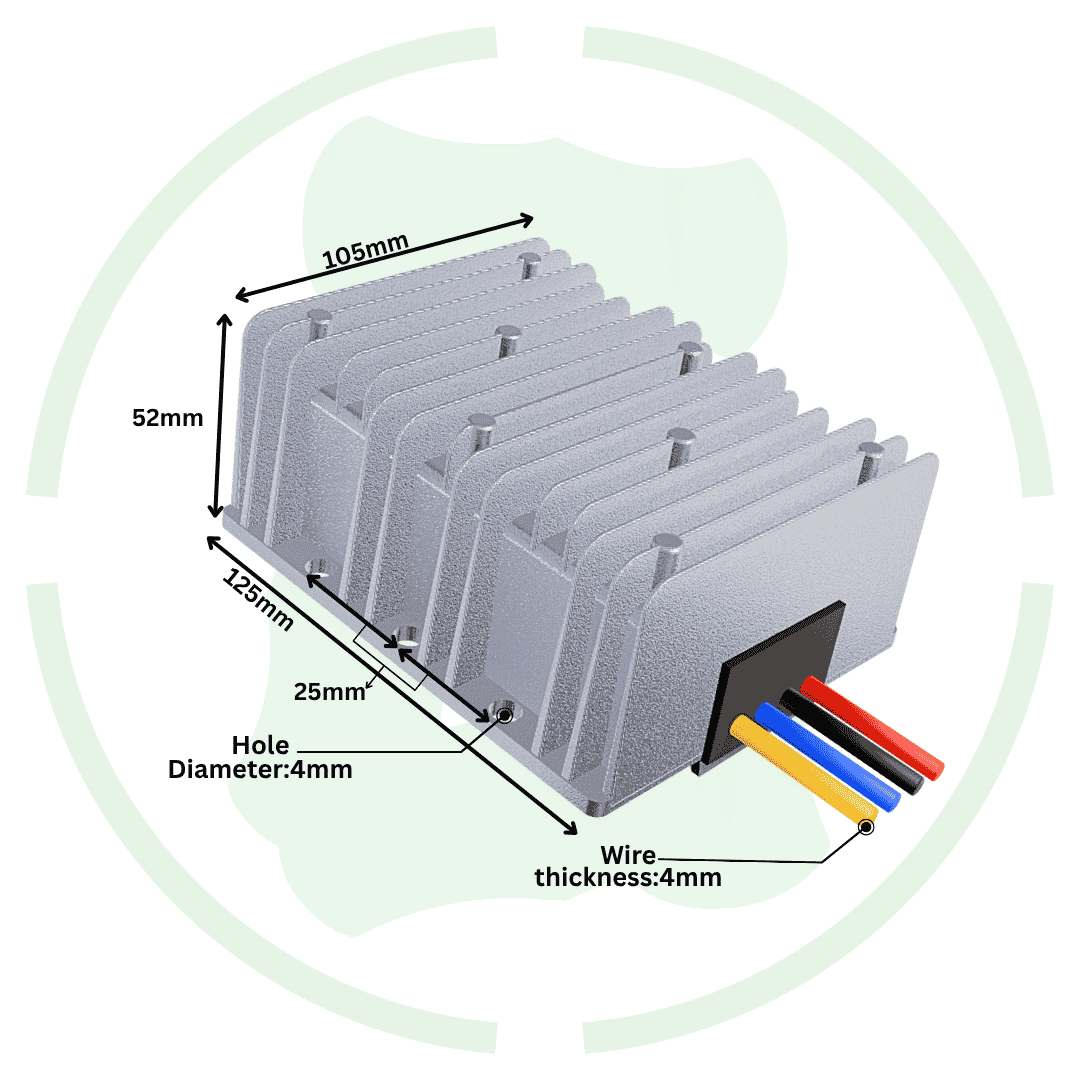

19. Dimension: 50 x 105 x 125 mm
20. Weight: 950gm
