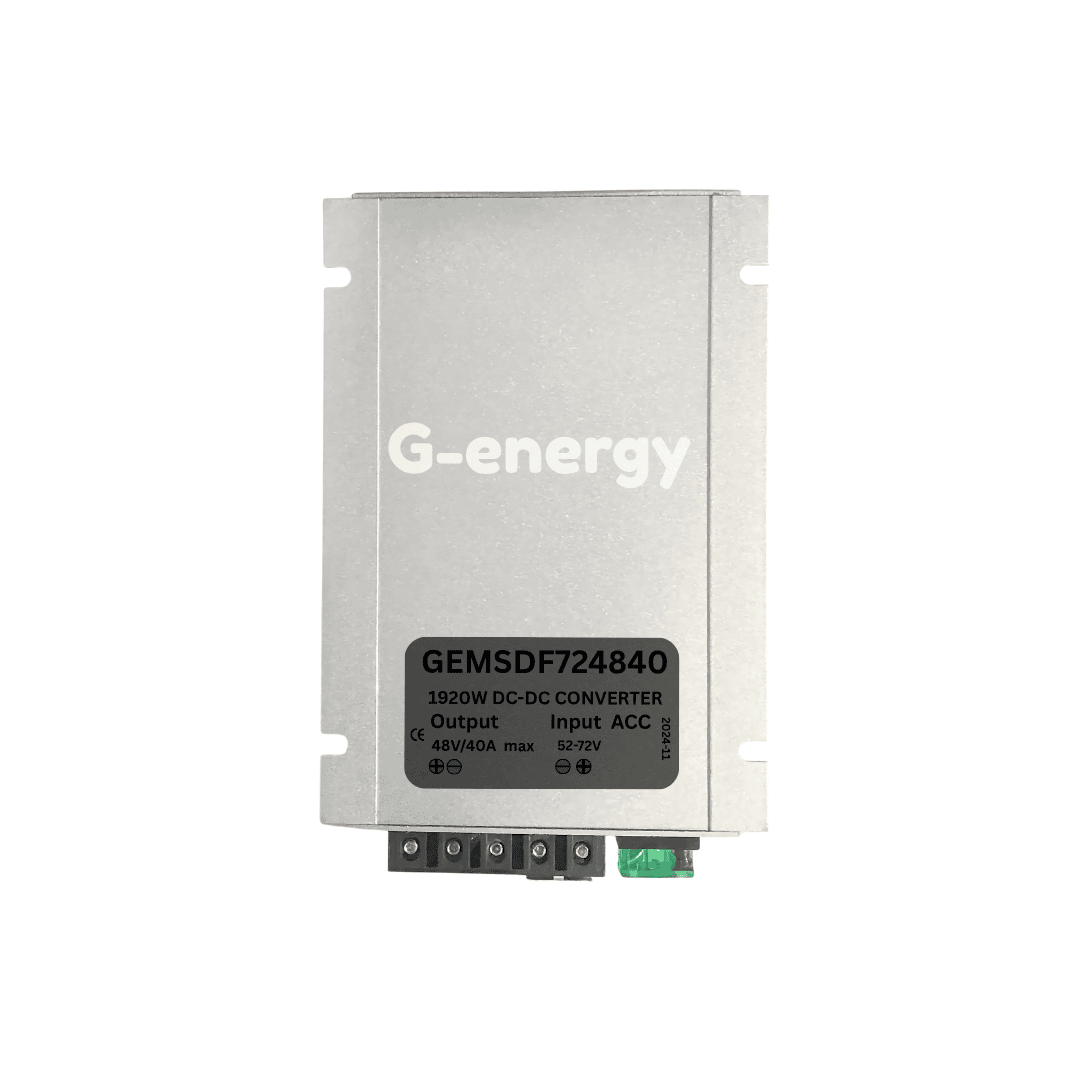

G-energy GEMSDF724840 60v 72v to 48v 40a 1920a Dc to Dc Converter With Fuse

Overview of this 60v 72v to 48v 40a 1920a dc to dc converter

Introducing 60v 72v to 48v 40a 1920a dc to dc converter with fuse for under voltage and over voltage protection at best price in India with G-energy. This dc voltage converter is built with synchronous rectification technology for its hing efficiency energy conversion. Its ring terminal wire connection method also make it easy for input and output wire connection method.

Features

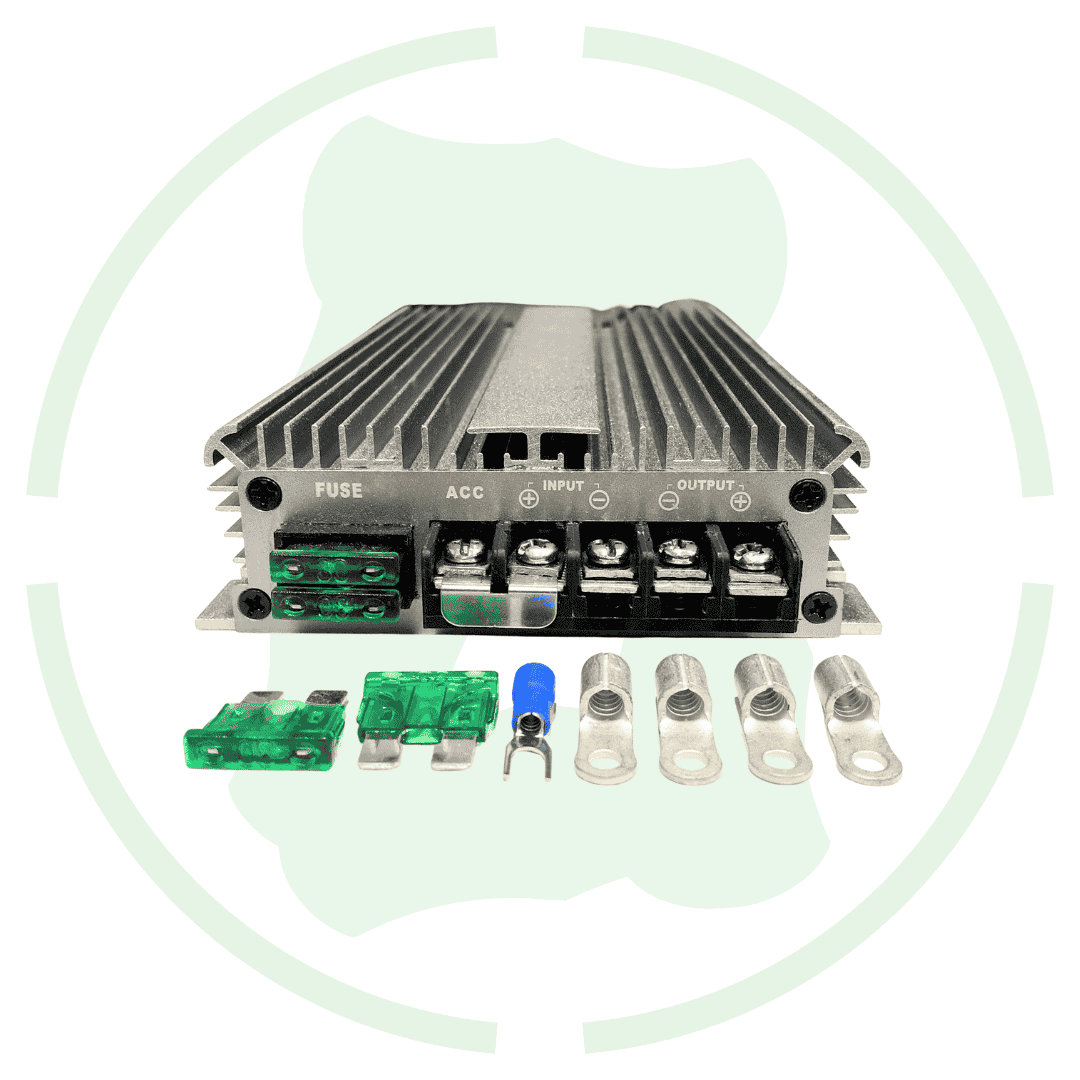

Ring terminal wire connector: This 60v 72v to converter also come with ring terminal wire connection method for easy input and output connection.

Fix 48V output voltage: This dc to dc voltage converter provide a fix 48v dc voltage to operate any industrial dc device who need high power upto 1900W power.

Metal Body: This dc dc converter is built with high quality metal for its safety from wear and tear during its use in industrial setup.

Specification

Input Voltage Range: 52V to 72V DC

Output Voltage: 48V DC

Output Current: 40A (Max)

Output Power: 1920W

Conversion Efficiency: ≥ 95% (typical)

Cooling Method: Aluminum Case with Heat Dissipation Fins

Fuse: Built-in for safety

Protection Features: Overcurrent, Overvoltage, Overheat, Fuse

Ripple & Noise: Low ripple and noise

Operating Temperature: -20°C to +70°C

Mounting Type: Chassis Mount

Housing Material: Aluminum Alloy

Dimensions: Approx. 200mm x 120mm x 60mm (L×W×H)

Weight: ~1.5 kg
