G-energy GEMSDF724850 60V 72V to 48V 50A 2400W Dc To Dc Converter With Fuse

Overview of this 60v 72v to 48v 50a 2400w dc to dc voltage converter

This 60v 72v to 48v 50a 2400w dc dc converter come with fuse at best price in India. This dc dc converter come with addition fuse socket and fuse to provide under voltage and over voltage protection for converter and circuit safety. And it can work at broad input voltage range from 60V to 90V dc voltage input.

Features

Big Input Voltage Range: This dc dc voltage converter come with wide input voltage range from 60v to 90v to make it more usable at multiple dc input voltage sources.

Stable 48V Out With 2400W Power: This dc dc converter provide 48v stable output voltage with up to maximum 50a current and 2400w max power.

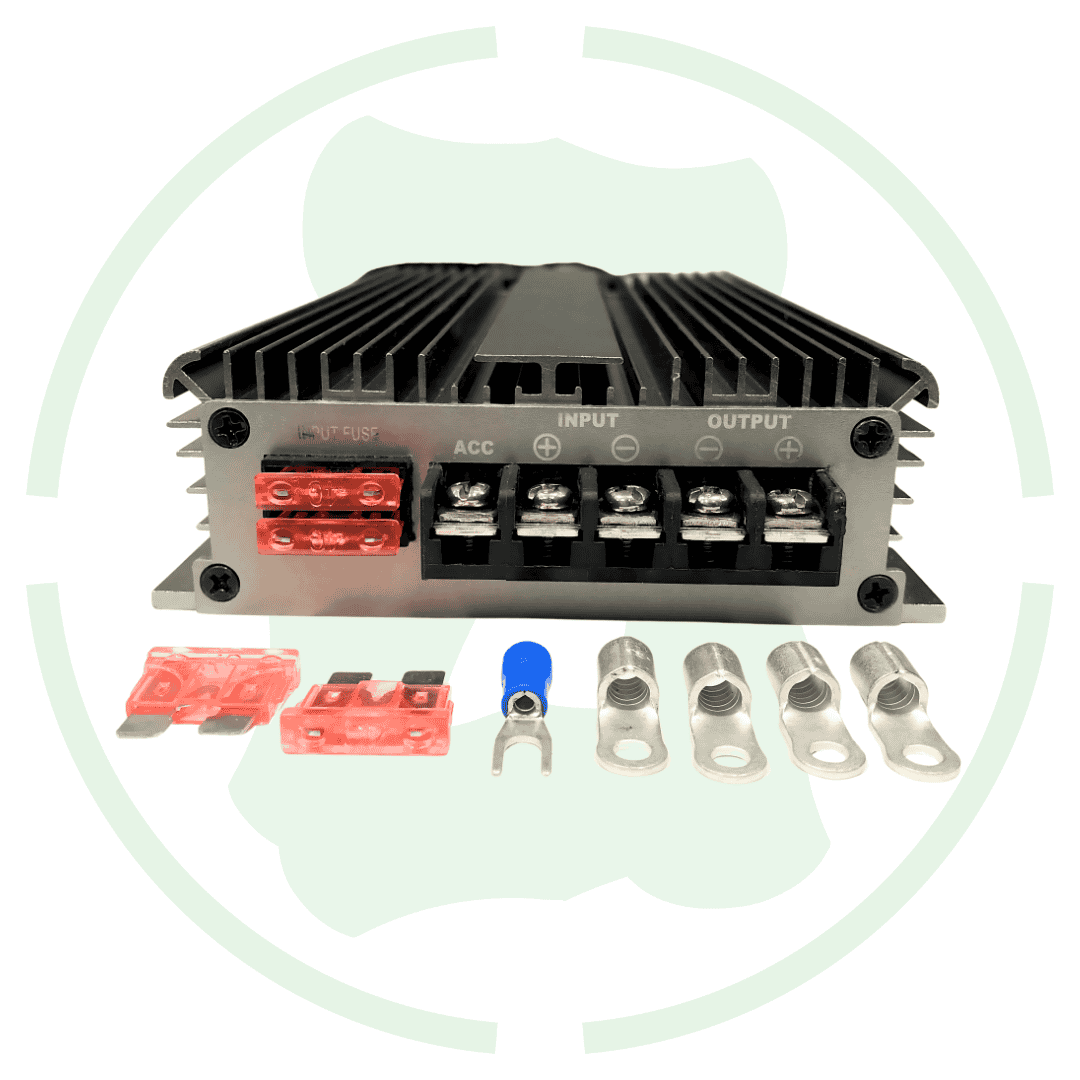

Built in Fuse For Safety: This voltage converter come with 1 in built and 1 extra fuse for its safety from under voltage and over voltage protection from changing input voltage.

Specification

Input Voltage: 60V-90V DC

Output Voltage: 48V DC

Output Current: 50A (max)

Power Output: 2400W

Conversion Efficiency: ≥95% (typical)

Ripple & Noise: Low Ripple (varies by load)

Cooling Method: Aluminum heat sink + cooling fan (if included)

Protection Features: Over voltage, Over current, Overheat, Short Circuit

Fuse Protection: Yes (built-in fuse for safety)

Mounting Type: Chassis mount with screw holes

Applications: Electric Vehicles, Solar Systems, Industrial Use

Dimensions: ~200mm x 120mm x 60mm (varies slightly)

Weight: ~1.2kg (approx.)
