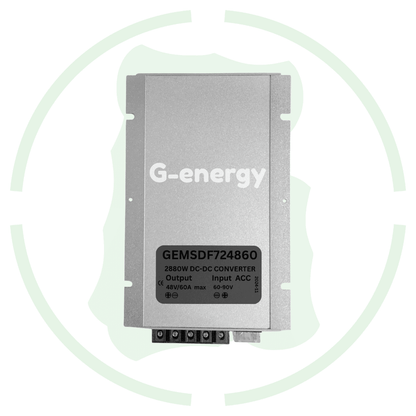

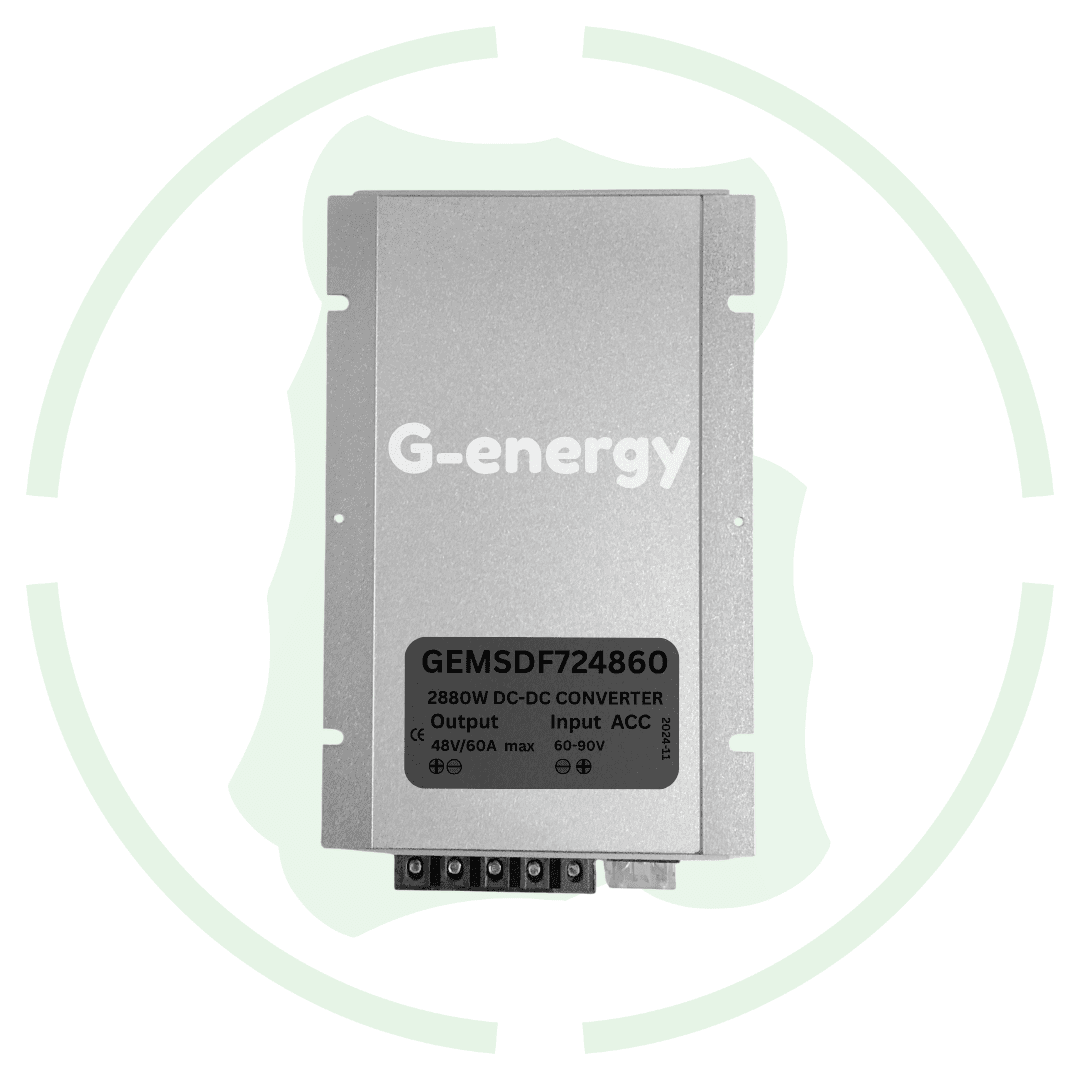

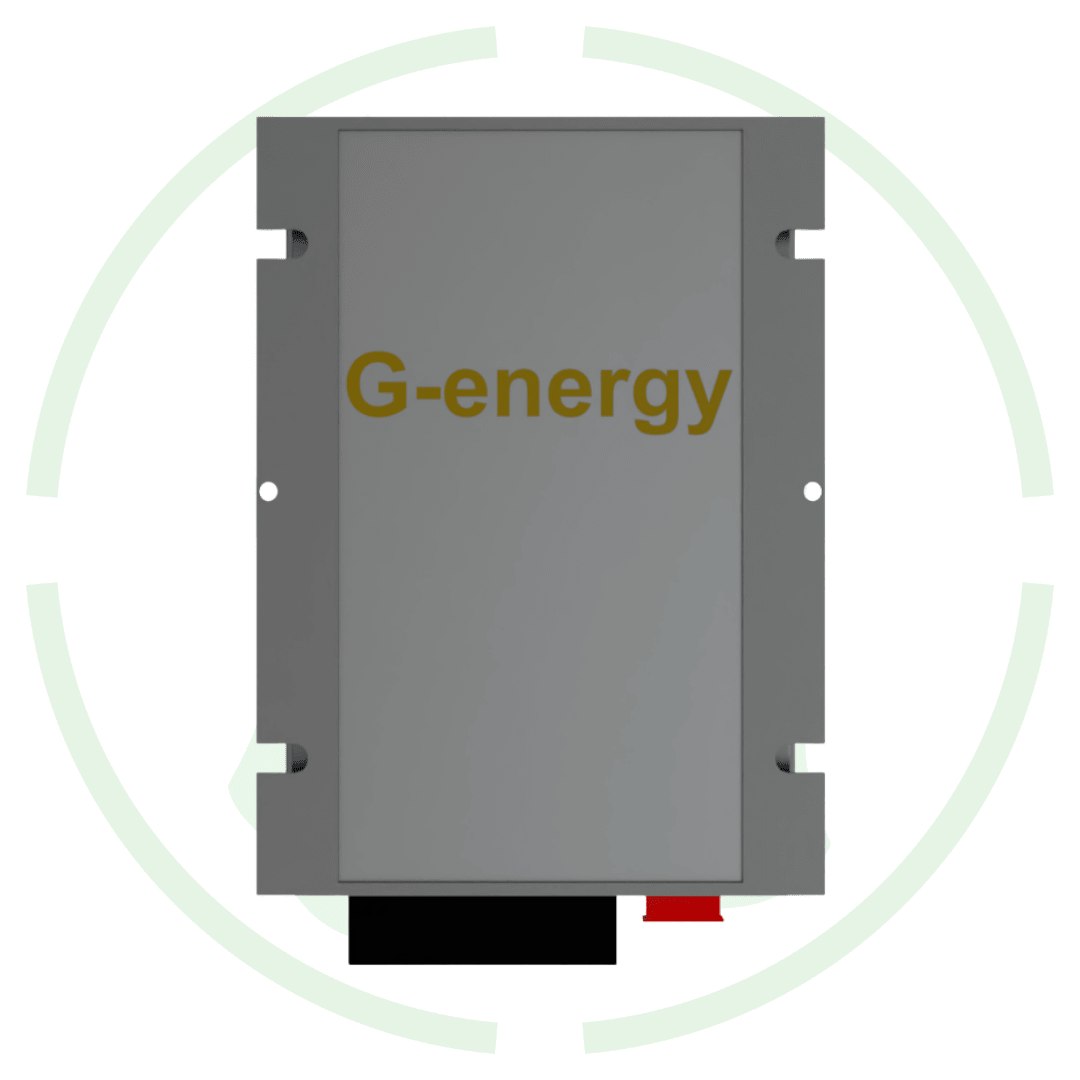

G-energy GEMSDF724860 60V 72V To 48V 60A 2880W Dc To Dc Converter with Fuse Buck Converter

Overview of this G-energy 60V 72V To 48V 60A 2880W Dc To Dc Converter with Fuse

Introducing G-energy DC 60V 72V To 48V 60A 2880W Dc To Dc Converter Ip68 Buck Converter with Fuse for over voltage protection. This voltage converter come with fuse for safety from changing input voltage and close converter circuit if input voltage get out side of its input range.

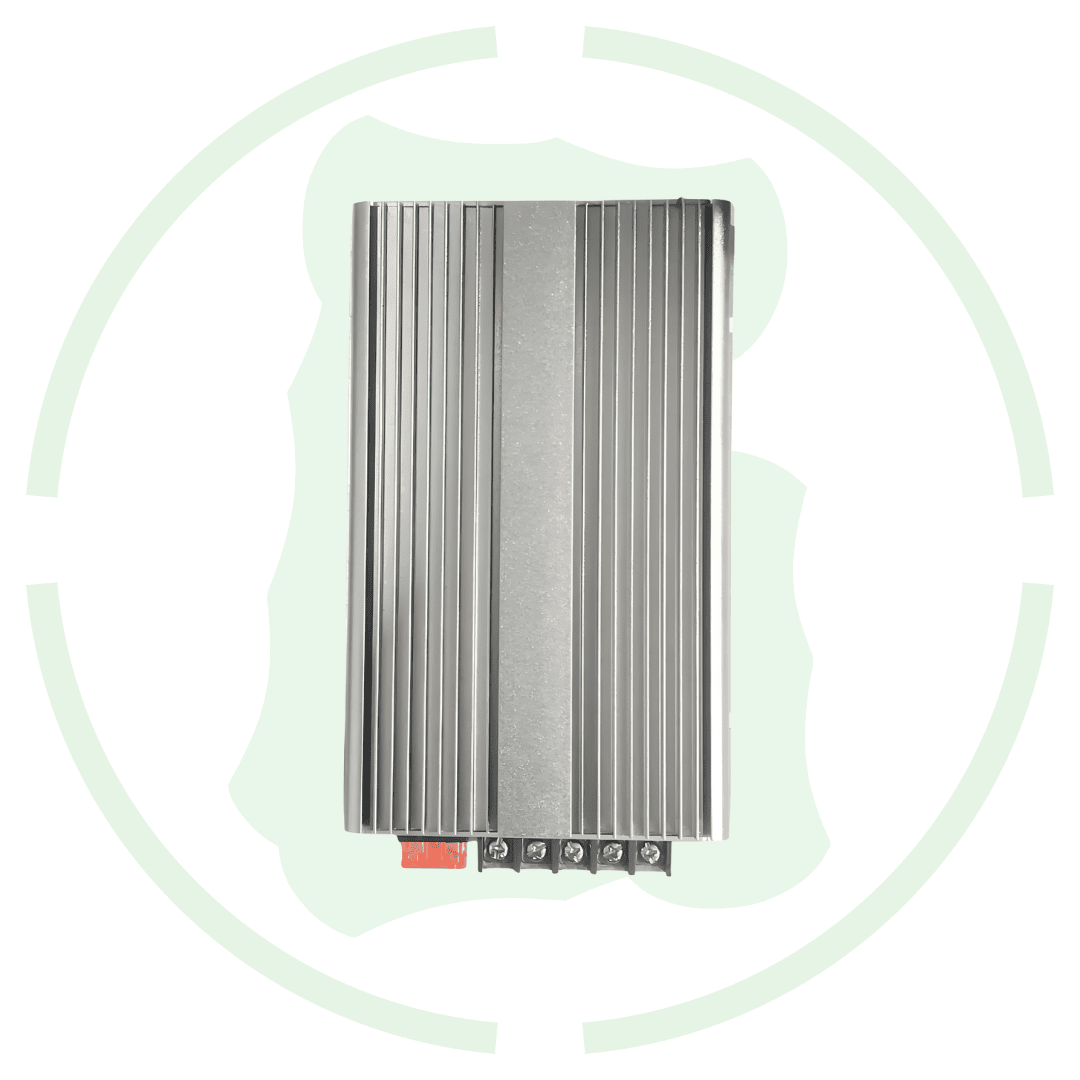

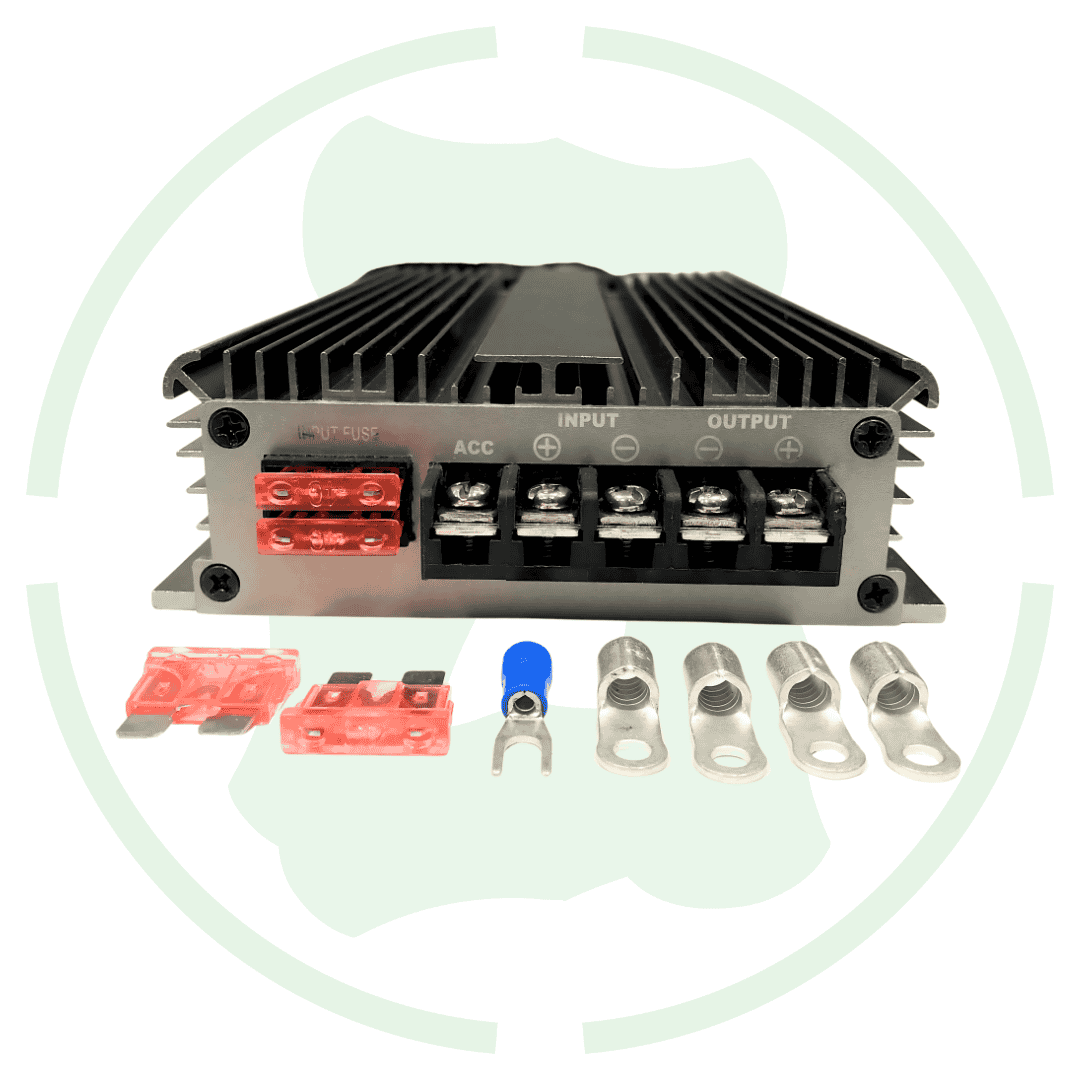

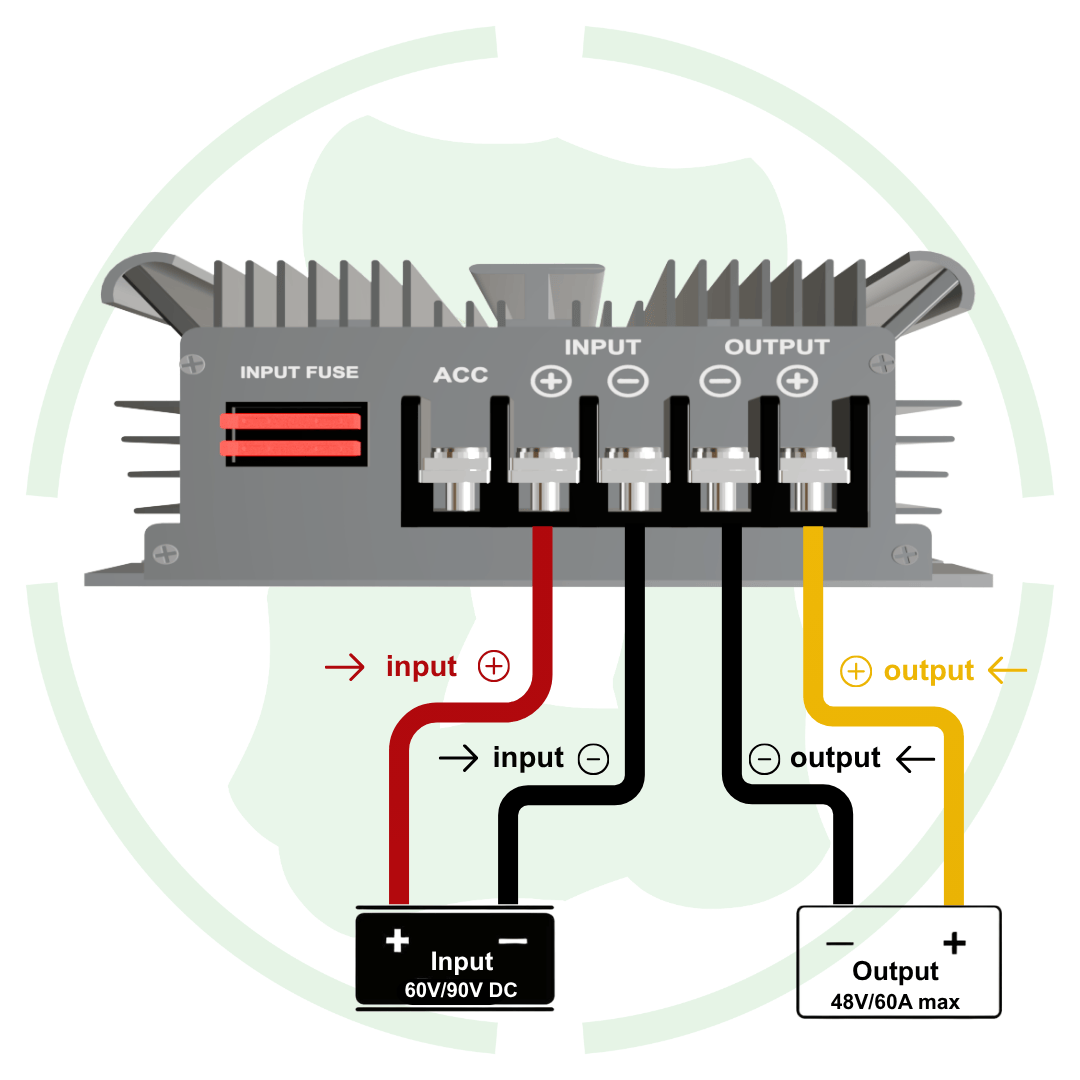

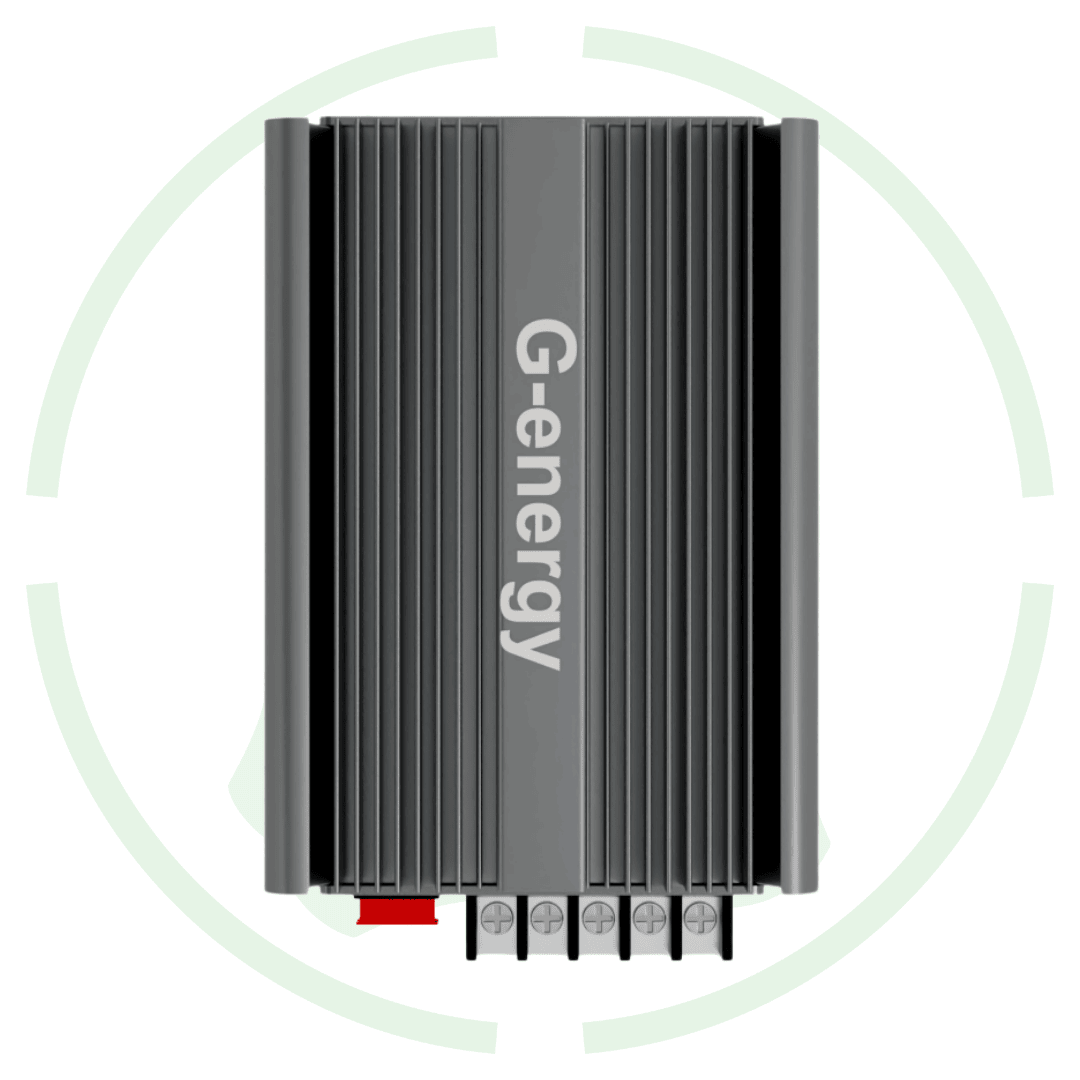

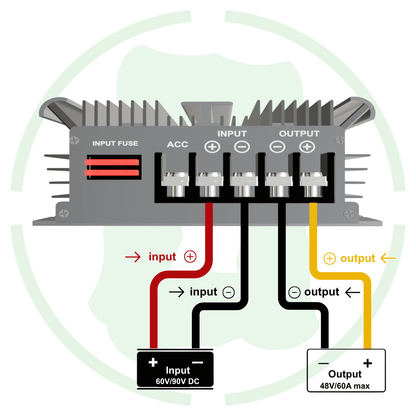

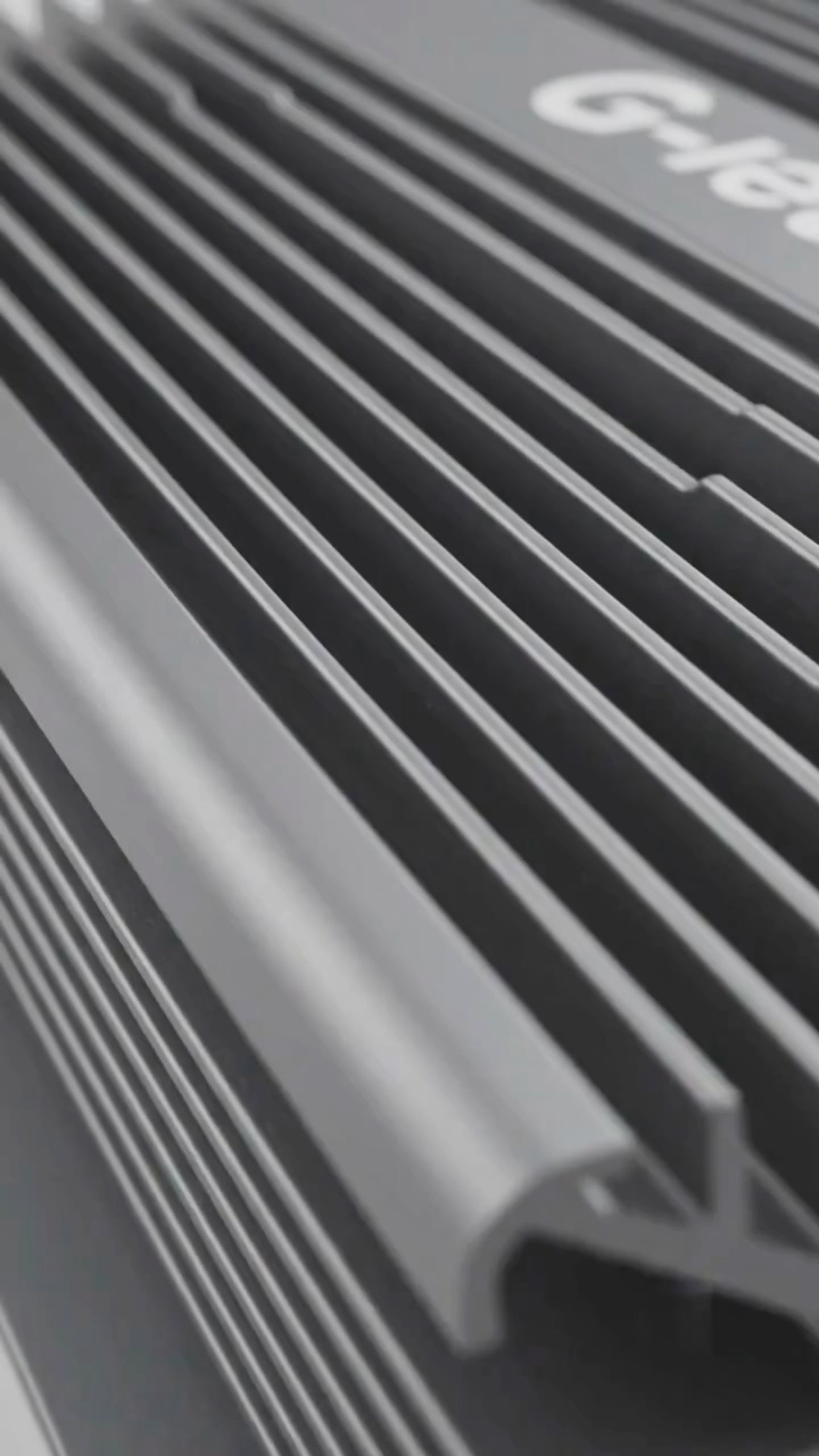

It is built with metal body for its long life & smooth operation in harsh industrial condition. It is design with scree panel mounting for safe and secure connection at industrial setup. It is also provide ring terminal wire connection for easy wire connection at input and output terminals.

Features

• Wide input range: This converter come with a wide input voltage rang from 60v to 90v and make it more usable at multiple input voltage source.
• 2880W Max Output Power: This voltage converter can provide upto 2880W with upto 60a maximum current for high power industrial device.
• Stable 48V Output Device: This voltage converter provide a fix 48v output for smooth industrial process.
• With fuse: This 60v 72v to 48v voltage converter is also come with extra fuse for its under voltage and over voltage protection.

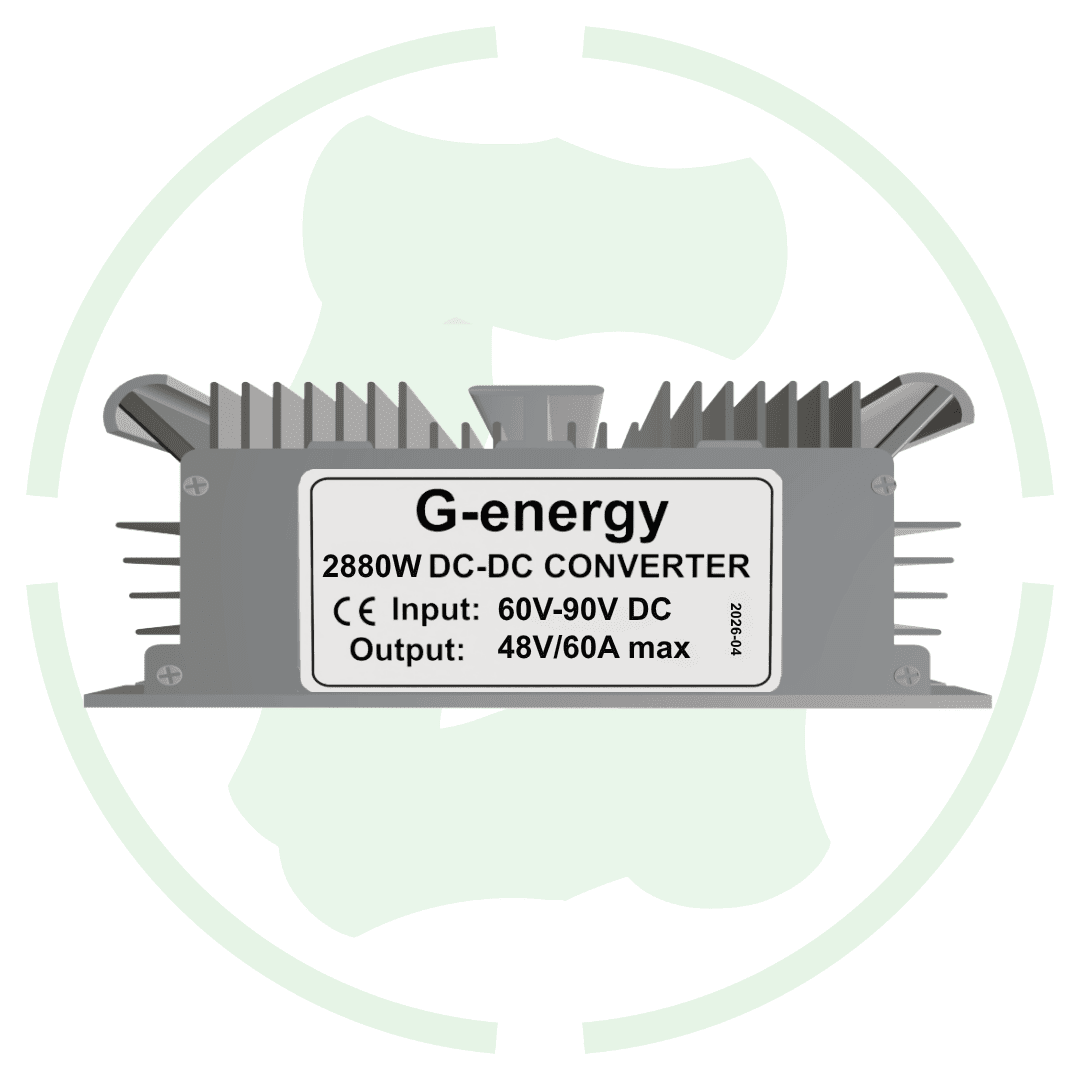

Specification

Input Voltage: 60V – 90V

Output Voltage: 48V

Output Current: 60A

Output Power: 2880W

Efficiency: ≥ 95%

Cooling Method: Natural Cooling / Heat Sink

Mounting Type: Panel Mount

Operating Temperature: -20°C to +60°C

Short Circuit Protection: Yes

Overload Protection: Yes

Fuse Protection: Yes (Built-in Fuse)

RoHS Compliance: Yes

Dimensions: 195mm × 110mm × 55mm

Weight: ~1.2 kg
