12V To 24V 100A 2400W Dc To Dc Converter GEMSUS1224100 Boost Converter Module

Overview of this G-energy GEMSUS1224100 12V To 24V 100A 2400W Dc To Dc Converter

Introducing G-energy GEMSUS1224100 12V To 24V 100A 2400W Dc To Dc Converter Boost Converter Module at best price in India with G-energy. This boost converter smoothly work on wide input voltage range of 9V To 16V and provide a fix output voltage of 24V with high power up to 2400w. It is also built with high quality aluminium metal built for its long life and smooth performance.

Feature

Input Range: It smoothly work on wide input voltage of 9V to 16V for its smooth operation in changing input condition

High 2400W Power: This boost converter can also provide high dc power up to 2400w and 100A max dc current.

24V Fix Output Voltage: It also provide a fix 24v dc output for smooth and reliable operations.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 9V To 16V

2. Rated Input Voltage: 12V DC

3. Output Voltage: 24V DC

4. Maximum Output Current: 100A

5. Maximum Output Power: 2400W

6. Efficiency (Typical): Up to 93%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under Voltage

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

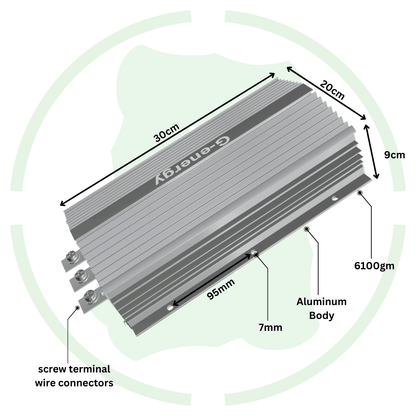

19. Dimensions: 20x30x9 cm

20. Weight: 6100 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSUS1224100 12V To 24V 100A 2400W Dc To Dc Converter Boost Converter Module
