G-energy GEMUD8401220 8V-40V To 12V 20A 240W Dc to Dc Conveter Ip68 Buck Boost Converter

Overview of this 8v-40v to 12v 20a 240w dc to dc converter

Introducing G-energy dc 8v-40v to 12v 20a 240w dc to dc converter ip68 water proof buck boost converter at best price in India with g-energy. It also come with high quality input and output wire that can handle up to 600v dc voltage and max power up to 600w. This converter is designed with high quality aluminium metal body with epoxy base that make it waterproof for converter safety.

Features

Small and light weight design: This 8v-40v to 12v buck converter is designed with small and light weight design that make it small and best choice to make it usable for multiple small industrial setups.

Both buck boost function: With is wide input voltage range from dc 8v to 40v and fix 12v dc out put it can act as both buck boost converter as per industrial need.

240W High power: This dc dc converter provide high power up to 240w dc power for high power dc power dc device.

Specification

• Input Voltage Range: 8V – 40V DC

• Output Voltage: 12V DC

• Output Current: 20A

• Output Power: 240W

• Conversion Efficiency: Up to 96%

• Ripple: ≤100mV

• No-load Current: ≤50mA

• Protection Level: IP68 (Water proof & Dust proof)

• Short Circuit Protection: Yes

• Operating Temperature: -40°C to +85°C

• Cooling Method: Natural air cooling

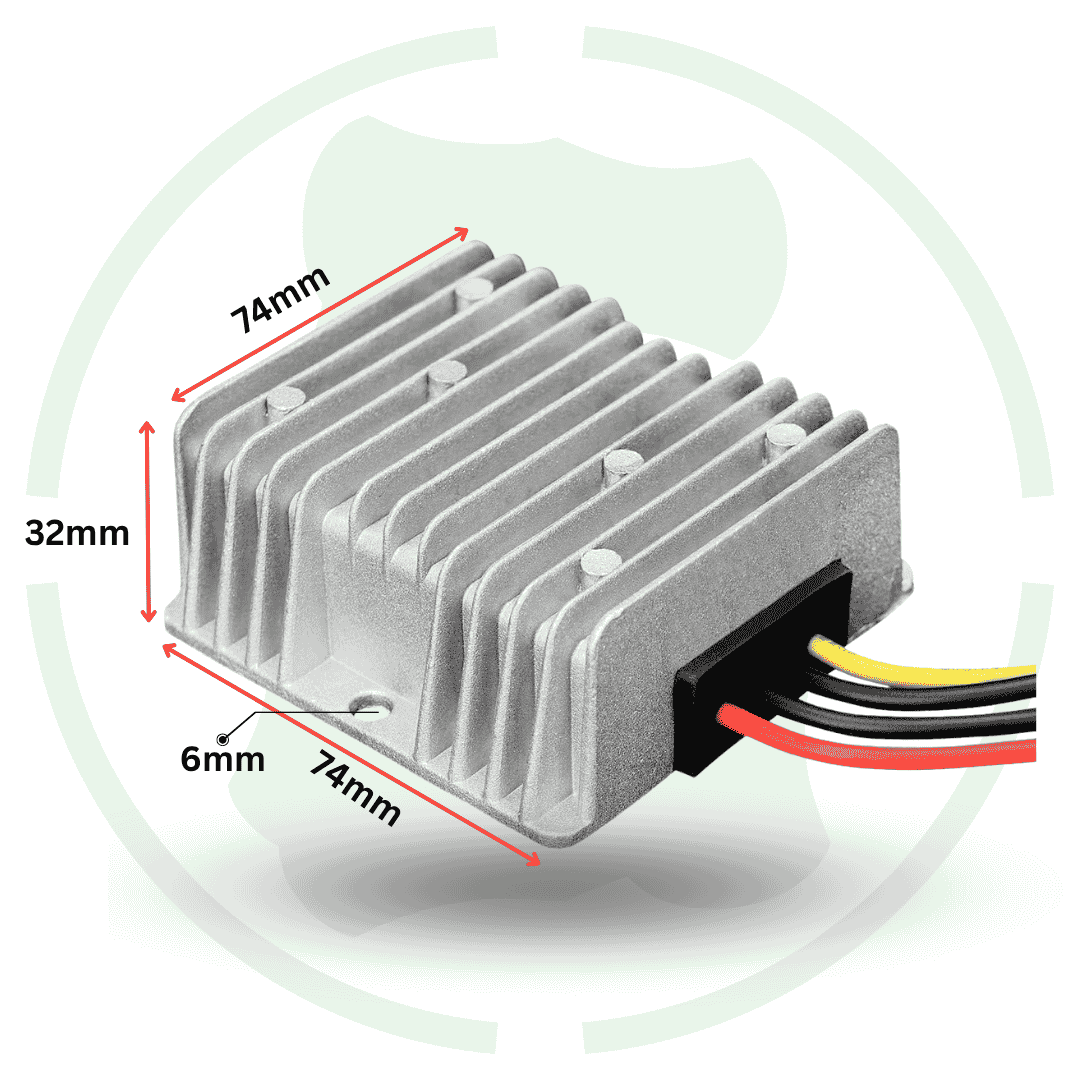

• Dimensions: 74 × 74 × 32 mm

• Weight: 285g

Datasheet of GEMUD8401220 8v-40v to 12v 20a dc voltage converter
