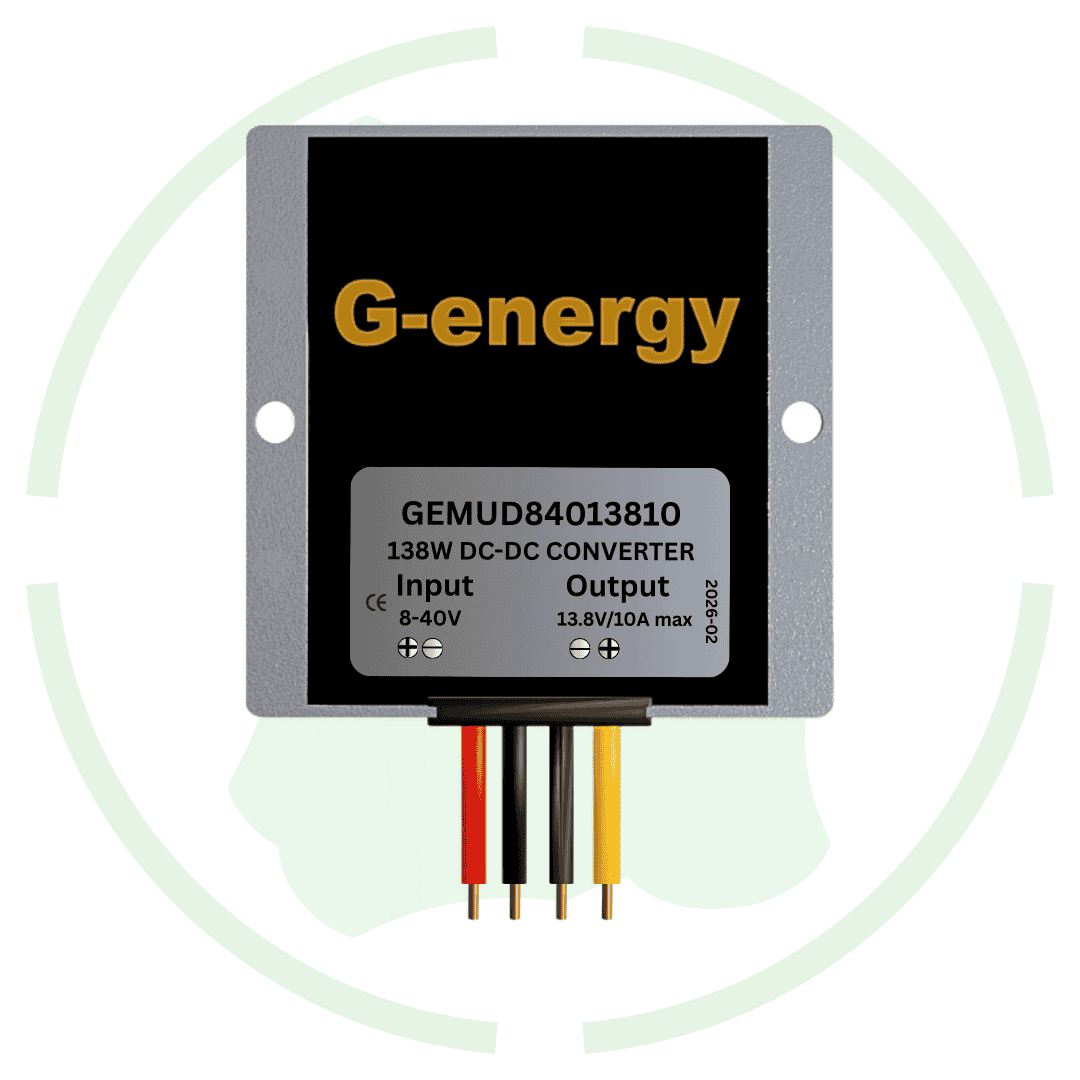

8V-40V To 13.8V 10A Dc To Dc Converter GEMUD84013810 Ip68 Buck Boost Converter Module

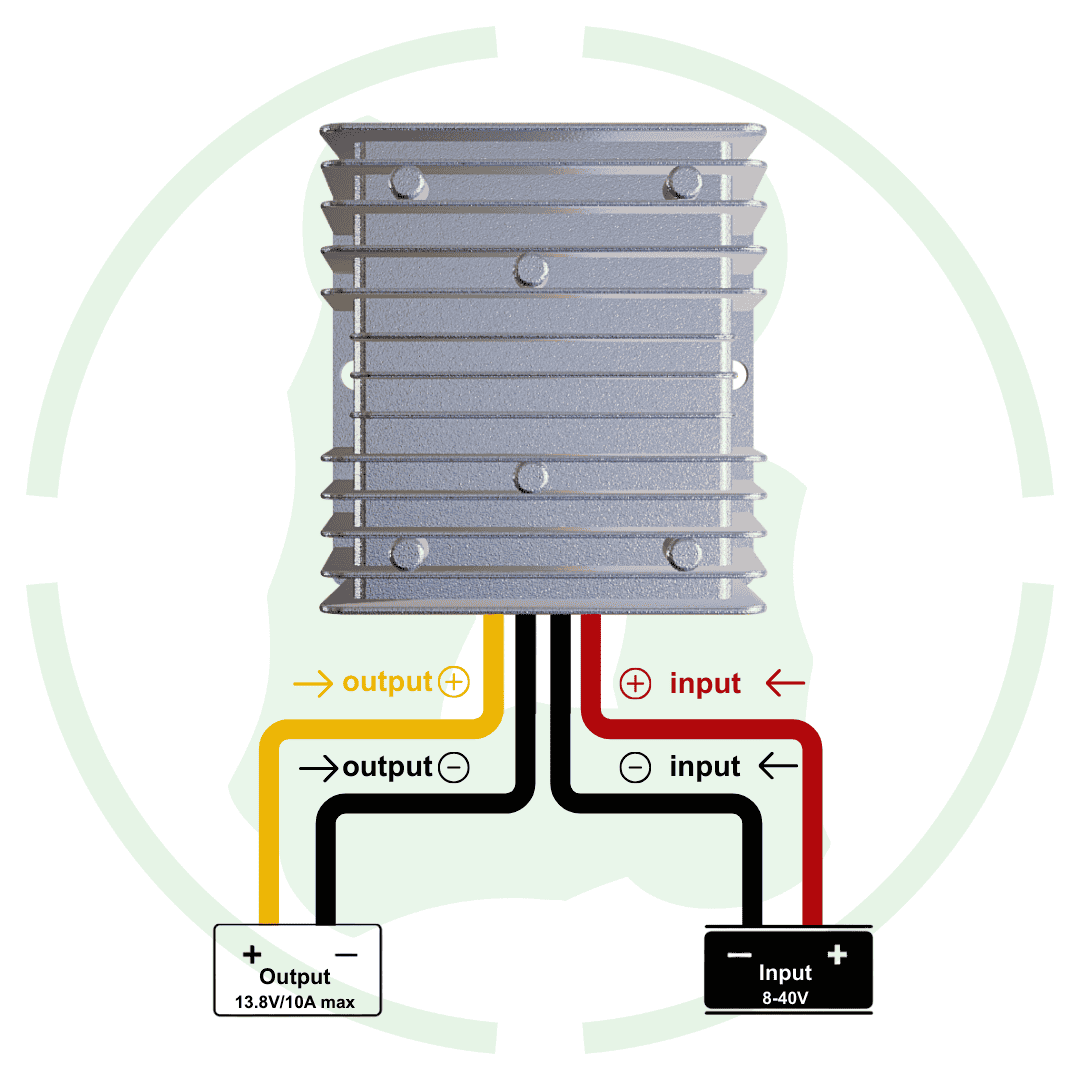

Overview of this GEMUD84013810 8V-40V To 13.8V 10A Dc To Dc Converter

Introducing G-energy GEMUD84013810 8v-40v to 13.8v 10a dc to dc converter ip68 buck boost converter module at best price in India with G-energy. This buck boost converter work on a wide input voltage of 8v to 40v dc input voltage and convert it to a fix 13.8v dc output voltage. It also provide a dc current up to 10a and max dc power up to 138w for stable operation.

Features

Wide input voltage: This converter work on 9v-40v dc input and this wide input voltage make is adaptable for buck and boost voltage conversion.

10A Current: It also provide a fix 13.8v dc output voltage with up to 10a max dc current and 138w  max dc power.

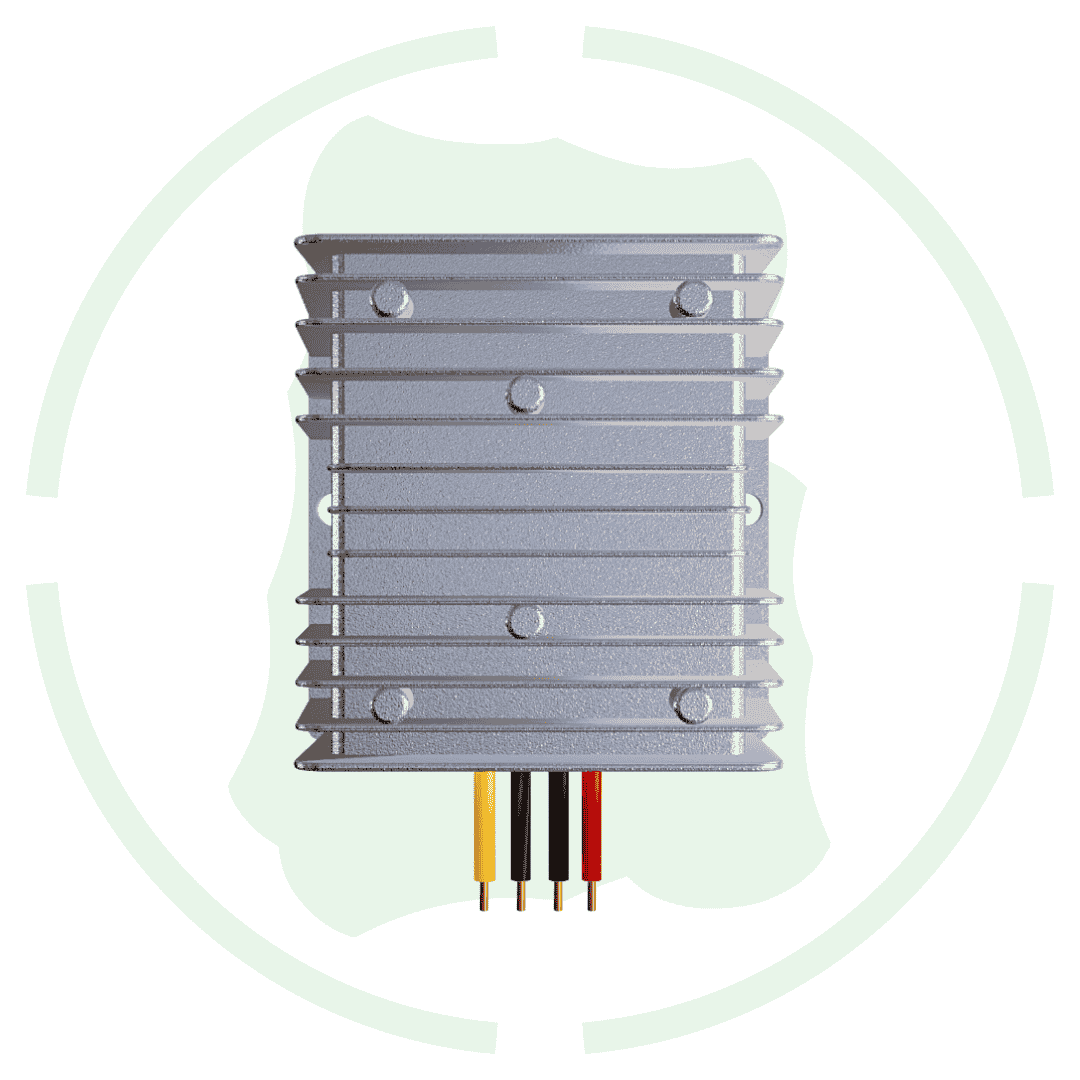

Ip68 water proofing: This buck boost converter is built with aluminum body and epoxy built for its use in harsh conditions and water proofing.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 8V-40V DC

2. Rated Input Voltage: 12V 24V 36V DC

3. Output Voltage: 13.8V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 138W

6. Efficiency (Typical): Up to 94.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 24V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

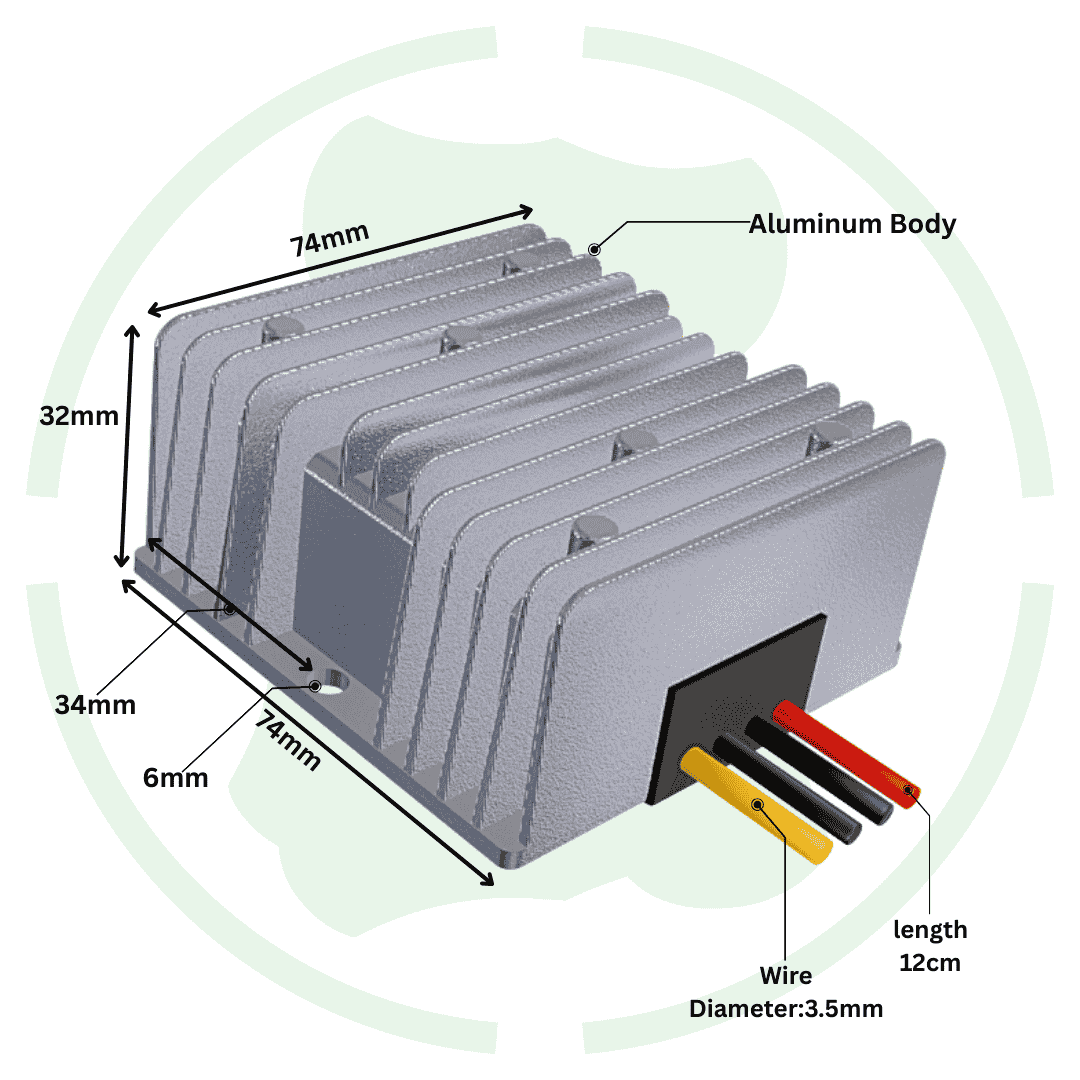

19. Dimensions: 74x74x32 mm

20. Weight: 120 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMUD84013810 8V-40V To 13.8V 10A Dc To Dc Converter Ip68 Buck Boost Converter Module
