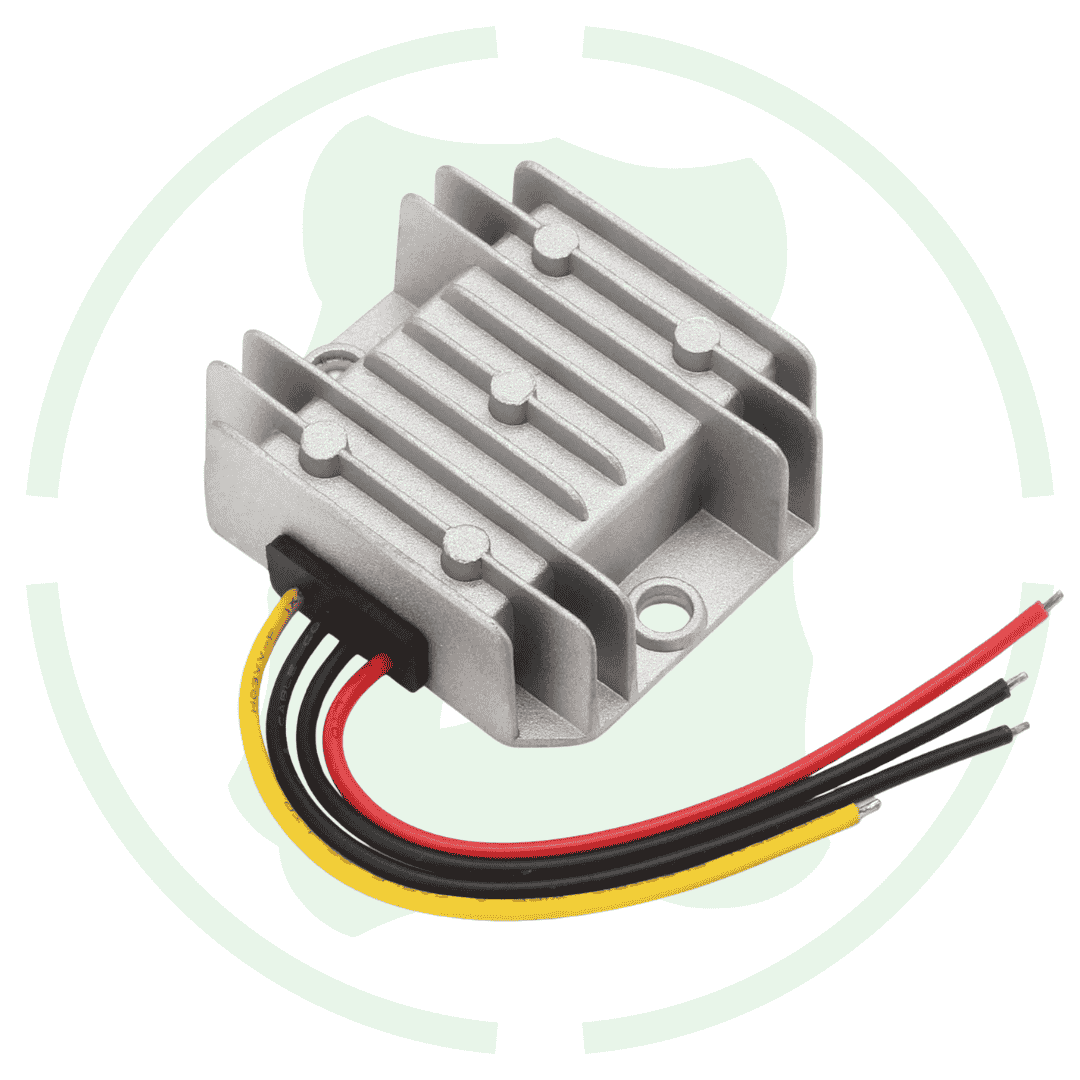

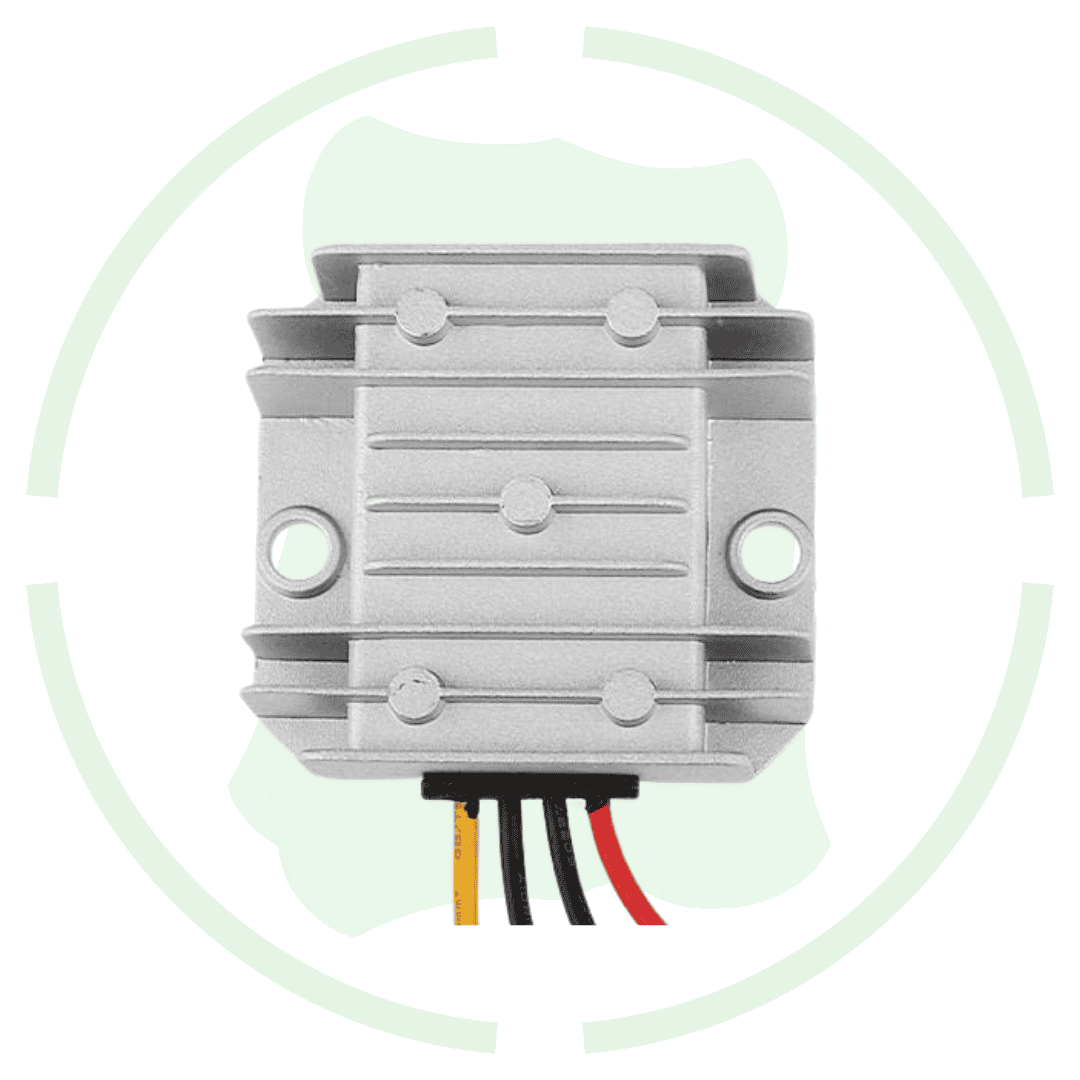

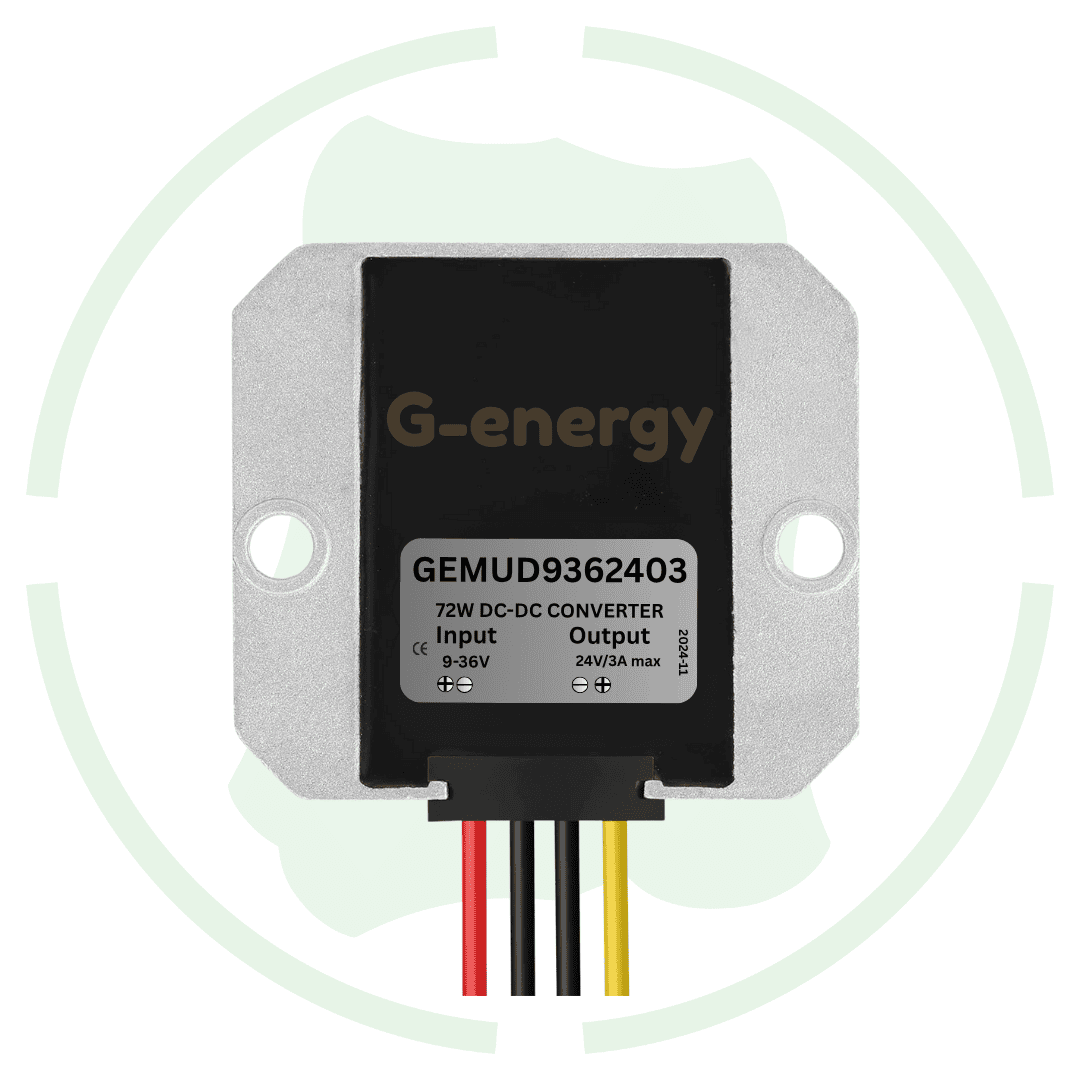

G-energy GEMUD9362403 9V-36V To 24V 3A 72W Dc To Dc Converter Ip68 Buck Boost Converter

Overview of this 9v-36v to 24v 3a 72w dc dc converter

Introducing g-energy 9v-36v to 24v 3a 72v dc dc converter ip68 buck boost converter module at best price in India with G-energy. This voltage converter is built with synchronous rectification technology for its high efficiency conversion. It is also built with multiple safety feature like input short circuit protection, under voltage protection, over load protection for its circuit and voltage converter protection.

Features

Stable 24v: This voltage converter provide a stable 24v output with upto maximum power 72w for smooth performance of multiple device.

200000 MTBF: This converter is built with high quality and provide upto 200000 hour mean time between failure for long life and smooth performance.

High conversion efficiency: This Voltage converter can provide high voltage conversion efficiency with upto 94% conversion efficiency.

Specification

• Input Voltage Range: 9V to 36V DC

• Output Voltage: 24V DC

• Output Current: 3A

• Output Power: 72W

• Efficiency: Up to 95%

• Conversion Type: Buck-Boost Converter

• Waterproof Rating: IP68

• Cooling Method: Natural air cooling

• Operating Temperature: -40°C to 80°C

• Wiring:

  • Input: Red (+), Black (–)

  • Output: Yellow (+), Black (–)

• Overload Protection: Yes

• Overheat Protection: Yes

• Short Circuit Protection: Yes

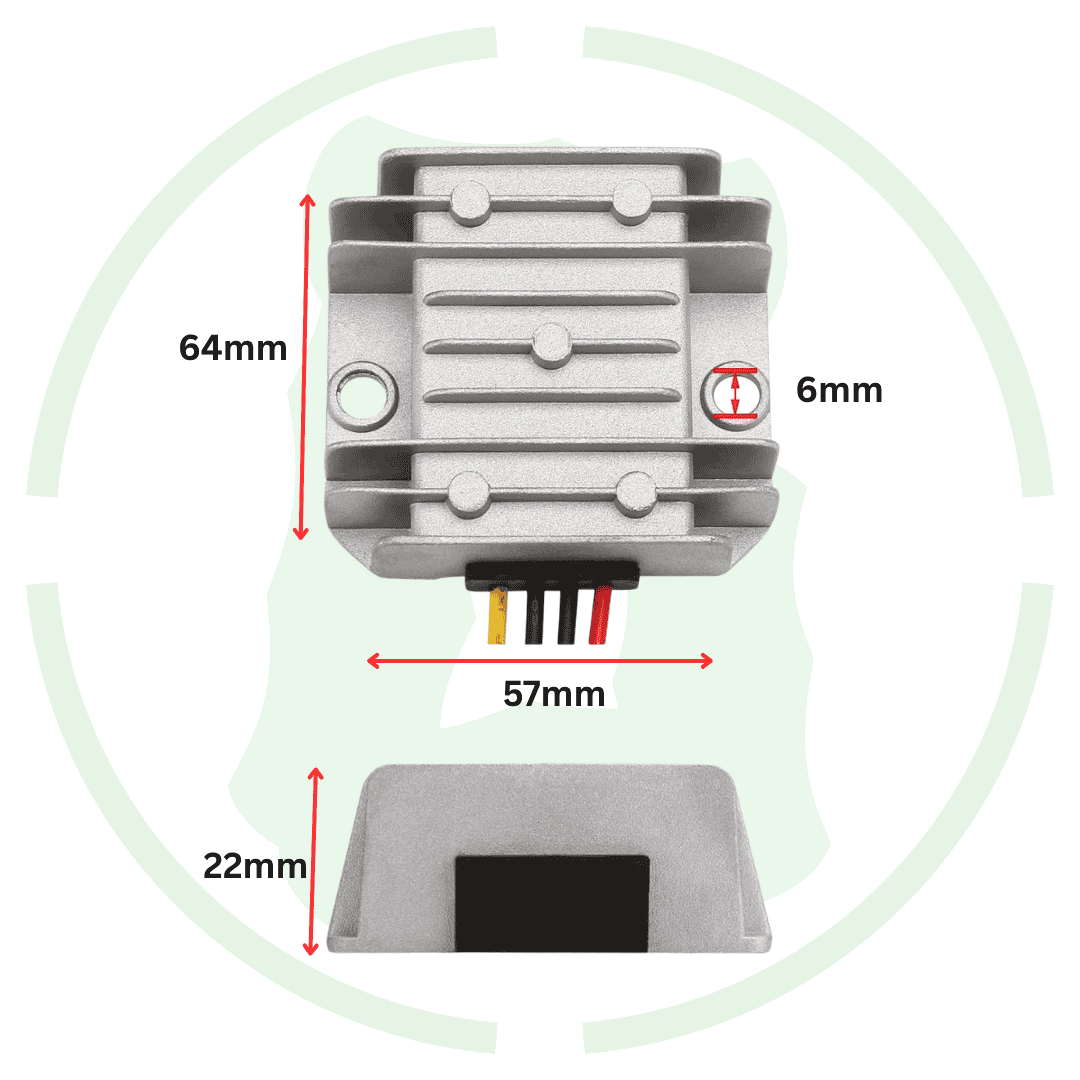

• Dimensions: 64mm × 57mm × 22mm

• Weight: Approx. 98g

Datasheet of this 9v-36v to 24v 3a 72w dc voltage converter
