GEMUD9362430 9-36V To 24V 30A 720W Dc Dc Converter Ip68 Buck Boost Converter'

Overview of GEMUD9362430 9-36V To 24V 30A 720W Dc Dc Converter

Introducing G-energy GEMUD9362430 9-36v to 24v 30a 720w dc dc converter ip68 buck boost converter at best price in India with G-energy. This Buck boost converter smoothly work on wide input voltage of 9v to 36v dc input voltage and provide a fix 24v dc output. It also provide a stable dc current up to 30a and 720w dc power. It is built with high quality alumunium body design for it long life and smooth performance under harsh condition.

Features

Buck boost function: With its 9v to 36v input voltage it can provide both buck and boost voltage conversion and provide a fix 24v dc voltage.

720W high power: It also provide a high dc power up to 720W and 30a max dc current for stable operation.

Ip68 waterproofing: It is also built with aluminum body and epoxy coating for its water proofing and long sustainable life and smooth operation.

🔧 Electrical Specifications

1. Input Voltage Range: 9V – 36V DC

2. Rated Input Voltage: 12V 24V 36V DC

3. Output Voltage: 24V DC

4. Maximum Output Current: 30A

5. Maximum Output Power: 720W

6. Efficiency (Typical): Up to 95.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 24V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Input Over current

    • Output Over voltage

    • Over temperature

    • Under voltage recovery



16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

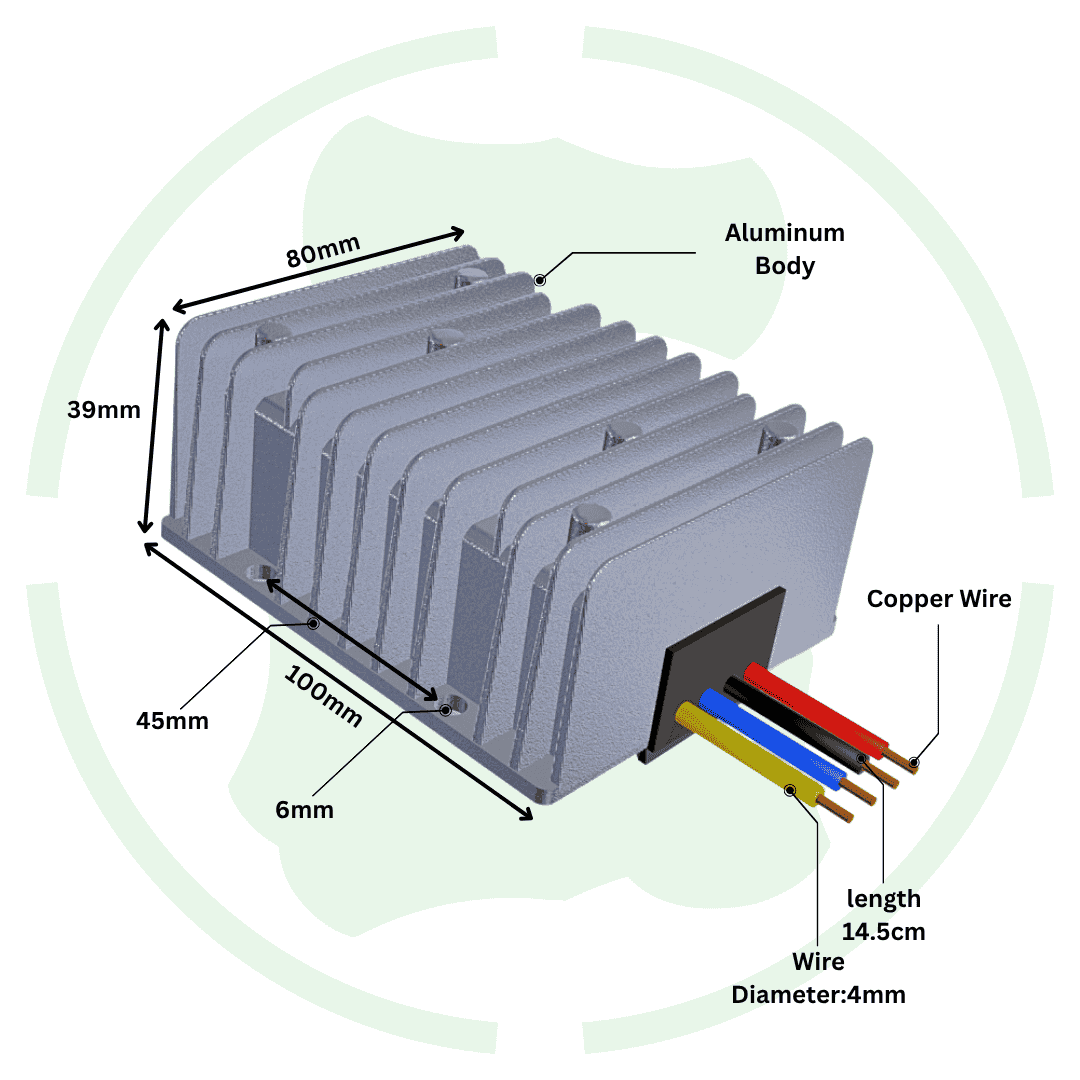

19. Dimensions: 100x80x39 mm

20. Weight: 430 gm

21. Cooling Method: Free air convection (no fan required)
