G-energy GEPSU243601 24V To 36V 1A 36W DC To DC converter

Overview of This G-energy GEPSU243601 24V To 36V 1A 36W DC To DC converter

Introducing  G-energy GEPSU243601 24V To 36V 1A 36W dc to dc step-up power converter. This converter designed to efficiently convert a 24V DC input to 36V DC output at up to 1A 36W dc power. This compact and reliable converter is used for automotive, industrial, battery-powered application. This dc To dc converter are used to adapt voltage level with high efficiency and stable output.

Features

Wide input voltage compatibility: Support a wide DC input range 10V to 30V and flexible use with various battery, solar system or DC power system.

Stable 36V output: Deliver a 36V output at up to 1A current, suitable for powering controllers, sensor and other applications requiring.

High efficiency conversion: This converter provide a high conversion efficiency up to 90% with minimized power loss.

Versatile applications: perfect for automotive electronics, LED light system, industrial control, battery-powered equipment and DC power system.

Specification

Model: GEPSU243601

Input voltage: 24V

Input voltage range: 10V To 30V

Output voltage: 36V

Output current: 1A

Output power: 36W

Conversion type: DC TO DC step-up

Efficiency: 90%

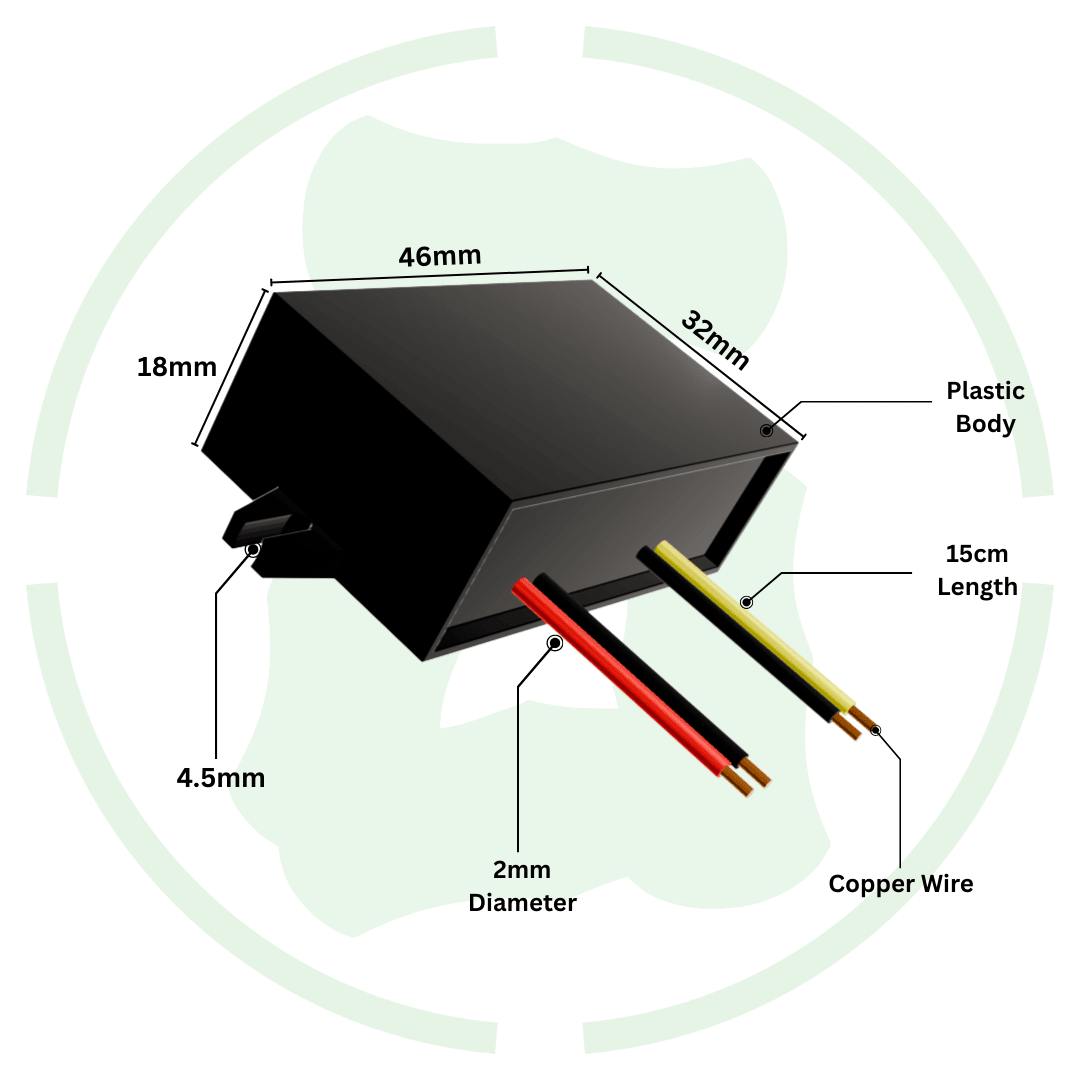

Dimension: 46×32×18 mm

Operating Temperature range: -40 °C to +85 °C

Storage Temperature range: -40 °C to +100 °C

Weight: 52g
