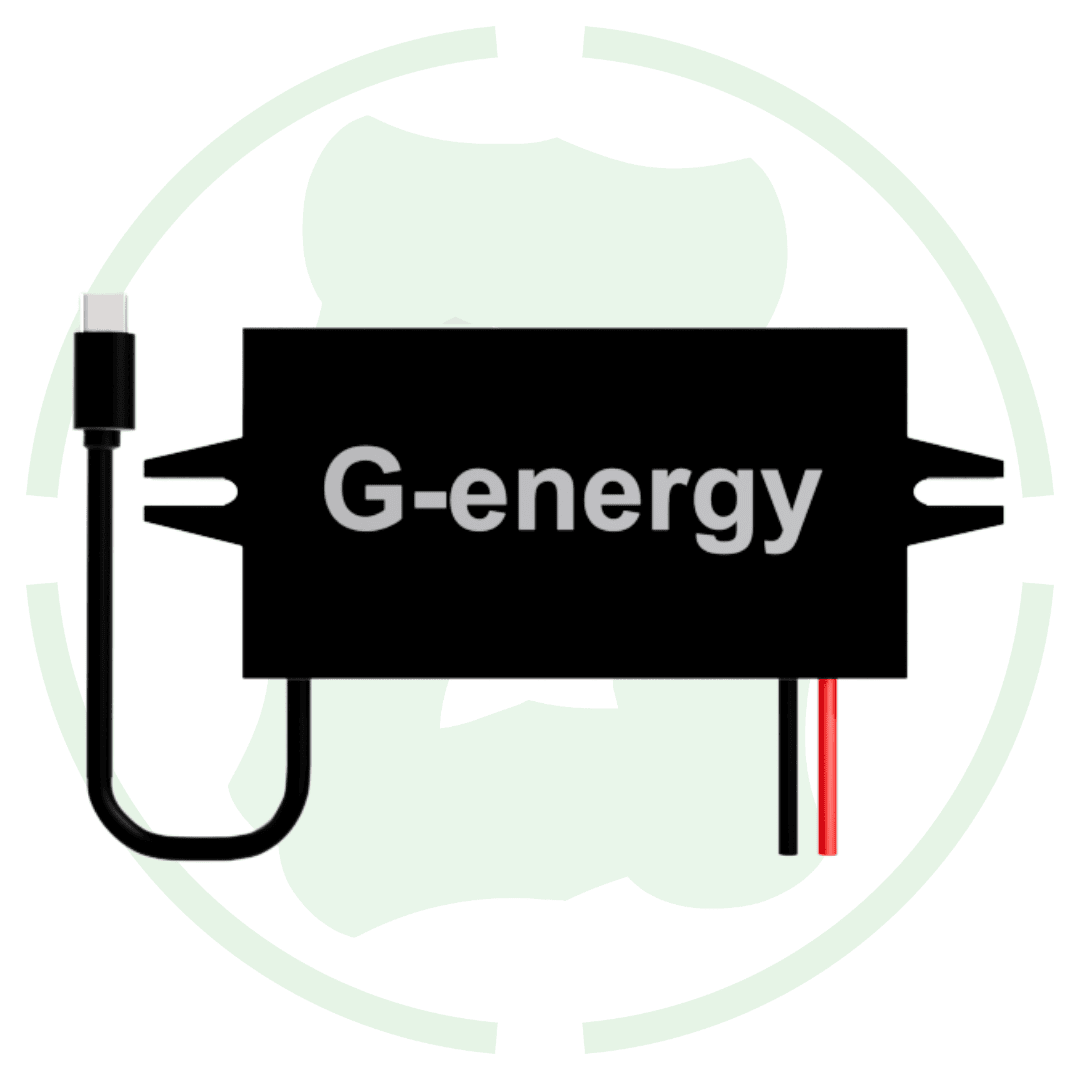

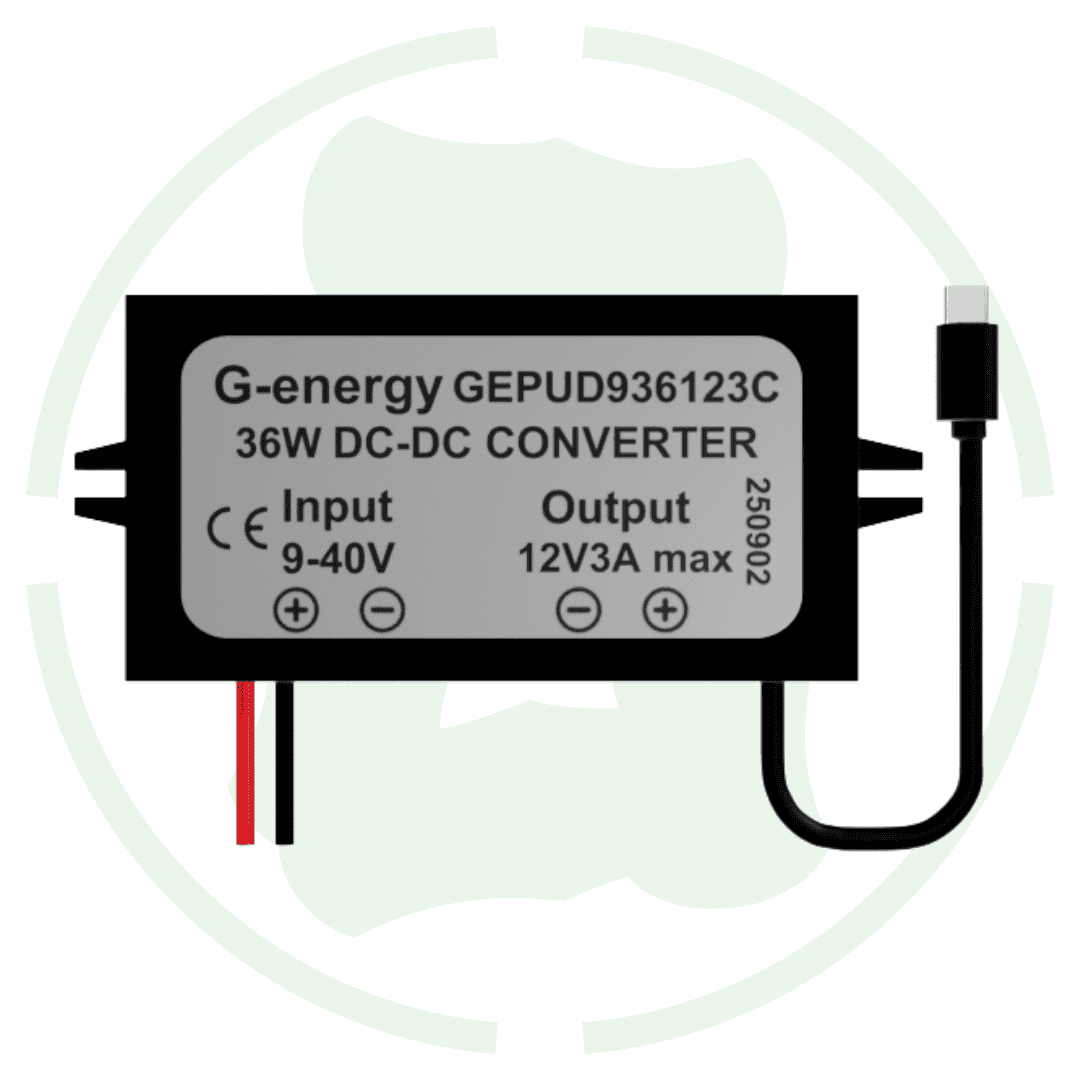

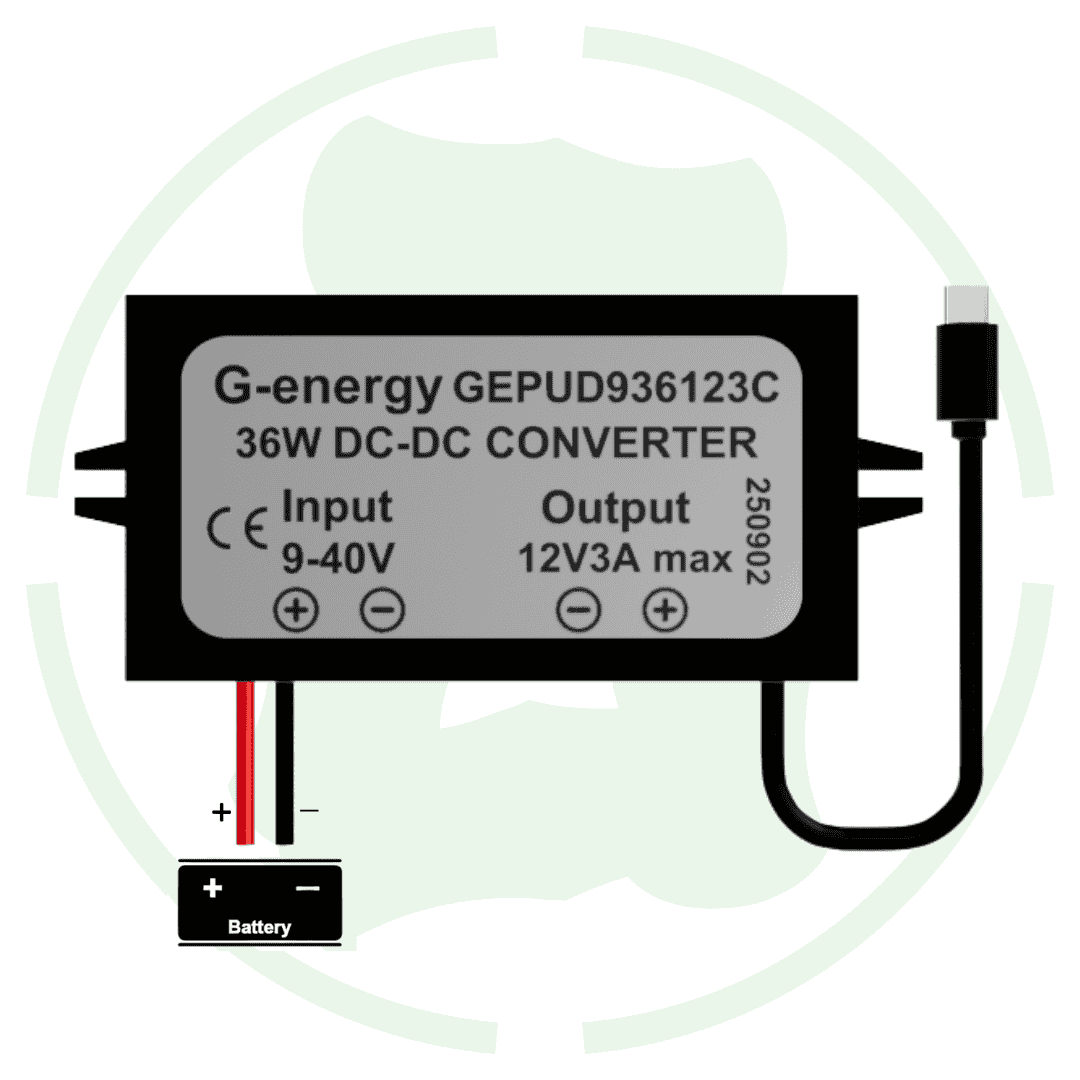

G-energy GEPUD936123C 12V 24V 36V To 12V 3A 36W Type-C Dc To Dc Converter

Overview of this GEPUD936123C 12v 24v 36v to 12v 3a 36w type-c dc to dc converter

Introducing g-energy GEPUD936123C 12v 24v 36v to 12v 3a 36w type-c output dc dc converter at best price in India. This buck boost converter smoothly work on wide input voltage of 9v-40v input range & provide a fix 12v output with 3a dc current. It also come with unique type-c output to make it direct usable at any place with type-c input.

Features

Wide Input voltage: This buck boost converter come with a wide input voltage range of 9v to 40v input range for its flexible use at multiple setup.

Type-c output: It also come with a unique type-c dc output port for its flexible use at multiple device.

36W power with high efficiency: This GEPUD936123C converter also provide dc power up to 36w & maximum dc current up to 3a & high conversion efficiency up to 95% energy conversion.

Specification

• Input Voltage Range: 9-40V DC

• Rated Input Voltage: 12V 24V 36V

• Output Voltage: 12V DC

• Maximum Output Current: 3A

• Maximum Output Power: 36W

• Efficiency: >95%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 54mA

• Ripple Noise: 340mVp-p (Full Load)

🌡️ Environmental Specifications

• Working Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +80°C

• Humidity Range: 10% – 90% RH

• Cooling Method: Free Air Convection

🛡️ Protection & Design Features

• Protection Features:
  ✅ Short Circuit
  ✅ Over current
  ✅ Over temperature
  ✅ Under voltage

• Technology: Synchronous Rectification

• Build Features:
  ✅ Organic Silicone Encapsulation
  ✅ Anti-shock, Anti-drop, Anti-moisture, Anti-dust

• Waterproof Rating: IP68

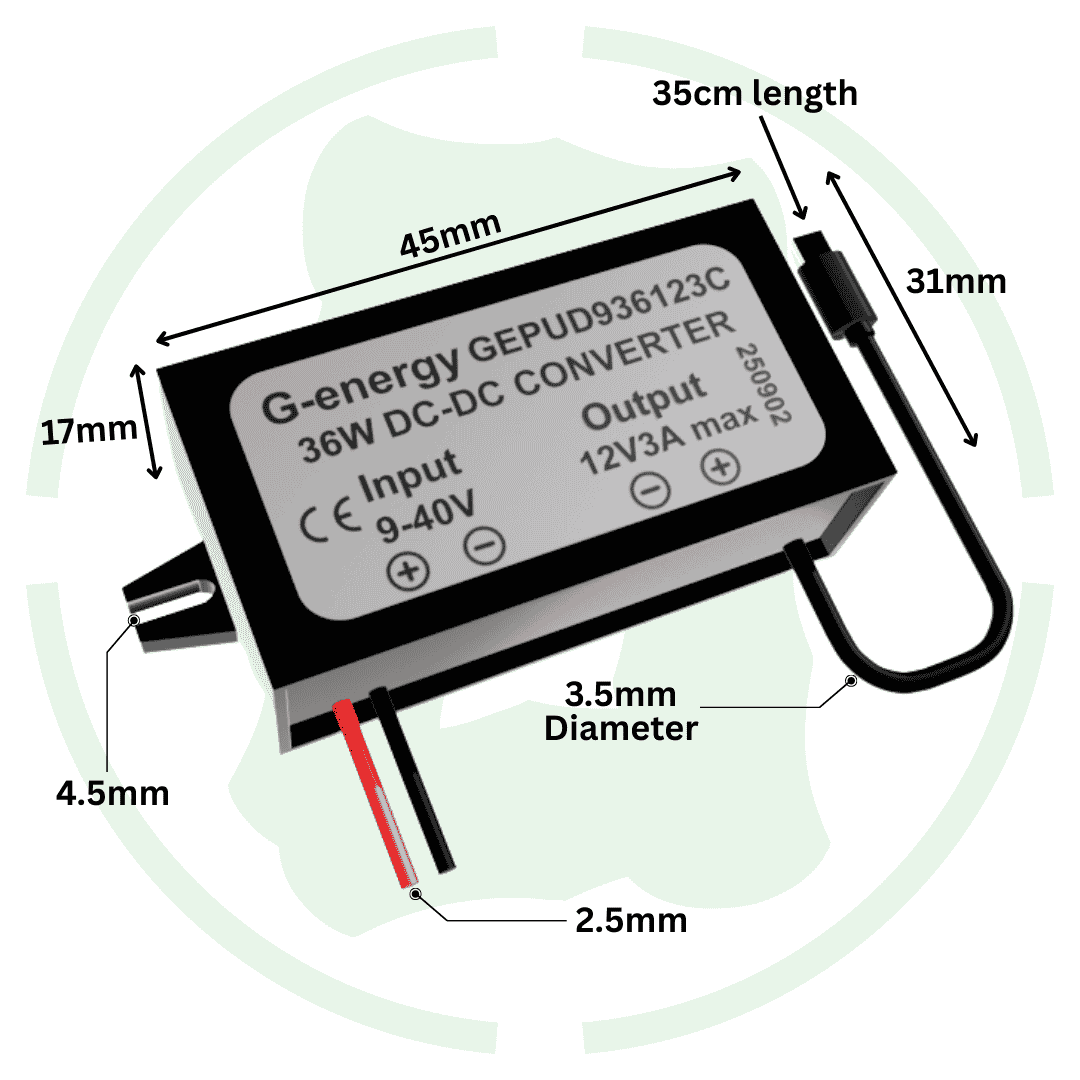

• Dimension: 45x26x14mm
• Weight: 70gm
