G-energy GESPSD241210 24V To 12V 10A 120W Dc To Dc Converter

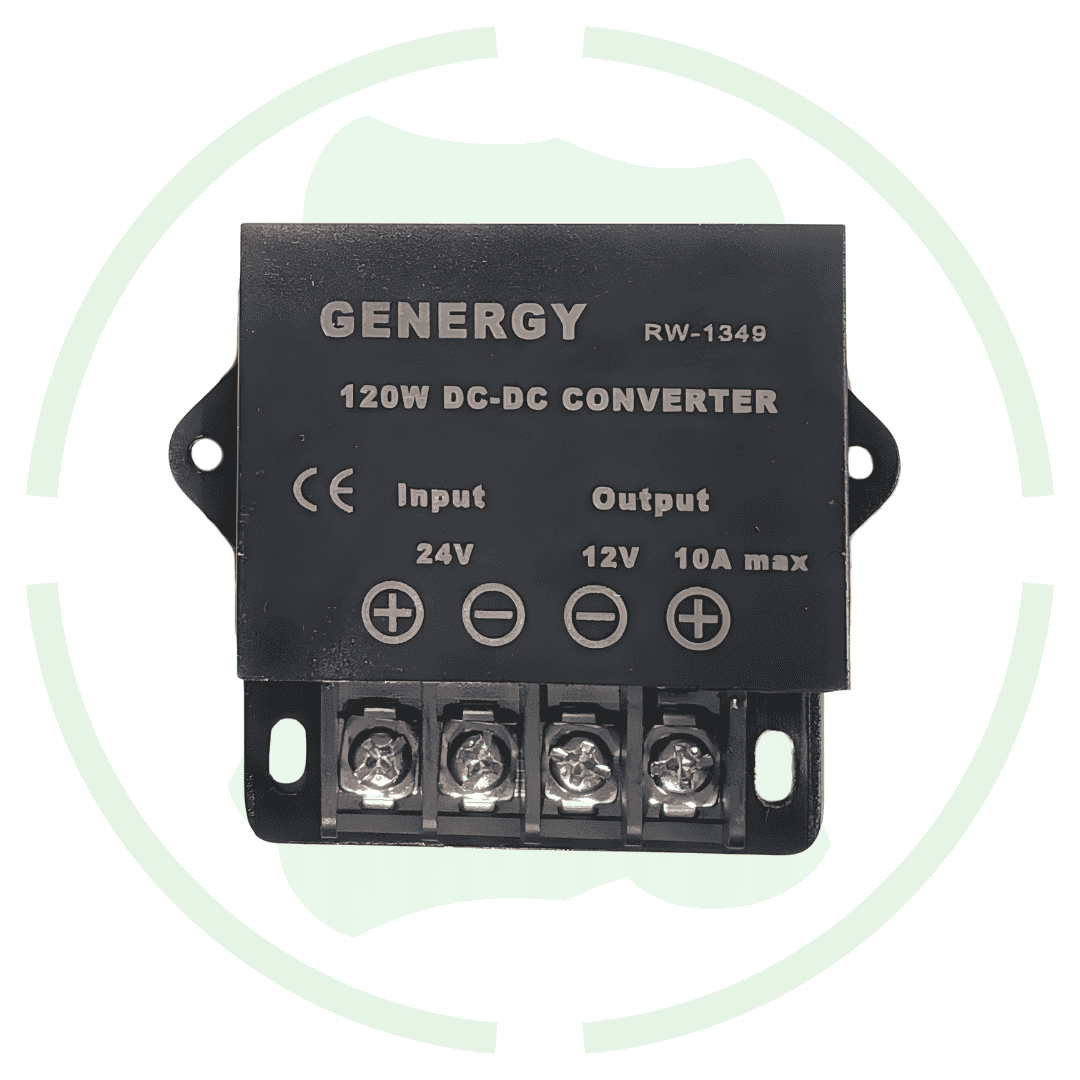

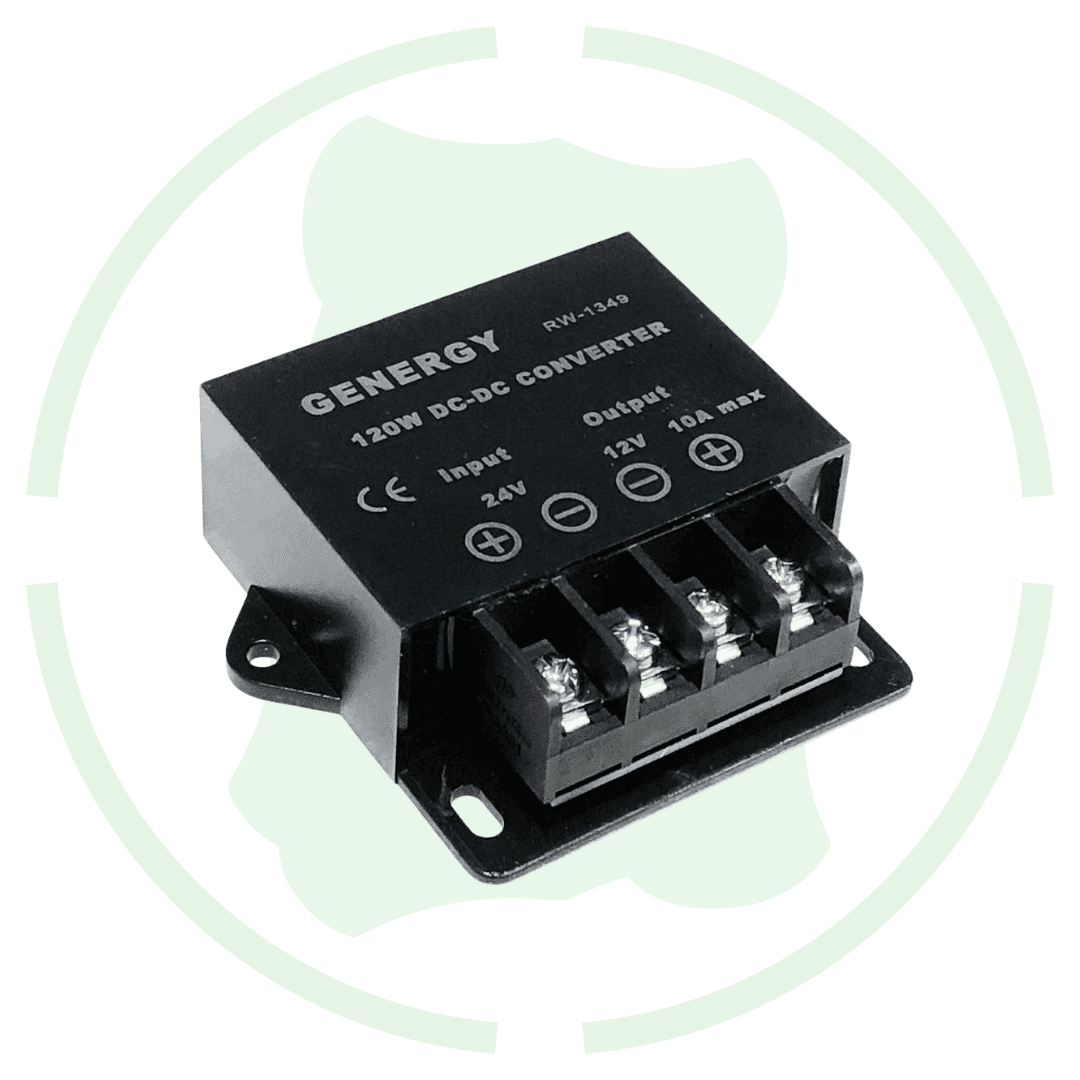

Overview of this g-energy 24v to 12v 10a 120w dc to dc converter

Introducing g-energy 24v to 12v 10a 120w dc to dc converter with plastic body and screw wire connection terminal at best price in India. This dc voltage converter is built with high quality plastic bod for use in harsh industrial condition. Its stable 12v output also make it most efficient converter for many dc operated device.

Features

Big input voltage range: This 24v to 12v voltage converter smoothly wok on wide input voltage range from 18v to 36 for its more versatile use.

High 120W power: This dc voltage converter can provide high power upto 120w with maximum current upto 10a for multiple industrial equipment.

Safety features: This 24v to 12v dc dc converter come with under voltage and short circuit protection for addition safety for converter and connected circuit.

Specification

Input Voltage Range: 18V to 36V DC

Output Voltage: 12V DC

Output Current: 10A

Output Power: 120W

Conversion Efficiency: Up to 95%

Ripple & Noise: < 150mV

Protection Rating: IP68 (Waterproof and Dustproof)

Cooling Method: Natural Air Cooling

Operating Temperature: -40°C to +80°C

Short Circuit Protection: Yes

Over-Current Protection: Yes

Over-Voltage Protection: Yes

Material: Aluminum Alloy Shell

Wiring:

Input: Screw (+), Screw (–)

Output: Screw (+), Screw (–)

Dimensions: 74mm x 32mm x 18mm
