G-energy GESPSDS241205 24V To 12V 5A 60W Dc To Dc Buck Converter

Overview of this 24v to 12v 5a 60w dc to dc buck converter

Introducing G-energy 24v to 12v 5a 60w dc to dc buck converter at best price in India with G-energy. This synchronous rectification technology based dc to dc converter can provide upto 92% energy conversion and make it one of the most efficient voltage converter solution. It is built with screw terminal wire connection method for easy input and output wire connection.

Features

Screw terminal wire connection: It built with screw terminal for safe wire connection method in different industrial device setup.

Fix 12v dc output: This converter provide a stable 12v for different industrial equipment.

Wide input voltage range: This 24v to 12v dc dc converter work on a wide input voltage range from 18v to 36v and provide maximum output power up to 60w.

High quality plastic body: It is built with high quality plastic body for its long life and smooth performance.

Specification

Product Type: DC-DC Converter

Brand: G-Energy

Conversion Type: Step-down (Buck Converter)

Input Voltage: 24V DC (Range: 18V – 36V)

Output Voltage: 12V DC

Output Current: 5A

Power Output: 60W

Efficiency: ≥ 90%

Protection Features: Overload, Overvoltage, Short Circuit, Overheat

Cooling Method: Passive (Aluminum Heatsink)

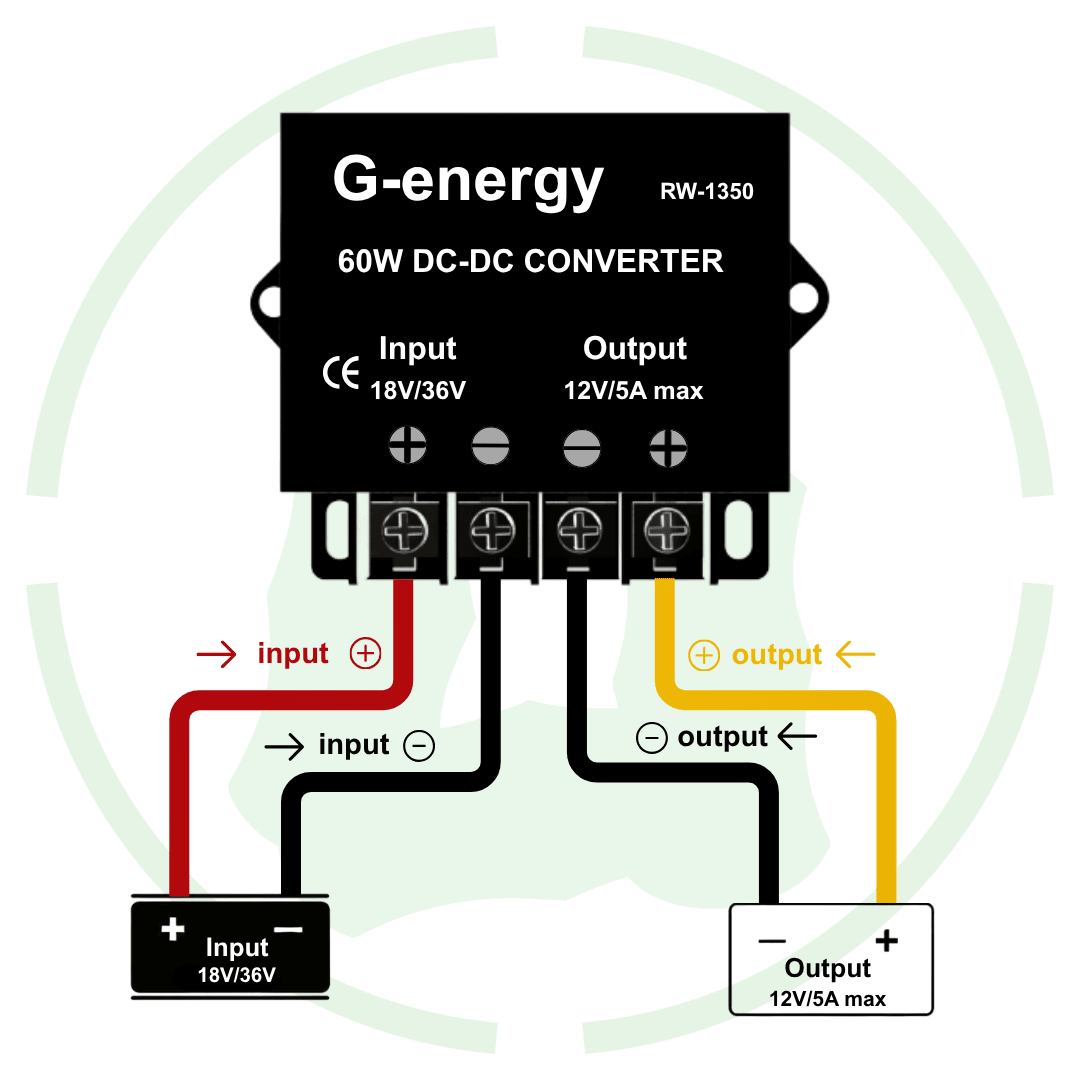

Wire Connections:

Input: Screw (+), Screw (–)

Output: Screw (+), Screw (–)

Operating Temperature: -40°C to 80°C

Dimensions: ~74mm × 74mm × 32mm

Weight: ~150g
