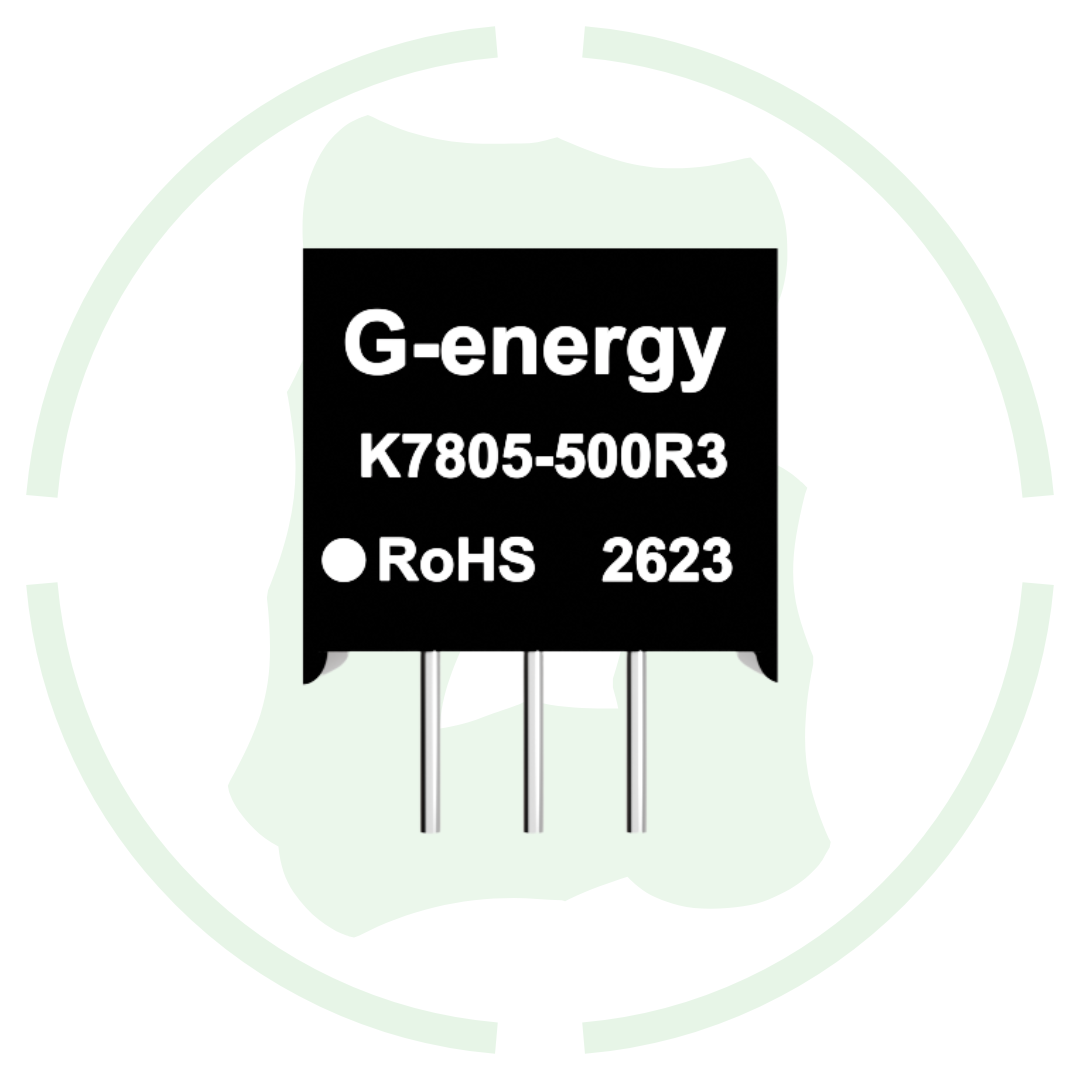

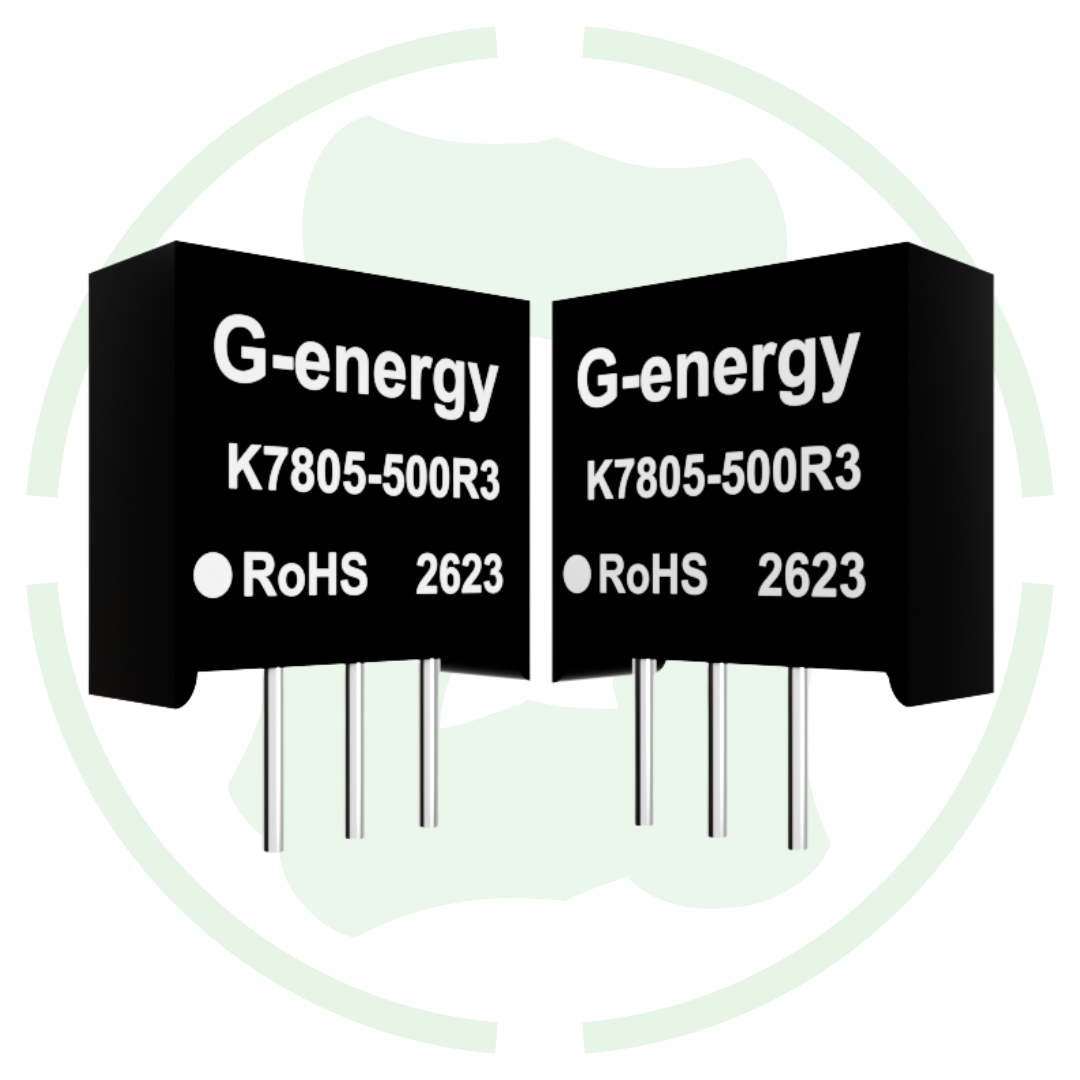

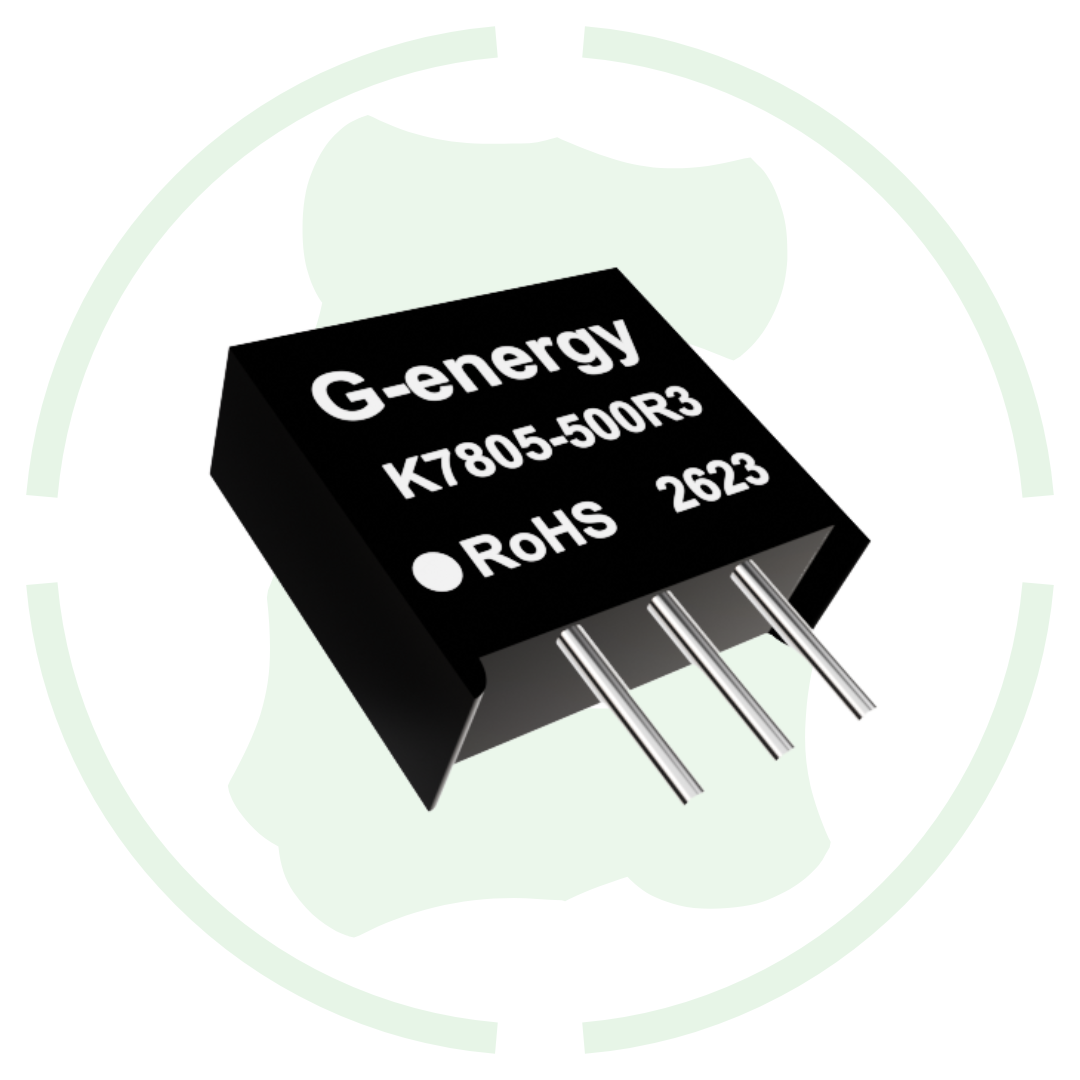

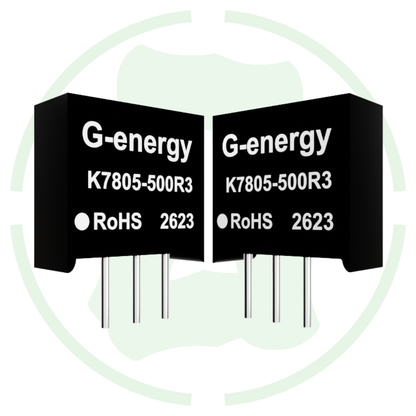

G-energy K7805-500R3 24V To 5V 500mA 2.5W Dc Dc Converter

Overview of this K7805-500R3 24V To 5V 500mA 2.5W Dc Dc Converter

Introducing g-energy K7805-500R3 24v to 5v 500mA 2.5w dc dc converter at best price in India. This buck converter work on 6.5V to 36V dc input voltage and provide a fix 5v dc output voltage. It is also built with SIP(single inline package) 3 pin mounting for easy mounting on pcb.

Features

Wide input voltage: It is work on 6.5v to 36v dc input voltage for its use in multiple input voltage and use in multiple setups.

5V Fix output: It also provide a fix 5v dc output voltage to a stable operation.

Ip68 built: It is built with ip68 rated water proofing and dust proofing for converter use in harsh condition and connection safety.

1.Input Voltage Range: 6.5-36V

2. Output Voltage: 5V DC

3. Output Current: 500mA

4. Output Power: 2.5W

5. Efficiency: Up to 90%

6. Line Regulation: ±0.2% (Max)

7. Load Regulation: ±0.5% (Max)

8. Ripple and Noise: 30Vp-p

9. Nominal Input Voltage: 12V/24V/36V

🌡 Environmental Specifications

• Operating Temperature Range: -40°C to +80°C

• Storage Temperature Range: -40°C to +100°C

• Humidity Range: 10% to 90% RH

🛡 Protections and Features

• Waterproof Rating: IP68

• Protections Included:

  • Short Circuit

  • Over current

  • Under voltage

  • Over temperature

  • Under voltage recovery

📦 Mechanical & Physical

• Dimensions: 11mm × 10mm × 7mm
• Weight: 1.7 gm
• Cooling Method: Free air convection (no fan required)
