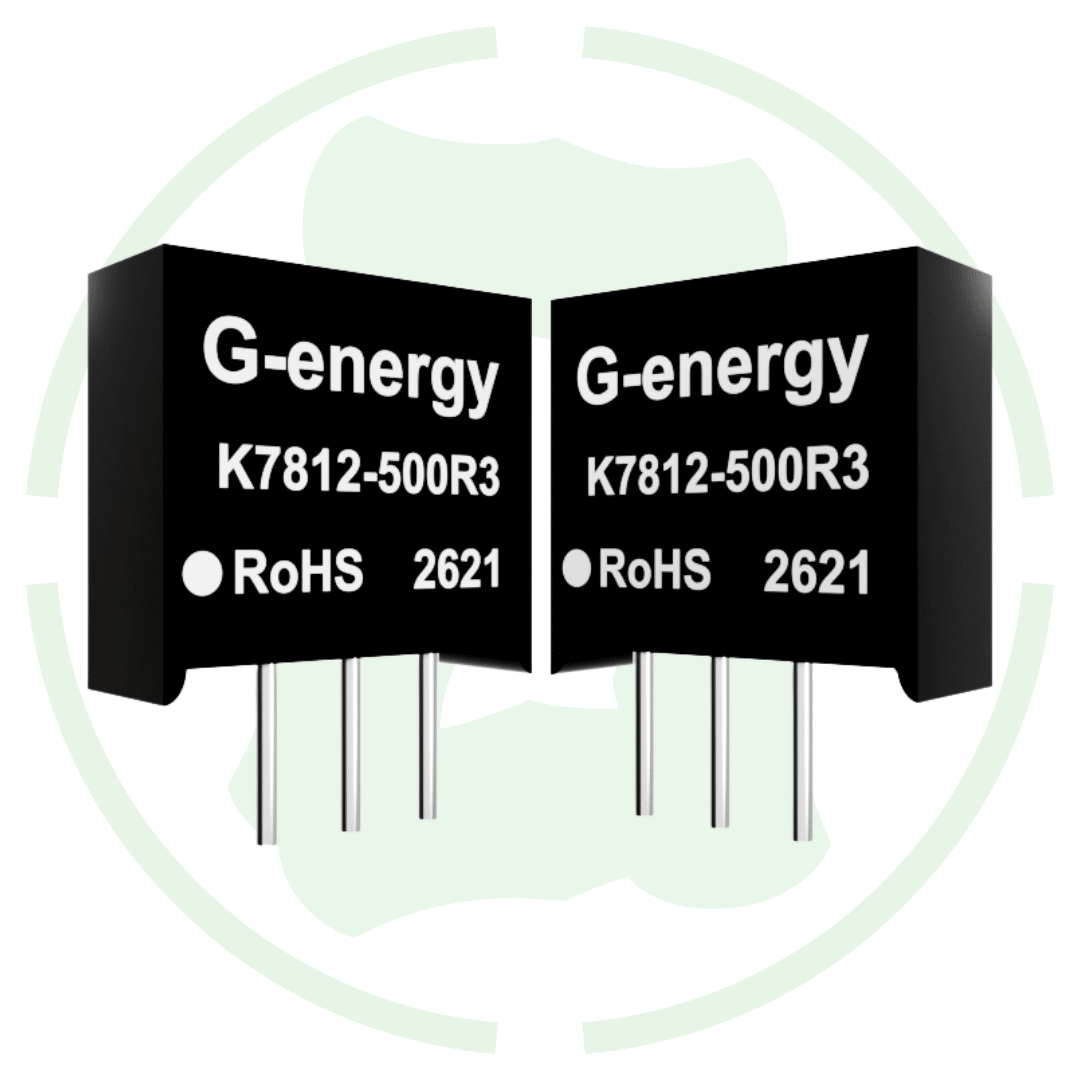

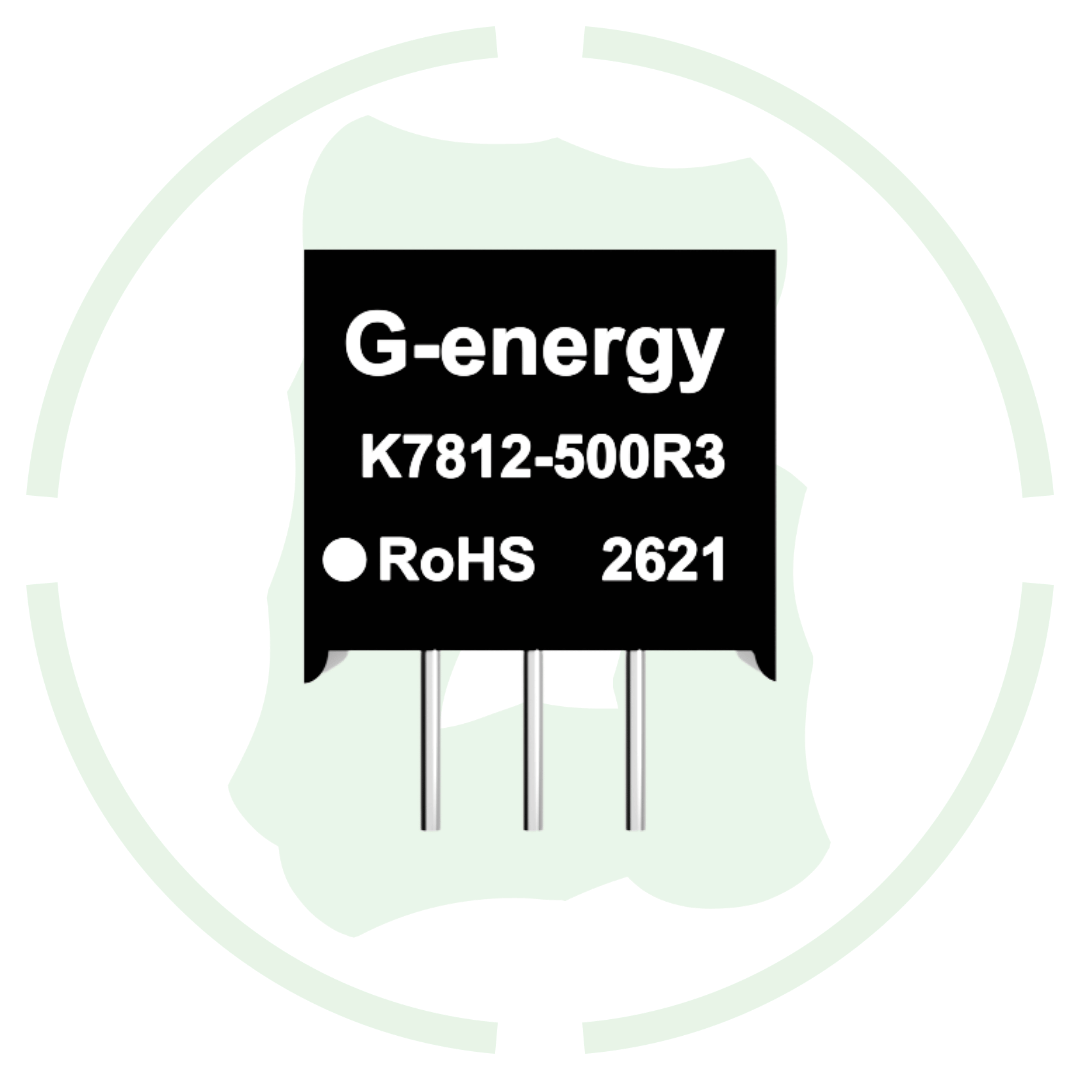

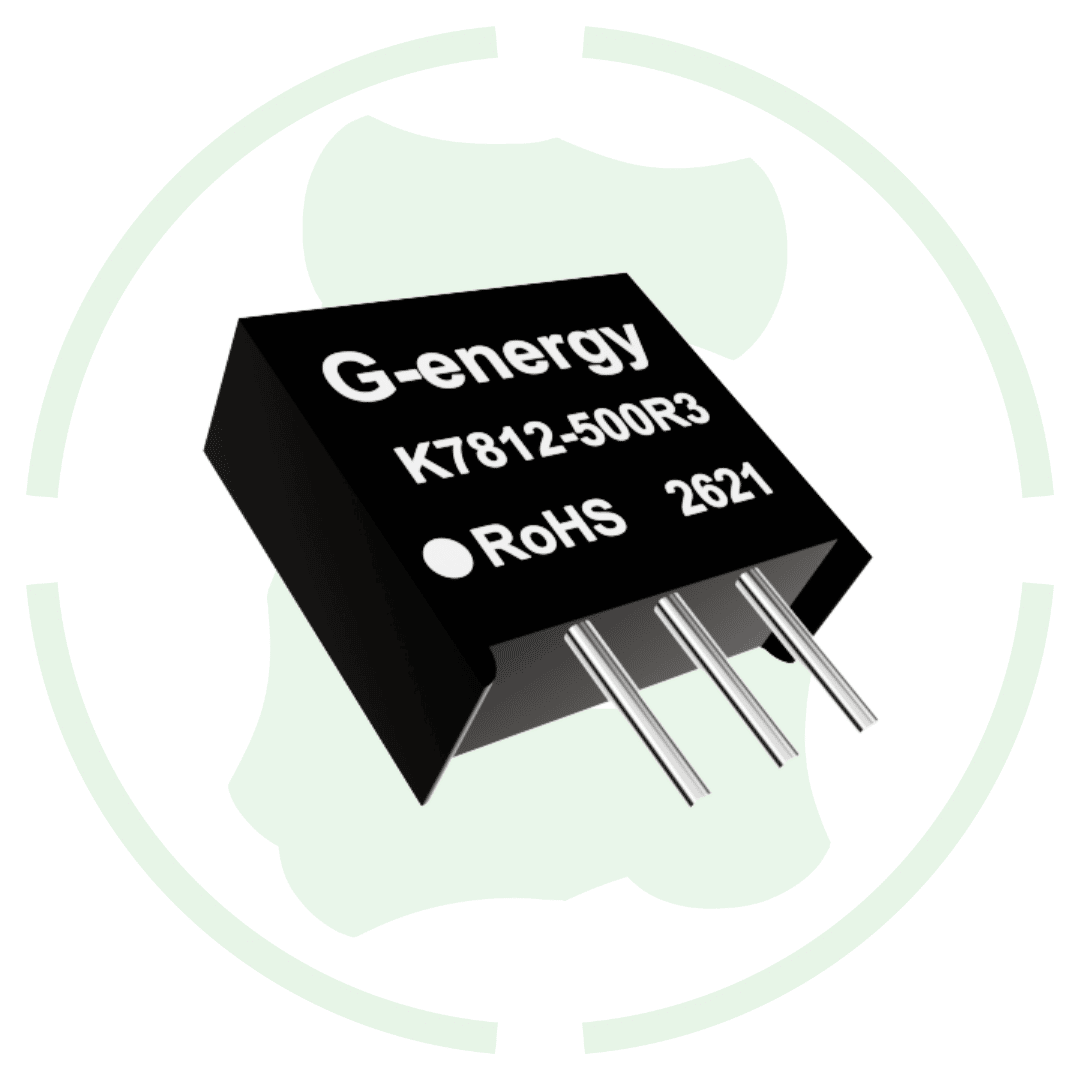

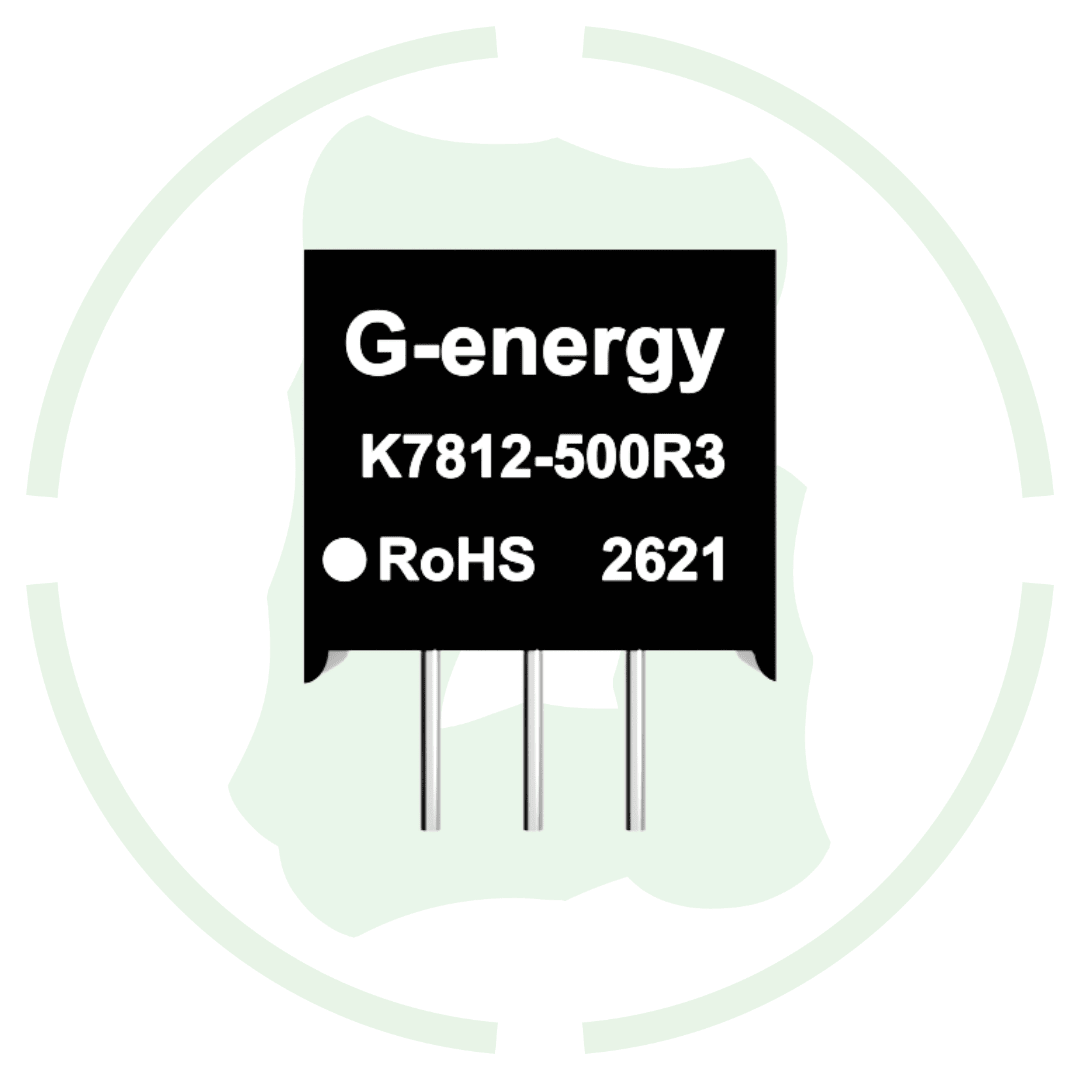

G-energy K7812-500R3 24V To 12V 500mA 6W Dc Dc Converter

Overview of this G-energy K7812-500R3 24V To 12V 500mA 6W Dc Dc Converter

Introducing G-energy K7812-500R3 24v to 12v 500mA 6w dc dc converter at best price in India. This buck voltage converter work on input voltage of 15v to 36v dc and provide a fix 12v dc output. It also provide a dc current up to 500mA and 6w dc power for smooth low power operations.

Features

12V Fix output: This buck converter provide a fix 12v dc output for table operation in voltage sensitive devices.

Input voltage: This buck converter can operate on input voltage of 15v to 36v dc input voltage range.

6W Dc Power: This K7812-500R3 dc converter can provide up to 6w dc power for low power operations.

Specification

1.Input Voltage Range: 15-36V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: Up to 94%

6. Line Regulation: ±0.2% (Max)

7. Load Regulation: ±0.5% (Max)

8. Ripple and Noise: 30/50mVp-p

🌡 Environmental Specifications

• Operating Temperature Range: -40°C to +80°C
• Storage Temperature Range: -40°C to +100°C
• Humidity Range: 10% to 90% RH

📦 Mechanical & Physical

Dimensions: 25mm × 25mm × 11mm

Weight: 13 gm

Cooling Method: Free air convection (no fan required)
