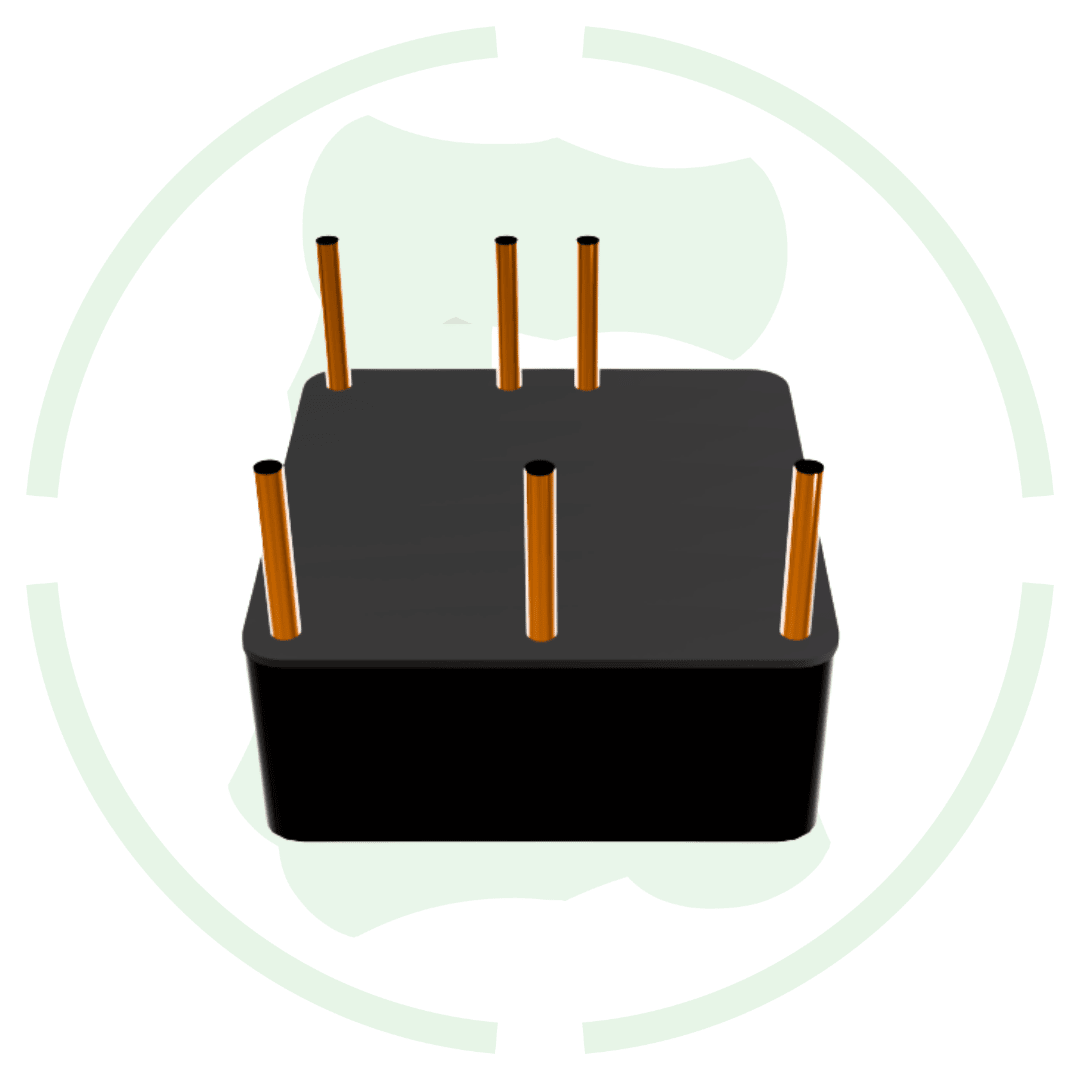

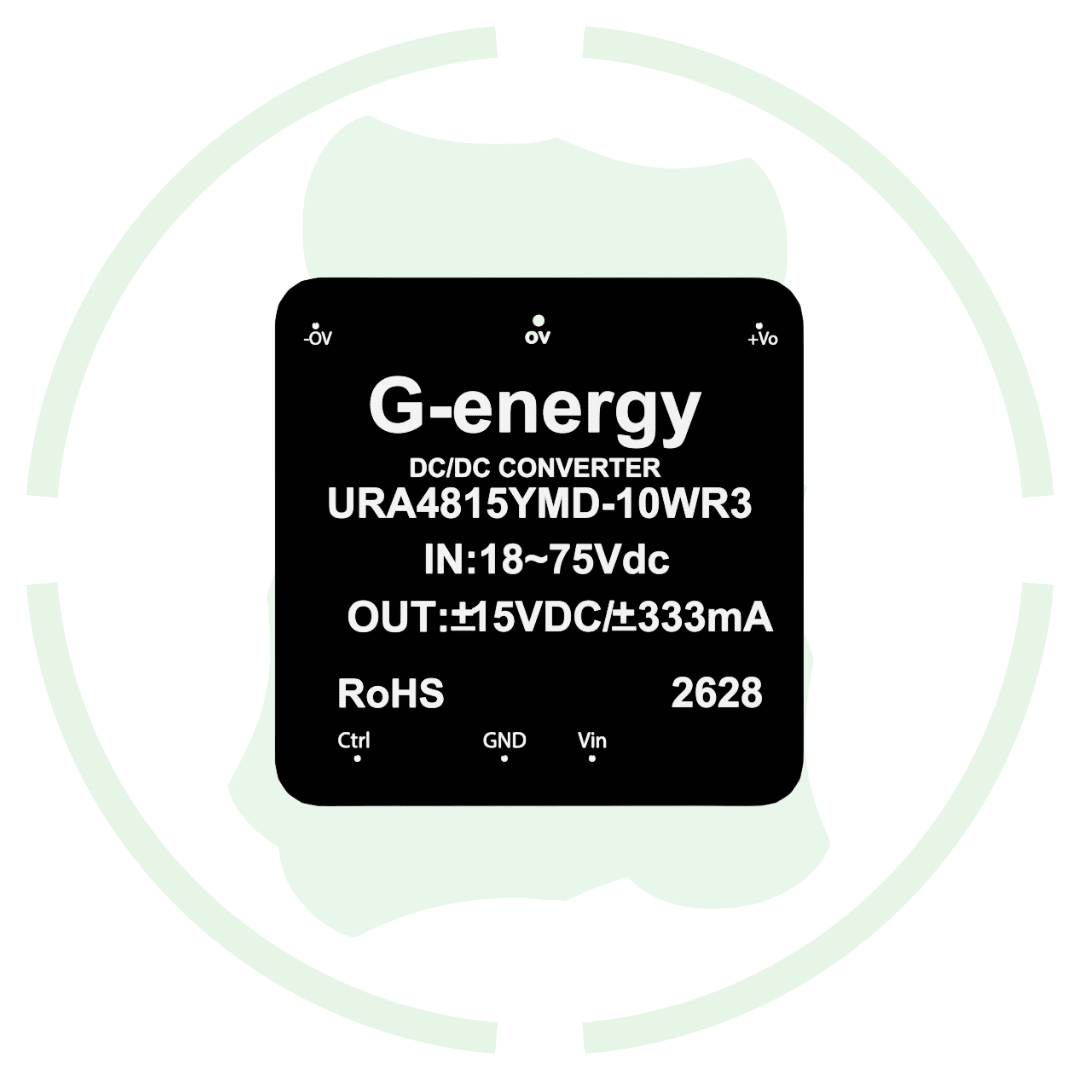

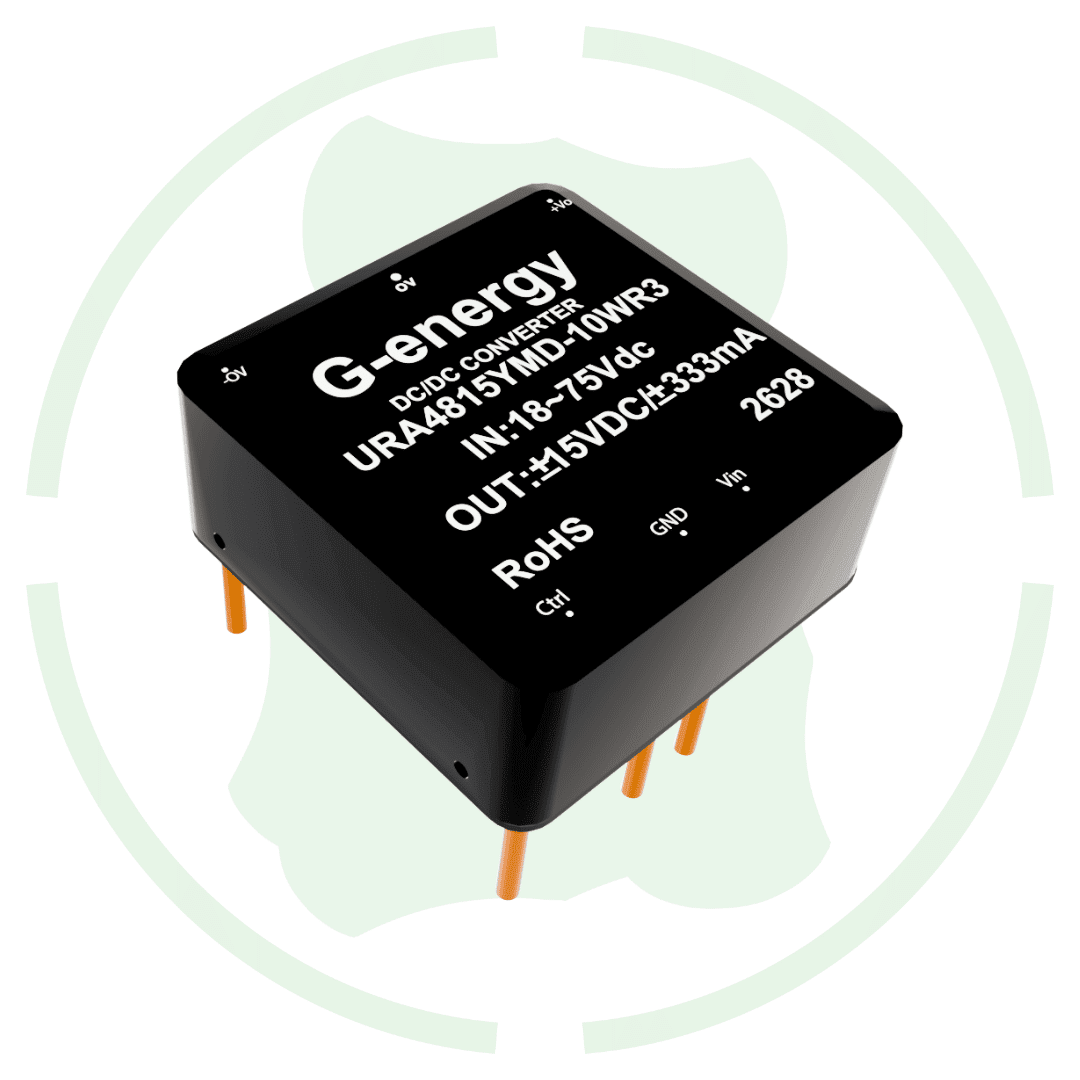

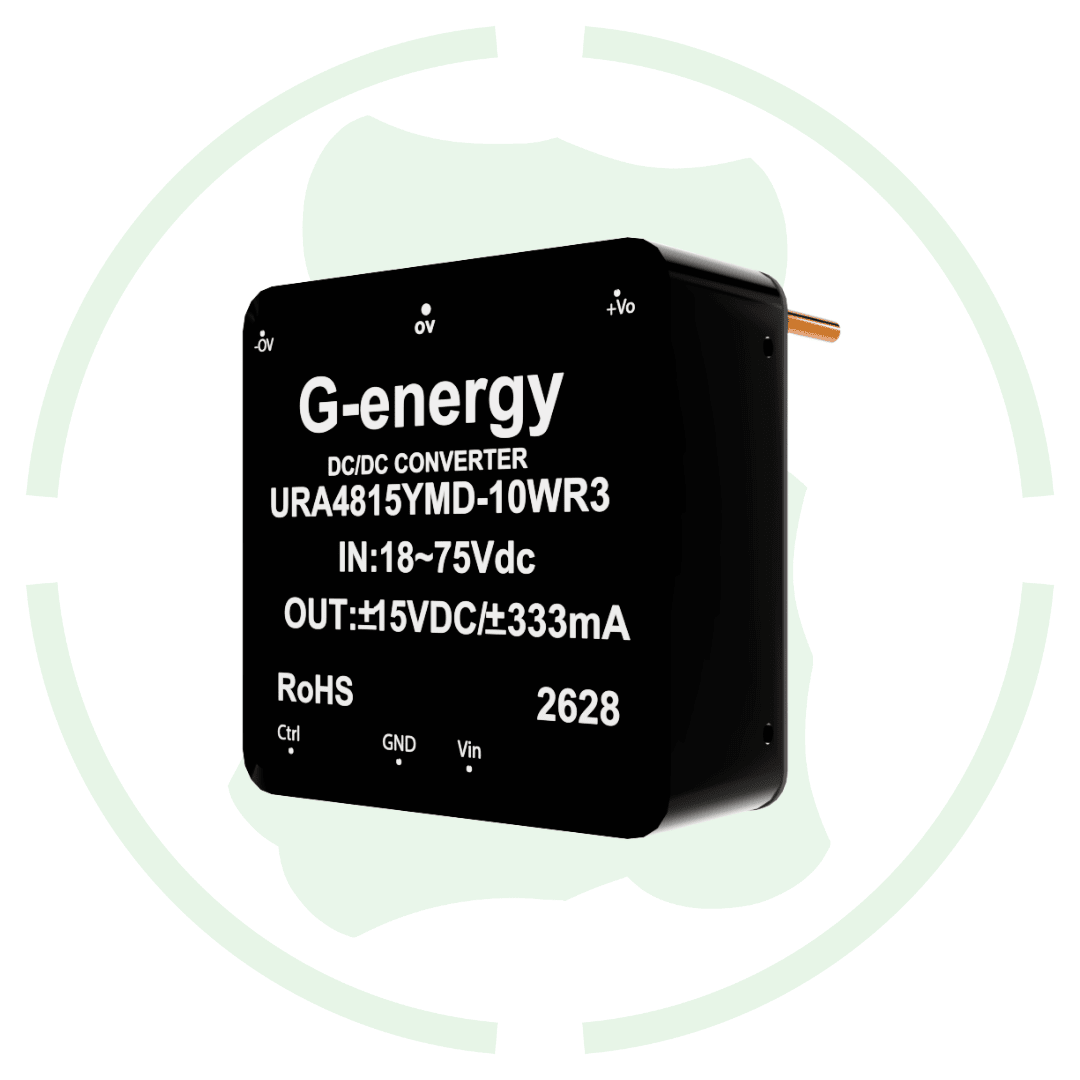

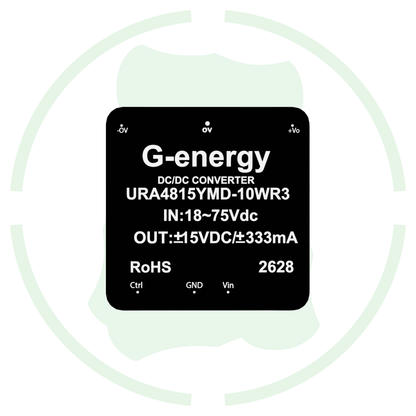

G-energy URA4815YMD-10R3 48V To 15V 10W Dc Dc Converter Isolated Buck Vonverter

Overview of this G-energy URA4815YMD-10R3 48V To 15V 10W Dc Dc Converter

Introducing G-energy URA4815YMD-10R3 48v to 15v 10w dc to dc converter at best price in India. This buck converter work on 18v-75v dc input and convert it in to a stable 15v dc output. It also come with multiple feature including under voltage shut down , short circuit protection, over load protection,

Features

Fix 15v output: It provide a fix 15v dc output in changing input condition of 18-75v dc input voltage.

10W dc power: It provide a stable power up to 10w dc output for stable low power dc operations.

Safety features: It also come with safety features including short circuit protection, under voltage, over load and ip68 rated water proofing.

Specification

1.Input Voltage Range: 18-75V

2. Output Voltage: 15V DC

3. Output Current: 666mA

4. Output Power: 10W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24/36/48/60/72V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C
12. Storage Temperature Range: -40°C to +100°C
13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68
15. Protections Included:
    • Short Circuit
    • Over current
    • Under voltage
    • Over temperature
    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 13.5mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
