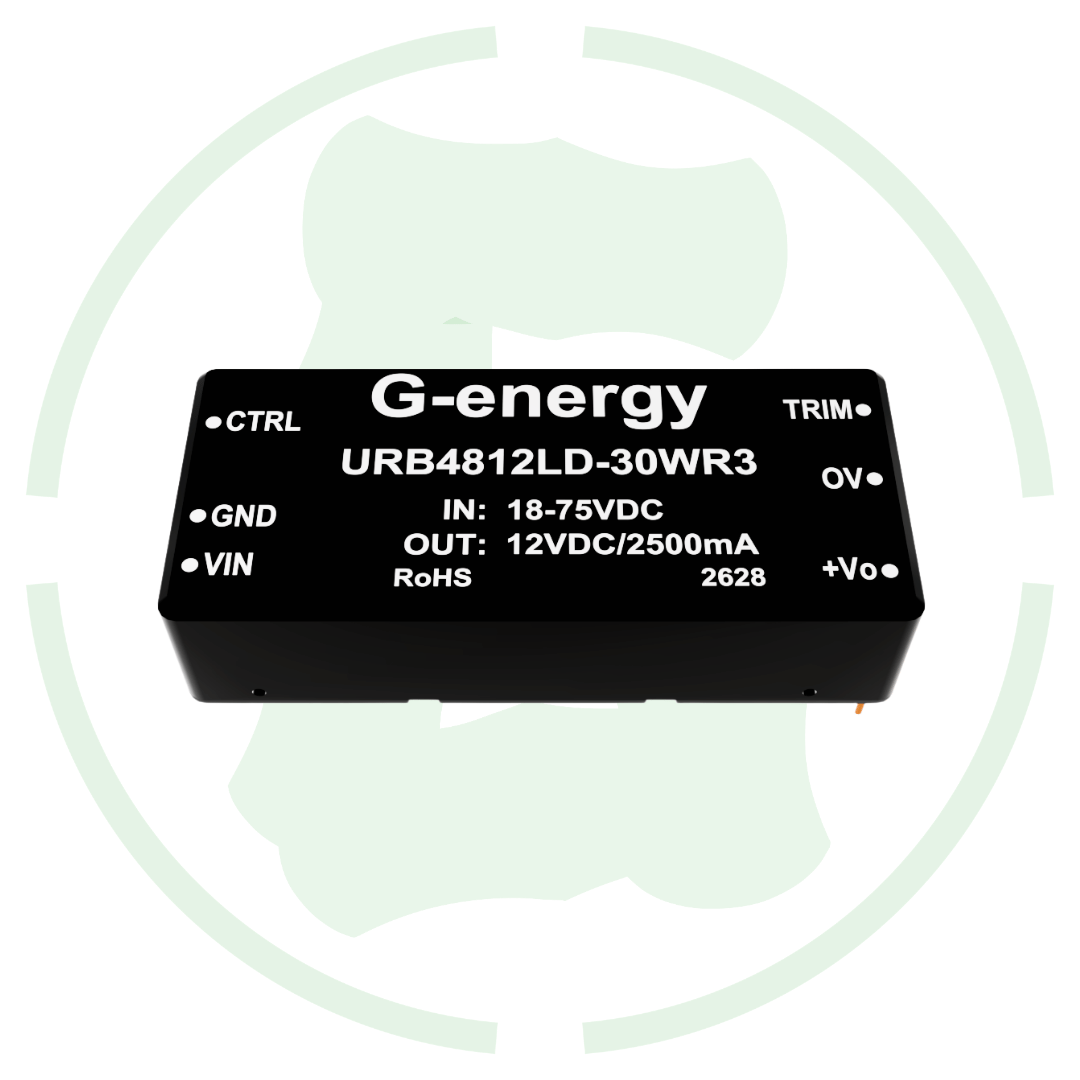

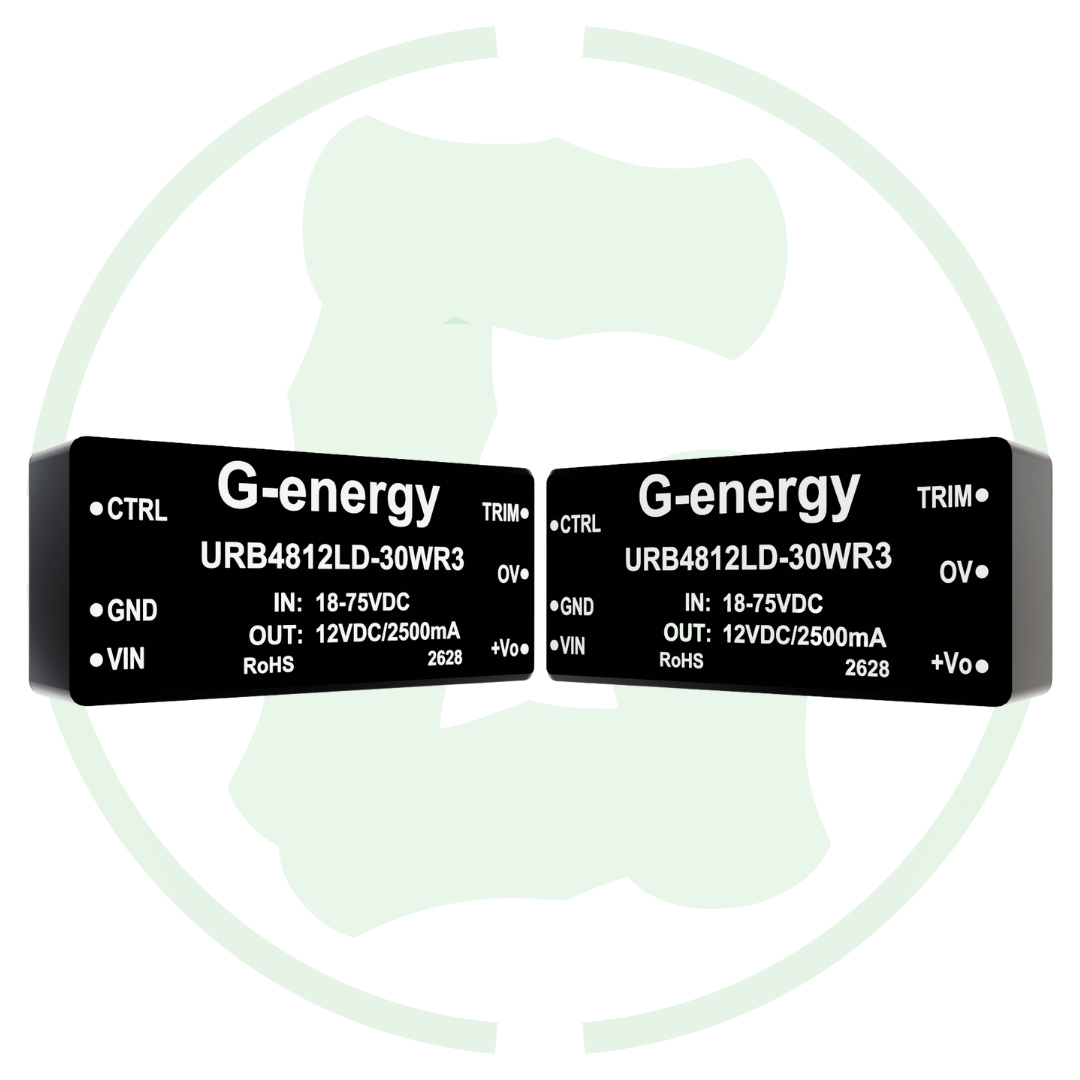

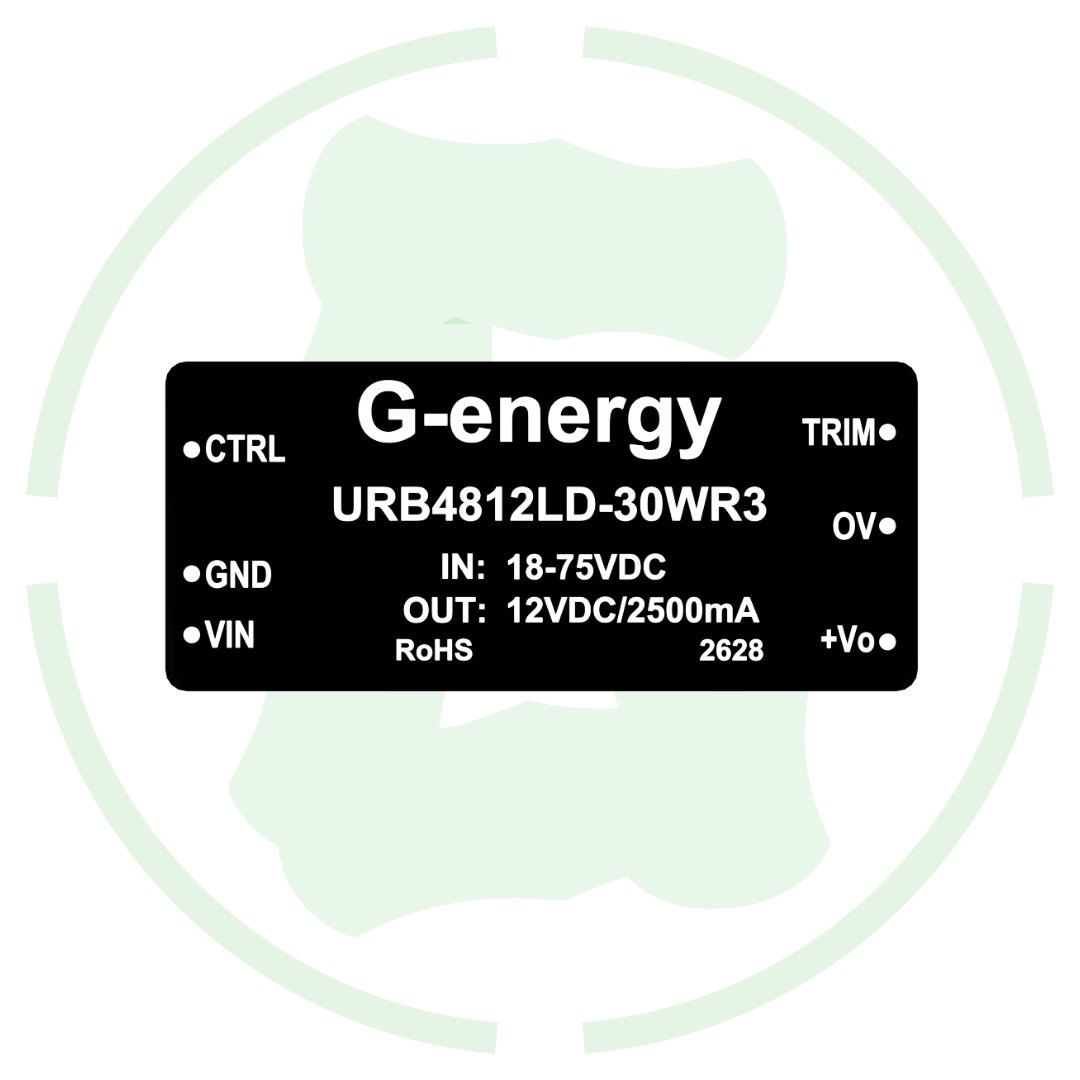

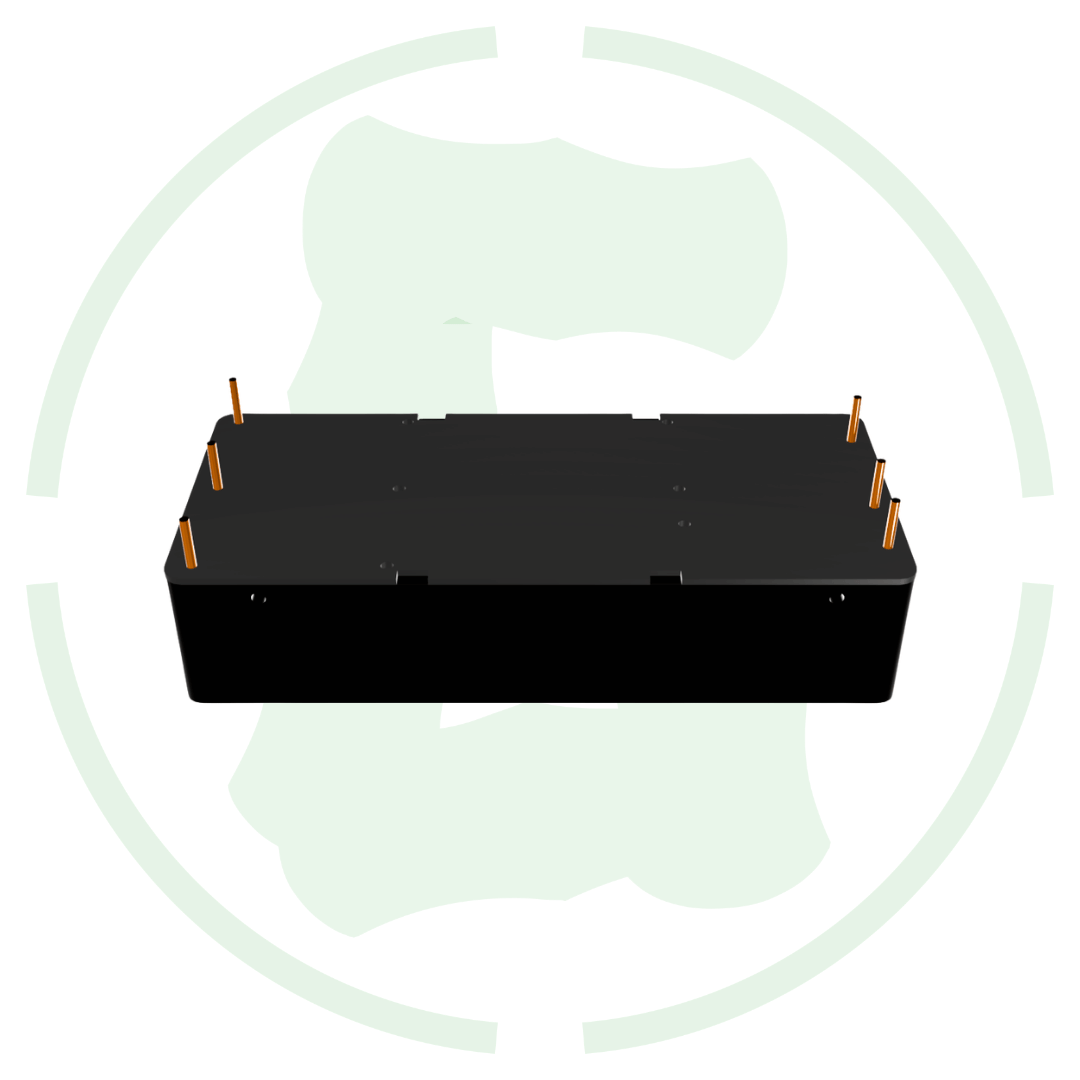

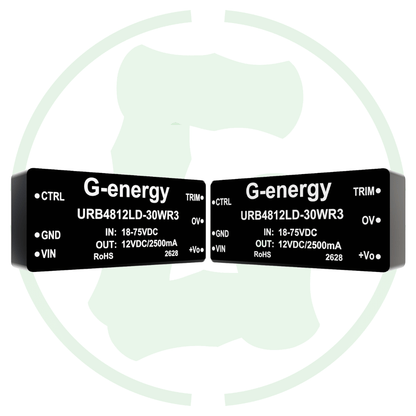

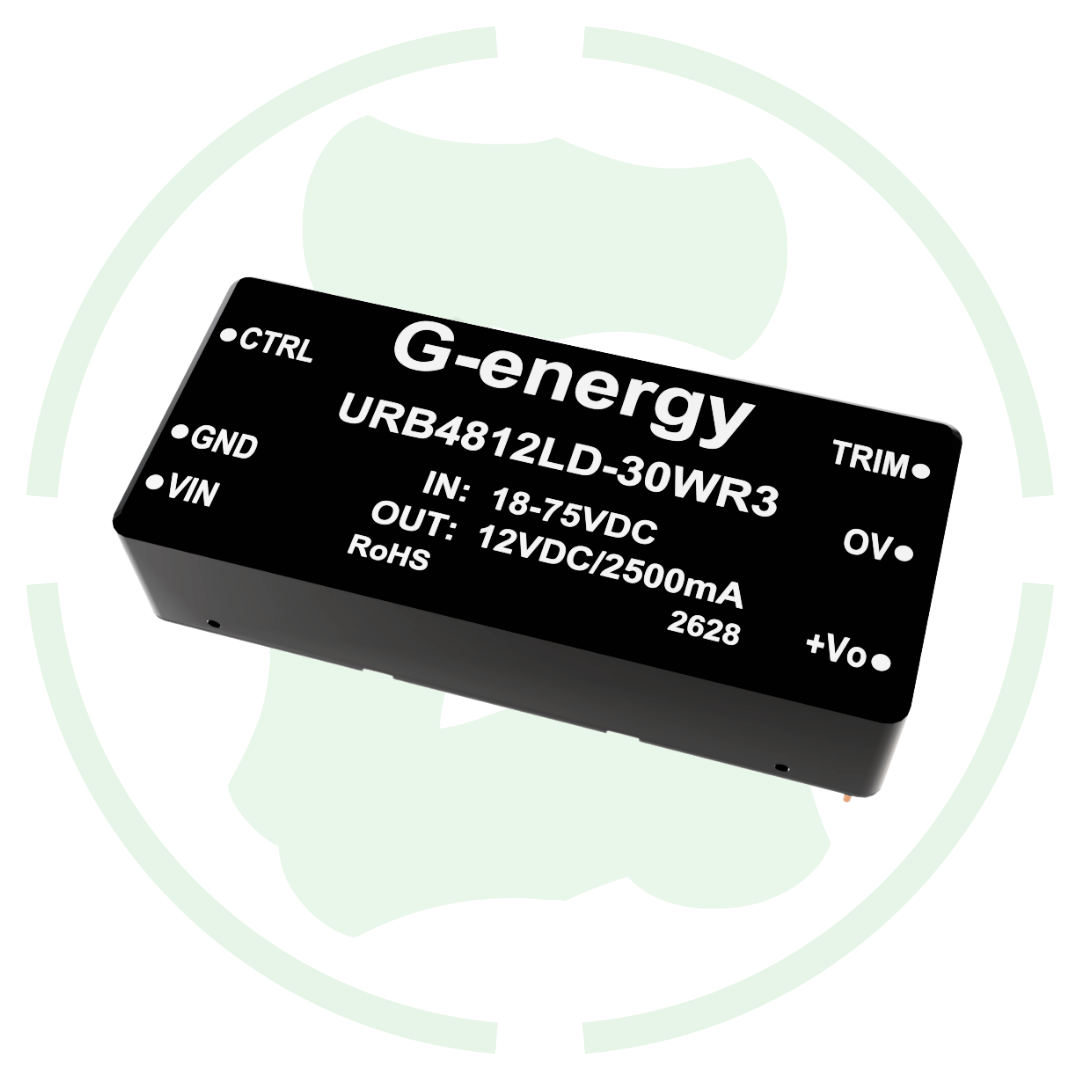

G-energy URB4812LD-30WR3 48V to 12V 2.5A 30W DC DC Converter

Overview of this G-energy URB4812LD-30WR3 48v to 12v 2.5a 30w dc dc converter

Introducing G-energy URB4812LD-30WR3 48v to 12v 2.5a 30w dc dc converter at best price in India. This voltage converter work on a wide input voltage of 18v to 75v dc input voltage and provide a fix 12v dc output. It also provide up to 2.5a dc current and 30W max dc power.

Features

Wide input voltage: It smoothly work on 18v to 75v dc input voltage for smooth operation in changing input conditions.

Fix 12V Dc output: It provide a fix 12v dc output voltage for smooth operation of 12V dc devices.

30W high power: It provide a high dc power up to 30w dc power for high power pcb devices.

Specification

1.Input Voltage Range: 18-75V

2. Output Voltage: 12V DC

3. Output Current: 2500mA

4. Output Power: 30W

5. Efficiency: Up to 89%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24/36/48/60/72V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 50mm × 25mm × 13.5mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
