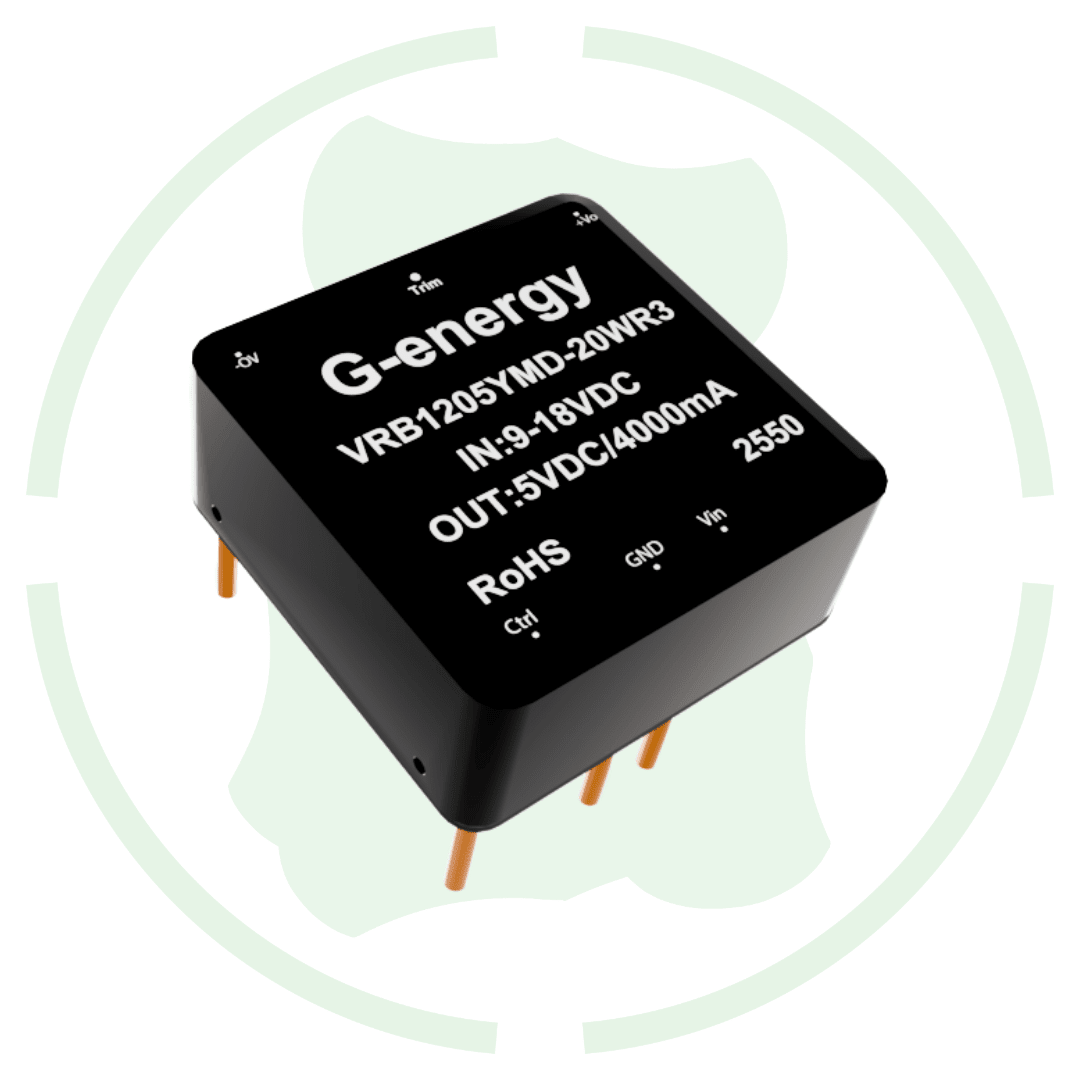

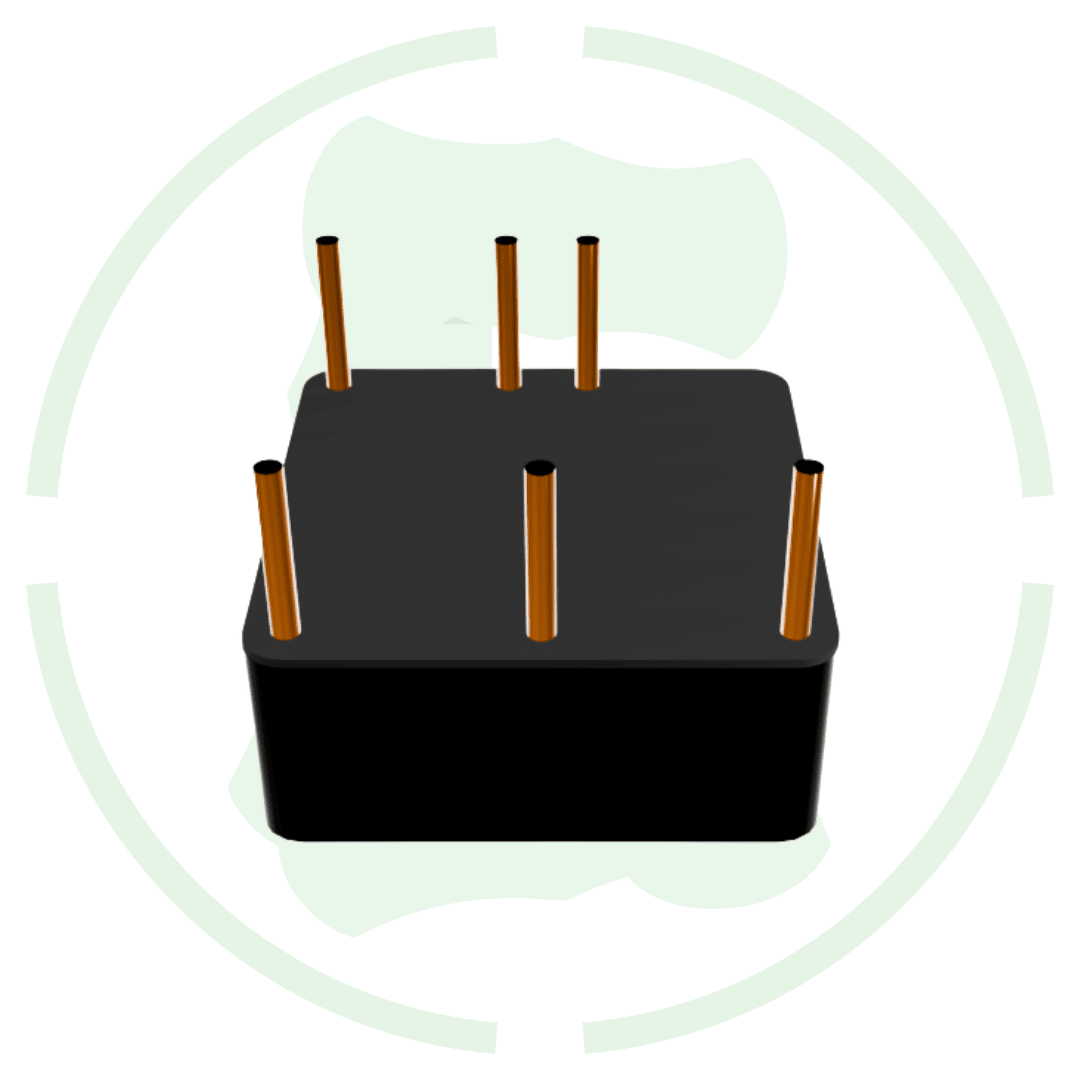

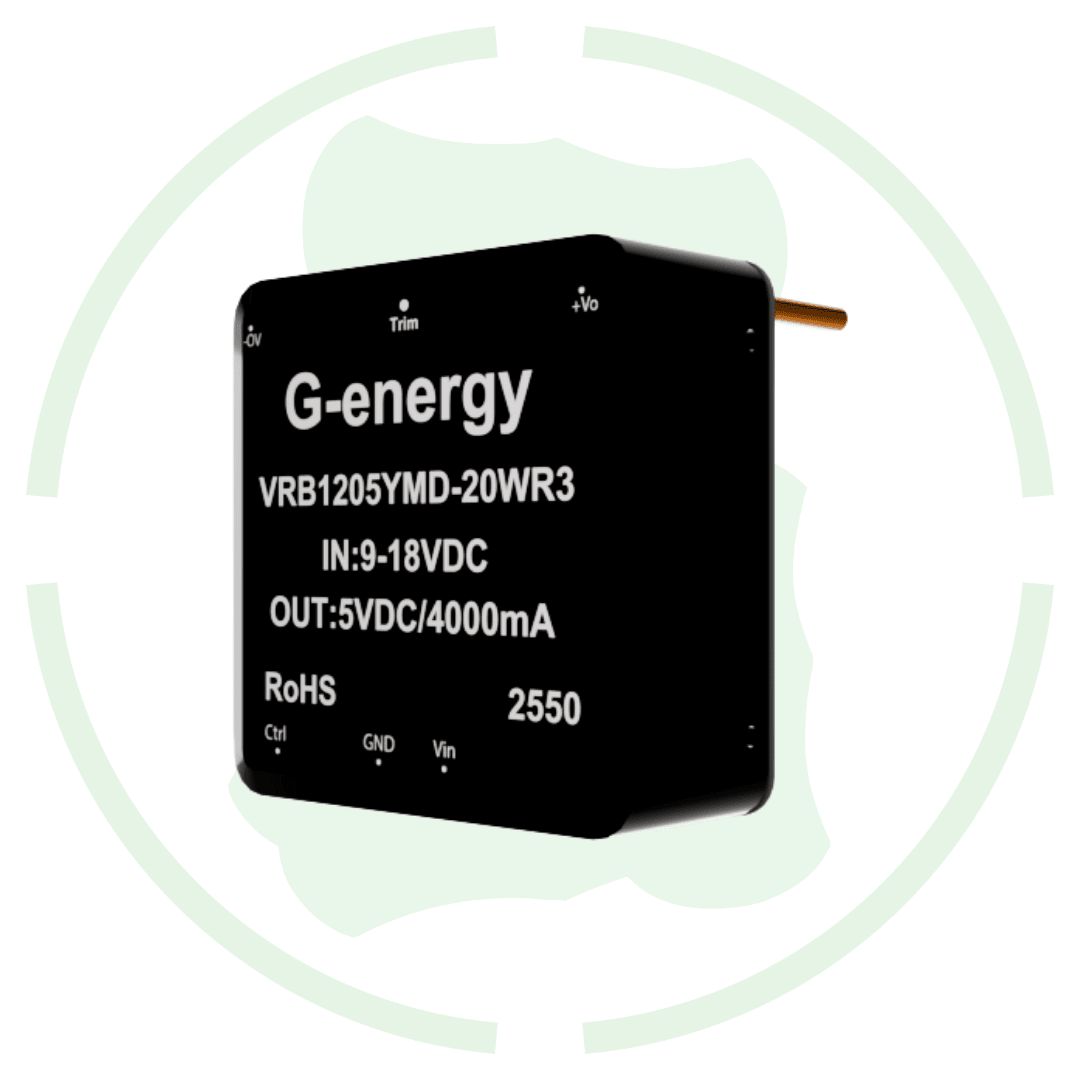

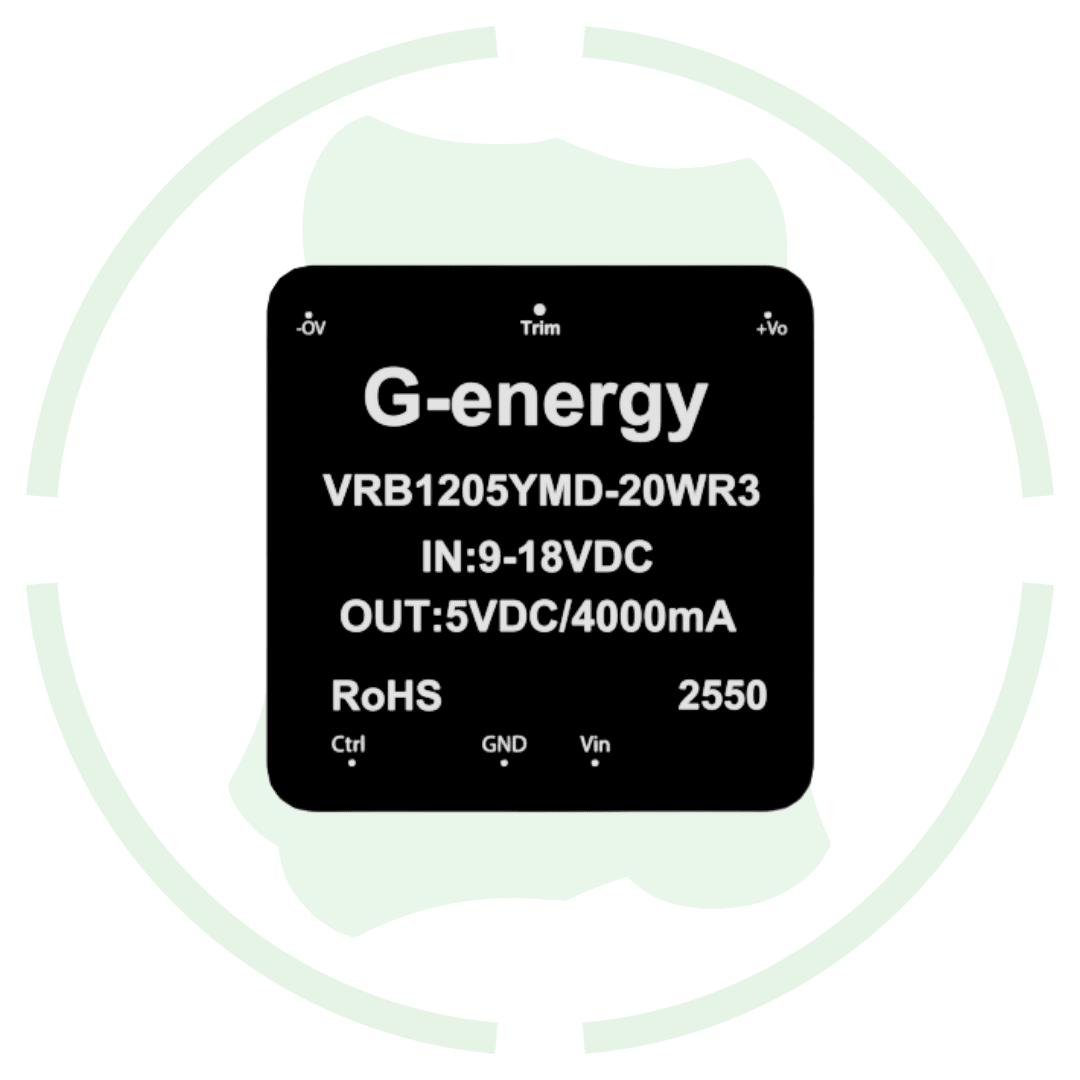

G-energy VRB1205YMD-20WR3 12V To 5V 20W Dc Dc Converter

Overview of this VRB1205YMD-20WR3 12v to 5v 20w dc dc converter

Introducing g-energy vrb1205ymd-20wr3 12v to 5v 20w dc dc converter at best price in India. This voltage converter work on input voltage range from 9v to 18v. And it also provide high dc power up to 20w and max dc current up to 4a.

Features

9v-18v input voltage range: This vrb1205ymd-20wr3 converter can smoothly work on wide input voltage of 9v to 18v for smooth operation in changing input condition.

20w power: It also provide a high dc power up to 20w and 4a max dc current.

Specification

1. Input Voltage Range: 9-18V

2. Output Voltage: 1205V

3. Output Current: 4000mA

4. Output Power: 20W

5. Efficiency: 90%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 24V/36V/48V72V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm ×12mm

17. Weight: 16gm

18. Cooling Method: Free air convection (no fan required)
