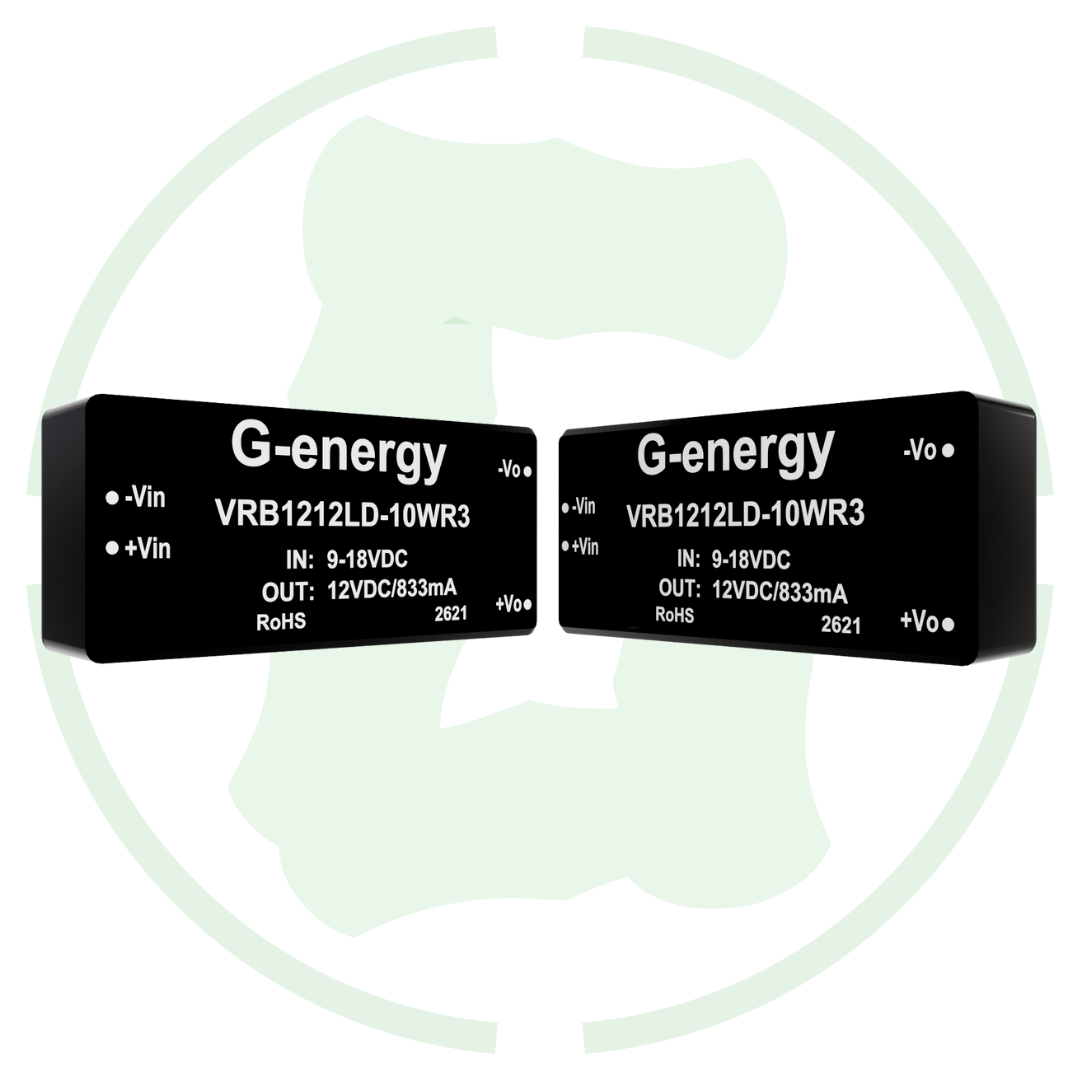

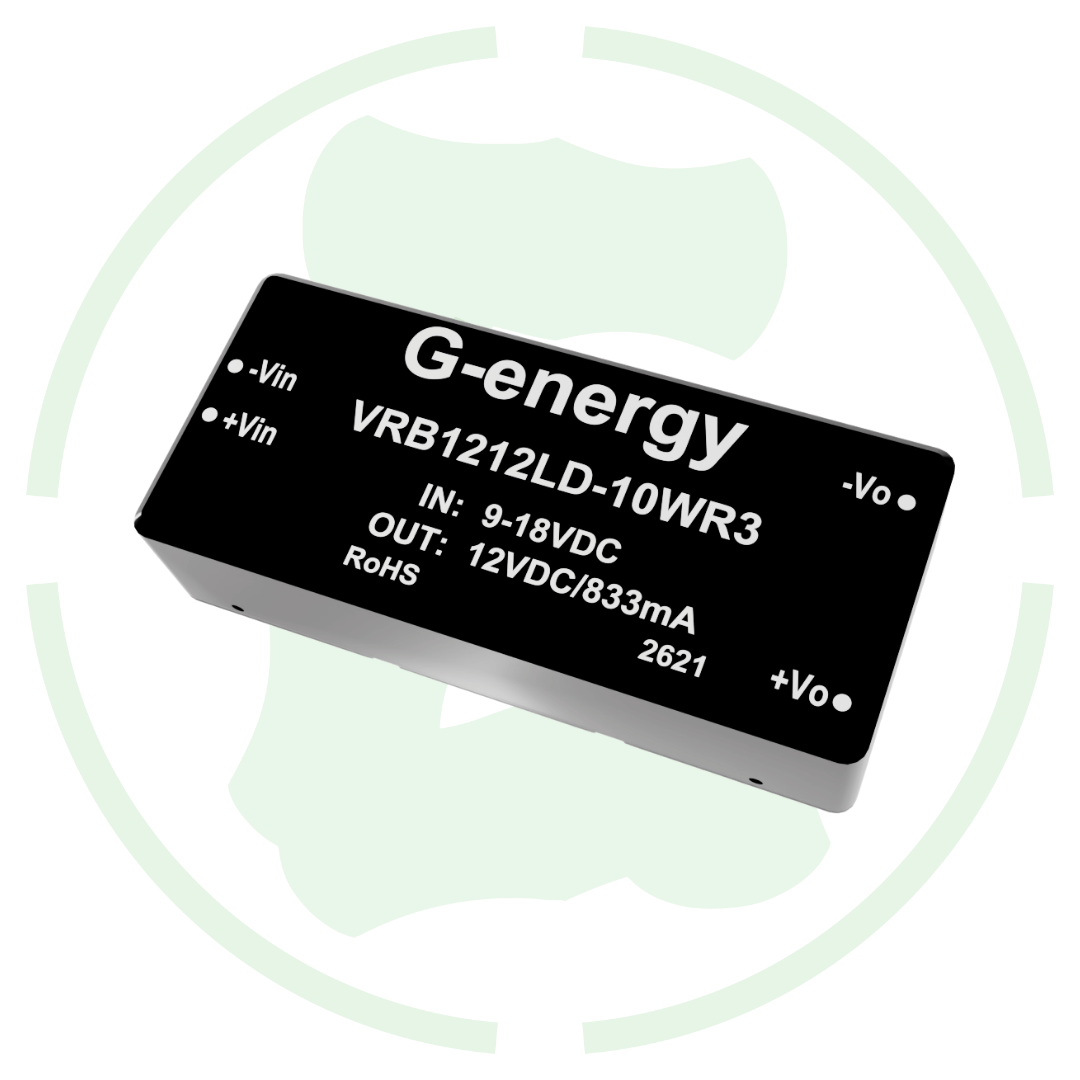

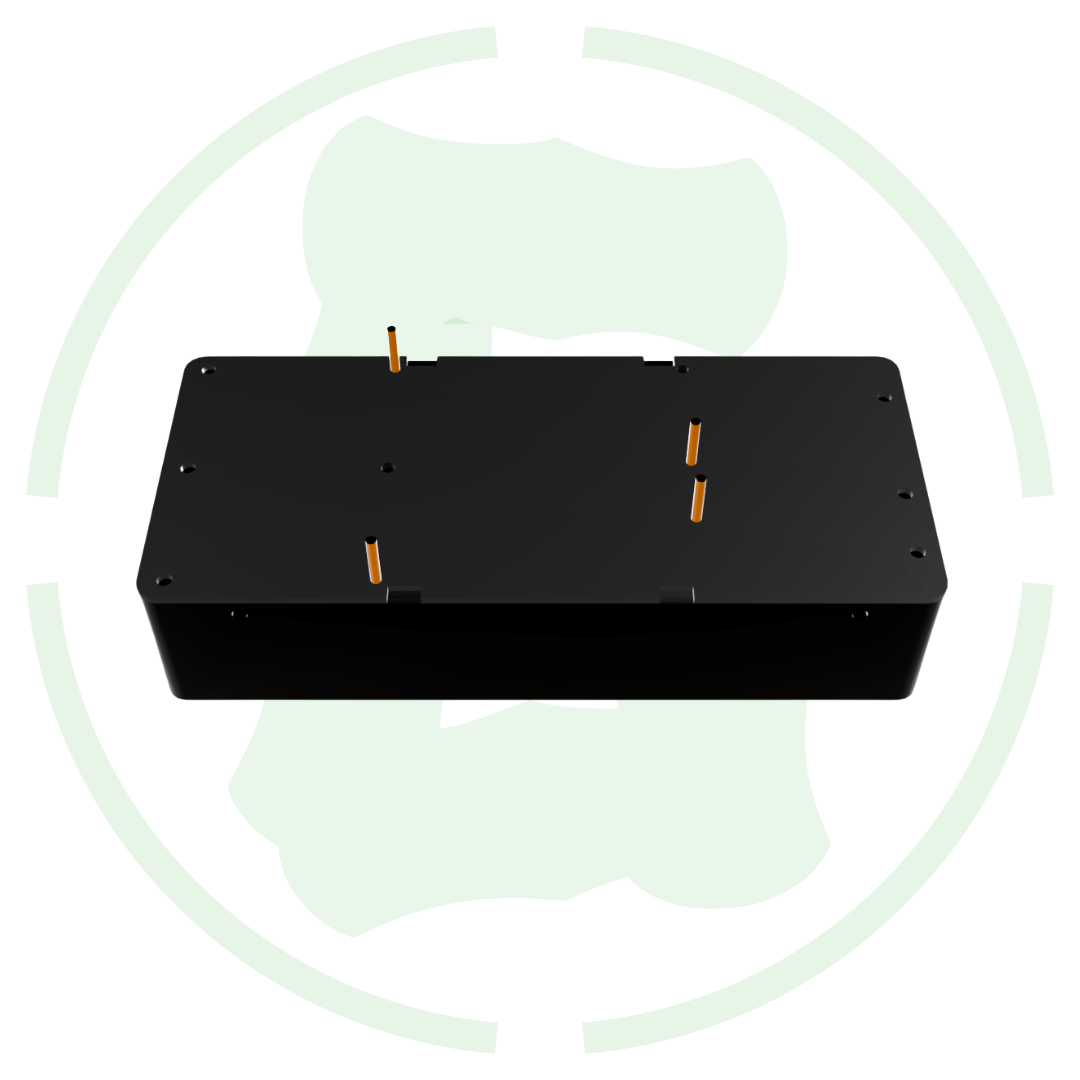

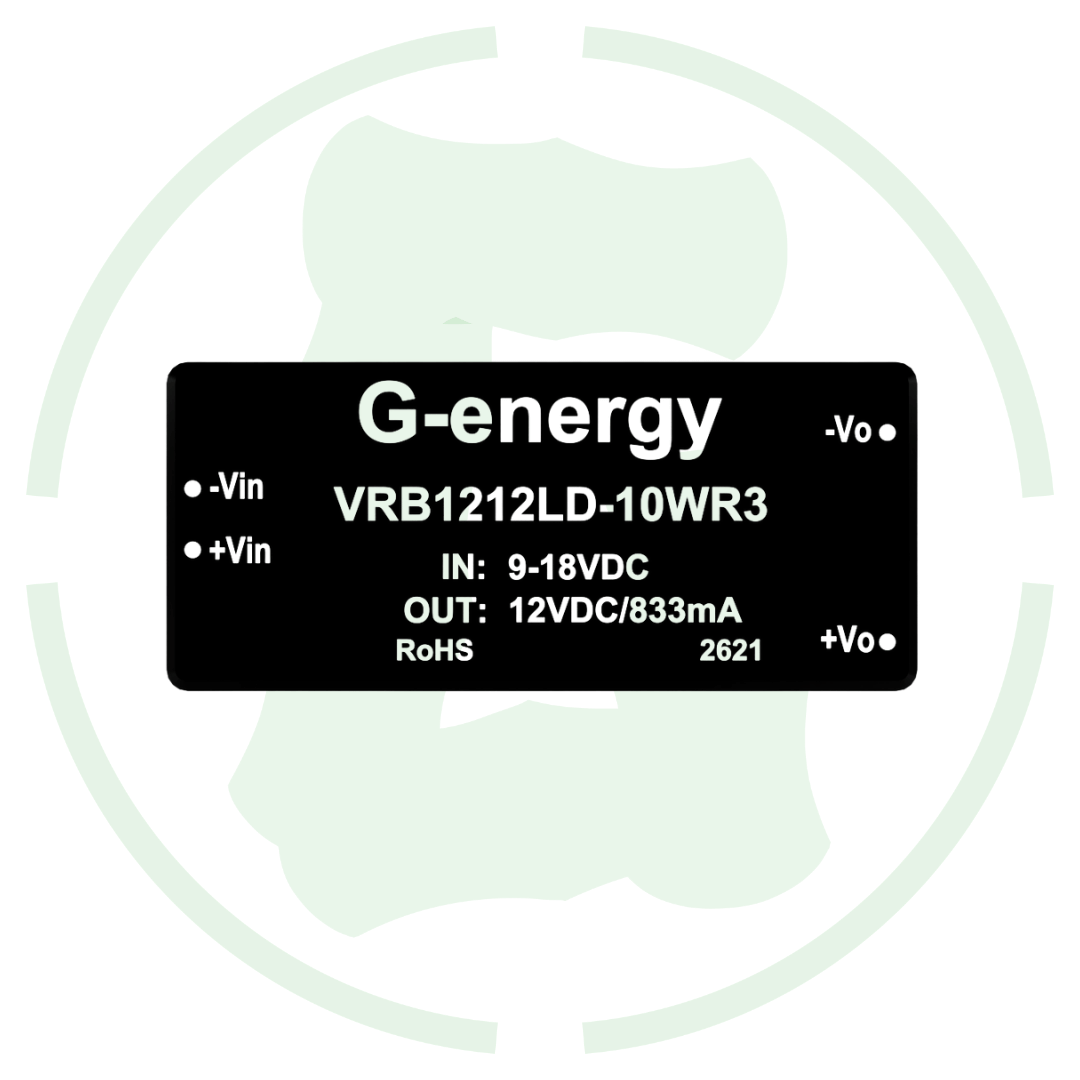

G-energy VRB1212LD-10WR3 9V-18V To 12V 10W Dc Dc Converter

Overview of this  G-energy VRB1212LD-10WR3 9V-18V To 12V 10W Dc Dc Converter

Introducing G-energy VRB1212LD-10WR3 9v-18v to 12v 10w dc dc converter at best price in India. This buck boost converter work on 9-18v dc input voltage and provide both buck and boost voltage conversion. It also provide a 12v dc output voltage with 10w dc power.

Features

10W dc power: It provide a fix dc power up to 10w to operate mid range dc power devices which operate on 12v dc voltage.

Buck Boost Function: It provide both buck and boost conversion for its use in multiple use case scenarios.

Ip68 Waterproofing: It is also built with ip68 rated waterproofing and DIP(dual inline package) for easy mounting.

Specification

1.Input Voltage Range: 9-18V

2. Output Voltage: 12V DC

3. Output Current: 833mA

4. Output Power: 10W

5. Efficiency: Up to 87%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/50mVp-p

🌡 Environmental Specifications

Operating Temperature Range: -40°C to +80°C

Storage Temperature Range: -40°C to +100°C

Humidity Range: 10% to 90% RH

🛡 Protections and Features

• Waterproof Rating: IP68
• Protections Included:

• • Short Circuit

  • Over current

  • Under voltage

  • Over temperature

  • Under voltage recovery

📦 Mechanical & Physical

• Dimensions: 50mm×25mm×12mm
• Weight: 22 gm
• Cooling Method: Free air convection (no fan required)
